Peptide-Mediated Targeting to Tumor Blood Vessels of Lung Cancer for Drug Delivery

During tumor progression, tumor cells require increased supplies of oxygen and metabolites, and the efficient removal of waste products. In fact, establishing access to the host vascular system and the generation of a tumor blood supply are the rate-limiting steps of the tumor progression process (1). Tumor blood vessels are prime targets for therapies involving the inhibition of tumor growth, and these vessels express specific markers which are absent in the blood vessels of normal tissues. Many of these specific marker molecules, selectively expressed in tumor blood vessels, are proteins associated with tumor-induced angiogenesis, the sprouting of new blood vessels (2). These include the cell adhesion receptors, integrins, α_vβ₃ and α_vβ₅, which are overexpressed in the tumor vasculature (3). Indeed, α_vβ₃ was recognized by an RGD peptide previously identified by in vivo phage display for tumor homing (4). Certain peptide ligands specific to these integrins have already been tested for the targeted delivery of anticancer and antiangiogenic agents (5). The finding of heterogeneity in the vasculature of normal and cancerous tissues provides promising opportunities for the targeted delivery of therapies.

Conventional chemotherapy is limited by the toxicity of the drugs to normal tissues. However, if these drugs could be preferentially directed to tumor sites or vessels instead of normal tissues, the toxic effects would be limited to the intended tumor tissue. Most small-molecule chemotherapeutic agents have a large volume of distribution on i.v. administration (6), often leading to a narrow therapeutic index due to the high toxicity to normal tissues. However, through encapsulation of the drugs in a macromolecular carrier, such as liposomes, the volume of distribution is significantly reduced and the concentration of drug in the tumor is increased (7). Liposomal doxorubicin represents a new class of chemotherapy delivery system that significantly improves the therapeutic index of doxorubicin in both preclinical (8–10) and clinical pharmacokinetics (11–13). This decreases the amount and types of nonspecific toxicity and increases the amount of drug that can be effectively delivered to the tumor site (8, 14).

A tumor-targeting ligand may be a more effective method of directing liposomes containing drugs to the tumor site, increasing the therapeutic efficacy of liposomal drugs. For solid malignancies, which comprise >90% of human cancers, antibodies recognizing tumor-specific antigens have thus far provided little use for drug delivery because the immunoconjugates are too large to penetrate the tumor tissue (15, 16). However, phage-displayed peptide libraries have allowed the identification of small peptides a hundredth the mass of IgG antibodies, which might facilitate the development of such intervention strategies.

Phage-displayed random peptide libraries provide opportunities to map B-cell epitopes (17–20) and protein-protein contacts (21–23), and to select bioactive peptides bound to receptors (24, 25) or proteins (22, 26–28). They can be used to search for disease-specific antigen mimics (29–31), and to determine cell-specific (32, 33) and organ-specific peptides (5, 28, 34). Screening phage-displayed peptide libraries against specific target tissues is therefore a direct and fast method for identifying peptide sequences which might be used for the targeting of drug or gene delivery vectors. In this study, we used a phage-displayed random peptide library to identify targeting peptides that could specifically bind to the tumor vessels of several tumor types. When coupled to liposomes containing the anticancer drug doxorubicin (Lipo-Dox), one targeting peptide, SP5-52, enhanced the efficacy of the drug against both human lung and oral cancer xenografts in severe combined immunodeficiency (SCID) mice. Our results indicate that this peptide has clinical potential as a drug delivery agent in the treatment of these tumors.

Cell lines and cell culture. CL1-5 (lung cancer), H460 (lung cancer), and PC3 (prostate cancer) were grown in RPMI 1640 containing 10% FCS (Life Technologies) at 37°C under a humidified atmosphere of 95% air and 5% CO₂ (v/v). SAS (oral cancer), HCT116 (colon cancer), BT483 (breast cancer), Mahlavu (liver cancer), and PaCa (pancreatic cancer) were grown in DMEM (Life Technologies) containing 5% FCS, in a 10% CO₂ incubator. CL1-5 was established by Chu et al. (35). H460, HCT116, BT483, PC3, Mahlavu, and PaCa were obtained from the American Type Culture Collection. Human umbilical vein endothelial cells (HUVEC) were isolated from the umbilical vein after separation from the placenta, and grown in M199 medium (Life Technologies) supplemented with 20% FCS and 15 μg/mL of endothelial cell growth supplement (Upstate) in a 5% CO₂ incubator.

In vivo phage display biopanning procedures. SCID mice 4 to 6 weeks of age were injected s.c. into the dorsolateral flank with CL1-5 cells to produce lung cancer xenografts. A phage-displayed peptide library (New England Biolabs, Inc.), which initially contained 5 × 10¹⁰ plaque-forming units (pfu), was injected through the tail vein of SCID mice bearing size-matched CL1-5–derived tumors (∼500 mm³). After 8 min of phage circulation, the mice were treated with diethyl ether to drive them into deep anesthesia, and perfused with 50 mL of PBS to wash out unbound phage. The control organs (lungs, heart, brain) and tumor masses were removed, weighed, and washed with cold PBS. The organs and tumor samples were homogenized and the phage particles were rescued by ER2738 bacteria (New England Biolabs). The phages were titered on agar plates in the presence of 1 mg/L of IPTG/X-gel. Bound phages were amplified and subjected to four consecutive rounds of biopanning using SCID mice bearing lung cancer xenografts prepared as described above, except that a phage input of 2 × 10¹¹ pfu was used. The phages eluted from the fifth round were titered on LB/IPTG/X-Gal plates. The candidate tumor-homing phage clones were randomly selected and identified by cellular ELISA and in vivo homing experiments.

DNA sequencing and computer analysis. DNA sequences of the selected phages were determined according to the dideoxynucleotide chain termination method using an automated DNA sequencer (ABI PRISM 377; Perkin-Elmer). Sequencing was done with the primer 5′-CCCTCATAGTTAGCGTAACG-3′ corresponding to the pIII gene sequence. The phage-displayed peptide sequences were translated and aligned using the Genetics Computer Group program.

Peptide synthesis. The peptides, SVSVGMKPSPRP (SP5-52), SVSVGMKGGGRP (MP5-52), and control peptide RLLDTNRPLLPY were synthesized and purified by reverse-phase high-performance liquid chromatography to >95% purity by Invitrogene, Inc. Conjugation of these peptides with FITC or biotin was done by the same company by adding FITC or biotin to the NH₂ terminus.

In vivo homing experiments and peptide binding in xenograft tumor vessels. Phage clones (10⁹ pfu) or control helper phage (insertless phages) were injected into the tail vein of tumor xenograft mice which were then kept for 8 min. After perfusion, xenograft tumors and organs were removed and titered. In peptide-competitive inhibition experiments, phage clones were coinjected with 100 μg of synthetic peptide. After injection of targeting or control phage clones, the organs and tumors were removed and divided into two parts. One part was titered by ER2738, and another part was embedded in optimal cutting temperature (Tissue-Tek). The optimal cutting temperature–embedded frozen tissues were sectioned at 5 μm and transferred to cold PBS buffer. The sections were fixed with acetone/methanol (1:1), washed with PBS and immersed in blocking buffer (1% bovine serum albumin in PBS) for 1 h. Then, the sections were incubated with rat anti-mouse CD31 (BD PharMingen), rabbit anti-rat antibody (Stressgen, Canada) and immersed in rhodamine-labeled goat anti-rabbit antibody (Jackson ImmunoResearch). The slides were further incubated with mouse anti-M13 antibody (Amersham Biosciences), followed by FITC-labeled goat anti-mouse antibody (Jackson ImmunoResearch), and immersed in Hoechst 33258 (Molecular Probes). Finally, slides were washed and mounted with mounting medium (Vector). In the same way, we injected FITC-labeled targeting peptides and control peptide in place of the phages, into tumor xenograft mice for a peptide-binding assay. After perfusion, tissues were removed and treated as above. Slides were examined under a Leica Universal microscope. Images were merged by SimplePCI software (C-IMAGING).

Targeting peptide binding to vascular endothelial growth factor–stimulated HUVECs and lung cancer biopsy specimens. HUVECs were plated and grown to ∼80% confluence on coverslips. The cells were pretreated with 20 ng/mL of vascular endothelial growth factor (VEGF; R&D Systems) and 2 ng/mL of basic fibroblast growth factor (Peprotech) for 48 h. The VEGF-stimulated HUVECs were washed with serum-free M199 plus 3% BSA, incubated in blocking buffer for 30 min at 4°C and then with phages at 4°C for 1 h. They were washed and fixed with 3% paraformaldehyde for 10 min, followed by incubation with mouse anti-M13 monoclonal antibody (Amersham Biosciences) for 1 h, and then FITC-labeled anti-mouse antibody (Jackson ImmunoResearch), followed by staining in Hoechst 33258. The coverslips were finally washed and mounted.

For localization of the peptide-binding ability on lung cancer tissue, frozen sections of human lung adenocarcinoma were incubated with biotin-labeled peptide using routine immunohistochemical procedures. The frozen surgical specimens were obtained from the tissue bank of National Taiwan University Hospital with approval from the Institutional Review Boards (IRB9461702021).

Preparation of peptide-liposome containing doxorubicin. Procedures for the preparation of peptide-liposomes containing doxorubicin were adapted from the methods published in previous reports (33, 36). Briefly, peptide ligands were coupled to NHS/PEG/DSPE [N-hydroxysuccinimido-carboxyl/polyethylene glycol (PEG; average molecular weight, 3,000)–derived/distearoylphosphatidylethanolamine; NOF Corporation] in a 1:1.5 molar ratio. The reaction was completed and confirmed by quantitation of the remaining amino groups, measured using a trinitrobenzenesulfonate reagent (37). Peptidyl-PEG/DSPE was transferred to preformed liposomes after coincubation at a temperature above the transition temperature of the lipid bilayer (38). The liposomes had a particle size ranging from 65 to 75 nm in diameter (33). There were 300 to 500 peptide molecules per liposome, computed as described previously (39).

Animal model for study of ligand-targeted therapy. Human lung (CL1-5) and oral (SAS) cancer xenografts were established in SCID mice. Mice 4 to 6 weeks of age were injected s.c. into the dorsolateral flank with human cancer cells. Mice with size-matched tumors (tumor sizes of ∼100 mm³) were randomly assigned to different treatment groups and treated with SP5-52-Lipo-Dox, Lipo-Dox, or equivalent volumes of PBS i.v. at a total doxorubicin dose of 7 mg/kg (1 mg/kg, twice a week). Mouse body weight and tumor size were measured twice a week using calipers. The tumor volumes were calculated using the equation: length × (width)² × 0.52. The differences in mean tumor volume were evaluated by ANOVA. Animal care was carried out in accordance with the guidelines of Academia Sinica, Taipei, Taiwan.

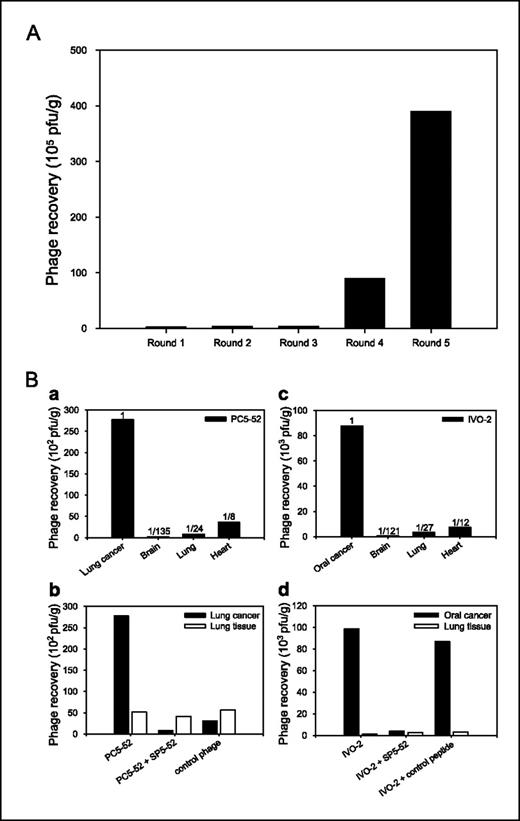

Recovery of phage-displayed tumor-homing peptides from human carcinoma xenografts. To isolate tumor-homing phages from tumor tissues, we used a phage-displayed peptide library to treat the NSCLC (non–small cell lung cancer; CL1-5) tumor-bearing mice for five rounds of in vivo selection (biopanning). The recovery rate of the fifth round of biopanning had increased 156-fold over that of the first round (Fig. 1A). Sixty enriched phages from the fifth round were randomly selected and sequenced. Fifty-five clones had their displayed peptide sequences confirmed. Using a Genetics Computer Group software, the three most frequent clones (PC5-5, -52, and -54) were shown to have the consensus motif of proline-serine-proline (PSP). Four clones (PC5-7, -8, -10, and -50) had consensus amino acid residues, proline-serine (PS), whereas another four (PC5-10, -53, -58, and -60) had the consensus amino acid residues, serine-proline (SP; Table 1). The frequency of PC5-52 increased to 45% (25 of 55) in the fifth cycle of biopanning (Table 1). Interestingly, we also identified this sequence, SVSVGMKPSPRP (SP5-52), in a separate study using oral cancer for in vivo phage display, on a phage we named, IVO-2 (Table 1; Fig. 1B -c). IVO-2 was isolated from oral cancer xenografts by in vivo phage display and displayed the same amino acid sequence as PC5-52. Due to its high frequency and the possibility of universal expression in tumor vessels, we focused on this peptide for further study.

Identification of tumor-homing phage. To investigate the targeting ability of PC5-52, phages were injected into the tail vein of mice bearing lung cancer cell–derived tumors and then recovered after perfusion. The titers of the phages in the tumor mass and in other normal organs were determined. PC5-52 showed tumor-homing ability, exhibiting a concentration from 8.0- to 135-fold higher in the tumor mass than in normal organs, including the brain, lungs, and heart (Fig. 1B,-a), whereas the control helper phage revealed no such homing ability (Fig. 1B,-b). This was also proved by a ligand competition experiment which showed that coinjection of synthetic SP5-52 peptide with PC5-52 phage particles inhibited the recovery of PC5-52 from tumor tissues (Fig. 1B,-b). Coinjection of 100 μg of SP5-52 inhibited 97% of PC5-52 homing to the NSCLC tumor mass. Similarly, IVO-2 phage particles (which display a peptide with the same amino acid sequence as that displayed by PC5-52) also homed to the tumor tissues of oral cancer xenografts (Fig. 1B,-c). IVO-2 showed a 12- to 121-fold higher concentration in tumors than in organs such as normal brain, lungs, and heart (Fig. 1B,-c). The tumor-homing ability of IVO-2 could also be inhibited by SP5-52. Coinjection of 100 μg of SP5-52 inhibited 95.9% of IVO-2 homing to oral cancer xenografts (Fig. 1B,-d). Control peptides did not inhibit IVO-2 homing to tumor tissue (Fig. 1B -d). Twenty-four hours after the injection of PC5-52, these phages had accumulated 10-fold more in tumor tissue than in control tissues (data not shown).

The tumor-homing peptide targets tumor neovasculature. To investigate the homing specificity of PC5-52, we used immunofluorescent staining to identify the binding site of the phage after perfusion. Phage particles reacted with xenograft lung cancer tumor tissues but not with normal lung tissues (Fig. 2A). However, phages did not localize to cancer cells. Using frozen sections from tumor tissues incubated with anti-M13 monoclonal antibody (green) and mouse endothelial cell marker CD31 (red), PC5-52 was found to be colocalized with CD31 in the tumor neovasculature of xenograft tumor tissues (Fig. 2B,, i-k). The phage was not found in vessels of normal heart (Fig. 2B -e), lungs, and brain (data not shown).

To further investigate phage-displayed peptide homing to the tumor neovasculature, we used an FITC-labeled SP5-52 peptide in place of the PC5-52 phage. FITC-labeled SP5-52 peptides also colocalized with mouse CD31 marker in the tumor neovasculature of lung cancer xenografts (Fig. 2C,, i-k). They were not detected in normal heart vessels (Fig. 2C,, e-g). FITC-labeled control peptides did not recognize tumor neovasculature (Fig. 2C , a-c).

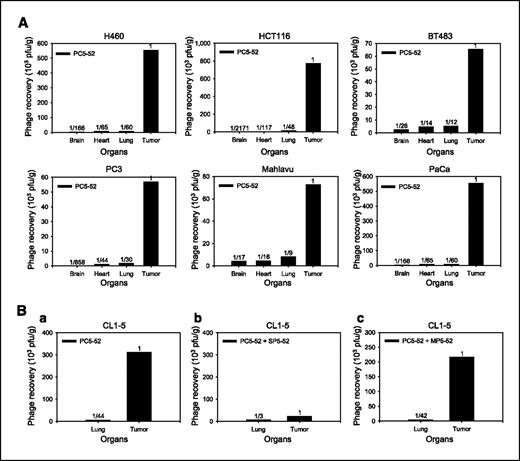

Phages displaying the SP5-52 sequence were isolated from lung and oral cancer xenografts by in vivo phage display. To test the hypothesis that the target of SP5-52 may be universally expressed in the neovasculature of solid tumors, we examined the homing ability of PC5-52 in six other types of human cancers including human lung (H460), colon (HCT116), breast (BT483), prostate (PC3), liver (Mahlavu), and pancreatic (PaCa) cancer xenografts. Interestingly, in all of these human cancer xenografts, PC5-52 targeted tumor tissues but not normal organs like brain, heart, and lungs (Fig. 3A). Control phage without this targeting ligand had no such homing ability (data not shown).

From in vivo phage display, we identified three clones (PC5-5, -52, and -54) with a PSP consensus motif (Table 1). We proposed that these three amino acid residues play a crucial role in homing to tumor tissues. To test this hypothesis, we changed these three amino acid residues in SP5-52 (SVSVGMKPSPRP) to GGG in a mutant peptide, MP5-52 (SVSVGMKGGGRP). PC5-52 targeted CL1-5–derived tumors in an in vivo homing assay (Fig. 3B,-a) and this tumor-homing ability was markedly inhibited by the peptide, SP5-52 (Fig. 3B,-b). However, competitive inhibition was lost when the consensus motif PSP of SP5-52 had been changed to GGG in MP5-52 (Fig. 3B -c).

PC5-52 reacts with stimulated HUVECs and human lung cancer biopsy specimens. We showed that PC5-52 targets the mouse neovasculature endothelia of tumor tissues. To identify whether this phage has affinity for human neovasculature endothelia, we applied the PC5-52 phage particles to VEGF-stimulated HUVECs. PC5-52 bound to VEGF-stimulated HUVECs (Fig. 4A,-a), whereas the control phage without this peptide showed no binding activity (Fig. 4A,-b). HUVECs without VEGF stimulation did not display PC5-52 binding (Fig. 4A,-c). SP5-52 (100 μg/mL) could compete with PC5-52 for binding to stimulated HUVECs (Fig. 4A,-d), but the same concentration of mutated peptide, MP5-52, could not (Fig. 4A,-e). Biotin-labeled SP5-52 peptide bound to tumor vessels of human lung cancer surgical specimens but not to normal pulmonary vasculature (Fig. 4B,, a and c). Anti-CD31 antibody bound both tumor and normal blood vessels (Fig. 4B,, b and d). Sixty percent (6 of 10) of pulmonary adenocarcinomas from 10 patients expressed a target protein recognized by the peptide (Fig. 4B; Supplementary Fig. S1). PC5-52 binding to human NSCLC surgical specimens was inhibited by 100 μg/mL of SP5-52 (Supplementary Fig. S1e and f). These data indicate that SP5-52 peptide could recognize unidentified receptors on human angiogenic endothelial cells, and on the tumor neovasculature of both humans and mice.

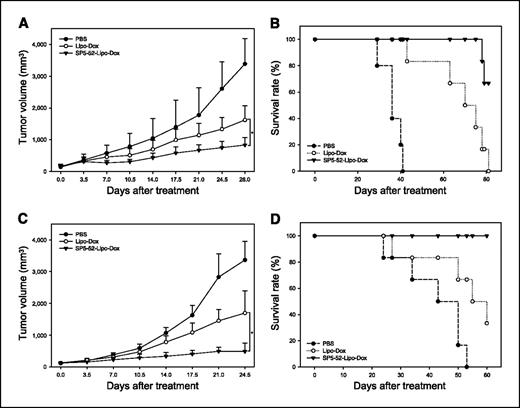

Animal model for study of ligand-targeted therapy. To determine whether SP5-52 could be used to improve the efficacy of cancer chemotherapeutics, we coupled SP5-52 to liposomes containing the antiangiogenic drug, doxorubicin (SP5-52-Lipo-Dox). SCID mice bearing a CL1-5 xenograft (tumor size ∼100 mm³) were then treated with SP5-52-Lipo-Dox, Lipo-Dox, or PBS. The SP5-52-Lipo-Dox–treated mice showed a significantly smaller tumor size than Lipo-Dox– and PBS–treated cases (P < 0.01; Fig. 5A). The tumor size of the Lipo-Dox group gradually increased to 1.9-fold larger than that of the SP5-52-Lipo-Dox group by day 28. The tumor size of the control PBS group was 4.1-fold larger than that of the SP5-52-Lipo-Dox group (Fig. 5A). The body weights of each group showed no significant changes (data not shown). To further characterize therapeutic efficacy, we compared the animal survival rates after 21 days of treatment. When we stopped the experiment on day 81, all animals (n = 6) had died in the PBS and Lipo-Dox groups (0% survival rate), whereas only two animals had died in the SP5-52-Lipo-Dox group (66.7% survival rate; Fig. 5B). To verify the antiangiogenic effect of SP5-52-Lipo-Dox, we repeated the above experiment and removed the tumor tissues for analysis of the effect on tumor blood vessels. Tumor vessels were found to be markedly decreased in SP5-52-Lipo-Dox–treated mice but not in mice of the PBS groups. Lipo-Dox–treated mice showed a limited reduction in the tumor vasculature (Supplementary Fig. S2).

To test whether SP5-52 could also increase the therapeutic efficacy for oral cancer, we administered ligand-targeted therapy for this cancer in an animal model. SCID mice bearing oral cancer xenografts were treated with SP5-52-Lipo-Dox, Lipo-Dox, or PBS. Similar results were found. The SP5-52-Lipo-Dox–treated mice showed a significantly smaller tumor size than Lipo-Dox and PBS-treated mice (P < 0.05; Fig. 5C). The tumor size in the Lipo-Dox group gradually increased to 3.6-fold larger than that of the SP5-52-Lipo-Dox group on day 24.5. Mice in the control PBS group were found to have a tumor size 7.1-fold larger than that of the SP5-52-Lipo-Dox group (Fig. 5C). The body weights of each group showed no significant changes (data not shown). To further characterize therapeutic efficacy, we compared animal survival rates after 21 days of treatment. All animals (n = 6) had died in the PBS group (0% survival rate), four animals had died in the Lipo-Dox group (33.3% survival rate), whereas all the SP5-52-Lipo-Dox–treated mice had survived (100% survival rate) when the experiment had finished on day 60 (Fig. 5D). Repeating this experiment further confirmed that SP5-52-Lipo-Dox was more effective than Lipo-Dox in treating oral cancer xenografts, with the tumor size of the Lipo-Dox group gradually increasing to 3.2-fold that of the SP5-52-Lipo-Dox group on day 24.5. The control PBS group had a tumor size 5.9-fold larger than that of the SP5-52-Lipo-Dox group (data not shown). Thus, conjugation of Lipo-Dox with the targeting ligand SP5-52 enhances the ability of the drug to inhibit the growth of solid tumors, including human lung and oral cancer xenografts in SCID mice.

Most cancer chemotherapy is accompanied by strong side effects and acquired drug resistance. Therefore, there is a pressing need for drug delivery systems to deliver drugs to target sites on both tumor vessels and tumor cells. Some attempts have been made, including the use of antibodies (40) and targeting peptides (33) against tumor cells. Vascular targeting is also a focus of interest, because angiogenesis is a required step for tumor expansion, and drugs or drug carriers may first meet neovasculature before extravasation in the tumor (41). Because tumor vasculature expresses unique markers that distinguish it from normal vasculature (42), targeting to markers of tumor angiogenic vasculature is a promising strategy for cancer treatment. In this study, we used in vivo phage display to identify tumor homing peptides, including SP5-52, which could specifically bind not only the tumor vessels of xenografts in animal models, but also VEGF-stimulated HUVECs and human lung cancer vessels. Such peptides are useful tools for active targeting to tumor neovasculature.

In vivo biopanning identified phages (such as PC5-52) with high binding activity to lung cancer xenografts. Phages from the fifth round showed 156-fold higher affinity than those from the initial round (Fig. 1A) with several of the phage clones displaying the PSP consensus peptide motif (Table 1). The binding activity of PC5-52 with tumor tissues could be inhibited by the synthetic peptide, SP5-52 (Fig. 1B,, b and d) indicating that the synthetic peptides bind the same sites as their respective phage clones. That the mutated synthetic peptide, MP5-52, could not inhibit PC5-52 binding shows the importance of the PSP motif (Fig. 3B). Moreover, this phenomenon was observed both in mouse xenograft tumors and in human-stimulated HUVEC cells (Fig. 4A). Closer examination revealed that PC5-52 phage and SP5-52 peptide colocalized with CD31 in most xenograft tumor vascular endothelia but were rarely detected in tumor cells or normal organs (Fig. 2). Our findings indicate that PC5-52 could specifically target tumor neovasculature endothelial cells, but not the vasculature of normal organs, and that the PSP motif is required for this targeting.

IVO-2 and PC5-52 carried the same peptide, and we determined that the peptide sequence could direct the phages to the vasculature of xenografts derived from other human tumor cells. Xenograft tumor tissues from eight different cancer cell lines contained >8-fold more PC5-52 than normal organs (Figs. 1B and 3A), indicating a higher affinity of PC5-52 for these tumor tissues. These phenomena suggest that the neovasculature in solid tumors may universally express an unidentified receptor not expressed in normal mature vasculature, and that this receptor recognizes the SP5-52 peptide.

This peptide, selected using the murine angiogenic model, had the same binding affinity for the neovasculature endothelia in human tumors, and was able to specifically bind both human lung cancer biopsy specimens and VEGF-stimulated endothelial cells (HUVECs; Fig. 4). Therefore, the molecular target may be specifically expressed in angiogenic vessels. This putative receptor could recognize a peptide ligand with the sequence, SVSVGMKPSPRP. A Blast search for this 12-mer peptide revealed PSP motif homologies to seven human sequence entries. However, although SP5-52 possesses homology with predicted protein interaction and DNA binding motifs in human proteins, the PSP motif per se was not identified as a known ligand for membrane proteins.

Our finding that this peptide targets the neovasculature indicates a high potential utility in tumor detection and directed chemotherapeutic drug delivery. Using SP5-52–conjugated Lipo-Dox to compare the effects with nontargeted Lipo-Dox on tumor growth, we showed that SP5-52-Lipo-Dox enhanced the efficacy of the drug against human lung and oral cancer xenografts (Fig. 5A and C). The targeting liposome also significantly increased the survival rate in these two human cancer xenograft animal models (Fig. 5B and D). This targeting strategy has significant clinical potential to improve cancer treatment.

The tumor vasculature is a particularly suitable target for cancer therapy because it is composed of genetically stable nonmalignant endothelial cells that induce little or no drug resistance (43). In addition, these cells are more accessible to drugs and have an intrinsic amplification mechanism. It has been estimated that elimination of a single endothelial cell could inhibit the growth of 100 tumor cells (44, 45). The severe damage to tumor vasculature caused by SP5-52-Lipo-Dox throughout the tumors (Supplementary Fig. S2) clearly shows an improvement in chemotherapeutic efficacy in a xenograft animal model. This may be due to an increased accumulation of targeted liposomes in tumor tissues. The high tumor interstitial fluid pressure (IFP) of solid tumors is a barrier to efficient drug delivery (46); increased IFP contributes to decreased transcapillary transport in tumors, which leads to the decreased uptake of drugs and eventual failure of therapy. These phenomena are accompanied by the development of drug resistance and metastatic disease (46–50). The ligand-targeted therapy described here may overcome these problems by increasing the accumulation of drugs in the high IFP of the tumor through the affinity of the targeting ligand for tumor tissues.

In summary, using in vivo phage display to isolate ligands homing to molecules on tumor endothelial cells, we identified several peptides, including SP5-52, which targeted the neovasculature in two NSCLCs and six human tumor xenografts. Targeting liposomes via this peptide can inhibit the angiogenesis of tumors, resulting in increased therapeutic efficacy and higher survival rates of human lung and oral cancer xenograft mice. Therefore, SP5-52 is an effective agent for drug delivery to the neovasculature of solid tumors and may be suitable for application in clinical cancer treatment.
