Toward the goal of developing an optical imaging contrast agent that will enable surgeons to intraoperatively distinguish cancer foci from adjacent normal tissue, we developed a chlorotoxin:Cy5.5 (CTX:Cy5.5) bioconjugate that emits near-IR fluorescent signal. The probe delineates malignant glioma, medulloblastoma, prostate cancer, intestinal cancer, and sarcoma from adjacent non-neoplastic tissue in mouse models. Metastatic cancer foci as small as a few hundred cells were detected in lymph channels. Specific binding to cancer cells is facilitated by matrix metalloproteinase-2 (MMP-2) as evidenced by reduction of CTX:Cy5.5 binding in vitro and in vivo by a pharmacologic blocker of MMP-2 and induction of CTX:Cy5.5 binding in MCF-7 cells following transfection with a plasmid encoding MMP-2. Mouse studies revealed that CTX:Cy5.5 has favorable biodistribution and toxicity profiles. These studies show that CTX:Cy5.5 has the potential to fundamentally improve intraoperative detection and resection of malignancies. [Cancer Res 2007;67(14):6882–8]

For many types of cancer, the precision of surgical resection directly influences patient prognosis. Unfortunately, intraoperative identification of tumor margins or small foci of cancer cells remains imprecise or depends on surgical judgment. Thus, the extent of surgical resection is constrained by the requirement to avoid harming vital healthy structures. Nowhere is this more problematic than in the brain, where >80% of malignant cancers recur at the surgical margin (1). Despite advances in intraoperative monitoring and image guidance, postoperative scans sometimes reveal bulky residual tumor that may have been resected safely if the surgeon had improved tools to distinguish tumor tissue from normal brain (Supplementary Fig. S1). Recent advances in molecular biology, genomics, and proteomics have yielded information about molecules that are preferentially expressed in malignant cells compared with normal tissue. This information has the potential to fundamentally transform surgical oncology if used to specifically illuminate tumor cells with targeted molecular beacons.

We developed and conducted preclinical evaluation of a molecular imaging bioconjugate composed of chlorotoxin (CTX) and Cy5.5. CTX is a 36 amino acid peptide with four disulfide bridges. CTX is thought to bind to a lipid raft-anchored complex that contains matrix metalloproteinase-2 (MMP-2), membrane type-I MMP, and transmembrane inhibitor of metalloproteinase-2 (TIMP2), as well as ClC-3 chloride ion channels, and other proteins (2, 3). Upon CTX binding, the complex is postulated to be internalized into the cell, eliminating the functional chloride ion channel (2, 3). Several studies showed that CTX binds preferentially to glioma cells compared with non-neoplastic cells or normal brain (2, 4, 5). A radiopharmaceutical bound to synthetic chlorotoxin, 131I-TM-601, showed safety in phase I/II clinical trials for human brain cancer therapy based on an acceptable safety profile in preclinical studies (6).

Cy5.5 is a fluorescent molecular beacon that emits photons in the near-IR (NIR) spectrum. Because photons of this wavelength are minimally absorbed by water or hemoglobin, NIR beacons are well suited for intraoperative imaging (7, 8). Previous attempts to image brain tumors by NIR have focused on targeting the probe to inflammatory microglia around the tumor or using probes that require proteolytic cleavage for activation (9, 10). The former approach is challenging because the presence of microglia correlates poorly, if at all, with margins of many brain tumors. Furthermore, to reduce perioperative brain edema, patients are treated with dexamethasone, which is a potent inhibitor of microglial activation. These factors, coupled with preference for a probe that does not require enzymatic cleavage, prompted us to focus on targeting Cy5.5 directly to cancer cells.

This paper reports the development of CTX:Cy5.5 bioconjugate and the efficacy of this imaging agent in mouse models of glioma, medulloblastoma, prostate cancer, intestinal cancer, and sarcoma. We addressed the sensitivity of CTX:Cy5.5 for detecting cancer foci and metastases noninvasively and under simulated surgical operating conditions and conducted murine biodistribution and toxicity studies. We evaluated the role of MMP-2 in CTX:Cy5.5 binding to cancer cells.

Probe synthesis and analysis. Probe was synthesized using a mixture of CTX [Alomone Labs, 2 mg/mL in bicarbonate buffer (pH, 8.5)] and Cy5.5-NHS ester (Invitrogen, 10 mg/mL in anhydrous dimethyl formamide) at the molar ratio of 3:1 (dye/CTX). Conjugation was done in the dark at room temperature for 1 h. Unconjugated dye was removed by dialysis against PBS using Slide-A-Lyzer (Pierce Biotechnology) membrane (Mr cutoff, 3,500) up to 18 h at 4°C. Samples were diluted with PBS to produce 1, 10, and 20 μmol/L of CTX solution and filtered with a 0.2-μm syringe filter before use. All batches were evaluated by mass spectroscopy and Xenogen IVIS-100 to ensure quality.

Cell culture and transfection. 9L rat gliosarcoma cells, MCF-7 human breast adenocarcinoma, and primary human foreskin fibroblast (HFF; American Type Culture Collection) were maintained in DMEM, MEM, and RPMI supplemented with 1% sodium pyruvate, 1% streptomycin/penicillin and 10% fetal bovine serum (Hyclone), respectively. For transfection experiments, MCF-7 cells were trypsinized, replated at a 10,000- to 12,000-cell/mL density, and cultured 12 to 16 h before transfection. MCF-7 cells were transfected with MMP-2 or an empty vector along with pMacs4.1 (Miltenyi Biotec) using FuGENE 6 Transfecton Reagent (Roche) according to manufacturer's instructions.

In vitro imaging. A total of 20,000 cells were seeded on sterile coverslips 36 h before labeling and confocal microscopy. Cells were cultured with 1 mL of CTX:CY5.5 conjugate (1 μmol/L) for 2 h in a 37°C humidified incubator maintained at 5% CO2. Following this step, cell membranes were stained with 1 μmol/L solution of FM 1-43FX (Invitrogen) for 20 min in the dark at room temperature, washed twice in PBS, and fixed in 4% paraformaldehyde. A final treatment with prolong gold antifade solution (Invitrogen) containing 6-diamidino-2-phenylindole (DAPI)–stained cellular nuclei and preserved the fluorescence of the samples for confocal microscopy. Confocal images were acquired using a DeltaVision SA3.1 wide-field deconvolution microscope (Applied Precision) equipped with DAPI, TRITC, and Cy5 filters. Confocal image processing was done using SoftWoRX (Applied Precision).

Animal models. All mouse studies were conducted in accordance with the Institute of Animal Care and Use Committee–approved protocols. S.c. xenografts were established in nu/nu (Charles River) mice using 9L, a rat gliosarcoma cell line, and RH30, a rhabdomyosarcoma cell line. The xenografts were established using 1 million 9L or RH30 cells suspended in serum-free media and Matrigel (BD Biosciences) at a 1:1 ratio. Intracranial xenografts were established by stereotaxic injection of 1 million 9L cells suspended in 10 μL PBS into the brain 3 mm lateral and posterior to the bregma. ND2:SmoA1 medulloblastoma mice, TRAMP prostate cancer mice and Apc1638N intestinal adenoma and adenocarcinoma mice were previously described (1114).

Blood-brain barrier analysis. The blood-brain barrier integrity in SmoA1 and control mice was assessed by injection of 100 μL of Evan's Blue dye into tail veins 2 h before sacrifice and perfusion with PBS. Whole organs were removed from perfused animals and photographed without further processing (15).

The integrity of the blood-brain barrier was also evaluated using albumin immunostaining as previously described (16). Briefly, 10-μm sections were generated from paraffin-embedded blocks of unperfused brains of 2-month-old symptomatic SmoA1 mice. These sections contain tumor within the cerebellum surrounded by normal cerebellar and cortical tissue. The sections were deparaffinized and rehydrated. Endogenous peroxidase was blocked using 0.3% hydrogen peroxidase in methanol for 10 min. The sections were incubated in 1% gelatin (cold water skin fish, Sigma Co.) for 30 min followed by goat anti-mouse albumin antibody (1:10,000 dilution, Bethyl Laboratories Inc.) for 1 h at ambient temperature. The sections were washed in PBS and incubated with biotinylated anti-goat immunoglobulin G (IgG) antibody (Bio-Rad at 1:250) for 30 min. The staining was visualized using the DAB system (Pierce).

In vivo imaging. CTX:Cy5.5 (0.1–0.2 mL of 10–20 μmol/L) was given i.v. by tail vein injection. Biophotonic images were obtained on the Xenogen IVIS-100 system (Xenogen). Mice were anesthetized with 1% to 2.5% isoflurane (VEDCO, Inc.) before they were placed in the imaging chamber and imaged at various time points postinjection. Relevant organs and tumors were dissected from some of the animals and imaged immediately following dissection. In time course experiments, all images were captured using identical system settings, and fluorescence emission was normalized to photons per second per centimeter squared per steradian (p/s/cm2/sr). All experiments were repeated multiple times, and representative images are shown in the figures. For unconjugated Cy5.5 control experiments, the NHS ester–reactive group, which is absent in CTX:Cy5.5 was reduced by solubilizing Cy5.5-NHS ester in water adjusted to pH 9 for 90 min then buffered in PBS. Before injection, the NIR fluorescent emission of equimolar concentrations of CTX:Cy5.5 and Cy5.5 were compared on filter paper to ensure that fluorescence was not quenched. For CTX blocking experiments, 7-day Alzet pumps were loaded with 2 mmol/L unconjugated CTX and implanted s.c. near the scapula. The next day, 30 μL of 20 μmol/L CTX:Cy5.5 plus 70 μL of 2 mmol/L unconjugated CTX was injected into tail veins. Control animals received vehicle instead of CTX. Imaging was done daily from days 1 to 4.

Statistical analyses. Statistical analyses used the paired t test after it was determined in the largest data set (n = 22) that the values had a normal distribution. Paired t test was used in instances where tumor tissue was compared with normal tissue in the same animal rather than between animals, and unpaired t test was used to analyze comparisons between groups of animals.

Gelatin zymography. Gelatin zymography was done using previously published protocol (17). Briefly, 24 h before initiation of assay, cell growth media were switched to serum-free media. At time of sample preparation, media was aspirated, and proteins were concentrated using Microcon (Millipore) centrifuge filters of 10,000 nominal molecular weight limits. Cells were lysed in SDS-sample buffer containing 1% Triton X-100. Concentrated media and cell lysate samples were loaded at a concentration of 15 μg/μL without reduction on 10% SDS-PAGE gel containing 1% gelatin. The gels were washed with 2.5% Triton X-100 after electrophoresis and were incubated overnight in the developing buffer at 37°C to induce gelatin lysis. The resultant gelatinase activity was qualitatively determined by Coommassie counterstaining.

Western assay. Western analyses were conducted per standard procedure using 2 μg/mL antihuman MMP-2 antibody (Chemicon) that has cross-reactivity against rat MMP-2 antigen and developed using Lumi-Light chemiluminescence system (Roche).

Pulldown assay. Recombinant MMP-2 (Chemicon; 1 μL of 0.1 mg/mL) was incubated with Ctx-Cy5.5 or Cy5.5 (25 μL of 20 μmol/L) in 500 μL phosphate buffer saline (PBS Life Technologies) at 37°C for 2 h. Bovine serum albumin (Sigma) was used as a control for nonspecific binding to MMP-2. Primary antihuman MMP-2 antibody (Chemicon, 2 μg/mL) was added and incubated at 4°C overnight. Fresh protein G sepharose (Amersham Bioscience; 5 μL of 10%) was added, and samples were incubated for 2 h at 4°C. The samples were centrifuged at 8,000 rpm for 5 min at 4°C, and supernatants were collected. Protein G immunoprecipitate was washed thrice in 0.5 mL PBS and resuspended in PBS (1:1). Samples were spotted (5 μL) and imaged on Xenogen IVIS-100 system.

Mass spectroscopy. CTX:Cy5.5 (1 μmol/L) was incubated with media of the 9L and U87 cells at 37°C for 2 h to resemble the in vitro cell culture condition. The samples were analyzed on a Voyager DE-Pro MALDI-TOF mass spectrometer (Applied Biosystems) in the positive ion mode. A calibration mixture of PepMix3 [apomyoglobin (horse) and bovine insulin] was first analyzed to calibrate the instrument, and the samples were mixed with sinapinic acid before analysis.

Immunostaining. CTX:Cy5.5-treated cells were fixed (4% paraformaldehyde in PBS for 30 min), permeabilized [Triton X-100 treatment (0.1% in PBS) for 10 min], and blocked [5% (w/v) solution of nonfat dry milk in PBS with 0.1% Tween 20 for 30 min] before incubation with antihuman MMP-2 antibody (amino acids 468–483 hMMP-2, clone 42-5D11; Chemicon; 2 μg/mL overnight at 4°C). The samples were washed thrice with blocking buffer before the secondary antibody treatment (goat anti-mouse IgG (H + L); Jackson ImmunoResearch; manufacturer's recommended concentration for 1 h at room temperature in the dark). The samples were washed with PBS thrice and blown dry with air and mounted with Prolong Gold antifade solution containing DAPI for cellular nuclei staining and fluorescence preservation.

Histology and microscopy. For mouse experiments, tissues were fixed in freshly prepared 4% paraformaldehyde and stained with H&E per standard clinical laboratory protocol. Confocal microscopy was done on freshly harvested tissues using a Zeiss LSM 510 (Carl Zeiss) microscope via 633-nm HeNe laser lines for excitation and 650 to 710 nm bandpass filter for emission collection through a photomultiplier tube capturing system. NIR signal was translated into red pseudocolor to enable detection in the visible spectrum.

Biophotonic imaging of glioma. CTX:Cy5.5 bioconjugate was incubated with 9L glioma cells and primary fibroblasts, and binding was evaluated by near infrared fluorescence (NIRF) microscopy. All 9L glioma cells exposed to CTX:Cy5.5 emitted signal in the NIRF spectrum (Fig. 1A,, left), whereas minimal signal was detected from fibroblasts treated with the same concentration of probe (Fig. 1A,, right). We assessed the in vivo activity of CTX:Cy5.5 noninvasively in 22 mice with 9L glioma xenografts. Following tail vein injection of 0.1 mL of 20 μmol/L bioconjugate, the probe distributed rapidly throughout the body. At all time points through 14 days after injection, NIRF emission was higher in xenografts than in non-neoplastic tissue (P < 0.0005 on days 0–2; 0.005 on days 3–12; and <0.05 on day 14; Fig. 1B). Because autofluorescence is lower in the brain than flank, we studied the ratio of CTX:Cy5.5 signal in the brain compared with glioma xenografts. As anticipated, mice bearing 9L glioma flank xenografts sacrificed 1, 3, and 5 days after bioconjugate injection revealed significantly increased signal in tumor compared with brain at all time points (P < 0.001, Fig. 1C).

Figure 1.

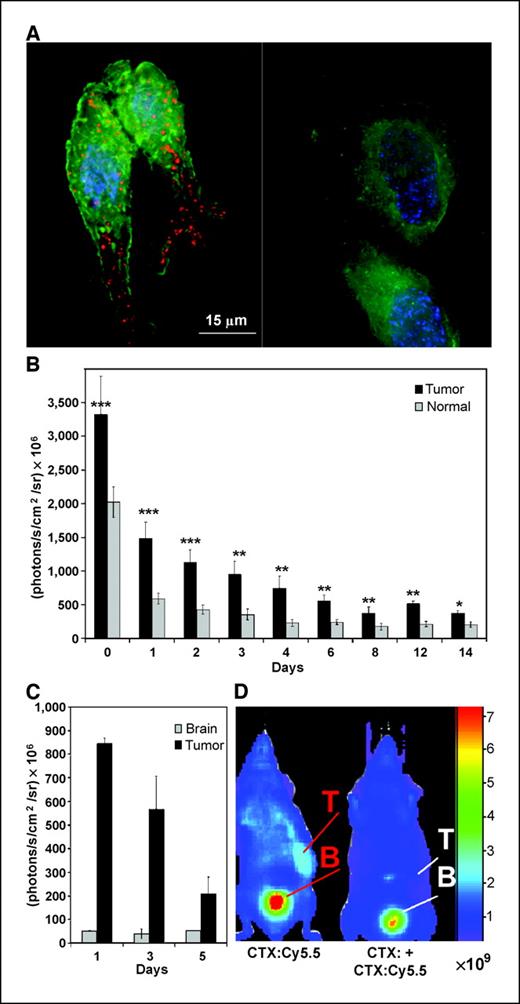

Biophotonic imaging of glioma. A, CTX:Cy5.5 bioconjugate emits signal from every 9L glioma cell in culture (left), but minimal signal from fibroblasts, indicating tumor cell-specific binding (right). B, following administration of CTX:Cy5.5, NIRF signal is significantly higher in 9L glioma xenografts than in normal tissue at all time points through day 14. ***, P < 0.0005; **, P < 0.005; and *, P < 0.05. Columns, mean; bars, SE. C, ex vivo imaging of 9L glioma xenograft tumors showed higher signal than normal brain (P < 0.001) at all time points by t test, n = 3. Columns, mean; bars, SE. D, CTX:Cy5.5 binding in tumor (T) is blocked by coadministration of unlabeled chlorotoxin (right) compared with mouse that received CTX:Cy5.5 with no unlabeled chlorotoxin (left). These photographs are from the ventral surface of the mouse, so CTX:Cy5.5 that is eliminated by renal excretion is seen in the bladder (B).

Figure 1.

Biophotonic imaging of glioma. A, CTX:Cy5.5 bioconjugate emits signal from every 9L glioma cell in culture (left), but minimal signal from fibroblasts, indicating tumor cell-specific binding (right). B, following administration of CTX:Cy5.5, NIRF signal is significantly higher in 9L glioma xenografts than in normal tissue at all time points through day 14. ***, P < 0.0005; **, P < 0.005; and *, P < 0.05. Columns, mean; bars, SE. C, ex vivo imaging of 9L glioma xenograft tumors showed higher signal than normal brain (P < 0.001) at all time points by t test, n = 3. Columns, mean; bars, SE. D, CTX:Cy5.5 binding in tumor (T) is blocked by coadministration of unlabeled chlorotoxin (right) compared with mouse that received CTX:Cy5.5 with no unlabeled chlorotoxin (left). These photographs are from the ventral surface of the mouse, so CTX:Cy5.5 that is eliminated by renal excretion is seen in the bladder (B).

Close modal

To determine whether the tumor-specific signal was due to CTX:Cy5.5 binding to the CTX binding site versus the enhanced permeability and retention (EPR) effect, we tested whether unlabeled chlorotoxin could block CTX:Cy5.5 signal in tumor. In these experiments, signal was blocked in tumor by the coadministration of chlorotoxin (Fig. 1D). To further assess the targeting role of CTX, the tumor-specific signal in mice injected with Cy5.5 was compared with those of CTX:Cy5.5 at days 0 and 1 postinjection (Supplementary Fig. S2A and B). The tumor-specific signal in CTX:Cy5.5-injected mice was significantly higher than uninjected controls and Cy5.5-injected mice. The difference between Cy5.5-injected mice and uninjected controls was not significant at either time point (Supplementary Fig. S2C).

As predicted by the s.c. xenograft model, brain xenograft experiments confirmed a clear distinction between tumor and normal brain (Supplementary Fig. S2D).

The specificity of CTX:Cy5.5 for tumor compared with non-neoplastic tissue seems to be directly attributable to the targeting role of CTX because signal intensity from CTX:Cy5.5-treated 9L glioma cells was remarkably higher than Cy5.5-treated cells under identical treatment conditions (1 μmol/L, 2 h at 37°C; Supplementary Fig. S2E and F).

Noninvasive imaging of medulloblastoma through cranial bone. We tested CTX:Cy5.5 in the SmoA1 genetically engineered autochthonous mouse model of medulloblastoma (11). In these mice, medulloblastomas arise in the cerebellum due to transgenic expression of constitutively active smoothened, a mediator of sonic hedgehog activity. Tumors were detected through intact skull and scalp, and the level of NIRF emission grossly reflected tumor size (Fig. 2A and B and data not shown). Histologic analysis confirmed tumor presence in mice that exhibited the signal following CTX:Cy5.5 (Fig. 2C), and confocal microscopy of ex vivo tumor specimens revealed bright staining of medulloblastoma cells with CTX:Cy5.5 (Fig. 2D). Two approaches were used to establish that the blood-brain barrier was intact in SmoA1 mice. Albumin immunostaining showed that the albumin was limited to intravascular space in normal brain and medulloblastoma of SmoA1 mice (Supplementary Fig. S3A), and Evans blue dye was excluded from brain and tumor parenchyma in SmoA1 mice (Supplementary Fig. S3B and C). Because these tumors arise in the absence of blood-brain barrier disruption, we conclude that CTX:Cy5.5 enters the mouse medulloblastoma tissue at concentrations suitable for real-time imaging, and that intracranial tumors can be readily detected noninvasively.

Figure 2.

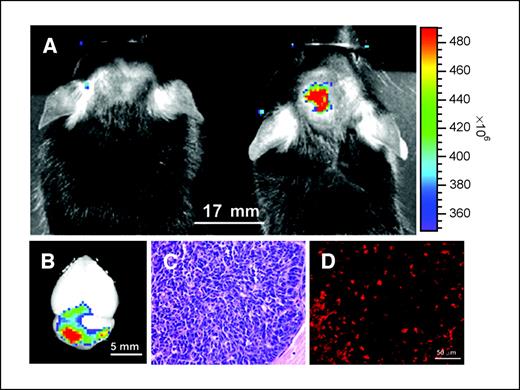

Detection of autochthonous medulloblastoma in genetically engineered mice. A, biophotonic images of tumor-free wild-type mouse (left) and ND2:SmoA1 mouse (right). Mice were injected with 0.2 mL of 10 μmol/L probe 1.5 d before imaging. Representative sample shown from five mice with similar results. B, images of brains from the same mice following necropsy confirms signal from tumor. C, histologic confirmation of medulloblastoma tumor. D, confocal microscopy images from the same brains shown in (B) demonstrating the near absence of Cy5.5 signal in control and presence in medulloblastoma.

Figure 2.

Detection of autochthonous medulloblastoma in genetically engineered mice. A, biophotonic images of tumor-free wild-type mouse (left) and ND2:SmoA1 mouse (right). Mice were injected with 0.2 mL of 10 μmol/L probe 1.5 d before imaging. Representative sample shown from five mice with similar results. B, images of brains from the same mice following necropsy confirms signal from tumor. C, histologic confirmation of medulloblastoma tumor. D, confocal microscopy images from the same brains shown in (B) demonstrating the near absence of Cy5.5 signal in control and presence in medulloblastoma.

Close modal

Imaging of mouse prostate cancer, intestinal cancer, and sarcoma. At the time imaging studies were conducted, we were operating under the assumption that MMP-2 was the CTX target. To determine whether CTX:Cy5.5 illuminated cancer foci of MMP-2–positive tumors that were not of neuroectodermal origin, we conducted studies in transgenic mice that express the SV40T gene in prostate epithelium (12, 18). In these mice, CTX:Cy5.5 illuminated the primary prostate cancer as well as lung metastases (Fig. 3A and B). CTX:Cy5.5 binding correlated with the histologic presence of neoplastic cells in the primary (Supplementary Fig. S4A–D) and distant organs (data not shown). Under simulated surgical conditions, microscopic foci of cancer cells in lymphatic channels and lymph nodes were easily detected (Fig. 3C–D).

Figure 3.

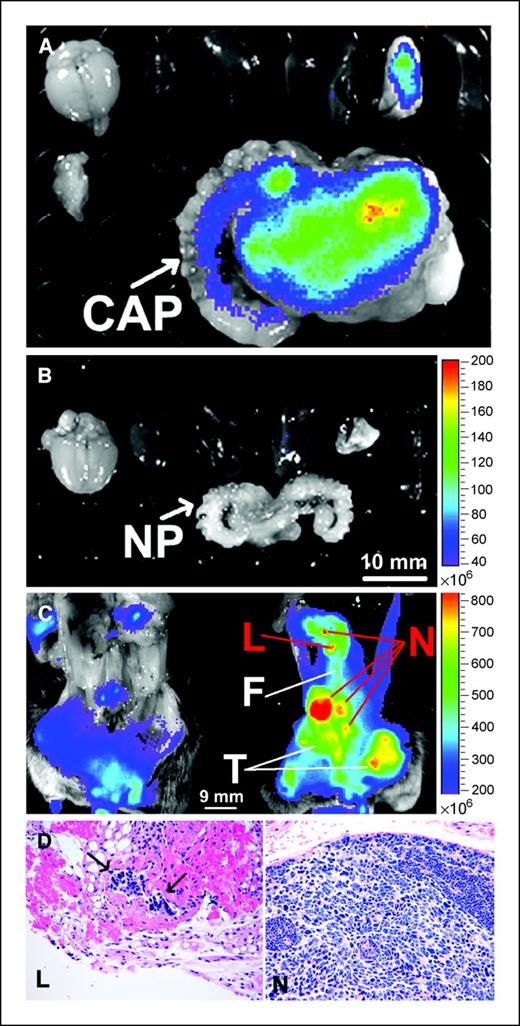

Specificity of CTX:Cy5.5 for human and mouse prostate cancer. A, biophotonic image of prostate and other organs from TRAMP mouse. CAP, cancerous prostate. B, wild-type control shows specific signal in TRAMP prostate and lung. Representative image from three animals in each group. Images were obtained 5 d after injection of 0.1 mL of 10 μmol/L probe. Top row, brain, heart, kidney, liver, lung, and spleen. Bottom row, NP, normal prostate. C, intraoperative images of control (left) and TRAMP (right) mouse abdomen following removal of intestine, prostate, and liver. Multiple lymph nodes (N) were positive by biophotonic imaging and histology. A 1.5-mm-diameter tissue nodule that was very bright on imaging revealed a small focus of prostate cancer cells in lymph channels surrounded by fat and reactive tissue (L). Lower amounts of signal were detected in fat (F) and testes (T). D, H&E stain showing cancer focus in lymph channel and cancer packed lymph node (data not shown).

Figure 3.

Specificity of CTX:Cy5.5 for human and mouse prostate cancer. A, biophotonic image of prostate and other organs from TRAMP mouse. CAP, cancerous prostate. B, wild-type control shows specific signal in TRAMP prostate and lung. Representative image from three animals in each group. Images were obtained 5 d after injection of 0.1 mL of 10 μmol/L probe. Top row, brain, heart, kidney, liver, lung, and spleen. Bottom row, NP, normal prostate. C, intraoperative images of control (left) and TRAMP (right) mouse abdomen following removal of intestine, prostate, and liver. Multiple lymph nodes (N) were positive by biophotonic imaging and histology. A 1.5-mm-diameter tissue nodule that was very bright on imaging revealed a small focus of prostate cancer cells in lymph channels surrounded by fat and reactive tissue (L). Lower amounts of signal were detected in fat (F) and testes (T). D, H&E stain showing cancer focus in lymph channel and cancer packed lymph node (data not shown).

Close modal

We next assessed NIR emission in a genetically engineered familial adenomatous polyposis (FAP) model, the Apc1638N mouse, and in a xenograft sarcoma model. In Apc1638N mice, intestinal neoplasms could not be resolved by noninvasive NIRF imaging because of autofluorescence of alfalfa-containing intestinal contents. However, ex vivo analysis of the intestine that was free of intestinal contents showed exquisite delineation of 3- to 5-mm diameter cancer nodules and no appreciable signal from otherwise normal intestine (Fig. 4A–C). Biophotonic (Fig. 4D) and confocal analyses (Supplementary Fig. S5A–C) of Rh30 rhabdomyosarcoma xenografts showed that CTX:Cy5.5 targets this type of tumor as well.

Figure 4.

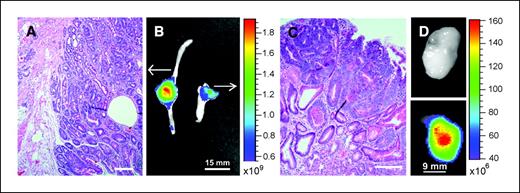

CTX:Cy5.5 imaging of adenocarcinomas and sarcomas. A–C, biophotonic image of adenocarcinoma (B, left) and adenoma (B, right) shows clear delineation from normal intestine. Histologic confirmation of (A) adenocarcinoma and (C) adenoma. D, ex vivo image of Rh30 xenograft from uninjected (top) and CTX:Cy5.5-injected (bottom) animals shows probe-specific signal.

Figure 4.

CTX:Cy5.5 imaging of adenocarcinomas and sarcomas. A–C, biophotonic image of adenocarcinoma (B, left) and adenoma (B, right) shows clear delineation from normal intestine. Histologic confirmation of (A) adenocarcinoma and (C) adenoma. D, ex vivo image of Rh30 xenograft from uninjected (top) and CTX:Cy5.5-injected (bottom) animals shows probe-specific signal.

Close modal

Biodistribution and toxicity. CTX has previously been administered to human patients in clinical trials, but the pharmacokinetic properties of the bioconjugate have not been previously reported (6, 19). Unbound bioconjugates were fairly evenly distributed through the mouse body during the first 24–96 h, with the exception that NIR emission from kidney was much higher than any other organ (Fig. 5). Confocal microscopy showed that CTX:Cy5.5 was concentrated in the renal collecting system as expected for a compound that is primarily excreted in urine (data not shown).

Figure 5.

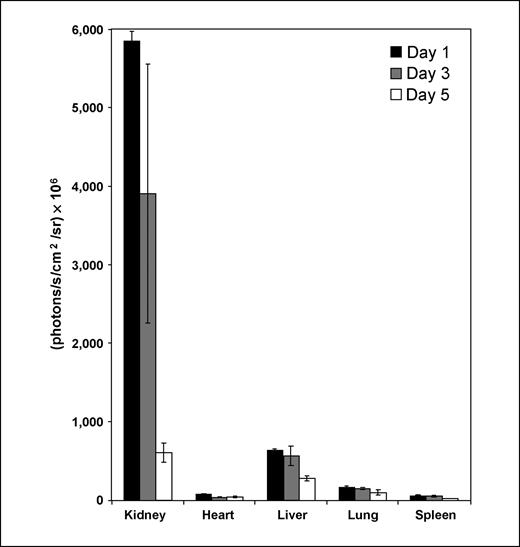

Biodistribution analysis. Signal in normal organs at 1, 3, and 5 d after injection of 100 μL of 20 μmol/L CTX:Cy5.5. Columns, mean of three replicates; bars, SE.

Figure 5.

Biodistribution analysis. Signal in normal organs at 1, 3, and 5 d after injection of 100 μL of 20 μmol/L CTX:Cy5.5. Columns, mean of three replicates; bars, SE.

Close modal

In many cases, scorpion venom peptides are selectively toxic to particular insects or higher organisms and nontoxic to others. CTX causes paralysis in crayfish, but no toxicity has been reported in mammals. In our study, mice that were injected with CTX:Cy5.5 were indistinguishable from control mice in open-field observation (data not shown). To further assess potential CTX:Cy5.5 toxicity at doses used for optical imaging, complete necropsy was done on mice 2 weeks after exposure to CTX:Cy5.5. Brain, heart, lungs, kidneys, liver, spleen, and skin were indistinguishable from control mice on gross inspection and histology (data not shown). Laboratory evaluation showed no alteration in hematocrit, platelet count, WBC count, electrolytes, liver function, or kidney function (data not shown). We conclude that, at doses used for optical imaging, no toxicity from CTX:Cy5.5 could be detected in mice.

MMP-2 facilitates CTX:Cy5.5 binding. The MMP-2 molecular complex is the leading candidate target for CTX (2, 3). To determine whether MMP-2 is also involved in CTX:Cy5.5 tumor cell targeting, we evaluated CTX:Cy5.5 binding in the presence and absence of an MMP2 inhibitor. Binding of CTX:Cy5.5 to 9L glioma cells in culture was blocked by preincubation with (50 μmol/L) of the MMP inhibitor, 1,10-phenanthroline (Sigma Aldrich; data not shown). Specific binding of CTX:Cy5.5 was 6-fold lower when mice with 9L glioma xenografts were pretreated with 1,10-phenanthroline, indicating that imaging reflected binding of CTX:Cy5.5 to tumor cells rather than simply measuring increased blood flow in neovascularized tumors (Fig. 6A). Although these studies indicated that MMPs were involved in CTX:Cy5.5 binding, further experiments were necessary to elucidate the role of MMP-2 because MMP inhibitors may have off-target activity.

Figure 6.

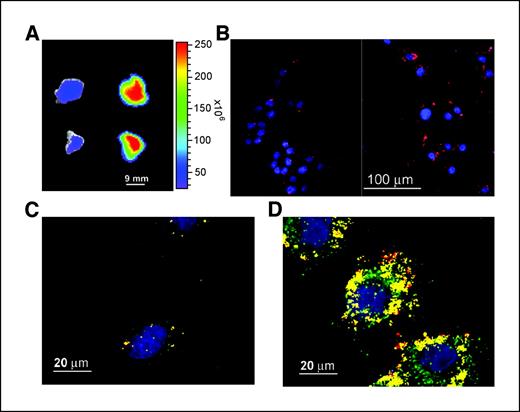

MMP-2 and CTX:Cy5.5 trafficking. A, inhibition of CTX:Cy5.5 binding by the MMP-2 blocker in 9L glioma xenograft tumor, 1,10-phenanthroline (left, top and bottom) compared with binding in control mice that did not receive 1,10-phenanthroline (right). B, mock-transfected MCF7 cells (left) and MCF7 cells transfected with a plasmid encoding MMP-2 (right) by NIRF microscopy after 2 h incubation with 1 μmol/L CTX:Cy5.5 (red) and DAPI nuclear stain (blue). Shown are representative images from three independent experiments. C and D, confocal images of (C) mock-transfected and (D) MMP-2–transfected MCF7 cells showing staining with MMP-2 antibody (green), CTX:Cy5.5 (red), and colocalization of both (yellow) and DAPI (blue).

Figure 6.

MMP-2 and CTX:Cy5.5 trafficking. A, inhibition of CTX:Cy5.5 binding by the MMP-2 blocker in 9L glioma xenograft tumor, 1,10-phenanthroline (left, top and bottom) compared with binding in control mice that did not receive 1,10-phenanthroline (right). B, mock-transfected MCF7 cells (left) and MCF7 cells transfected with a plasmid encoding MMP-2 (right) by NIRF microscopy after 2 h incubation with 1 μmol/L CTX:Cy5.5 (red) and DAPI nuclear stain (blue). Shown are representative images from three independent experiments. C and D, confocal images of (C) mock-transfected and (D) MMP-2–transfected MCF7 cells showing staining with MMP-2 antibody (green), CTX:Cy5.5 (red), and colocalization of both (yellow) and DAPI (blue).

Close modal

To determine by genetic means whether MMP-2 is involved in CTX:Cy5.5 binding, we transfected MCF7 cells, which express low levels of MMP-2 and bind CTX:Cy5.5 poorly in comparison to other cell lines (20) with a plasmid encoding MMP-2. Transfected cells were sorted from untransfected cells. Increased MMP-2 levels in transfected cells were confirmed by indirect immunofluorescence (Fig. 6B,, right, and D) and confirmed by Western blot and gelatinase assays (data not shown). MMP-2–transfected cells (Fig. 6B,, right). showed higher CTX:Cy5.5 binding than control plasmid-transfected cells (Fig. 6B,, left). Confocal microscopy showed CTX:Cy5.5 and MMP-2 colocalization in transfected cells (Fig. 6C and D). We reasoned that if MMP-2 was important for CTX:Cy5.5 binding, then all of the tumors that bind CTX:Cy5.5 should show MMP-2 activity. Indeed, Western blot analyses, gelatinase assays, and indirect immunofluorescence assays revealed that the mouse tumors and cell lines used in the experiments reported above were MMP-2 positive (Supplementary Table S1).

These experiments showed that CTX:Cy5.5 binding was facilitated by MMP-2, but did not establish whether it specifically binds the bioconjugate. To assess this, we evaluated binding between CTX:Cy5.5 and recombinant MMP-2 using pulldown experiments. In six pulldown experiments, there was no clear evidence that CTX:Cy5.5 binds to MMP-2 in a specific manner. In the example shown, the amount of bioconjugate pulled down by a monoclonal antibody against MMP-2 and protein G was similar whether recombinant MMP-2 or bovine serum albumin was included (Supplementary Fig. S6). CTX:Cy5.5 incubated at 37°C in the media of 9L or U87 cells showed no change in mass compared with CTX:Cy5.5, indicating that the bioconjugate is not enzymatically altered by MMP-2 (data not shown). Taken together with the pharmacologic inhibition and transfection studies, these data indicate that MMP-2 is important for CTX:Cy5.5 binding to cancer cells, but the two molecules may not specifically bind to each other. The exact molecular target of CTX:Cy5.5 needs further investigation in the context of MMP-2 macromolecular complex.

Surgery remains a principal component of cancer therapy. Despite advances in surgical guidance tools, delineation of the tumor/normal tissue interface continues to rely on color, texture, or vascularity differences that are often subtle and imperfect. Insufficient visual cues between tumor and normal tissue contribute to potentially preventable cancer progression or unacceptable morbidity when too little or too much tissue is resected. The technique described here combines an intuitive visual guide for the surgeon with the potential for significant improvement in accuracy and safety by virtue of its molecular precision.

CTX:Cy5.5 bioconjugate enables real-time biophotonic imaging of malignant cancer foci as small as a few hundred cells. In our studies of more than 50 mice, all tissues sent to pathology tagged as cancer based on CTX:Cy5.5 signal were cancerous, and all adjacent normal tissues were histologically normal. The resolution of cancer foci from normal tissue under simulated operating conditions was exquisite.

CTX:Cy5.5 enabled detection and monitoring of a variety of cancers in mouse models. This approach adds particular value to genetically engineered mouse (GEM) models that develop in situ cancers as a result of genetic manipulation that recapitulates human disease. A particular advantage of GEM models is that tumors can be studied from early to advanced stages to better understand the evolution of growth, angiogenesis, local invasion, metastases, drug response, and drug resistance. The ability to detect early-stage tumors for molecular or therapeutic studies can be dramatically improved by a real-time imaging technique such as the one reported here (21, 22).

In this and a related study, we show that CTX:Cy5.5 is superior to CTX conjugates with other NIR tags and to Cy5.5 alone.12
