Human CTLs to Wild-Type and Enhanced Epitopes of a Novel Prostate and Breast Tumor-Associated Protein, TARP, Lyse Human Breast Cancer Cells Free

Up to 30% of 180,000 United States patients with potentially curable early-stage breast and prostate cancer will fail standard surgical or radiotherapy in 2004. In addition, patients with metastatic prostate cancer and the majority of patients with metastatic breast cancer enjoy limited benefit of standard chemotherapy and hormone-based therapies. Immunotherapy may have great potential to improve on these results, combining the tumor specificity of cell-mediated immunity with freedom from toxic chemotherapies.

Recent immunotherapy of cancer patients has built on the finding that CD8⁺ CTLs recognize and kill tumor cells displaying peptides from tumor-associated antigens presented by MHC class I molecules. Several tumor antigens and HLA allele-specific peptides from prostate cancer-associated antigens have been identified as CD8⁺ T-cell epitopes, including HLA-A2-binding peptides derived from prostate-specific antigen (1), prostate-specific membrane antigen (2), prostate stem cell antigen (3), and prostate acid phosphatase (4), which are all now components of current vaccine trials (5, 6, 7, 8).

Finding additional, more tumor-specific antigens, however, will be critical to the success of effective immunotherapy. In this regard, several new genes specifically expressed in human prostate and breast cancer have been identified by analysis of the expressed sequence tag database (9, 10, 11). One of these, TARP[T-cell receptor (TCR) γ alternate reading frame protein], is expressed in both prostate and breast cancer cells (12, 13). TARPwas originally discovered because there were unusually large numbers of expressed sequence tags in prostate cancer samples that contained TCRγ sequences but not TCRδ sequences as might be expected if the prostate cancer samples used to make the expressed sequence tags contained many TCRγδ T cells. Subsequently, it was shown that both normal prostate and prostate cancer cell line LNCaP express large amounts of a transcript that hybridizes with a TCRγ cDNA probe but that the mRNA was smaller than mRNAs encoding TCRγ present in lymph nodes and other organs (12). Cloning and sequencing of this smaller mRNA showed that it is initiated within the Jγ 1 exon of the TCRγ gene and that it encodes a 58-amino acid protein produced from a reading frame different from that of TCRγ. In the past several years, three groups of investigators have used cDNA arrays to analyze gene expression patterns in prostate cancer and found that prostate cancers contain RNA transcripts hybridizing with probes containing TCRγ sequences but not TCRδ transcripts and that these transcripts are elevated in prostate cancer (14, 15, 16). The implication is that these transcripts in prostate cancers encode TARP and not TCRγ. Furthermore, we have used in situ hybridization to determine the cellular localization of TARP in human prostate cancer samples and shown that TARPis expressed in >90% of cancer specimens examined.⁷

In this study, we first determined human HLA-A2-presented epitopes derived from TARP, and then their immunogenicities were tested in A2K^b transgenic mice that have a chimeric MHC class I molecules composed of α1 and α2 domains from HLA-A2 and α3 domain from K^b (17). Next, we enhanced the immunogenicity of the peptides by increasing their binding affinities to HLA-A2 molecules. Epitope enhancement can potentially increase the efficacy of a vaccine because natural tumor epitopes are not necessarily optimized for immunogenicity (18, 19, 20, 21, 22, 23). Because it takes a stronger signal to activate a response than to be the target of a response (24), the natural epitope may be sufficient to allow killing of the tumor by T cells raised with the enhanced epitope. Furthermore, we have detected CD8⁺ T cells reactive to the wild-type and enhanced epitopes in prostate and breast cancer patients. By in vitro restimulation of peripheral blood mononuclear cells from prostate cancer patients with peptide-loaded dendritic cells (DCs), we could detect and expand peptide-specific CD8⁺ T cells that recognized peptide/MHC complexes, mediating lysis of a human breast cancer cell line. In addition, HLA-A2 tetramers containing individual peptides made in this study allowed us to detect the presence of peptide-specific CD8⁺ T cells in both breast and prostate cancer patients. These studies provide the preclinical basis for clinical trials of TARP-directed vaccine immunotherapy of prostate and breast cancer.

A2K^b transgenic mice expressing a chimeric HLA-A2.1 transgene with the α1 and α2 domains from HLA-A2.1 and the α3 domain from H2K^b, to allow binding to mouse CD8, on a C57BL/6 background were developed at The Scripps Clinic by Linda Sherman (17). These mice were bred and housed in appropriate animal care facilities. All procedures with animals were conducted in accordance with the institutionally approved protocols.

HLA-A2-binding peptides were synthesized on a Model Symphony Peptide Synthesizer (Perkin-Elmer, Boston, MA) using conventional fluorenylmethoxycarbonyl (f-MOC) chemistry and cleaved from the resin by trifluoroacetic acid. The purity and molar concentration were analyzed by reverse-phase high-performance liquid chromatography on a C18 column using a gradient of 0.1% trifluoroacetic acid in water and 0.1% trifluoroacetic acid in acetonitrile and further purified by preparative reverse-phase high-performance liquid chromatography using a similar gradient. Some peptides were purchased from Multiple Peptide Systems (San Diego, CA) at >95% purity and were single peaks by reverse-phase high-performance liquid chromatography.

The T2 cell line is deficient in TAP1 and TAP2 transporter proteins and expresses low levels of HLA-A2. The C1R-A2.1 cell line is derived from human B lymphoblastoid cell line HMYC1R transfected with HLA-A2.1. Cells were maintained in complete medium (RPMI 1640 supplemented with 10% FCS, 100 IU of penicillin, and 10 μg/ml streptomycin). RPMI 1640 and other supplements were purchased from Cellgro (Gaithersburg, MD). For C1R-A2.1 cells, 200 μg/ml Geneticin (Sigma, St. Louis, MO) was added into the medium. LNCaP, PC3, MCF-7, and DU145 cells were maintained in the complete media. For PC3-TARP cells (25), 200 μg/ml hygromycin B (Invitrogen, Carlsbad, CA) was added into the medium.

Peptide binding capacity to HLA-A2 molecules was measured by using the T2 cell line according to a protocol described previously (26). T2 cells (3 × 10⁵ cells/well) were incubated overnight in 96-well plates with culture medium (1:1 mixture of RPMI 1640/Eagle-Hank’s amino acid containing 2.5% fetal bovine serum, 100 units/ml penicillin, and 100 μg/ml streptomycin) with 10 μg/ml β2-microglobulin (Sigma) and different concentrations of peptides. Cells were washed twice with cold PBS containing 2% fetal bovine serum and incubated for 30 min at 4°C with anti-HLA-A2.1 BB7.2 monoclonal antibody (1:80 dilution from hybridoma supernatant). After washing, cells were stained with FITC-labeled goat antimouse immunoglobulin (PharMingen, San Diego, CA), and the level of HLA-A2 expression was measured by flow cytometry. HLA-A2 expression was quantified as fluorescence index according to the following formula: fluorescence index = (mean fluorescence intensity with peptide − mean fluorescence intensity without peptide)/mean fluorescence intensity without peptide.

A2K^b transgenic mice were immunized with syngeneic peptide-loaded DCs, plasmid DNA expressing TARP, or a mixture of peptide and cytokine in incomplete Freund’s adjuvant. For DC immunization, DCs were pulsed with 10 μm peptide in serum-free RPMI 1640 for 2 h at 37°C, and then mice were immunized s.c. with 1–3 × 10⁵ DCs without washing. DCs were prepared from bone marrow as described previously (27). Alternatively, mice were immunized i.m. with 100 μg of plasmid DNA, pcDNA5/FRT/TARP, generated by inserting the TARP DNA into the pcDNA5/FRT (Invitrogen) vector. Mice were also immunized s.c. in the base of the tail with 100 μl of an emulsion containing 1:1 incomplete Freund’s adjuvant and PBS with antigens and cytokines (50 nmol of CTL epitope, 50 nmol of Hepatitis B virus core 128–140 helper epitope, 3 μg of interleukin 12, and 5 μg of granulocyte macrophage colony-stimulating factor. Incomplete Freund’s adjuvant and cytokines were purchased from Sigma and Peprotech (Rocky Hill, NJ), respectively.

Elutriated monocytes and lymphocytes were obtained from HLA-A2⁺ patients before they underwent surgery or chemotherapy. HLA typing was performed by the Clinical Center laboratory (NIH), which uses a PCR-based low-resolution molecular technique. To prepare DCs to make an autologous peptide-specific CTL line, monocytes from prostate cancer patient 1 (in Fig. 8) were cultured at 10⁶ cells/ml in complete medium containing human interleukin 4 (1000 units/ml) and human granulocyte macrophage colony-stimulating factor (1000 units/ml). On days 2 and 4, half of the media was exchanged. Cells were harvested on day 7 and then pulsed with 10 μm peptides for 2 h before γ-irradiation. Peptide-pulsed DCs (1 × 10⁵) and autologous CD8⁺ T cells (2 × 10⁶) were mixed and cultured in 24-well plates. Interleukin 2 (10 units/ml) was added on day 2 during restimulation. Cells were restimulated every 7–9 days for approximately four to seven cycles.

For murine CTLs, CD8⁺ T cells from the immunized mice were restimulated with peptide-loaded splenocytes for 1 week as described previously (28) and then tested in 5-h ⁵¹Cr release assays. Target cells were labeled with ⁵¹Cr first and washed twice. Cells were then pulsed with peptides for 2 h and used as target cells without further washing. To measure human CTL activity against peptide-loaded target cells, target cells were labeled with ⁵¹Cr first and then loaded with peptides. In the CTL assay against human tumor cells expressing naturally processed epitopes, target cells were incubated without any peptide addition in complete medium containing 1000 units/ml IFN-γ for 72 h before CTL assay. The mean of triplicate samples was calculated, and the percentage of specific lysis was determined using the following formula: percentage of specific lysis = 100 × (experimental ⁵¹Cr release − control ⁵¹Cr release)/(maximum ⁵¹Cr release − control ⁵¹Cr release). The maximum release refers to counts from targets in 2.5% Triton X-100.

Tetrameric MHC class I/peptide complexes were synthesized as described previously (29, 30) using a single-chain HLA-A2 construct. Briefly, purified single-chain HLA molecule in which the heavy chain and β2-microglobulin are covalently linked using a flexible peptide linker were synthesized by means of a prokaryotic expression system (pET; R&D Systems, Minneapolis, MN). The heavy chain was modified by deletion of the transmembrane and cytosolic tail and COOH-terminal addition of a sequence containing the Bir-A enzymatic biotinylation site. Single-chain heavy chain-β2-microglobulin and peptide were refolded by dilution into a redox-shuffling buffer system. The refolded product was isolated by ion-exchange chromatography and then biotinylated by Bir-A in the presence of biotin ligase (Avidity, Denver, CO). Streptavidin-Phycoerythrin conjugate (Jackson ImmunoResearch, West Grove, PA) was added in a 1:4 molar ratio.

FITC-labeled antimouse CD8 (53-6.7), CD11c, CD80 (B7-1), CD54 (ICAM-1), antihuman CD8 (RPA-T8), CD14 (M5E2), CD80 (B7-1), CD86 (B7-2), Vβ3 TCR (JOV1.3), Vβ5 TCR (MH3-2), Vβ8 TCR (JR2), Vβ12 TCR (S511), and Vβ23 TCR (AHUT7) were used for staining of cell surface molecules. Intracellular IFN-γ staining followed the manufacturer’s protocol. All antibodies and reagents were purchased from PharMingen. For flow cytometric analysis of cell surface, 5 × 10⁵ cells were washed and resuspended in PBS containing 0.2% BSA and 0.1% sodium azide. Cells were incubated on ice with the appropriate antibody for 30 min and then washed. Samples were analyzed on a FACScan (BD Biosciences, Mountain View, CA). Background staining was assessed by use of an isotype control antibody. For tetramer staining, cells were incubated with tetramers for 20 min and then stained with FITC-labeled anti-CD8.

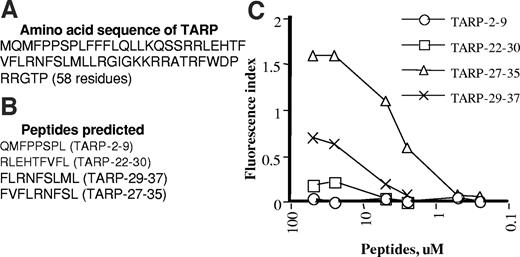

Fifty-eight amino acid residues in TARP were characterized previously (Ref. 13; Fig. 1,A). To determine HLA-A2 epitopes from TARP, four different wild-type peptides were first predicted based on the anchor residues (Fig. 1,B), and their binding affinities to HLA-A2 molecules were measured by the T2 binding assay. As shown in Fig. 1,C, only two wild-type peptides, TARP_29–37 and TARP_27–35, showed measurable binding capacity to HLA-A2 molecules. Although both peptides overlap by 7 residues, TARP_27–35 had almost 10-fold higher binding to HLA-A2 molecules than TARP_29–37. Neither TARP_2–9 nor TARP_22–30 showed any measurable binding affinity to HLA-A2 molecules. The theoretical half-life of peptide binding to HLA-A2 molecules was also predicted by running the software program for peptide motif search (31), and the results were consistent with the data in Fig. 1 C.

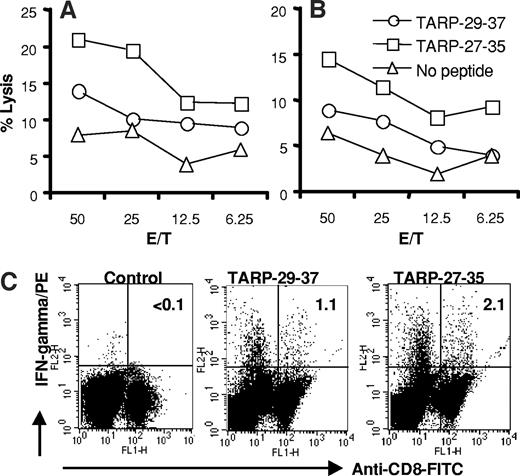

To verify whether the two wild-type peptides predicted in Fig. 1 are immunogenic, A2K^b transgenic mice were immunized with either peptide-pulsed DCs or plasmid DNA expressing the TARP. As shown in Fig. 2, A and B, both peptides could induce peptide-specific CD8⁺ T-cell responses in the mice immunized by either immunization protocol, but responses were higher after peptide-pulsed DC immunization. Compared with TARP_27–35, however, TARP_29–37 resulted in lower peptide-specific CD8⁺ T-cell responses, indicating that the binding affinity of peptide to MHC molecules is a major factor that regulates the induction of CD8⁺ T-cell responses. We could also measure the number of IFN-γ-producing CD8⁺ T cells by intracellular staining. Consistent with the CTL data, a greater fraction of CD8⁺ T cells (2.1%) was obtained from the mice immunized with DCs pulsed with TARP_27–35 than the mice immunized with TARP_29–37-pulsed DCs (1.1%). However, mice immunized with TARP_29–37-pulsed DCs also had a significant number of CD8⁺ T cells producing IFN-γ. We also measured the number of IFN-γ-producing CD8⁺ T cells in mice immunized with DNA plasmid, and the data were consistent with the results in Fig. 2 C (data not shown).

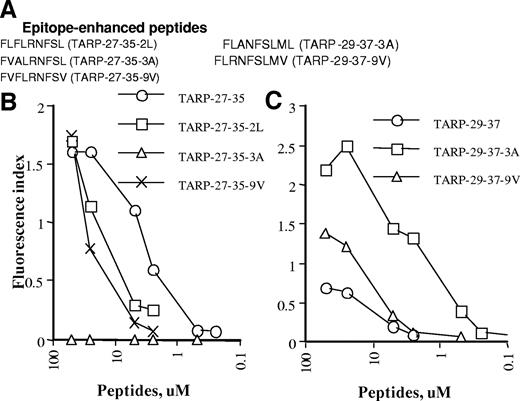

Amino acid substitutions in the wild-type peptides result in increased binding affinity to HLA-A2 molecules (epitope enhancement). Binding affinity of peptide to MHC class I molecules is a major factor determining the immunogenicity of peptide epitopes. To enhance the binding affinity of wild-type epitopes (TARP_29–37 and TARP_27–35), amino acids in the peptides were replaced. For TARP_29–37, Arg at position 3 and Leu at position 9 were substituted with Ala (TARP_29–37-3A) and Val (TARP_29–37-9V), respectively (Fig. 3,A). As shown in Fig. 3,C, substitution at position 3 with Ala in TARP_29–37 resulted in the greatest increase in the binding affinity of the peptide. The binding affinity of TARP_29–37-3A was not less than that of the positive control peptide, flu matrix peptide (32). Although TARP_29–37-9V showed a lower binding affinity to HLA-A2 than TARP_29–37-3A did, substitution of Leu at position 9 with Val did enhance the binding affinity compared with the wild-type peptide, TARP_29–37. In addition to TARP_29–37, we tried to improve the binding affinity of TARP_27–35 to HLA-A2 molecules by substitution of amino acids in position 2, 3, and 9 with Leu, Ala, and Val, respectively, but there was no significant enhancement in binding (Fig. 3 B). In contrast to the situation with TARP_29–37, substitution with Ala at position 3 in TARP_27–35 resulted in no binding of the peptide to HLA-A2 molecules, suggesting that the peptide binding affinity to MHC molecules was not simply determined by a single amino acid but influenced by other amino acids in the epitope. Two other substitutions at position 2 with Leu (TARP_27–35-2L) and at position 9 with Val (TARP_29–37-9V) did not improve the binding affinity compared with the wild-type peptide, TARP_27–35.

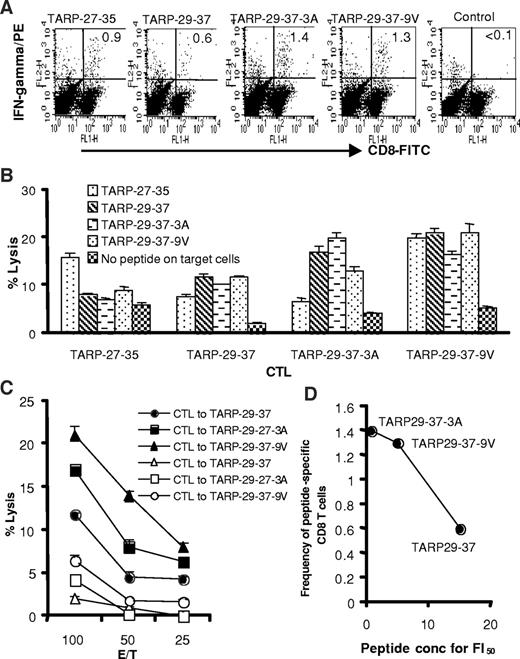

Both TARP_29–37-3A and TARP_29–37-9V showed better binding affinity to HLA-A2 molecules than the wild-type, TARP_29–37 (Figs. 1 and 3). To test the immunogenicities and recognition of the wild-type peptide by CD8⁺ T cells induced with the enhanced epitopes, mice were immunized with those peptides. As shown in Fig. 4,A, both TARP_29–37-3A and TARP_29–37-9V induced over 2-fold higher frequencies of CD8⁺ T cells specific for individual peptides compared with the wild-type, TARP_29–37. Another wild-type epitope, TARP_27–35, also induced a higher frequency of CD8⁺ CTLs specific for the immunogen TARP_27–35, but these CD8⁺ CTLs did not recognize TARP_29–37 and the epitope-enhanced peptides (Fig. 4,B). In a cross-reactivity analysis (Fig. 4, B and C), CD8⁺ CTLs induced with both enhanced epitopes lysed target cells pulsed with the wild-type TARP_29–37, suggesting that the TCRs of those CTLs recognize the wild-type peptide (TARP_29–37)/MHC class I complex to some extent. The immunogenicity of the enhanced versus wild-type TARP_29–37 peptides shown in Fig. 4,A correlated with the peptide affinity for HLA-A2.1 (shown in Fig. 3), as compared graphically in Fig. 4,D. However, CD8⁺ CTLs induced with TARP_29–37-3A recognized TARP_29–37-3A/MHC complex better than other peptide/MHC class I complexes. When compared quantitatively (Fig. 4 C), TARP_29–37-9V was the most immunogenic of the peptides in inducing CTLs specific for the wild-type sequence. Thus, TARP_29–37-9V may be the best immunogen for inducing CTLs against tumor cells expressing the natural antigen. Interestingly, CD8⁺ CTLs induced with TARP_29–37-9V could also kill target cells pulsed with TARP_27–35. In contrast, CTLs induced with TARP_29–37-3A did not kill target cells pulsed with TARP_27–35, suggesting that CD8⁺ T cells induced with TARP_29–37-9V have broader cross-reactivity to wild-type peptide/MHC complexes than CD8⁺ T cells induced with TARP_29–37-3A. Therefore, TARP_29–37-9V may be a good candidate vaccine to target tumor cells expressing TARP.

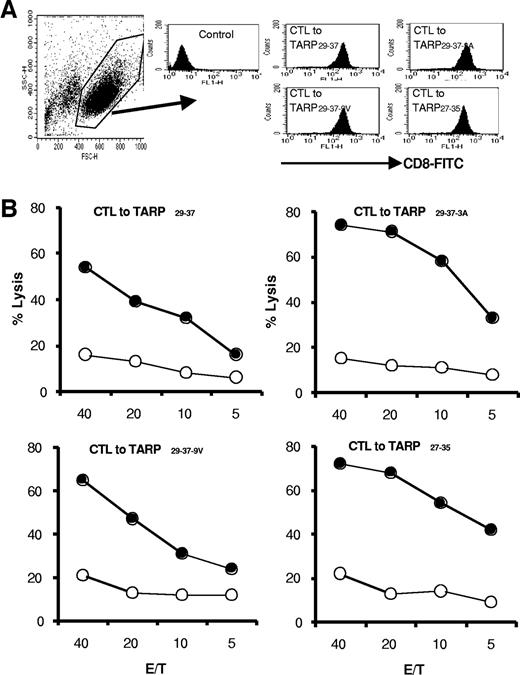

To test for the presence of peptide-specific CD8⁺ T cells in a HLA-A2⁺ prostate cancer patient, CD8⁺ T cells from the leukapheresis of the patient donor were restimulated with peptide-pulsed autologous DCs over several cycles. During the in vitro restimulation, peptide-specific CD8⁺ T cells were detected after only four cycles of restimulation with TARP_29–37-3A-pulsed DCs, whereas TARP_29–37-9V-specific CD8⁺ T cells required at least five cycles. For both wild-type peptides (TARP_29–37 and TARP_27–35), CD8⁺ CTLs required at least six cycles of in vitro restimulation to be detected. Cytolytic activity of those CD8⁺ CTLs raised with individual peptides was tested against peptide-pulsed C1R-A2.1 target cells. All four CTL lines were CD8⁺ and could lyse peptide-pulsed target cells specifically, as shown in Fig. 5. However, CD8⁺ CTLs raised with TARP_29–37-3A and TARP_27–35 resulted in higher levels of cytolytic activity against the corresponding peptides compared with CD8⁺ CTLs raised with TARP_29–37 and TARP_29–37-9V.

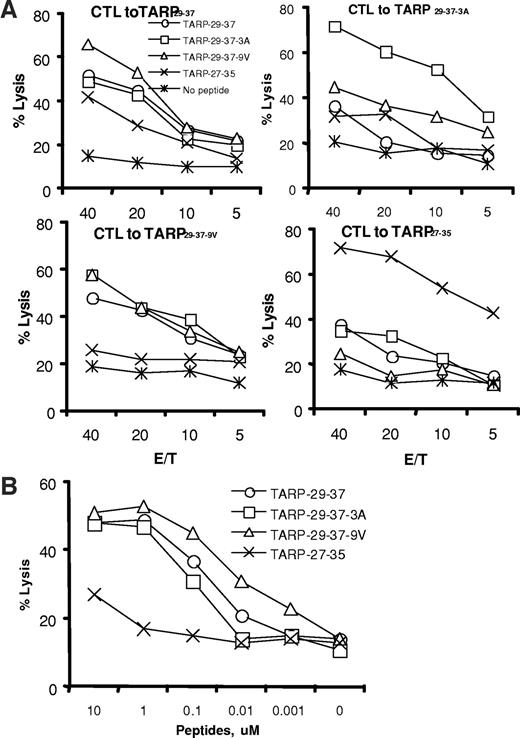

We have shown that murine CD8⁺ CTLs induced by the enhanced epitopes lysed wild-type peptide-pulsed target cells (Fig. 4) and that human CD8⁺ CTLs raised against individual peptides lysed target cells pulsed with the corresponding peptides (Fig. 5). However, it is important to know whether human CD8⁺ CTLs raised against enhanced epitopes could lyse target cells pulsed with wild-type peptide expected to be presented on tumor cells. To address this question, cytolytic activity of individual CD8⁺ CTLs was measured against target cells pulsed with different peptides. As shown in Fig. 6,A, human CD8⁺ CTLs raised with TARP_29–37 could recognize and lyse target cells pulsed with the wild type as well as the two enhanced epitopes (TARP_29–37-3A and TARP_29–37-9V). However, TARP_29–37-3A-specific CD8⁺ T cells recognized TARP_29–37-3A very well but recognized the wild-type and TARP_29–37-9V comparatively less well. In contrast, CD8⁺ T cells specific for TARP_29–37-9V could recognize both wild type and TARP_29–37-3A comparably. These data confirm that CD8⁺ T cells raised with TARP_29–37-9V could recognize both wild type and enhanced epitope/MHC complexes, whereas those raised against TARP_29–37-3A cross-reacted relatively poorly. CD8⁺ CTLs induced with TARP_27–35 recognized TARP_27–35/MHC complex but recognized other peptide/MHC complexes tested less well. Our data also showed that all three CTLs raised with TARP_29–37, TARP_29–37-3A, and TARP_29–37-9V could recognize TARP_27–35 to some extent, possibly due to the 7-residue overlap between them. In terms of vaccine development for prostate and breast cancers, it is important to know the avidity of CD8⁺ CTLs to naturally processed peptide. However, CD8⁺ CTLs raised by TARP_29–37-3A could not recognize the wild-type peptide efficiently, and the immunogenicity of the wild-type peptide, TARP_29–37, was not strong enough (Fig. 4). In this study, therefore, we measured the avidity of CD8⁺ CTLs specific for TARP_29–37-9V to different peptides (Fig. 6 B). CTLs for TARP_29–37-9V recognized TARP_29–37-9V at the 0.001 μm level. Although the avidity of these CTLs for wild-type TARP_29–37 was lower, they could recognize the wild type as well as TARP_29–37-3A with only slightly lower avidity. However, these CTLs did not recognize TARP_27–35 at <10 μm concentration.

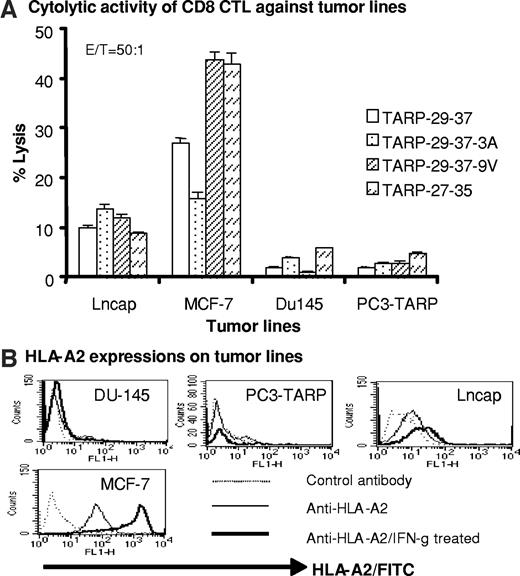

To test whether these CTLs could kill human tumor cells that endogenously express TARP, a CTL assay was performed against tumor cell lines that express both HLA-A2 and TARP (Fig. 7,A). At a 50:1 E:T ratio, all CD8⁺ T cells could kill the breast cancer line MCF-7 but showed marginal (10–12%) lytic activity against the prostate cancer cell line LNCaP. Before CTL assay, all target cells were cultured in medium containing IFN-γ, and the expression levels of HLA-A2 before and after IFN-γ treatment were measured (Fig. 7 B). As expected from the CTL assay, LNCaP cells express an extremely low level of HLA-A2 that was not much increased by IFN-γ. In contrast, the level of HLA-A2 in MCF-7 was higher to start and greatly enhanced by IFN-γ. Both control cell lines, DU145 and PC3-TARP, did not express HLA-A2. Similar to the HLA-A2 expression levels, data from real-time PCR showed that IFN-γ did not increase the expression level of TARP in LNCaP cells but slightly and variably increased the level in MCF-7 cells. Of four different CD8⁺ CTLs, CD8⁺ T cells specific for either TARP_29–37-9V or TARP_27–35 showed higher lytic activity against MCF-7 cells than CD8⁺ CTLs raised with TARP_29–37 and TARP_29–37-3A. Although CD8⁺ CTLs specific for TARP_29–37-3A showed less lytic activity to MCF-7 cells at a 50:1 E:T ratio than other CD8⁺ CTLs did, a comparable range of lytic activity against MCF-7 cells was observed at high E:T ratio (100:1; data not shown).

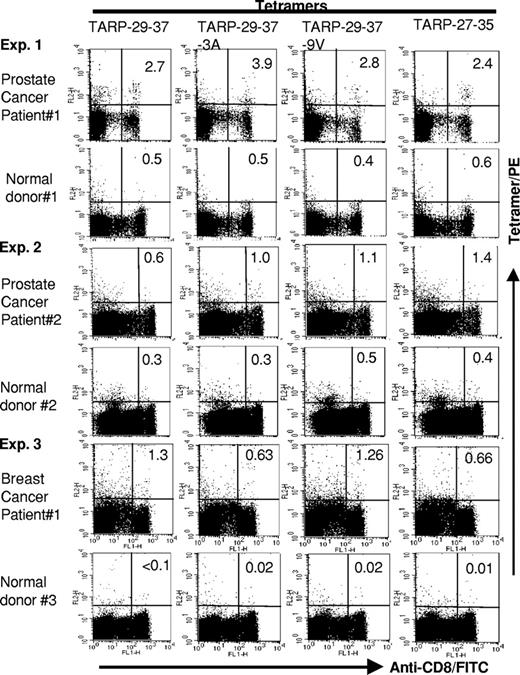

Data from Figs. 5,6,7 indicate that prostate cancer patients have CD8⁺ T cells that recognize individual peptide and HLA-A2 complexes. This is compatible with previously published data that the expression level of TARP is significantly elevated in the prostate of prostate cancer patients (13). To examine the frequency of peptide-specific CD8⁺ T cells in the breast and prostate cancer patients, we made tetramers composed of individual peptides bound to HLA-A2 and then stained peripheral blood mononuclear cells from patients compared with those from normal donors with anti-CD8 and tetramers. As shown in Fig. 8, all four tetramers detected CD8⁺ T cells in both breast and prostate cancer patients, suggesting that those tetramers could be used for detection of peptide-specific CD8⁺ T cells as well as for a diagnostic purpose in the future. The results also indicate that the presence of breast or prostate cancer is sufficient to induce CD8⁺ T cells specific for these epitopes to a fairly high frequency, 0.6–3% of total CD8⁺ T cells in the patients’ peripheral blood mononuclear cells, although the frequency of peptide-specific CD8⁺ T cells may be dependent on the stage of tumor and individual patients. In each case, the frequency of tetramer-positive cells was substantially higher in the patient than in a normal donor tested concurrently. We analyzed TCR repertoire usage in peptide-specific CD8⁺ T cells from prostate cancer patient 1, and the data indicate that CD8⁺ T cells specific for individual peptides use a variety of TCR repertoires: Vβ3 (4.8%), Vβ5 (19.5%), Vβ8 (38%), Vβ12 (5.4%), and Vβ23 (28.6%) for TARP_27–35-specific CD8⁺ T cells; Vβ3 (13.1%), Vβ5 (12.9%), Vβ8 (19.2%), Vβ12 (3.4%), and Vβ23 (23.6%) for TARP_29–37-specific CD8⁺ T cells; Vβ3 (7.7%), Vβ5 (7.4%), Vβ8 (16.7%), Vβ12 (16.8%), and Vβ23 (19.3%) for TARP_29–37-3A-specific CD8⁺ T cells; and Vβ3 (3.4%), Vβ5 (26.7%), Vβ8 (30%), Vβ12 (2.4%), and Vβ23 (23%) for TARP_29–37-9V-specific CD8⁺ T cells. In a phenotype analysis, about 40–60% and 19–40% of peptide-specific CD8⁺ T cells in the patients expressed CD45RA and CD45RO, respectively. However, <2% of CD8⁺ T cells express CCR7, and the majority of cells were CD62L^low, suggesting that most of the peptide-specific CD8⁺ T cells are activated forms and that the majority of the memory cells are not central memory CD8⁺ T cells.

TARP is a newly found protein expressed in both breast and prostate cancer specimens tested. In this study, we first report that human CD8 T cells from a prostate cancer patient specific for peptides derived from TARP kill a human breast cancer cell line (13, 25). Therefore, TARP could be used as a target protein for vaccine immunotherapy for both prostate and breast cancer, and TARP peptides described here may serve as an effective cancer vaccine in the nearly half of the population that is HLA-A2⁺.

In this study, we have examined the potential of this new protein as an antigen for the immunotherapy of prostate or breast cancer patients and defined peptide immunogens that were enhanced by sequence modification. A first step for developing a vaccine that could induce CD8⁺ T cell-mediated immunity, a critical immune arm for cancer immunotherapy, is to identify CD8⁺ T-cell epitopes that can induce immune responses and serve as targets for lysis of tumor cells. To find HLA-A2 epitopes from the TARP protein, 8- or 9-mer peptides were predicted based on amino acid anchor residues that determine binding to HLA-A2 molecules (33, 34, 35). TARP is composed of 58 amino acid residues and contains several hydrophobic amino acids including five leucines, but data from the T2 binding assay showed that only 2 wild-type peptides (TARP_29–37 and TARP_27–35) had a measurable binding affinity to HLA-A2 molecules. Seven of nine amino acids in both wild-type peptides overlap. Moreover, they both share two amino acids at corresponding positions, Phe at position 1 and Leu at position 9, although the residue at position 1 is not a primary anchor residue. However, TARP_27–35 showed a better binding affinity than TARP_29–37, probably because of other residues in nonanchor positions, such as Phe at position 3 in TARP_27–35. Although the other two wild-type peptides, TARP_2–9 and TARP_22–30, possess Leu at position 9 and Met or Leu at position 2, respectively, neither showed a measurable binding affinity to HLA-A2 molecules, suggesting that primary anchor residues alone are not sufficient to determine the binding affinity of peptides (33, 35). One may speculate that the large number of Pro residues affected the conformation of TARP_2–9 and that the Glu at position 3 may have interfered with binding of TARP_22–30. Although epitope enhancement by replacing the Glu in TARP_22–30 might have improved binding, if the wild-type binding is too weak to serve as a good target for CTLs raised against the enhanced peptide, such an enhanced peptide would not be useful.

When the wild-type peptide does bind, but perhaps not optimally, one strategy to improve the usage of self-peptides such as TARP_29–37 and TARP_27–35 is to develop enhanced epitopes that are potentially more immunogenic. Substitution of Arg at position 3 with Ala in TARP_29–37 greatly improved the peptide binding affinity to the HLA-A2 molecules. This could be explained by an adverse effect of Arg at position 3 reducing the affinity. Substitution of Leu at position 9 with Val in TARP_29–37 also resulted in increased binding affinity, and this is consistent with other reports on HLA-A2-binding peptides (33, 35). We have also tried to define enhanced epitopes for TARP_27–35 by substitutions for Val at position 2, Phe at position 3, and Leu at position 9 with Leu, Ala, and Val, respectively, but those substitutions did not improve the affinity. Amino acid residues associated with poor binding to HLA-A2 are Asp, Glu, and Pro at position 1; Asp and Glu at position 3; Arg, Lys, His, and Ala at position 4; Pro at position 5; Arg, Lys, and His at position 7; Asp, Glu, Arg, Lys, and His at position 8; and Arg, Lys, and His at position 9 (33, 35). Both TARP_27–35 and TARP_29–37 do not have any residue known to be associated with poor HLA-A2 binding at the secondary anchor positions. In contrast, as noted, the low binding affinity of the wild-type peptides, TARP_2–9 and TARP_22–30, is probably due to the Pro at position 5 and Glu at position 3, respectively.

Immunogenicities of the wild-type and enhanced peptides were compared by using A2K^b transgenic mice. The immunogenicity of each peptide was largely dependent on its affinity for HLA-A2 molecules (Fig. 4 D). Our data from the DNA immunization experiments indicate that the murine antigen processing system is not a limitation for production of peptides presented by human class I molecules. Moreover, data from our laboratory and others suggest that such HLA-transgenic mice can be used for the study of peptides recognized by CD8⁺ T cells specific for HLA-A2/peptide complex (36, 37, 38, 39, 40). Another concern for using transgenic mice is that peptide/HLA-A2 complexes recognized by murine T cells may be different from those recognized by human T cells, explaining why the cross-reactivity of CD8⁺ T cells from mouse and human was not exactly the same. It is possible that those species differences may be due to different TCR repertoires. However, our data showed that both wild-type and enhanced epitopes resulted in the induction of peptide-specific CD8 T cells in HLA-A2 transgenic mice, and therefore these mice can be used as good predictors of human T-cell epitopes (36).

CD8⁺ CTLs typically express clonally distributed TCRs that possess exquisite specificity for a particular MHC/peptide complex. In both mice and humans, however, CD8⁺ T cells raised with individual peptides can recognize a range of cross-reactive peptide/MHC complexes, depending on the individual CD8⁺ CTLs and peptides. The cross-reactivity observed in this study not only among variants of one peptide but between the two wild-type peptides may be explained by the fact that the two wild-type peptides overlap by seven amino acid residues. A number of recent studies have shown degenerate recognition of MHC/peptide complexes by individual TCRs: examples range from T-cell recognition of dissimilar peptides presented by the same MHC molecules to recognition of identical peptides bound to different MHC molecules (41, 42, 43, 44, 45). For example, CD8⁺ T cells specific for one peptide of polyoma virus recognize another epitope that has no sequence homology (46). However, those CD8⁺ T cells require a much higher concentration of the alternative peptide for recognition.

In the cross-reactivity test for human and CD8⁺ T cells, CD8⁺ T cells specific for TARP_29–37 could recognize all four peptide/MHC complexes. However, CD8⁺ T cells specific for TARP_27–35 or TARP_29–37-3A did not recognize other peptides as much as they did the immunogens. Of the enhanced peptides, only CTLs specific for TARP_29–37-9V could recognize the wild-type peptide, TARP_29–37, to a similar degree to the immunogen. In consideration of choosing peptides for immunotherapy, either TARP_29–37-9V or TARP_27–35 will likely be more useful than the other two peptides. Although TARP_29–37-3A showed the highest binding affinity and resulted in high CD8⁺ T-cell responses in transgenic mice (Fig. 4 D), CD8⁺ T cells specific for this peptide did not recognize wild-type peptide very well in the human and showed weak cross-reactivity to wild-type peptide in the mice. Most importantly for tumor killing assay, CD8⁺ T cells specific for TARP_29–37-3A showed a significant range of specific lysis only at a 100:1 E:T ratio (data not shown). At a 50:1 E:T ratio, CD8⁺ T cells specific for TARP_29–37-3A showed much lower lytic activity against tumor cells than CTLs to TARP_29–37-9V. In contrast, TARP_29–37-9V induced a higher level of CD8⁺ T-cell responses than TARP_29–37, and CD8⁺ T cells specific for TARP_29–37-9V could recognize the wild-type peptide, TARP_29–37, and could kill human tumor cells. CD8⁺ T cells specific for TARP_27–35 could kill human tumor cells as well.

Data from tetramer staining experiments support the presence of peptide-specific CD8⁺ T cells in prostate cancer patients. The frequency of tetramer-positive CD8⁺ T cells detected in this study could be influenced by the binding affinity of peptides, and thus the number in Fig. 8 may represent a lower limit on the frequency of peptide-specific CD8⁺ T cells. However, those data consistently show that a higher number of peptide-specific CD8 T cells is present in the prostate and breast cancer patients than in normal donors studied concurrently. Interestingly, the frequency of tetramer-positive CD8⁺ T cells in prostate cancer patient 1 (Fig. 8) was surprisingly high. It is not clear whether these high levels are related to the stage of tumor progression or to some other mechanism. Data from phenotype analysis of tetramer-positive CD8⁺ T cells also indicated that most CD8⁺ T cells were highly activated. It would be interesting to test the frequency of tetramer-positive CD8⁺ T cells, their functional activities, and phenotype changes over the course of the disease in the future.

Besides vaccines, another approach for immunotherapy using the TARP epitopes is the generation of recombinant antibodies that can recognize TARP/HLA-A2 complexes in a peptide-specific, MHC-restricted manner. This approach was applied recently to a number of tumor- and viral-specific epitopes (30, 47, 48, 49, 50, 51). Such antibodies bind with high affinity to the MHC-peptide complex in a TCR-like restricted manner and thus can be used as a targeting moiety to deliver potent toxins or drugs to eliminate a specific cell population that expresses the particular MHC/peptide complex. These antibodies were also used to visualize and quantitate the specific MHC/peptide complex on the surface of tumor cells as well as antigen-presenting cells (47, 48, 49, 50, 51).

We conclude that the peptides TARP_27–35 and TARP_29–37-9V can potentially be used for several immunotherapeutic strategies, including immunotoxins and vaccines, whether in adjuvant or as peptide-pulsed DCs, for prostate and breast cancer patients who are positive for the HLA-A2 allele. Given that HLA-A2 is present in nearly half of the population of North America, as well as much of the world, and that the expression of TARP is common in prostate and breast cancers, a vaccine containing or expressing these peptides may be effective in a sizable fraction of prostate and breast cancer patients. If such an approach is successful in HLA-A2⁺ patients as prototype, it will provide motivation to define TARP epitopes presented by other common HLA class I alleles that could broaden the coverage. Such a vaccine may also be used in combination with other antigens for prostate or breast cancer to enhance the efficacy of vaccine therapy. To enhance CD8⁺ T-cell-mediated immune responses, recombinant vectors including adenovirus or vaccinia virus expressing those antigens can also be used. Definition of novel tumor antigens such as TARP may provide new opportunities to harness the exquisite specificity of the immune system to fight cancer.

We thank Drs. Jeffrey Schlom and Kwong Yok Tsang for critical reading of the manuscript and helpful suggestions and Lisa Smith for assistance in preparation of the manuscript.
