Studies suggest that estrogen plays a contributing role in colorectal cancer. This project examined the preventive effects of raloxifene, a selective estrogen receptor modulator (SERM), and gonadorelin, an antiestrogenic drug, in female ApcMin/+ mouse intestinal tumorigenesis. Six-week-old ApcMin/+mice were fed diet containing 1 ppm raloxifene or control diet. Gonadorelin (150 ng/mouse) was injected subcutaneously into one treatment group. Intestinal tumors were evaluated for tumor multiplicity and size. Mice treated with raloxifene and gonadorelin showed colon tumor inhibition of 80% and 75%, respectively. Both drugs significantly inhibited small intestinal tumor multiplicity and size (75%–65%, P < 0.0001). Raloxifene and gonadorelin showed significant tumor inhibition with 98% and 94% inhibition of polyps >2 mm in size. In mice fed with raloxifene or injected with gonadorelin, tumors showed significantly reduced proliferating cell nuclear antigen expression (58%–65%, P < 0.0001). Raloxifene treatment decreased β-catenin, cyclin D1, laminin 1β, Ccl6, and stem-like cells (Lgr 5, EpCAM, CD44/CD24), as well as suppressed inflammatory genes (COX-2, mPGES-1, 5-LOX,). Gonadorelin showed significant decrease in COX-2, mPGES-1, iNOS, and stem-like cells or increased NK cells and chemokines required for NK cells. Both drugs were effective in suppressing tumor growth albeit with different mechanisms. These observations show that either suppression of estrogen levels or modulation of estrogen receptor dramatically suppresses small intestinal and colonic tumor formation in female ApcMin/+ mice. These results support the concept of chemoprevention by these agents in reducing endogenous levels of estrogen or modulating ER signaling. Cancer Prev Res; 7(3); 300–9. ©2014 AACR.

Colorectal cancer is the second leading cause of cancer-related deaths in the United States. A total of 50,830 deaths from colorectal cancer are expected in 2013, with an estimated 142,820 new cases diagnosed (1). Colorectal cancer incidence rates among young men and women (ages 20–49) increased by 1.5% to 1.6% from 1995 to 2005 (2, 3). In younger adults, colorectal cancer incidence rates have been increasing by 1.1% per year from 2005 (2).

Epidemiological studies suggest that women have delayed development of adenomas and colon cancers compared with men (4). This disparity of colorectal cancer formation among genders has been attributed to female hormones in premenopausal women. Data have suggested an inverse relationship between postmenopausal oral hormone therapy use and risk of developing colorectal cancer. The Women's Health Initiative reported that combination of estrogen and medroxy-progesterone acetate decreased the number of colon cancers by 37% compared with placebo (5, 6). The protective effect of this combination on colon cancers was because of progesterone, not estrogen (7, 8). Primary analysis by Gunter and colleagues (2008) reported that high endogenous estrogen levels were associated with 1.5-fold increased risk of developing colorectal cancer (9). Another study reported that women with high circulating estrogen showed a 60% increased risk of colorectal cancer (10). Epidemiological and experimental studies suggest that colorectal cancer risk is associated with dietary factors, lifestyle, hormonal use/imbalances, and genetic factors. Notably, endogenous estrogen levels have been found to be associated with increased risk for colorectal cancer (11).

Preclinical and in vitro colorectal cancer cell line reports are consistent with findings suggesting a positive association between endogenous estrogen level and the risk of colorectal cancer (12–15). In a previous study, we reported a decrease in AOM-induced aberrant crypt foci formation (colon cancer precursor lesions) in male F344 rats upon use of selective estrogen receptor modulator (SERM), raloxifene (16). Taken together, these results suggest that endogenous sex hormones play a vital role in colorectal cancer formation. In this study, we tested whether estrogen receptor modulation or suppression of endogenous estrogen would provide better efficacy against intestinal tumorigenesis using raloxifene (SERM) and gonadorelin [a synthetic decapeptide with a structure identical with the natural gonadotrophin releasing hormone (Gn-RH) in mammals] to treat female ApcMin/+ mice. Also, we studied the effects of these agents on inflammatory molecules such as COX-2 (cyclooxygenase) and 5-LOX (lipoxygenase) as well as proliferating markers β-catenin and cyclin D along with stem-like cell markers, to observe if these agents have any effects on stem-like cells, because estrogen is known to modulate stem-like cells in other cancers. Furthermore, we analyzed if these agents have any immune modulating effects on NK cells in female ApcMin/+ mice. NK cells have been identified as lymphoid cells capable of killing number of tumor cells both in vivo and in vitro without any prior stimulation (17) because of loss of MHC molecules on tumor cells, often render these cells vulnerable to NK cytotoxicity. Given that estrogens have been reported to suppress NK-cell function, we sought to identify if these agents function through enhancing NK-cell functions.

Chemicals

Raloxifene was provided by the Center for Cancer Prevention and Drug Development drug repository (Oklahoma City, OK). Gonadorelin was synthesized at Dr. Gali's laboratory by solid phase peptide synthesis method using standard fmoc chemistry, purified by reversed-phase high-performance liquid chromatography, and characterized by electrospray mass spectrometry [Department of Pharmaceutical Sciences, University of Oklahoma Health Sciences Center (OUHSC)]. Primary antibodies (polyclonal) to COX-2, proliferating cell nuclear antigen (PCNA), were obtained from Santa Cruz Biotechnology, and monoclonal antibody, fluorescent dye phycoerythrin-linked Nkp46 for NK cells from Biolegend. Primary antibodies, Lgr5 (monoclonal) from Abcam, CD44 (polyclonal), CD24 (polyclonal) and EPCAM (monoclonal) were purchased from Santa Cruz Biotechnology. Horseradish peroxidase–conjugated secondary antibodies were obtained from Santa Cruz Biotechnology. Pathway-focused inflammatory genes, chemokines, chemokine receptors, and NK-cell receptor PCR array were procured from Qiagen and Bio-Rad.

Breeding and genotyping of ApcMin/+ mice

All of the animal experiments were approved by the Institutional Animal Care and Use Committee at the OUHSC. Six-week-old male ApcMin/+ (C57BL/6J) and female wild-type littermate mice were purchased initially from The Jackson Laboratory as founders. A breeding colony was established in the OUHSC rodent barrier facility. Offspring were identified by an allele-specific PCR assay according to vendor's instructions (18). All mice were housed, 3 per cage, in ventilated cages in a temperature and humidity controlled rodent barrier facility with 12-hour light/dark cycle. All mice were allowed ad libitum access to the respective diets and automated tap water purified by reverse osmosis.

Experimental diets and efficacy studies in ApcMin/+ mice

A modified American Institute of Nutrition (AIN)-76A diet was used. All ingredients for the semipurified diets were procured from Bioserv. Raloxifene was premixed with a small quantity of diet, and then blended into bulk diet using a Hobart mixer. Both control and experimental diets were prepared weekly and stored in a cold room. We used 0, 1 ppm raloxifene in the AIN-76A diet. Raloxifene dose was selected based on our previous observations with this drug (16).

Female ApcMin/+ mice were used in the efficacy study. The experimental protocol is summarized in Fig. 1A. Five-week-old mice were randomized into 3 groups so that average body weights in each group were equal (10 ApcMin/+ mice in each group). Mice were fed AIN-76A (control) diet for 1 week. At 6 weeks of age, animals were assigned to Group 1 (control diet), Group 2 (experimental diet with 1 ppm raloxifene), or Group 3 (control diet, gonadorelin injection). In Group 3, 150 ng of gonadorelin was injected subcutaneously (5 days a week, for 3 weeks (at 6th, 8th, and 10th week; Fig. 1A). Gonadorelin dose was selected based on the literature guide from European Agency for Medicinal Products (19). Food and water intake, animal activity, and physical changes were monitored regularly. Mice were evaluated weekly for signs of weight loss or lethargy that might indicate intestinal obstruction or anemia. After 100 days (14 weeks) of treatment (Fig. 1A), all mice were euthanized by CO2 asphyxiation. After necropsy, the entire intestinal tract was harvested, flushed with 0.9% NaCl, and opened longitudinally from the esophagus to the distal rectum. To expose the tumors, the tissue was flattened on filter paper. Tissue was briefly frozen on dry ice to aid visual scoring of tumors. The number, location, and size of visible intestinal tumors were determined under a dissection microscope (18). All tumors were scored and subdivided by location (duodenal, jejunal, ileal, and colorectal) and size (>2, 1–2, or <1 mm in diameter). This procedure was completed by 2 individuals who were blinded to the experimental group and the genetic status of the mice. Fresh tissues from intestinal tumors were frozen in liquid nitrogen for molecular analysis. The remainder of the intestines was fixed in 10% neutral buffered formalin, embedded in paraffin blocks, and processed by routine hematoxylin and eosin staining.

Figure 1.

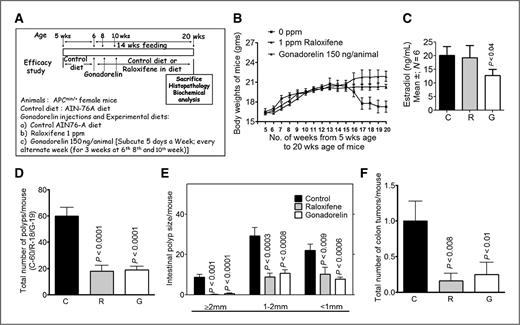

A, experimental design for the evaluation of the chemopreventive efficacy of raloxifene (R) and gonadorelin (G). For details about animals and treatments, see Materials and Methods. B, changes in body weight over time in female ApcMin/+ treated with or without raloxifene and gonadorelin. Statistically significant differences in bodyweight between drug-treated and control groups (C) were observed. C, enzyme immunoassay (EIA) for serum estrogen (E2) in treated mice compared with untreated mice. D, inhibition of total SI polyp formation in ApcMin/+ mice by raloxifene and gonadorelin. Data are means ± SE of 10 animals per treatment group. The control and treated groups are significantly different from one another (P < 0.0001). E, tumor sizes in the small intestine of ApcMin/+ mice in raloxifene- and gonadorelin-treated mice compared with control animals. F, average number of colon tumors per mouse in control and treated ApcMin/+ mice. A significant (P < 0.0007–0.003) inhibition of colon tumors was observed with both raloxifene and gonadorelin. Data are means ± SE of 10 animals per treatment group.

Figure 1.

A, experimental design for the evaluation of the chemopreventive efficacy of raloxifene (R) and gonadorelin (G). For details about animals and treatments, see Materials and Methods. B, changes in body weight over time in female ApcMin/+ treated with or without raloxifene and gonadorelin. Statistically significant differences in bodyweight between drug-treated and control groups (C) were observed. C, enzyme immunoassay (EIA) for serum estrogen (E2) in treated mice compared with untreated mice. D, inhibition of total SI polyp formation in ApcMin/+ mice by raloxifene and gonadorelin. Data are means ± SE of 10 animals per treatment group. The control and treated groups are significantly different from one another (P < 0.0001). E, tumor sizes in the small intestine of ApcMin/+ mice in raloxifene- and gonadorelin-treated mice compared with control animals. F, average number of colon tumors per mouse in control and treated ApcMin/+ mice. A significant (P < 0.0007–0.003) inhibition of colon tumors was observed with both raloxifene and gonadorelin. Data are means ± SE of 10 animals per treatment group.

Close modal

Cell proliferation, COX-2, and ER-β expression by immunohistochemistry and Lgr5, Epcam, CD44, CD24, and NK cells (Nkp46) expression by immunohistofluorescence

To evaluate the effect of raloxifene and gonadorelin on intestinal tumor tissue, PCNA, COX-2, and ER-β expression levels were assessed by IHC. For PCNA, COX-2, and ER-β immunohistochemistry staining, paraffin sections were deparaffinized in xylene and rehydrated through graded ethanol solutions to PBS. We then followed the procedure as previously published (18). Monoclonal/polyclonal primary antibodies against PCNA, COX-2, and ER-β were obtained from Santa Cruz Biotechnology. The color reaction was developed with diaminobenzidine histochemistry. Nonimmune rabbit immunoglobulins were substituted for primary antibodies as negative controls. PCNA-positive cell scoring in the polyps was performed under light microscopy at ×400 magnification by 2 investigators blinded to the identity of the samples. Cells with a brown nucleus were considered positive. The proliferation index was determined by dividing the number of positive cells per polyp and multiplying by 100.

For immunohistofluorescence (IHF), the slides were incubated with primary antibody for NK-cell receptor, tagged with phycoerythrin in the dark for 1 hour. For Lgr5, EpCAM, CD44, and CD24, the slides were incubated overnight with primary antibody. Slides were washed 3 times with PBS for 5 minutes and incubated with secondary antibody tagged with fluorescein isothicyanate/tetramethylrhodamine isothiocyanate in the dark for 1 hour. Then, slides were washed with PBS 3 times for 5 minutes and incubated with 0.5 μg/mL, 4′,6-diamidino-2-phenylindole for 5 minutes in the dark room. Slides were rinsed with PBS and observed for fluorescence under phycoerythrin filters using an Olympus microscope IX71. Digital computer images were recorded with an Olympus DP70 camera.

Lgr5, EpCAM, CD44, CD24, 5-LOX, mPGES-1, β-catenin, cyclin D1, Laminin-1β, and GAPDH mRNA expression analysis by real-time and/or RT-PCR

Total RNA from tumor samples was extracted using TRizol reagent for total cellular RNA (Invitrogen) per the manufacturer's instructions. Equal quantities of DNA-free RNA were used for reverse transcription reactions for making cDNA using SuperScript reverse transcriptase (Bio-Rad). The real-time PCR was carried out in a 25 mL reaction volume using 3 mL of a 1:10 cDNA dilution containing SYBR Green master mix (Bio-Rad) and with respective primers for lgr5 EPCAM, CD44, and CD24. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH), used as an internal control, was also amplified. For primers and PCR conditions, please see Supplementary Table S1. PCRs for genes lgr5, Epcam, CD44, and Cd24 were done in an iCycler iQ real-time PCR detection system. The fluorescence threshold values (Ct) were calculated using the manufacturer's software. Relative mRNA levels were assessed by standardization to GAPDH. Results were expressed as a fold difference in gene expression.

PCR (RT-PCR) was performed as described in Supplementary Table S1 for 5-LOX, mPGES-1, laminin β1, cyclin D1, and β-catenin. PCR was done using the Taq polymerase master mix (Qiagen Inc.). The PCR products were visualized and photographed under UV illumination. Relative mRNA levels were assessed by densitometry analysis using ImageJ software. Results were expressed as a fold difference in gene expression.

Pathway focused inflammatory genes, chemokines, and activated NK cells using real-time PCR assay

A custom designed PCR array panel (Qiagen Inc./Bio-Rad) with inflammatory markers (COX-2, iNOS) and chemokines (Cxcl3, Ccl6), along with activated NK cells (GP49a), was analyzed to identify which genes were targeted by raloxifene and gonadorelin. Total RNA from control and treated tissues were isolated by TRizol reagent. cDNA was generated with the iScript cDNA synthesis kit from Bio-Rad. iTaq Universal SYBR green supermix was used for this PCR assay. Real-time PCR run was performed per the instructions provided by the manufacturer. The data were processed and the results evaluated using CFX Manager 3.0 analysis software.

Enzyme immunoassay for estrogen

Estrogen (E2) in the serum of treated and control mice are performed using commercially available kit from Cayman Chemical. After developing the plate per the instructions provided in the kit, it is read at a wavelength between 405 and 425 nm in micro plate reader. Results are expressed as nanograms per milliliter of serum. Determination was carried out in triplicates from each sample.

Statistical analyses

The Student t-test with one-tailed Welch correction was used to evaluate the mean differences between 2 groups. All results were expressed as means ± SEM if not otherwise stated. Differences within the experimental groups (control vs. treated) were considered significant at the P < 0.05 level. All statistical analysis was performed using GraphPad Prism Software 5.1 (GraphPad Software, Inc.).

Health monitoring of mice

Mice in the control group (group 1) showed a significant drop in body weight gain beginning in week 8 (14 weeks age), compared with the treatment groups (Fig. 1B). The weight loss in this group is mainly because of intestinal tumor burden, which leads to less nutrient absorption and anemia. In treatment groups, mice showed higher relative weight gain (P < 0.005), suggesting a significant protective effect from raloxifene (group 2) and gonadorelin (group 3; Fig. 1B). No animals in groups 2 or 3 showed noticeable toxicity upon gross observation of the liver, kidney, or lung. Thus, the doses selected in this study were determined to be nontoxic.

Decreased E2 levels in treated animals

E2 Levels are significantly decreased in the serum of mice injected with the gonadorelin (Fig. 1C). Not much change was observed in serum levels of E2 in mice fed with raloxifene (Fig. 1C).

Dietary administration of raloxifene and gonadorelin treatment significantly reduced small intestinal and colon tumors in female ApcMin/+ mice

Figure 1D–F summarize the chemopreventive effects of gonadorelin (150 ng/animal) and dietary raloxifene (1 ppm) on polyp multiplicity in the intestine. Female ApcMin/+ mice fed control diet developed an average of 60 ± 6.5 (mean ± SEM) small intestinal polyps (Fig. 1D). Raloxifene and gonadorelin administration significantly reduced total intestinal polyp multiplicity and size (means ± SEM; 18 ± 4.4 and 19 ± 2.86; Fig. 1D and E). Raloxifene and gonadorelin showed 75% (P < 0.0001) and 65% (P < 0.001) small intestinal polyp inhibition (Fig. 1D). The number of large-sized polyps (>2 mm) was dramatically reduced with raloxifene and gonadorelin treatments (Fig. 1D). Mice receiving raloxifene (0.125 ± 0.09, mean ± SEM) and gonadorelin (0.50 ± 0.380 mean ± SEM) had ∼98% and ∼94% fewer polyps with sizes greater than 2 mm, compared with control (8.625 ± 1.391, mean ± SEM) mice (Fig. 1E). The mean number of colon tumors in mice fed with control diet was 1.00 ± 0.577 (mean ± SEM). Mice treated with raloxifene (0.160 ± 0.1090, mean ± SEM) and gonadorelin (0.250 ± 0.1700, mean ± SEM) showed colon tumor inhibition of 80% and 75%, respectively (Fig. 1F).

Inhibition of PCNA, COX-2, ER-β, and upregulation in NK-cell receptor protein expression by raloxifene and gonadorelin in colon tumors

The effect of gonadorelin and raloxifene on tumor cell proliferation is summarized in Fig. 2A and B, as measured by PCNA overexpression. Qualitative microscopic examinations of PCNA-stained sections were performed. Colon tumors exposed to gonadorelin and raloxifene showed a substantial decrease in PCNA-positive cells compared with tumors from the mice fed with control diet. Raloxifene and gonadorelin significantly suppressed proliferation in the colon tumors (Fig. 2A). The quantification of PCNA staining showed 43.1 ± 4.4 (mean ± SEM) PCNA-positive cells in control colon tumors, as compared with 18.2 ± 3.4 and 15 ± 2.8 (mean ± SEM) PCNA-positive cells in colon tumors from gonadorelin- and raloxifene-treated mice, accounting for a decrease in the proliferation index by approximately 58% and 65% (P < 0.0001). IHC analysis of treated colonic tumors revealed a significant decrease in inflammatory marker COX-2 and estrogen receptor (ER-β) protein expression (Fig. 2A). Furthermore, the colon tumors were analyzed for any immune modulatory effects of gonadorelin and raloxifene on NK cells by IHF staining. An increase in cells that were positively stained for NK-cell receptor was observed in gonadorelin treated tumors compared with controls (Fig. 2C and D). The quantification of positively stained cells showed 6.8 ± 1.6 (mean ± SEM), Nkp46 receptor stained cells in control colon tumors compared with 28.40 ± 4.1 and 10.40 ± 0.92 (mean ± SEM) Nkp46 receptor–positive cells in colon tumors from gonadorelin- and raloxifene-treated mice respectively, accounting for an increase in the number NK cells approximately 4-folds (P < 0.002) for gonadorelin. Although an increase in NK cells was observed by raloxifene treatment, it was not statistically significant.

Figure 2.

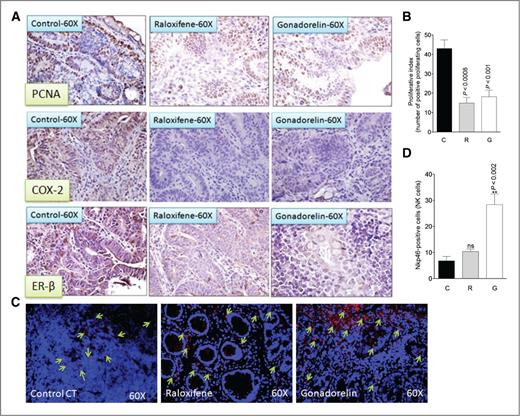

A, serial paraffin sections of intestinal tumors from ApcMin/+ mice were subjected to immunohistochemical analysis using an anti-PCNA, anti–COX-2, and anti–ER-β polyclonal antibody in treated and control tissues. Original magnifications, ×60. B, significant difference was observed in proliferative index between raloxifene- and gonadorelin-treated and control group polyps. C, immunohistofluorescence of intestinal tumors from ApcMin/+ mice for NK cells treated with raloxifene and gonadorelin. D, quantitative analysis of NK cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin.

Figure 2.

A, serial paraffin sections of intestinal tumors from ApcMin/+ mice were subjected to immunohistochemical analysis using an anti-PCNA, anti–COX-2, and anti–ER-β polyclonal antibody in treated and control tissues. Original magnifications, ×60. B, significant difference was observed in proliferative index between raloxifene- and gonadorelin-treated and control group polyps. C, immunohistofluorescence of intestinal tumors from ApcMin/+ mice for NK cells treated with raloxifene and gonadorelin. D, quantitative analysis of NK cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin.

Close modal

Immunomodulatory and anti-inflammatory effects of raloxifene and gonadorelin in colon tumors

To analyze the effect of gonadorelin and raloxifene on inflammatory, chemokine, and proliferation markers, we measured the relative mRNA levels by both quantitative real-time PCR and RT-PCR. As shown in Fig. 3A and B, a significantly decreased mRNA expression of inflammatory markers COX-2 and iNOS was observed in tumors treated with gonadorelin. The mRNAs for activation and recruitment of immune modulators NK cells, Cxcr3, Cxcl3, and Ccl6, along with Gp49a receptor for activated NK cells, were analyzed and found to be significantly increased in gonadorelin treated colon tumors (Fig. 3A). We observed a significant decrease in COX-2 mRNA expression by raloxifene in colon tumors. We did not find any effects on iNOS mRNA expression (Fig. 3A). Although raloxifene treatment showed an increase in activated NK-cell receptor Gp49a and Cxcl3 mRNA expression, it was statistically nonsignificant (Fig. 3A). However, tumors treated with raloxifene showed a significant decrease in Ccl6 mRNA levels (Fig. 3A). As shown in Fig. 3B, the raloxifene-treated colon tumors showed significantly reduced mRNA expression of 5-LOX, mPGES-1, β-catenin, cyclin D1, and laminin-1β (Fig. 3B). Gonadorelin treated colon tumors showed a significant decrease in mPGES-1 and laminin-1β, with no effect on 5-LOX, β-catenin, or cyclin D1, suggesting it has a different mode of action in inhibiting colon tumors than does raloxifene.

Figure 3.

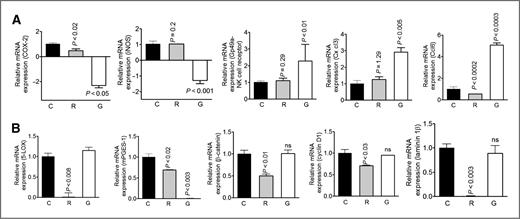

A, real-time PCR analysis for COX-2, iNOS, Gp46a, Cxcl3, GAPDH, and Ccl6 mRNA expression in intestinal tumors of treated and untreated ApcMin/+ mice. B, quantitative RT-PCR analysis for 5-LOX, mPGES-1, β-catenin cyclin D1, and laminin 1β with GAPDH as housekeeping gene.

Figure 3.

A, real-time PCR analysis for COX-2, iNOS, Gp46a, Cxcl3, GAPDH, and Ccl6 mRNA expression in intestinal tumors of treated and untreated ApcMin/+ mice. B, quantitative RT-PCR analysis for 5-LOX, mPGES-1, β-catenin cyclin D1, and laminin 1β with GAPDH as housekeeping gene.

Close modal

Inhibition of cancer stem-like cell markers by raloxifene and gonadorelin

To determine the expression of cancer stem cell markers in the colonic tumor tissues, EPCAM, Lgr5, CD24, and CD44 were analyzed using immunohistofluorescence (IHF) and real-time PCR approaches. Significantly fewer positively stained cells for EpCAM and Lgr5 were observed in both raloxifene- and gonadorelin-treated colon tumor samples (Fig. 4A and B). IHF staining showed that cells in these colon tumors were positively labeled by CD24 and CD44, and were observed to colocalize in mice fed AIN-76A diet alone (Fig. 5A, top). Markedly fewer CD24, CD44, and colocalized CD24/CD44 cells were observed in colon tumors of treated mice (Fig. 5A, bottom and middle). To examine the effect of raloxifene and gonadorelin on the mRNA expression of Cancer Stem-like Cell (CSC) marker genes in tumor tissues, we measured the relative mRNA levels of CSC marker genes by quantitative RT-PCR. We found that gonadorelin and raloxifene significantly decreased the expressions of CD24, CD44, EpCAM, and Lgr5 mRNAs, suggesting that the inhibition of tumor progression may be associated with the downregulation of markers of CSCs (Figs. 4C and D and 5B and C).

Figure 4.

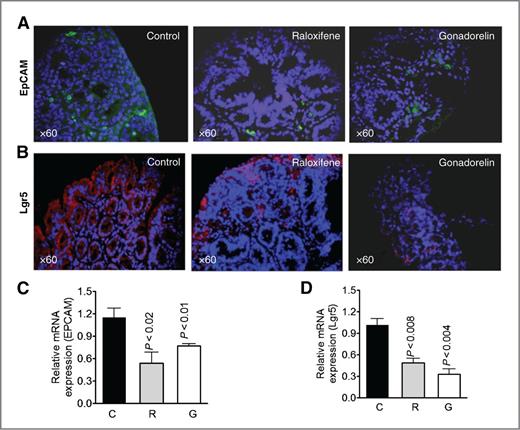

A, immunohistofluorescence for EpCAM positive cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin. B, immunohistofluorescence for Lgr5 positive cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin. C, real-time PCR analysis for EpCAM mRNA expression in intestinal tumors of treated and untreated ApcMin/+ mice. D, real-time PCR analysis for Lgr5 mRNA expression in intestinal tumors of treated and untreated ApcMin/+ mice. GAPDH was used as reference gene.

Figure 4.

A, immunohistofluorescence for EpCAM positive cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin. B, immunohistofluorescence for Lgr5 positive cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin. C, real-time PCR analysis for EpCAM mRNA expression in intestinal tumors of treated and untreated ApcMin/+ mice. D, real-time PCR analysis for Lgr5 mRNA expression in intestinal tumors of treated and untreated ApcMin/+ mice. GAPDH was used as reference gene.

Close modal
Figure 5.

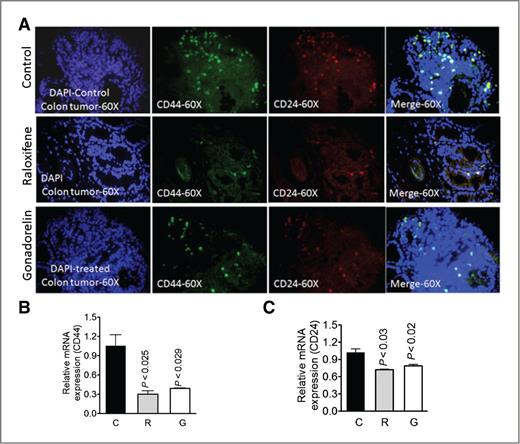

A, immunohistofluorescence for CD44 and CD24 positive cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin. The last vertical row displaying the merged figure of CD44 and CD24 in raloxifene- and gonadorelin-treated tumors compared with control tumors. B, real-time PCR analysis for CD44 mRNA expression in intestinal tumors of raloxifene- and gonadorelin-treated and -untreated ApcMin/+ mice. C, real-time PCR analysis for CD24 mRNA expression in intestinal tumors of raloxifene- and gonadorelin-treated and -untreated ApcMin/+ mice. GAPDH was used as housekeeping gene.

Figure 5.

A, immunohistofluorescence for CD44 and CD24 positive cells in intestinal tumors from ApcMin/+ mice treated with raloxifene and gonadorelin. The last vertical row displaying the merged figure of CD44 and CD24 in raloxifene- and gonadorelin-treated tumors compared with control tumors. B, real-time PCR analysis for CD44 mRNA expression in intestinal tumors of raloxifene- and gonadorelin-treated and -untreated ApcMin/+ mice. C, real-time PCR analysis for CD24 mRNA expression in intestinal tumors of raloxifene- and gonadorelin-treated and -untreated ApcMin/+ mice. GAPDH was used as housekeeping gene.

Close modal

Epidemiological and experimental data suggest that high endogenous estrogen and estrogen metabolites are associated with carcinogenesis and are involved in various hormone responsive cancers, including the development and pathogenesis of colon cancer (20–24). The involvement of ERβ receptor signaling in colon cancer is still unclear and controversial. Although various reports suggest a protective and or protumorigenic role for estrogen signaling in later stages of cancer, we have observed the protumorigenic role of estrogen signaling in the colon (16). To date, the tumorigenic role of estrogen signaling is not conclusive.

In this study, we successfully used gonadorelin to produce chemical oophorectomy (as previously described) in female ApcMin/+ mice, a genetically predisposed animal model of human familial adenomatous polyposis (FAP). Using gonadorelin an antiestrogenic agent in colorectal cancer, we observed a significant decrease in circulating E2 levels, small intestinal polyps and colon tumors, and improved mouse activity and body weight of mice, compared with control untreated mice (Fig. 1). In this study, we also tested a SERM, estrogen receptor antagonist raloxifene. Our results showed the chemopreventive efficacy of long-term feeding of this agent (1 ppm) on both small intestinal polyps and colon tumors in female ApcMin/+ mice.

The reason for testing these 2 agents was to determine if ER receptor modulation or suppressing estrogen synthesis provides better efficacy in inhibiting colorectal cancer. Both of the agents significantly reduced the overall number of polyps, and decreased the incidence of large polyps and colon tumors in female ApcMin/+ mice, compared with untreated mice (Fig. 1). Treatment with raloxifene and/or gonadorelin was also associated with decrease in cell proliferation, ERβ protein expression, and a reduction of β-catenin, cyclin D1, laminin β1, COX-2, and 5-LOX and its pathway molecules (Figs. 2A and 3A and B). We observed an increased number and expression of NK cells and activated receptors in gonadorelin-treated colon tumors (Fig. 2C and D). Although an increase in NKs was observed with raloxifene, it was not significant. Both of the agents significantly decreased stem-like cells (EpCAM, Lgr5, CD24, and CD44) in colon tumors (Figs. 4 and 5). These results, together with our earlier findings (16), strongly support the chemopreventive efficacy of SERM and the antiestrogenic compound gonadorelin in preclinical models of colorectal cancer, suggesting their translational potential against human colorectal cancer.

In this study, the observed chemopreventive effects of raloxifene and gonadorelin were accompanied by inhibition of ERβ and antiproliferative mechanisms. ERβ is reported to be involved in regulating epithelial proliferation (25). We have previously reported that raloxifene inhibits proliferation in human colon cancer cells (16). Excessive cell proliferation is often associated with tumor development and progression, and the agents modulating proliferation in neoplastic cells have immense potential in colorectal cancer prevention and therapeutic intervention (26). In this study, both raloxifene and gonadorelin inhibited cell proliferation, as evidenced by decreased PCNA and suppressed ERβ expression in colon tumors. Under Apc mutant conditions, aberrant β-catenin signaling involved with increased epithelial proliferation is observed in colorectal cancer (27). In this study, ApcMin/+ mice showed increased levels of β-catenin together with increased expression of cyclin D1 and laminin β1 in intestinal tumors, which were significantly decreased by raloxifene treatment. Overexpression of cyclin D1 downstream of the β-catenin pathway, a critical oncogene, is directly associated with increased proliferative index in colorectal cancer and results in more aggressive cancer phenotype (28). Thus, downregulation of ERβ, β-catenin, and cyclin D1 in intestinal tumors from raloxifene-treated ApcMin/+ mice also support the drug's role in inhibiting proliferation. These results suggest that modulation of estrogen receptors might affect proliferation through cyclin D1 and β-catenin regulation. Although gonadorelin showed decreased proliferation, it did not have any effect on β-catenin and cyclin D1, indicating it uses a different pathway than does SERM (Fig. 3).

Epidemiological studies suggest that women have delayed development of adenomas and colon cancers compared with men (4). Observational studies demonstrating a positive association between high endogenous estrogen levels and colon cancer risk are consistent with studies done in laboratory animals as well as in vitro studies with human cancer cell lines (5–8, 12, 13, 15, 29). In this study, we created a chemical oophorectomy during early stages of tumorigenesis in female ApcMin/+ mice, which resulted in decreased intestinal tumors. Our results are in agreement with previously reported results in which post-oophorectomy female mice were markedly less prone to tumor development than were mice that had ovaries in situ (5, 9, 29). We observed decreased expression of ERβ upon gonadorelin treatment, suggesting that this drug has a role in estrogen synthesis and proliferation. ERβ regulates estrogen production: mice with ERβ mutation display aberrant regulation of estrogen production by the ovaries, which influence tumor outcomes in animal models (10, 29, 30).

Estrogen compromises mucosal repair under inflammatory conditions (29) leading to tumor growth by enhancing inflammation. In this study, we observed decreased expression of inflammatory marker COX-2 and its metabolites (mPGES1) in mice treated with gonadorelin. COX-2 and iNOS have been shown to be involved in colorectal cancer development in humans (31, 32). Significant inhibition of iNOS was observed in mice treated with gonadorelin, indicating the role of estrogen in inducing inflammation during colorectal cancer. Various cytokines and chemokines are associated with colorectal cancer and are modulated by inflammatory signaling. Chronic activation of pro-inflammatory responses by estrogen contributes to procarcinogenic processes, thus promoting tumor formation or progression. In the present study, we evaluated cytokines which might have been affected by suppression of estrogen formation and which might also have a role in NK-cell stimulation. Ccl6 is reported to promote innate immune response by NK-cell activation in animal models of peritonitis (33). We observed increased expression of Ccl6 with an increase in the number of NK cells in colon tumors treated with gonadorelin. However, raloxifene showed an inhibitory effect on Ccl6 (Fig. 3), suggesting a different mode of action by this agent.

Cxcr3, a chemokine receptor expressed in malignancy, is not generalized to all types of malignant tumors. It is either associated with aggressive disease, or low expression is associated with bad prognosis (34). It is expressed on activated immune cells, including NK cells. Treatment with gonadorelin resulted in accumulation of activated NK cells, evident by increased expression of Gp49a, the NK-cell receptor in the tumors (Fig. 3). The gonadorelin might have reversed Cxcr3 functions by attracting the Cxcr3 NK cells to the tumor site. In patients with colorectal cancer, NK cells are suggested to have an antineoplastic role (35). It is reported that sustained high levels of β-estradiol leads to a reduction in natural killer cell activity (36), which may inhibit antineoplastic role of NK cells. Our results indicate that gonadorelin stimulation, which leads to decrease in estrogen might have increased natural cell activity. Also, we observed increased 5-LOX mRNA expression in gonadorelin treated tumors. It is reported that NK-cell activity is restored by 5-LOX and its products (37). Together, these results suggest that the immune-modulating effects of gonadorelin could be one of its chemopreventive mechanisms. However, additional studies are needed.

In breast cancer, estrogen is reported to modulate cancer stem cell properties both in vivo and in vitro (38). The modulation of cancer stem cells markers in colon carcinogenesis and chemoprevention remains largely unexplored. We observed a correlative response of gonadorelin and raloxifene with antitumor effects, an increase in NK cells, and a decrease in stem-like cells/CSC markers (Figs. 2, 4, and 5). Although it is documented that estrogen modulates cancer stem cells in other cancers, further research is needed to show whether these agents target stem-like cells or if they simply behave like biomarkers. Still, these agents tempering effects on stem-like cells are novel and have potential significance in chemoprevention.

We show that either suppression of estrogen synthesis or modulation of ER will inhibit intestinal tumorigenesis although through different mechanisms. Further studies are warranted to determine the differential mechanistic effects of raloxifene and gonadorelin on inhibition of intestinal tumorigenesis (Fig. 6A and B).

Figure 6.

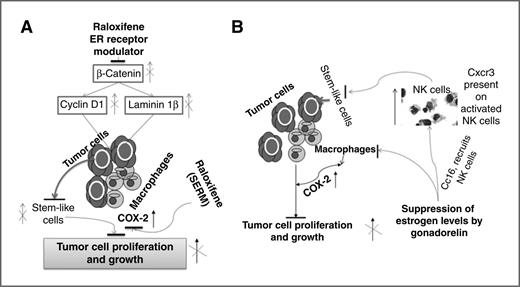

A, schema for raloxifene action in intestinal tumors of female ApcMin/+ mice. B, schema for gonadorelin action in intestinal tumors of female ApcMin/+ mice.

Figure 6.

A, schema for raloxifene action in intestinal tumors of female ApcMin/+ mice. B, schema for gonadorelin action in intestinal tumors of female ApcMin/+ mice.

Close modal

In summary, our results demonstrate in vivo antiproliferative, anti-inflammatory, and immunomodulatory effects of gonadorelin and raloxifene in small intestinal polyps, and colon tumors that collectively contribute to chemopreventive efficacy against spontaneous intestinal tumorigenesis in female ApcMin/+ mice. Together with our previous reports on estrogen antagonist's efficacy against colorectal cancer in a preclinical model, these findings suggest that raloxifene and gonadorelin could be an effective strategy for preventing colorectal cancer or helping patients with FAP.

No potential conflicts of interest were disclosed.

Conception and design: N.B. Janakiram, A. Mohammed, C.V. Rao

Development of methodology: N.B. Janakiram, A. Mohammed, T. Bryant, C.V. Rao

Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): N.B. Janakiram, A. Mohammed, T. Bryant, S. Lightfoot, G. Pathuri

Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): N.B. Janakiram, A. Mohammed, H. Gali, C.V. Rao

Writing, review, and/or revision of the manuscript: N.B. Janakiram, A. Mohammed, H. Gali, C.V. Rao

Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): N.B. Janakiram, M. Brewer, L. Biddick, C.V. Rao

Study supervision: N.B. Janakiram, C.V. Rao

The authors thank K.J. Kyler, Staff Editor for her editorial assistance with this manuscript and Rodent Barrier Facility staff at OUHSC for the valuable support in bioassay studies. The authors also thank Histology and Immunohistochemistry Core at PC Stephenson Cancer Center, OUHSC for their help with tissue processing.

This work was supported by NIH grant 1P20GM103639-01 from the COBRE Program of the NIH to N. Janakiram.

The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
