Pharmacological TLR4 Antagonism Using Topical Resatorvid Blocks Solar UV-Induced Skin Tumorigenesis in SKH-1 Mice

Toll-like receptors (TLR) are transmembrane proteins responsible for detecting diverse pathologic stimuli and alerting the innate immune system for host defense. There are 11 isoforms of TLRs found in humans, many of which have attracted attention due to their roles in acute and chronic diseases. One isoform, TLR4, is overexpressed in many forms of cancer (1). The canonical ligand for TLR4 is the glycolipid lipopolysaccharide (LPS) derived from Gram-negative bacteria (2). However, TLR4 dimerization and downstream signal transduction can also be stimulated by other pathogen-associated molecular patterns (PAMP), such as certain viral proteins and cleaved fibrinogen, and damage-associated molecular patterns (DAMP), such as HMGB1, HSP70, and oxidized LDL (reviewed in ref. 3). TLR4 has now been identified as a novel molecular target for clinical interventions directed at pathologies, including septic shock, diabetes, asthma, and cancer (4–7).

Nonmelanoma skin cancer (NMSC) affects 5 million people in the United States each year and is directly linked to cutaneous exposure to UV rays from the sun (8–10). UV exposure leads to DNA damage, oxidative stress, and, over time, dysregulation of cellular signaling (11). Proper immunosurveillance of damaged cells in the skin is crucial for the repression of skin cancer, as people undergoing chronic immune suppression are at a 60- to 100-fold increased risk of developing NMSC compared with the general population (12). However, overstimulation of inflammation also plays a major causative role in skin carcinogenesis (13, 14), and reducing aberrant inflammation of the skin is required to prevent stimuli associated with tumor progression. Blocking inflammatory pathways using genetic or pharmacologic means can prevent UV-induced skin cancer in mice (15–17), and long-term NSAID use is associated with reduced risk of NMSC in humans (18).

TLR4 has now been identified as a major driver of cutaneous inflammation (19). In addition to expression in immune cells, TLR4 is expressed in keratinocytes, allowing stimulation from endogenous ligands (e.g., HMGB1) released from other cells in response to cytotoxic environmental stress, including UV (20, 21). Ligand-induced TLR4 activation orchestrates cutaneous inflammatory signaling through downstream effectors, including myeloid differentiation factor 88 (MyD88), Akt (PKB), activator protein-1 (AP-1), and NF-κB (22, 23). Importantly, TLR4 overexpression is an emerging hallmark of NMSC and melanoma, and a crucial role of TLR4 in chemically induced inflammatory carcinogenesis has been demonstrated in murine skin (19, 21). However, the contribution of keratinocyte-derived TLR4 activity in response to UV and its connection to photocarcinogenesis has not been well characterized.

Recently, we have shown that TLR4 activity contributes to the stimulation of cell stress responses after treatment of keratinocytes with UV upstream of NF-κB, AP-1, and Akt, all of which are established targets for molecular photochemoprevention (24–27). In addition, we observed that the thickness of the layer of TLR4-expressing keratinocytes increases during the progression from normal human skin (only the basal layer of keratinocytes) to actinic keratosis to squamous cell carcinoma (SCC). Using a targeted small-molecule inhibitor of TLR4 cytoplasmic activity (resatorvid; TAK-242, CAS No.: 243984-11-4; Fig. 1A), we showed that treatment of keratinocytes in culture as well as topical treatment of mouse skin prevents UV-induced MAPK and NF-κB stimulation, together with potentiation of acute UV-induced epidermal apoptosis (24). Takashima and colleagues (2009) used mutational analysis and radiolabeled resatorvid to demonstrate TLR4 specificity through irreversible adduction of a specific intracellular domain cysteine residue (Cys747; ref. 28). This adduction disrupts TLR4 TIR-domain interaction with its downstream adaptor molecules (including MyD88 and TRAM/TRIF; refs. 28, 29), thereby causing sustained suppression of TLR4-dependent signaling. Resatorvid has displayed an excellent safety profile in systemic clinical trials and does not absorb in the relevant solar UV spectrum (24, 30). Therefore, based upon our prior observations, we decided to investigate the potential photochemopreventive effects of resatorvid-based TLR4 antagonism in skin. Our data presented in this study demonstrate that topical TLR4 inhibition effectively blocks UV-induced skin stress signaling and tumorigenesis in SKH-1 hairless mice with no observable toxicity, providing critical evidence in support of ongoing efforts toward clinical testing of topical resatorvid formulations on human skin.

Resatorvid (TAK-242) was purchased from MedChem Express. Most antibodies were purchased from Cell Signaling Technology, including phospho-p38 (9215), total p38 (8690), phospho-Akt (4060), p21^waf1 (2946), cleaved caspase-3 (9661), and β-tubulin (5666). The β-actin antibody was purchased from Sigma-Aldrich (A5441), and the TLR4 antibody was purchased from Santa Cruz Biotechnology (sc-293072). The Ki67 antibody (Supplementary Fig. S1) was purchased from Leica Biosystems (ACK02).

The standard use of Franz cell permeation chamber systems to assess skin pharmacokinetics of drugs in topical and transdermal drug delivery systems has been published extensively (31, 32). Briefly, skin from SKH-1 hairless mice (SKH1-Hr^hr, Charles River laboratories) was harvested, and the underlying adipose tissue was removed. Each skin segment was inserted between the receiver and donor chambers of the cell, with the stratum corneum facing upwards, as reported elsewhere (31). Following our previous in vivo murine experimentation protocol, resatorvid (13 mmol/L in acetone; 66 μL) was applied to the top of nine Franz diffusion cells (Skin Penetration System 3, Laboratory Glass Apparatus; Franz cell contact surface area: 0.9 cm², n = 3; ref. 24). The receiver cell was filled with 4 mL of circulating PBS (pH 7.4). The experiments were conducted at 32°C and monitored over 8 hours.

Franz cells were disassembled at various time points, and each skin segment was subjected to 3 rounds of tape stripping of the nonviable stratum corneum. Tape strips 4–12 were also collected for epidermal removal and analyzed separately. The remaining dermal skin layer was diced and sonicated in isopropyl alcohol for 10 minutes using a probe sonicator, followed by centrifugation (1,400 rpm, room temperature). After supernatant filtration, quantitative high-performance liquid chromatography (HPLC) analysis was performed. For quantification of total cutaneous resatorvid delivery (after removal of stratum corneum from live skin), epidermal and dermal drug contents were analyzed separately and combined (Fig. 1A).

A reverse-phase HPLC system using a Waters 2690 separation module coupled with a Waters 2487 Dual wavelength detector (254 nm), and a Symmetry C18 5 μm column (150 mm × 2.1 mm, maintained at 25 ± 2°C; Waters), was used. Mobile phase conditions were 40:60 (v/v) ACN: trifluoroacetic acid (0.1% v/v) at a flow rate of 0.3 mL/minute. Quantification was performed using peak area and calculated from a five-point standard curve.

Photo-stability was examined by preparing two sets of samples (80.6 μg/mL of resatorvid in 100% acetone or 4.9 μg/mL of resatorvid in water), each containing three samples including a control. Each sample was prepared in a transparent HPLC glass vial and closed without any entrapped air. Solar-simulated light (SSL) exposure was performed using UVA340 lightbulbs (Q-lab Corporation) with emission between 295 and 390 nm (50 kJ UVA/m² and 2.4 kJ UVB/m²; dose 1×), whereas controls remained unexposed (25). Additional samples were exposed to a double dose of SSL (dose 2×). After exposure, resatorvid content was analyzed using HPLC. It should also be noted that separate experimentation showed that resatorvid displays no significant absorption in the relevant solar UV spectrum (24).

Resatorvid solutions were prepared in several different media: acetone, citrate buffer (pH 3), phosphate buffer (pH 5.2 and 7.4), and borate buffer (pH 9). Each solution was stored in glass vials at ambient temperature (25°C). A sample was withdrawn 9, 37, and 64 days postpreparation, and drug concentration was measured by HPLC.

Age- and sex-matched SKH-1 mice expressing the AP-1 responsive, TRE-driven luciferase reporter gene (AP-1 luciferase mice, bred in-house) were utilized for this study, as reported previously (n = 14 for acetone, n = 9 for resatorvid; refs. 26, 33). The ears of the mice were treated twice with resatorvid prior to acute UV exposure: 24 hours prior and 1 hour prior (10 mmol/L resatorvid in acetone, 50 μL/ear). To induce AP-1 signaling in the skin, mice were then exposed to 2.75 kJ/m² UVB, and three 3-mm ear punches were collected from the right ear after sacrifice 48 hours later. An additional three 3-mm punches were collected from the left ear of each mouse after 24-hour/1-hour resatorvid exposure but 24 hours prior to UV as an internal control. All ear punches were processed for luciferase assay as described previously (27). All mice were housed and treated in accordance with The University of Arizona Animal Care and Use Committee standards under an approved protocol (#08-153).

Epidermal protein lysates were generated from four groups of female hairless SKH-1 mice exposed to a chronic UV treatment regimen to generate tumor-prone high-risk skin according to standard protocols in parallel with other mice used for the tumorigenesis study, described below (25, 34). These groups consisted of chronic solar UV + topical vehicle (acetone), chronic UV + topical resatorvid, no UV + topical vehicle, or no UV + topical resatorvid. For all groups, vehicle or resatorvid (10 mmol/L) was applied to the back in a designated area, three times a week, 1 hour prior to each UV exposure (or without UV for control groups). All groups were sacrificed 24 hours after their last UV exposure on week 14. This chronic exposure is sufficient to induce a significantly damaged epidermis without visible signs of tumors, which start to emerge 1 to 2 weeks later. Snap-frozen epidermis was scraped from the dermis and ground to a powder using a frozen mortar and pestle. Samples from each skin were subjected to lysis and protein pathway activation mapping using reverse-phase protein microarray (RPPA) under established protocols (25). Unsupervised two-way hierarchical clustering (JMP, SAS Institute, Inc.) was used to generate a heatmap, where red indicates a higher relative expression of a protein/phosphoprotein and green indicates a lower relative expression of a protein/phosphoprotein. Black indicates no relative change within the population analyzed.

Female SKH-1 mice were utilized for analysis of the effect of resatorvid on skin tumorigenesis. Six- to 8-week-old mice were exposed to SSL (solar UV) using a bank of 6 UVA340 bulbs (Q-lab Corporation) as described previously (25). Briefly, mice were divided into three groups (n = 20): Acetone (vehicle), Resatorvid Prevention (or “early prevention”), and Resatorvid Intervention (or “late prevention”). All mice were exposed to UV three times a week for 15 weeks exactly as described before (25). One hour prior to each UV exposure, mice were treated topically with either 200 μL of acetone on their backs (acetone and intervention groups), or with 200 μL of 10 mmol/L resatorvid (prevention group). After week 15, all UV treatments stopped, but Acetone and Prevention groups continued to receive the same topical treatments three times a week. The Intervention group switched from acetone to resatorvid topical treatments three times a week after week 15 (Fig. 2A). Mice were harvested at week 25, 24 hours after their last treatment. The chronically exposed “dropout” (high-risk) mice described above were treated alongside this tumor study, but harvested at week 14 as described. After sacrifice at week 25, tumors were harvested from each group and either snap frozen or formalin fixed for paraffin embedding. Whenever possible, large cutaneous SCCs (cSCC) were split and both fixed and frozen.

Frozen cutaneous SCCs from the above tumorigenesis study and frozen epidermis scraped from the dropout mice were ground to powder using a frozen mortar and pestle and used for Western blot analysis as described previously (25, 35). Membranes were typically split to probe for multiple proteins, and only stripped and reprobed for loading controls. All blots were performed at least twice to confirm results. Densitometry of bands was performed using Image J (NIH, Bethesda, MD).

Staining of mouse SCCs for cleaved caspase-3 and Ki67 was performed on FFPE slides according to protocols slightly modified from those described previously (27). Slides were then counterstained with 25% Hematoxylin Gill III [Leica Biosystems (Surgipath)]. IHC staining of tumors from the Acetone (n = 6), Intervention, and Prevention groups (n = 4 each) was quantified using ImagePro Plus software (Media Cybernetics), a Leica DMR microscope, and a Sony 3CCD color video camera. The mean positive cellular area per 40× field was determined by averaging the measurements of three representative fields in each tumor. For dropout skins, H&E based quantification of epidermal immune cell infiltrates classified as “lymphocytic” according to standard morphologic criteria (agranular leukocytes containing small, round nuclei and minimal cytoplasm) was performed by a board-certified pathologist.

The mouse luciferase experiments were analyzed by computing the fold induction reading for each mouse, by dividing the individual post-UV luciferase readings by the matched pre-UV luciferase readings. The fold changes were converted to log₁₀ format for graphing. A Wilcoxon rank sum test was used (on the raw data) to statistically compare the two groups (acetone vs, resatorvid treated). For other comparisons, two-sample independent t tests were used to compare two groups, and ANOVA with Bonferroni post hoc adjustment for was used to compare three or more groups. Means, standard deviations, and other summary statistics were calculated by treatment group for tumor volume and tumor count. The Kaplan–Meier method was used to estimate tumor latency; comparisons between groups were performed using a log-rank test. Univariate cross sectional analyses compared tumor count and tumor volume at 25 weeks of observation by treatment groups using the Kruskal–Wallis Test. All pairwise comparisons were made using the Wilcoxon rank sum test. Alpha levels were set at 0.05. For post hoc multiple comparisons, alpha was Bonferroni corrected and set at P = 0.0167. For all figures, the “*” indicates a P value at or lower than the cutoff for statistical significance. After log transformations to achieve approximate normality, multivariate analysis compared tumor count and tumor volume across the weeks of observation by treatment using mixed effects models. This accounted for the correlations between the measurements obtained across days for the individual mice (slope analysis). All analyses were conducted using STATA 14.

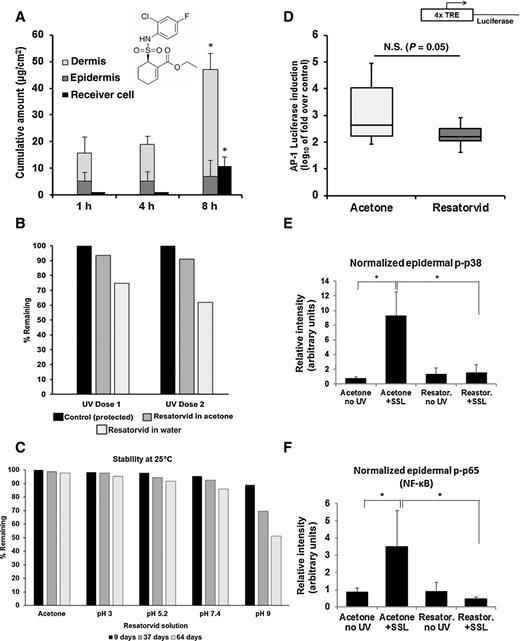

Dorsal skin from SKH-1 hairless mice was excised and used to examine the transdermal penetration properties of topical resatorvid. The concentration of resatorvid (13 mmol/L) and the diluent (acetone) replicate the solution we have used previously to successfully modulate UV-induced biomarkers in SKH-1 skin (24). Using a standardized Franz cell system, examination of the living layers of the skin (epidermis, dermis) and receiver fluid over a time course using HPLC reveals that resatorvid efficiently penetrates the stratum corneum and remains in the skin for a period of at least 8 hours, at which time it reaches a concentration of 47 μg/cm² (Fig. 1A). There is minimal transdermal penetration of the agent until after 4 hours, where it reaches a flux of 10 μg/cm² (Fig. 1A). Although a significant amount of agent remained in the stratum corneum (tape strips 1–3), the amount of resatorvid in the lower epidermis (tape strips 4–12) was constant throughout the time course at an average of 5 μg/cm² (Fig. 1A, dark gray bars). Thus, the average resatorvid transdermal flux was calculated to be 2.50 ± 0.08 (μg/cm²/hour) with a lag time 4.50 ± 0.12 hours. However, the average flux to the dermis was 4.4 ± 1.34 (μg/cm²/hour) with a lag time of less than 1 hour.

The stability of resatorvid under conditions of UV exposure and differing pH was examined. Resatorvid in water, when exposed to UV, degraded more readily than when the compound was dissolved in acetone (Fig 1B). When the compound was exposed to solutions of varying pH over time, resatorvid displayed minimal degradation during 64 days at room temperature in acetone and aqueous solution (pH 3–7.4), maintaining at least 90% of the original concentration over time. However, significant degradation of the compound occurred at pH 9, dropping to 51.3% remaining at day 64 (Fig. 1C).

To test the efficacy of topical resatorvid administration on UV-induced skin inflammatory signaling, transgenic SKH-1 AP-1 luciferase reporter mice were employed as described previously (26, 27). Analysis of the raw data revealed inhibition of UVB-induced AP-1 transcriptional activation as a result of topical resatorvid treatment, an effect approaching statistical significance (P = 0.05; Fig. 1D). These data are consistent with our previous observation that topical resatorvid suppresses UV-induced inflammatory markers (NF-κB, p38) as quantified by Western blot analyses in SKH-1 mouse skin (Fig. 1E and F; ref. 24).

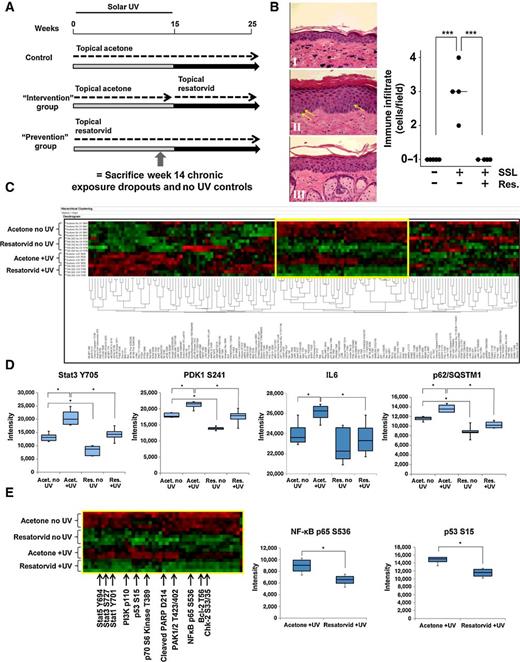

Next, we examined the effects of resatorvid treatment in a model of chronic UV exposure. SKH-1 hairless mice were therefore exposed to topical acetone (200 μL/back) ± UV or 200 μL of 10 mmol/L resatorvid in acetone ± UV three times a week for 14 weeks and were sacrificed as controls for an ongoing tumorigenesis experiment (Fig. 2A). These high-risk mice had no visible tumors at the time of harvest, and treatment with acetone or resatorvid did not cause noticeable toxicity or inflammation of the skin. H&E-based quantification by a board-certified pathologist indicates that resatorvid efficiently blocked UV-induced epidermal immune cell infiltration, identified as primarily lymphocytic based on standard morphologic characteristics (Fig. 2B, P < 0.001). Epidermal lysates from each mouse (n = 5 for no UV groups, n = 4 for +UV groups) were subjected to comprehensive protein pathway activation mapping using RPPA to quantitate protein expression levels and phosphorylation status under established protocols (25, 36). Unsupervised two-way hierarchical clustering was used to generate a heatmap of the resulting data, which notably resulted in each group clustering together in a predictable array: acetone no UV, resatorvid no UV, acetone + UV, and resatorvid + UV (Fig. 2C).

This expression clustering by treatment group was also observable at the level of individual UV-modulated proteins. For example, in a large cluster of analytes, resatorvid treatment consistently antagonized UV-induced changes, such as activation of the transcription factor Stat3 (Y705), the Akt regulatory protein PDK1 (S241), the inflammatory cytokine IL6, and total levels of p62/SQSTM1, a ubiquitin-binding protein that has been implicated in the regulation of NF-κB and autophagy (Fig. 2D; refs. 37–39). Consistent with suppression of stress response signaling by chronic UV exposure, resatorvid treatment attenuated phosphorylational activation of NF-κB (p65 S536) and p53 (S15) (Fig. 2E, middle and right), as well as cleaved PARP, Stat1 (Y701), Stat5 (Y694), PAK1/2 (T423/402), and Chk-2 (S33/35) (Fig. 2E, left). Together, results from these chronically UV-exposed high-risk epidermal samples indicate that topical resatorvid treatment dramatically antagonizes UV-induced expression changes of multiple proteins involved in stress signaling, inflammation, and apoptosis.

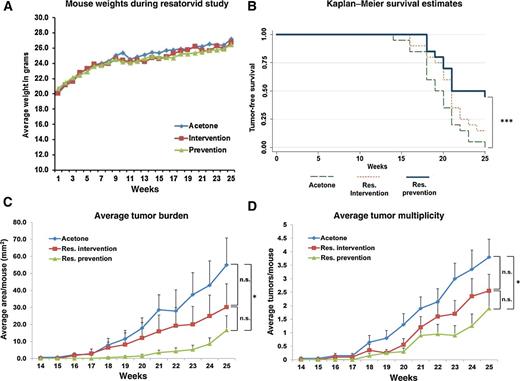

To establish the photochemopreventive efficacy of resatorvid-based TLR4 antagonism, two treatment regimens were implemented in female SKH-1 hairless mice. For the Prevention group, resatorvid was used in conjunction with UV, whereas for the Intervention group, resatorvid administration was implemented after chronic UV treatments had stopped, as detailed in the Materials and Methods section (Fig. 2A). Tumor volume and multiplicity were monitored until sacrifice at week 25. Weekly weight measurements indicate that topical resatorvid treatment did not affect the average group weight gain over time, consistent with the absence of toxic effects at our dosage level (Fig. 3A). Strikingly, Kaplan–Meier survival modeling reveals that mice on the Prevention protocol had a significantly increased tumor latency compared with acetone controls (P < 0.001), whereas mice on the Intervention protocol had an intermediate latency that was not significantly different from the other groups (Fig. 3B). At week 25, all surviving animals in the acetone control group had at least one tumor, whereas 15% and 45% remained tumor free in the Intervention and Prevention groups, respectively (Fig. 3B).

This trend also held true for tumor burden (average tumor area/mouse) and tumor multiplicity (average tumors/mouse). In the case of tumor burden, at week 25, mice in the Prevention arm presented an average tumor area of 16.6 mm², the Intervention arm averaged 30.2 mm², and the Acetone control arm averaged 55 mm² (P = 0.0077 Prevention vs. Acetone; Intervention not significantly different from other groups; Fig. 3C). Furthermore, the tumor multiplicity at the end of the study also resulted in significant reductions of tumor counts in the Prevention arm (1.9 tumors/mouse) compared with the Acetone arm (3.8 tumors/mouse; P = 0.037), whereas the Intervention arm had intermediate numbers (2.55 tumors/mouse; not significantly different from the other groups; Fig. 3D). Notably, multivariate mixed models regression analysis of the slopes across time of the Prevention and Intervention arms showed a statistically significant decrease in both tumor burden and multiplicity slopes over weeks 14–26 compared with the acetone control (P < 0.0001 in all cases). The same analysis also showed that the slopes of the Prevention arm and Intervention arm were significantly different from each other for tumor multiplicity (P < 0.001; Fig. 3C and D).

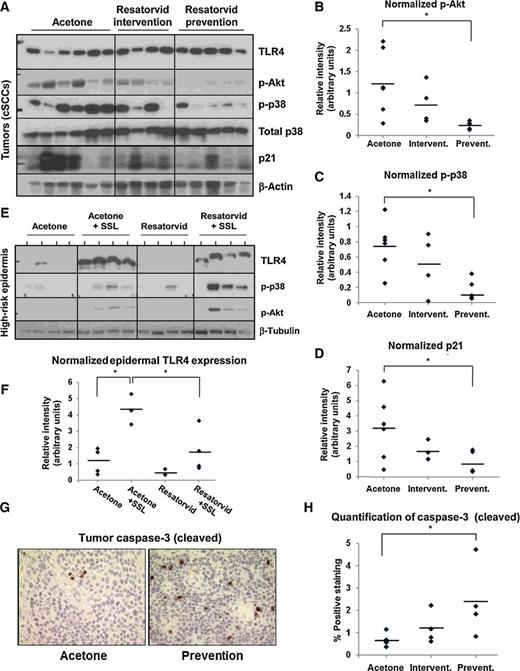

Snap-frozen cSCC tumors collected at the end of the 25-week tumorigenesis study were subjected to Western blot analysis for markers of UV-induced skin stress responses. TLR4 protein expression was detected in every tumor tested. However, downstream signaling pathway activity between groups was markedly different. Phosphorylation of both Akt and p38 MAPK were significantly reduced in tumors from the Prevention arm of the study compared with those from the Acetone arm (P = 0.019 and 0.005 for p-Akt and p-p38, respectively), whereas expression of total p38 remained fairly constant (Fig. 4A, quantified in Fig. 4B and C). There was also a remarkable reduction in average levels of p21^waf1 expression in the Prevention tumors compared with controls (Fig. 4A, quantified in Fig. 4D, P = 0.047). In contrast, even though similar trends were observed in response to the Intervention regimen, none of these expression changes (p-p38, p-Akt, p21) reached the level of statistical significance.

After obtaining this tumor tissue data, we also performed Western blot analysis of the epidermal samples from high-risk (14-week dropout) mice used for RPPA (Fig. 3) to monitor whether these resatorvid-induced changes can occur at earlier stages of skin exposure to UV/drug (Fig. 4E). Notably, our analysis reveals that chronic treatment with UV caused a dramatic increase in the expression of TLR4 (P = 0.0012), an effect significantly antagonized by resatorvid treatment (P = 0.016; Fig. 4F). In addition, chronic treatment with UV + acetone showed an expected increase in phosphorylation of p38 MAPK and Akt (Ser473) compared with no UV controls (25, 40). However, UV-induced phosphorylation of p38 and Akt was further enhanced in the UV + resatorvid samples, in contrast to the compound's effects on TLR4 expression (Fig. 4E).

In addition, IHC analysis from fixed samples taken from the same tumors indicated a significant impact of resatorvid treatment on survival signaling. Specifically, expression of the apoptotic marker cleaved caspase-3 was increased significantly in tumors from the Prevention group compared with those from the acetone control group (Fig. 4G and H; P = 0.031). Likewise, expression of the proliferation marker Ki67 was attenuated in these tumors by resatorvid treatment in the Prevention group compared with acetone controls; however, this trend did not reach the level of statistical significance (Supplementary Fig. S1).

TLR4-directed molecular strategies targeting cancer have recently attracted considerable attention (refs. 41, 42; reviewed in refs. 1 and 19). Here, we present a first-in-kind study showing that topical resatorvid achieves significant skin residence time (Fig. 1A), attenuates UV-induced AP-1 activation (Fig. 1D), and blocks photocarcinogenesis in mice (Fig. 3), an effect achieved without cutaneous or systemic resatorvid toxicity.

In the tumorigenesis model, cotreatment with resatorvid throughout the duration of the experiment (Prevention arm) resulted in a delayed onset of tumors in addition to significantly reduced burden and multiplicity compared with acetone-treated controls (Fig. 3). Furthermore, Western blot analysis of tumors harvested at the end of the study provides evidence that although TLR4 expression was maintained in all treatment groups, downstream stress signaling, that is, UV-induced p-p38 and p-Akt, was significantly inhibited in the presence of resatorvid. Resatorvid-treated tumors also displayed dramatically reduced expression of p21^waf1, which has been shown to block UV-induced apoptosis in keratinocytes (43). In addition, the Prevention group tumors demonstrated significantly higher levels of cleaved caspase-3 staining compared with the control group as observed previously in response to acute UV exposure (Fig. 4G and H; ref. 24). These changes are consistent with resatorvid-induced alterations of survival signaling and a dramatic potentiation of epidermal apoptosis, which may underlie the chemopreventive activity of this agent (Fig. 5).

Importantly, initiation of resatorvid treatment after chronic UV exposure (Intervention arm) also reduced tumor burden and multiplicity, although this effect did not reach the level of statistical significance (Fig. 3C and D). However, slope analysis of the data over time indicates that both treatment regimens significantly affected the rates of tumor growth. It is tempting to speculate that the decreased sensitivity of high-risk mouse skin to resatorvid-based intervention is potentially due to alterations in cutaneous apoptotic response and DNA repair. As detailed above, we have now observed that in cell culture, in acute in vivo studies, and in tumors (Fig. 4G and H; ref. 24), resatorvid treatment when used concurrently with UV causes potentiation of apoptosis. In addition, the suppressive role of TLR4 on DNA repair has now been recognized (44). Therefore, even though TLR4 expression was increased in high-risk skin (Fig. 4E and F), pharmacologic TLR4 antagonism initiated only at a late stage may be insufficient to block tumorigenesis after significant UV-induced DNA damage has already occurred.

Unsupervised hierarchical clustering analysis of protein readouts employing RPPA revealed a consistent attenuation of UV-induced proteomic changes by resatorvid in the epidermis prior to tumorigenesis. Almost one third of the >150 proteins analyzed displayed an expression pattern consistent with resatorvid suppression of UV-induced changes (Fig. 2C and E), affecting the expression of multiple proteins involved in stress signaling, inflammation, and apoptosis (Fig. 2). These data demonstrate that resatorvid-dependent pathway modulation can be detected in high-risk mouse epidermis, indicative of early molecular markers of photochemoprevention.

Strikingly, Western blot analysis indicated that TLR4 protein expression was dramatically upregulated by long-term UV exposure, an outcome that was significantly inhibited by topical resatorvid treatment. As TLR4 protein expression is also significantly upregulated in human epidermis during the progression from normal skin to actinic keratosis and cSCC, we feel that our high-risk mouse epidermal samples therefore represent a valid model for pretumorigenic human skin (24). The fact that resatorvid treatment reduced TLR4 upregulation in these samples also suggests that this compound may be a promising chemopreventive agent for patients at high risk of cSCC.

Remarkably, p-p38 and p-Akt levels were higher in resatorvid-treated high-risk skins compared with their acetone-treated controls, which contrasts with what was observed in the tumor Western blots for the same proteins. This may be due to changes in regulatory factors, such as the expression of miRNAs or protein phosphatases, which are known to be regulated by UV exposure but have not been examined in the context of chronic TLR4 inhibition in living epidermis (45, 46). We are continuing to examine the implications of resatorvid-induced regulation of these and other biomarkers in our ongoing studies.

TLRs have lately become promising molecular targets for clinical intervention in various human pathologies (4–7). Indeed, imiquimod-based TLR7 agonism has become an approved treatment option for actinic keratosis and superficial basal cell carcinoma (47). Likewise, clinical studies have examined adjuvant use of TLR4 agonists combined with vaccines to enhance responses to microbial pathogens and tumor antigens (48). On the other hand, illustrating the complexity of TLR4-dependent pro- and antitumor responses, a causative role of TLR4 in chemotherapy-driven metastasis has been substantiated in paclitaxel-treated breast cancer patients (reviewed in ref. 49). Importantly, although it has recently been suggested that TLR4 may inhibit keratinocyte proliferation (50), solid published evidence strongly implicates TLR4 overexpression in NMSC and melanoma (1, 21, 24), and our own research has demonstrated that pharmacologic TLR4 antagonism suppresses solar UV-induced inflammatory signaling (19, 24). Taken together, our findings for the first time demonstrate photochemopreventive efficacy of topical resatorvid, providing a rationale for further translational exploration of TLR4-directed antagonism targeting skin cancer in susceptible patient populations. Topical agents, such as resatorvid, may therefore be beneficial when used in combination with sunscreens to reduce inflammatory signaling and allow for clearance of UV-damaged cells in skin.
