Fixed-Dose Combinations of Pioglitazone and Metformin for Lung Cancer Prevention

Aerodigestive malignancies (lung; head and neck) affect millions worldwide, and approximately 90% of these malignancies are attributed to tobacco use. Those treated for an initial malignancy are at risk for second primary malignancies attributable to “field cancerization” (1). “Field cancerization” occurs as a result of prolonged exposure to toxicants found in cigarette smoke, resulting in the development of a field of initiated but morphologically normal appearing cells in the damaged lung epithelium that contain a mutation in an oncogene or tumor suppressor gene (2–4). Continued exposure of the lung parenchyma to environmental toxicants, as occurs in smokers, results in further genetic or epigenetic damage to the initiated cells from genotoxic carcinogens and lung tumor promoters. Minimal change in survival for either malignancy for over a generation mandates novel approaches for those affected with tobacco-associated field cancerization in primary and secondary prevention settings.

Both pioglitazone and metformin are type II diabetes therapies which may have off-target use as aerodigestive cancer chemoprevention agents (5–14). Pioglitazone is a thiazolidinedione PPARγ activator with chemoprevention capacity preclinically and clinically in both head and neck and lung carcinomas (7, 12–19). This drug class has been demonstrated to have anti-inflammatory effects targeting NF-κB in both diabetes and cancer. Observational studies derived from the Veterans Administration Veterans Integrated Service Network (VA VISN) database have shown greater than 35% reductions in both head and neck and lung cancer incidence in diabetics treated with thiazolidinedione drugs (20, 21).

Initial interest in metformin as an anticancer agent has come from clinical and epidemiologic research which has shown, for type II diabetes patients prescribed metformin, reduced cancer incidence and/or mortality (22–31). This has provided an empiric basis for its evaluation in the clinical setting. One of the effects of metformin is reducing cell growth and proliferation via attenuation of the insulin/IGF-1R pathway, which inhibits PI3K/Akt/mTOR signaling. In one recent study by Dennis and colleagues, dietary metformin reduced lung cancer burden in the NNK model of mouse carcinogenesis by more than 70%, with a potential mechanism being downregulation of IGF-1R phosphorylation (5). In addition, several recent studies using metformin point to NF-κB attenuation by this agent with respect to both angiogenic and MMP activity in both cancer and atherogenesis (28, 32–37). To summarize, both pioglitazone and metformin have been demonstrated to prevent tobacco smoke–induced lung tumor development in preclinical models; however, the pharmacologic effectiveness of each agent individually in preventing lung tumor development has been deemed modest. Therefore, it is imperative to elucidate potential additive effects on lung cancer of these agents in combination in a prevention setting.

We presently explore this in an A/J mouse carcinogenesis model used for our chemoprevention work for several decades using a fixed-dose combination of pioglitazone plus metformin. The FDA approved 2 fixed-dose combinations of pioglitazone plus metformin (15 mg/500 mg ACTOPLUS MET and 15 mg/850 mg ACTOPLUS MET) for human use, and generic brands of these medicines have been available in the United States since December 2012. Therefore, if successful, there could be direct translation to humans with this single drug which combines both agents.

Seven-week-old female A/J mice were fed pellet diet NIH-07 7022 (Harlan Teklad Diets) and acclimated to the facility for 2 weeks. Mice were weighed 1 day after arrival and then weekly. Mice were then switched to D62 semipurified diet (Research Diets Inc.) consisting of 27% vitamin-free casein, 59% corn starch, 10% corn oil, 4% salt mix (USP XIV), and a complete mixture of vitamins. We employ the D62 diet for chemoprevention studies, as other diet preparations, providing a more complete complement of nutrients and vitamins, have been found to be chemopreventive in their own right (e.g., soy inositols; refs. 38, 39). Animal diet was replenished twice weekly. At 11 weeks of age, the mice were given the first of 3 administrations of 3 mg benzo[a]pyrene (B[a]P; TCI America)/kg of body weight in 0.2-mL cottonseed oil by oral gavage (days 1, 4, and 8). Mice were randomized into treatment groups by weight the day prior to the first administration of test agents and reweighed once per week.

Experimental diets were started 1 week after last dose of B[a]P. Pioglitazone and metformin were received from the NCI DCP chemical repository. Pioglitazone (15 mg/kg/d) and metformin (500, 850, and 1,000 mg/kg/d) alone and in combination were prepared in the D62 diet. The addition of 1,000 mg/kg/d metformin as a dietary additive was included in the second study. A third experiment tested lower doses of metformin only at 235 and 470 mg/kg/d.

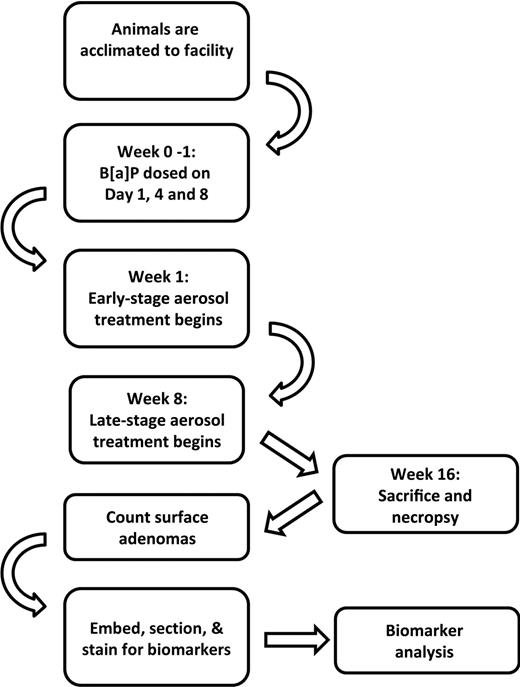

In the dose-finding chemoprevention study, 192 seven-week-old female A/J mice were acclimated to the facility for 2 weeks, weighed, and received carcinogen (B[a]P by oral gavage) on days 1, 4, and 8. One week after the last dose of B[a]P, animals were randomized into 6 groups of 32 mice per group on the basis of weight and placed on experimental diets as shown in Fig. 1. Animals were continued on the feeding schedule, weighed weekly, and monitored for weight loss, lethargy, rough hair coat, or other signs of ill health. For this experiment, all treatment groups were fed experimental diet for a total of 15 weeks.

In the intervention stage chemoprevention study, 224 seven-week-old female A/J mice were acclimated to the facility and all procedures performed as in the dose-finding study. Metformin (12 and 10.2 mg/g) and/or pioglitazone (0.18 mg/g) (w/w) were administered in the diet. Early-stage agent intervention began 7 days after the last dose of B[a]P and continued until termination of the animals. Late-stage agent intervention began 8 weeks after the last dose of B[a]P (Supplementary Table S1). Experiment termination occurred 16 weeks postcarcinogen, resulting in 15 weeks of treatment for the “early”-stage group and 8 weeks of treatment for the “late”-stage group (Fig. 1). All lung lobes were preserved in 10% formalin and surface lung adenoma counts were performed. Six animals were euthanized or found dead during the treatment period which is less than the typical attrition of 12 to 24 animals usually expected for carcinogenesis experiments. Any data from these animals were censored from analysis.

All experimental procedures are carried out according to University of Minnesota Department of Environmental Health and Safety requirements which abide by regulatory requirements set at the local, state, and federal levels. All studies were conducted with the approval of the Institutional Animal Care and Use Committee at The University of Minnesota, under NIH Animal Welfare Assurance number A3456.

Immunohistochemical (IHC) evaluations were performed after surface tumor counts were completed. After counting surface tumors, lungs were fixed in 10% neutral-buffered formalin were processed into paraffin blocks. Lungs were sectioned at 3 levels, 75 μm apart, with eight to sixteen 4-μm unstained sections saved at each level. Hematoxylin and eosin (H&E)-stained slides were examined by light microscopy to monitor the presence of tumors and to select slides for subsequent IHC.

For IHC, 4-μm formalin-fixed, paraffin-embedded sections were deparaffinized and rehydrated, followed by antigen retrieval using Tris-EDTA buffer, pH 9.0, in a steamer. After blocking endogenous peroxidase and application of a protein block (Dako), IHC for cyclin D1 and Ki-67 was performed on a Dako Autostainer using rabbit monoclonal antibodies obtained from Biocare Medical (#CRM 307 and CRM 325, respectively). A rabbit EnVision+ HRP-polymer kit (Dako, #K4010) was used for detection with diaminobenzidine as the chromogen. Mayer hematoxylin (Dako) was used as the counterstain. Primary antibodies were substituted with negative control rabbit IgG (Biocare Medical, #NC495H) for negative control slides. Positive control tissues included murine small intestine, spleen, and colon adenomas, and human tonsil; negative control tissues included murine skeletal and cardiac muscles. Digital images were collected via a Spot Insight 4 MP CCD Scientific Color Digital camera (Diagnostic Instruments) mounted on a Nikon E-800 microscope (Nikon Plan Apo 20×/0.95 lens).

IHC evaluations were done using light microscopy with tumor immunoreactivity subjectively graded on a 1 to 4 scale on the basis of the extent and intensity of immunolabeling for the marker of interest in any given tumor. The pathologist was blinded from knowing experimental versus control groups for this analysis. On the basis of their relative abundance in any given animal, from 1 to 11 tumors were evaluated per animal, and mean scores noted for each animal. Data were obtained from 3 animals per group.

Beas-2B, SV40 immortalized bronchial epithelial cells were a kind of gift from Reuben Lotan (MD Andersen Cancer Center, Houston, TX). These cells were grown in keratinocyte serum-free medium (KSFM; Life Technologies) supplemented with l-glutamine (2 mmol/L), human recombinant EGF (5 ng/mL), and bovine pituitary extract (50 μg/mL) at 37°C in 5% CO₂. Cell line was authenticated by short tandem repeat genotyping performed by the Genetic Resources Core Facility at Johns Hopkins University (Baltimore, MD) followed by analysis of allele values in the AACR STR, CLIMA, and DSMZ databases. Cell proliferation was determined via MTT assay. Cells were plated at 5 × 10³ cells per well in 96-well tissue culture plates and drugs added at day zero. MTT was added to the culture media at 0.5 mg/mL and incubated at 37°C for 4 hours, solubilized in isopropyl alcohol/DMSO, and absorbance was read at 560 nm. Six replicates per data point were analyzed and experiments repeated three times.

Data were analyzed in a group-wise fashion for differences in tumor counts and changes in animal body weights between control and individual experimental groups by ANOVA testing (one-way) for each experiment, unless otherwise noted. Dunnett posttesting was additionally routinely employed to determine which groups were statistically different from the control groups or if the combination treatments were statistically different from the single-agent treatments. One-way ANOVA results are presented as F ratio with degrees of freedom and the P value. Data in the charts were presented as a mean ± SEM for each group. P < 0.05 was used as a cutoff for statistical significance on testing.

Similar to the tumor animal counts, IHC data were analyzed in a group-wise fashion for changes in expression of any of the markers versus the control. Scores were assigned to each sample on the basis of intensity of stain and relative number of nuclei stained. Kruskal–Wallis nonparametric testing was used to determine whether staining intensity of treated groups differed from the control group. All results indicating P < 0.05 were considered statistically significant.

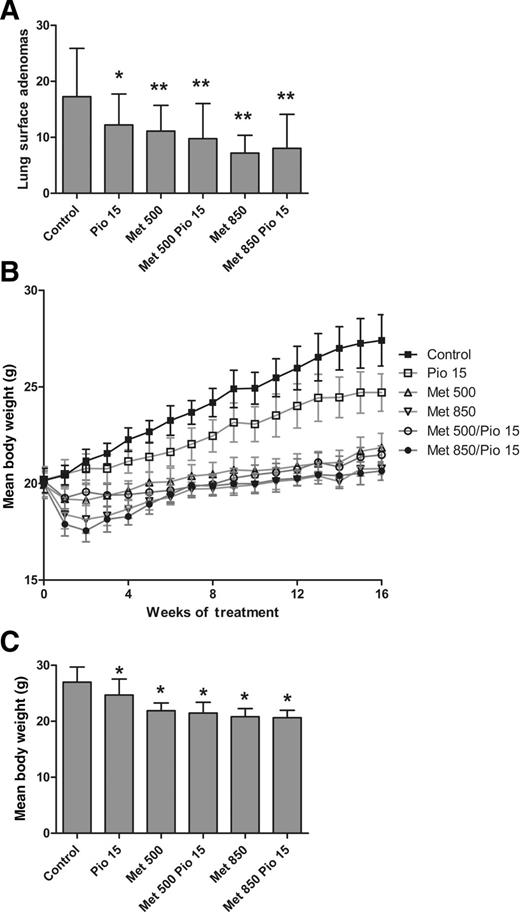

We first tested dietary pioglitazone (15 mg/kg/d) and metformin (500 and 850 mg/kg/d) alone and in combination in a B[a]P mouse carcinogenesis model to evaluate efficacy. Adenoma formation was reduced in all treatment groups (single and combination dosing) versus the control group (Fig. 2A; P < 0.0001, one-way ANOVA). Both metformin doses resulted in statistically significant adenoma reductions from control (t test: 500: P = 0.001; 850: P ≤ 0.0001). There was a greater reduction in adenoma counts in the 850 mg/kg metformin group (58.3% reduction from control) versus the 500 mg/kg metformin group (35.7% reduction from control; t test: P = 0.0003). Pioglitazone (15 mg/kg/d) alone also demonstrated a significant 29.3% tumor reduction compared with the control group (t test: P = 0.0098).

When the 2 drugs were used in combination, 15 mg/kg/d pioglitazone and 500 mg/kg/d metformin reduced tumor formation by 43.5% from control (t test: P = 0.004), and pioglitazone with 850 mg/kg/d metformin reduced tumor formation by 53.5% from control (t test: P < 0.0001). Pioglitazone and 500 mg/kg/d metformin reduced tumor formation by 12.2% from 500 mg/kg/d metformin alone and by 20.1% from pioglitazone alone, which was not significant (Fig. 2A). However, although the use of 850 mg/kg/d metformin and 15 mg/kg/d pioglitazone did not significantly decrease tumor formation from 850 mg/kg/d metformin alone, it did significantly decrease tumor formation from pioglitazone alone (Dunnett posttest: P < 0.05 and t test: P = 0.0078).

Interestingly, throughout the experiment, there was no overt toxicity with regard to animal physical appearance, behavior, tolerance of diet, rough coat, etc. However, there were weight differences which reflected an initial weight loss, followed by a partial recovery and a slower rate of weight gain primarily in the metformin-treated animals. We observed a 20% to 30% weight difference in the animals treated with 500 and 850 mg/kg/d metformin compared with other groups over the course of the experiment (Fig. 2B). By one-way ANOVA testing, the endpoint weight differences between the control group and the metformin-treated groups were significant at P < 0.001 (Fig. 2C). Therefore, either agent was associated with lack of weight gain; however, lack of weight gain was greater in groups treated with metformin compared with pioglitazone alone. As described in greater detail in Discussion, we believe treatment with metformin may have resulted in metabolic changes in the mice, which may have prevented full energy utilization of dietary intake, and resulted in weight gain differences in control versus experimental animals.

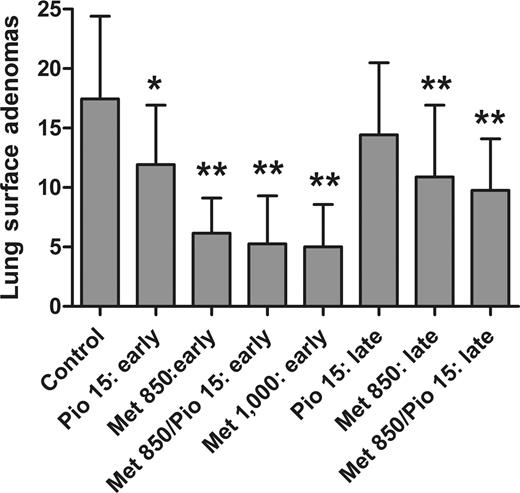

Next, we examined the effect of combination therapy pioglitazone and metformin on early- versus late-stage carcinogenesis (Fig. 3). This experiment allowed us to add an additional dose of 1,000 mg/kg/day metformin and to confirm previous combination treatment results. Furthermore, we tested the intervention at a much later postinitiation time point. At the early stage, treatment with pioglitazone, metformin, or both agents resulted in reductions in adenoma counts from 32% to 71%. Analysis via one-way ANOVA showed significant differences between treatment groups [F(4,126) = 34.57, P < 0.0001], and all groups were significantly lower in surface adenoma count than in the control by Dunnett posttest (P < 0.05). Treatment with pioglitazone alone at 15 mg/kg/d resulted in 32% reduction in adenoma formation (t test: P = 0.0023). Treatment with metformin alone at 850 or 1,000 mg/kg/d resulted in adenoma reductions of 65% and 71%, respectively (t test: P < 0.0001). Combination pioglitazone/metformin treatment resulted in 70% adenoma reductions from control (t test: P < 0.0001) and 56% from pioglitazone alone (t test: P < 0.0001). Combination treatment did not significantly lower adenoma formation over metformin alone.

Late-stage treatment with either pioglitazone, metformin, or both agents resulted in reductions adenoma counts from 17% to 41% (Fig. 3). Treatment with 15 mg/kg/d pioglitazone alone resulted in 17% reduction in adenoma formation which trended toward, however, did not reach statistical significance (t test: P = 0.1126). Treatment with metformin alone at 850 mg/kg/d resulted in adenoma reductions of 38% (t test: P = 0.0007). Combination pioglitazone and metformin treatment resulted in 44% adenoma reductions versus control (t test: P < 0.0001) and 32% versus pioglitazone alone (t test: P = 0.0029). One-way ANOVA analysis found significant differences between the treatment groups [F(3,98) = 8.894, P < 0.0001], and by Dunnett posttest, metformin alone and with pioglitazone were significantly lower in surface adenoma count than in the control (P < 0.05). In summary, treatment with metformin alone and in combination with pioglitazone resulted in statistically significant decreases in lung adenoma formation at both early- and late-stage interventions versus control and versus pioglitazone alone (Fig. 3). Treatment with pioglitazone alone resulted in a significant decrease in adenoma formation only at the early treatment intervention.

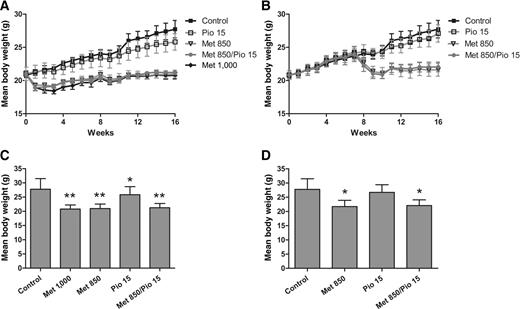

As in the first experiment, animals in the metformin groups experienced a 15% decrease in weight upon treatment onset, in both the early- and late-stage administration, followed by a partial recovery and an overall slower rate of weight gain over the duration of the experiment (Fig. 4A and B). This resulted in final body weights significantly different among treatment groups in both the early-stage administration [F(4,125) = 48.32, P < 0.0001; Fig. 4C] and the late-stage administration [F(3,98) = 33.58, P < 0.0001; Fig. 4D] by one-way ANOVA analysis. By Dunnett posttest, the metformin- and the pioglitazone-treated animals are significantly lower in body weight than in the control at the early intervention and in the late intervention study, only the metformin-treated animals (not the pioglitazone alone) are significantly lower in body weight than in the controls (P < 0.05).

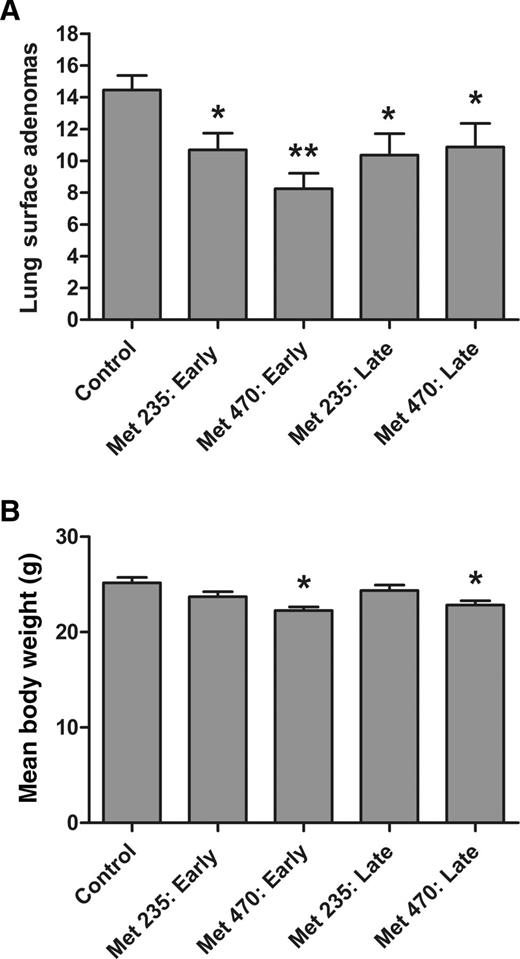

We performed one additional experiment with lower doses of metformin alone. Metformin was added to the diet at 235 and 470 mg/kg/d at early- and late-stage postinitiation time points. The most efficacious group was the high dose administered at the early stage, having an average of 8.3 tumors per animal compared with 14.5 in the control group, an inhibition of 43%. The early-stage low-dose and both late-stage doses showed inhibition in the range of 25% to 28%. The groups were found to be significantly different by one-way ANOVA analysis [F(4,105) = 3.533, P = 0.0095], and the early-stage 470 mg/kg/d metformin treatment was found to be significantly lower than the control by Dunnett posttest (P < 0.05; Fig. 5A). At these lower doses, the 470 mg/kg/d metformin treatment groups showed a 10% decrease in weight gain (Fig. 5B). The endpoint body weights were found to be significantly different via one-way ANOVA analysis [F(4,105) = 5.153, P = 0.0008], and only the 470 mg/kg/d metformin treatment groups were significantly different from the control by Dunnett posttest (P < 0.05; Fig. 5B). Other than the change in rate of weight gain, no other indicators of overt toxicity were observed. These data support the concept that even 5-fold lower doses of metformin from our maximum dietary dose (1,000 mg/kg/d) still result in significant reduction in adenoma formation.

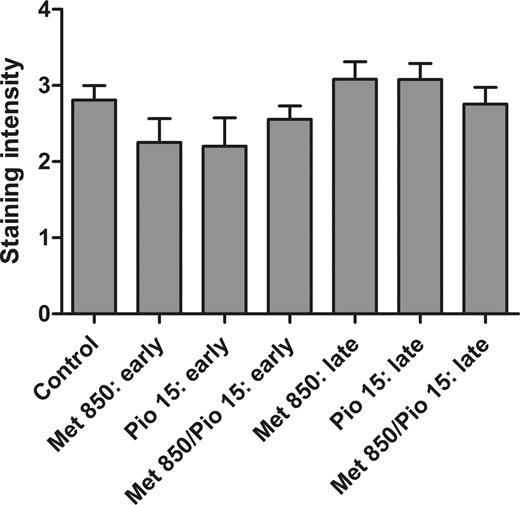

Adenomas from both early- and late-stage treatment groups (excluding the 1,000 mg/kg/d metformin alone group) were analyzed via IHC for cell-cycle markers. Positive and negative control stains for each marker are presented in Supplementary Fig. S1. IHC analysis of the cell proliferation marker, cyclin D1, showed no statistically significant differences in staining intensity or observed stained nuclei (Fig. 6). IHC analysis of Ki-67 did not show any epitope staining in the lung adenoma tissues. In the final experiment with 235 and 470 mg/kg/d dietary metformin, cyclin D1 staining was also not reduced (data not shown).

We concluded the project with exploratory MTT experiments utilizing combination metformin/pioglitazone treatment of human immortalized bronchial epithelial Beas-2B cells. We treated cells with 10 μmol/L pioglitazone in SFM with or without 5 to 20 μmol/L metformin for 1 to 3 days. Doses in this range are achievable serum concentrations in vivo. We found significant decreases in Beas-2B proliferation with 10 μmol/L pioglitazone in several experiments with no further decreases in proliferation noted with the addition of 5 to 20 μmol/L metformin (Supplementary Fig. S2). This is consistent with published data on metformin effects on in vitro cell growth. Often, metformin doses need to be in the millimolar range in order for changes in proliferation to be observed (40).

Considerable preclinical and clinical epidemiologic data indicate both biguanides, such as metformin, and thiazolidinediones, such as pioglitazone, demonstrate lung cancer prevention effects (5, 22, 23, 31). Thus far, no unifying mechanism of action ties together the chemoprevention effects of either of these agents in aerodigestive cancer. In experimental lung carcinogenesis, data suggest that AKT-associated pathways can be targeted by metformin as a potential lead strategy for their use (5).

In our current study, we hypothesized that metformin and pioglitazone dual therapy might be more useful in a prevention setting than either agent alone. We chose doses of metformin and pioglitazone at the exact ratio they are available at as an FDA-approved combination agent for type II diabetes treatment (15 mg pioglitazone with 500 or 850 mg metformin). We found that metformin (500 and 850 mg/kg/d) and pioglitazone (15 mg/kg/d) produced statistically significant decreases in lung adenoma formation both as single-agent treatments and in combination compared with untreated control. Adenoma reduction ranged between 30% and 60% with either metformin dose alone or with the addition of pioglitazone. Pioglitazone alone was effective in producing 30% reductions in adenoma when applied in early-stage testing.

We observed weight differences between groups at the end of the experiment which reflected both an initial weight loss at the initiation of 500 and 850 mg/kg metformin treatment a reduced weight gain while under metformin treatment. It is likely that metformin at 500 and 850 mg/kg/d resulted in metabolic changes preventing full energy utilization in the diet at a time in murine life where weight gain is a feature of normal growth. Both metformin and pioglitazone have been categorized, particularly in studies of longevity and aging, as calorie restriction mimetics (CRM). CRM are agents which mimic calorie restriction in the diet while not causing a decrease in food intake. Other than the differences in weight gain, no other signs of overt toxicity were observed in any of the groups. During replenishment of diet throughout the experiment, food consumption of all treatment groups was observed to be similar. On further analysis of effects of metformin in humans, weight loss is a common observance, and up to 5% weight loss is experienced by patients given prescription doses of metformin for 3 months or more (41, 42). Molecular mechanisms contributing to weight loss have been increased in muscle, adipose, and liver AMPK levels, leading to decreases in carbohydrate uptake, leptin, liver gluconeogenesis, and fat and cholesterol synthesis (42).

When we tested combination pioglitazone/metformin treatment for early- and late-stage post-carcinogen initiation effects, the treatments again resulted in a statistically significant decrease in adenoma formation. Treatment with metformin alone and in combination with pioglitazone resulted in statistically significant decreases in lung adenoma formation at both early- and late-stage interventions. The addition of pioglitazone did not augment the reductive effect observed with metformin at either stage. Treatment with pioglitazone alone resulted in a significant decrease in adenoma formation only at the early treatment intervention. Similar to our previous observations, animals in the metformin groups experienced a 15% decrease in weight upon treatment onset in both the early-stage administration and the late-stage administration, followed by slower rates of weight gain resulting in final body weights 15% lower than non–metformin-treated animals. No other evidence of overt toxicity was observed in any treatment group, including the higher 1,000 mg/kg/d metformin dose. Therefore, it is not trivial to rectify the complete etiology of some of the tumorigenesis effects we observed, as a CRM such as metformin would be expected to have multiple metabolic effects which are antitumorigenic. There is established literature showing intentional calorie restriction, animal starvation, and overt drug toxicities causing decreased food intake can be individually associated with reduced tumorigenesis (43–48).

We made it a project goal to handle the adenoma specimens in the manner they would be handled in a human clinical trial, with preservation and short-term storage in formalin before blocking and cutting. Also, the efficacy of the prevention effects made biomarker determination difficult. This was attributable to the decrease in both number and size of the lung adenomas in the treated groups. We thus limited our analyses to assessment of cyclin D1 and Ki-67 expression levels due to their key roles in cell growth and proliferation as well as the decreased amount of tissue available from the animals. IHC analysis of the cell proliferation marker, cyclin D1, indicated no obvious effect of treatment on cyclin D1 expression, with similar scores observed across the groups. Although there were slightly lower scores in treatment groups, this was not considered to be significant due to the relatively small magnitude of the effect. IHC analysis of Ki-67 did not provide any epitope staining in the lung adenoma tissues. This was attributed to prolonged fixation and storage in formalin. It has been well-documented that prolonged formalin fixation results in deterioration or absence of immunolabeling for many markers (49, 50). In future studies, tissues will be formalin-fixed for 24 hours and stored in 70% ethanol before processing into paraffin blocks, conditions which work well for routine detection of Ki-67 and other markers in our hands.

We conclude oral metformin is a viable chemopreventive treatment at doses ranging from 235 to 1,000 mg/kg/d at both early- and late-stage interventions. Pioglitazone at 15 mg/kg/d is a viable chemopreventive agent at early-stage interventions. Combination metformin and pioglitazone perform equal to metformin alone and better than 15 mg/kg/d pioglitazone alone. These are promising preclinical findings which could be advanced to clinical prevention studies with pioglitazone, metformin, or ACTOplus Met. If this drug combination were to make it to a clinical trial, the likely agent, ACTOplus MetXR, contains a 30:1,000 ratio of pioglitazone:metformin, quite close to the ratio we used in our combination study of 15:500 pioglitazone:metformin.
