Metastasis-associated macrophages (MAM) promote persistent growth of breast cancer cells at the metastatic site and are, thus, an attractive therapeutic target to treat breast cancer metastasis, a leading cause of cancer-related death in women. However, the precise mechanisms behind MAM-mediated metastatic tumor outgrowth have not been fully elucidated. Using mouse models of metastatic breast cancer, we showed that MAMs uniquely expressed hepatocyte growth factor (HGF) in metastatic tumors. We also demonstrated that a selected population of cancer cells with high metastatic potential (cancer cells that can establish metastatic tumors in mice with higher number and incidence than parental cells) had higher expression of HGF receptor, MNNG HOS transforming gene (MET), and were more responsive to HGF released from macrophages compared with the parental cells. Blockade of MET signaling in cancer cells suppressed metastatic tumor expansion, in part, through activation of natural killer cells. Results from this study suggest an approach to prevent life-threatening metastatic tumor formation using blockade of MAM-induced MET signal activation in metastatic cancer cells.
Breast cancer is a leading cause of cancer-related death in women, largely due to the metastasis in distant organs such as the bone and lung (1, 2). Because 6% to 10% of patients with breast cancer present with metastasis at diagnosis (3), novel therapies targeting metastatic tumor outgrowth are necessary (2). Attractive targets are tumor-associated macrophages (TAM) in the primary and secondary sites (4). However, the roles of TAMs in metastasis are different in the primary and metastatic tumor microenvironment (5). Thus, investigation of TAM functions in metastatic sites is important to develop strategies to block metastatic tumor expansion.
In mouse models of breast cancer pulmonary metastasis, a distinct population of TAMs termed metastasis-associated macrophages (MAM) promotes extravasation of circulating cancer cells, as well as subsequent survival and persistent growth at the metastatic site (6). However, the mechanisms by which MAMs promote metastatic tumor expansion are not fully understood, and, thus, targetable factors expressed by MAMs need to be identified. Previous animal studies indicate that metastasis promotion by MAMs occurs through the secretion of growth factors. For example, MAMs secrete VEGF that promotes extravasation of breast cancer cells by increasing vascular permeability, as well as subsequent tumor growth by activating VEGFR1 signaling in MAMs (7, 8). It is, therefore, likely that MAM-derived secreted factors play key roles in the metastatic tumor outgrowth. Given that only a minor population of extravasated cancer cells can establish macroscopic metastatic tumors (9, 10), we hypothesized that this metastatic population might have been selected to be more responsive to the MAM-derived factors and, thereby, able to expand more efficiently in the metastatic site. Here, we demonstrated that selected populations of mouse mammary and human breast cancer cells with high metastatic potential had higher expression of the hepatocyte growth factor (HGF) receptor, MNNG HOS transforming gene (MET), compared with low metastatic parental cells. This elevated expression resulted in an enhanced and prolonged MET signal activation in response to macrophage-derived HGF. We also showed that the activation of MET signaling in cancer cells promoted metastatic tumor outgrowth via suppression of tumor cell apoptosis induced by natural killer (NK) cells. Our results suggest that blockade of macrophage-mediated MET signal activation could be a potential therapy to prevent metastatic tumor outgrowth of breast cancer.
Materials and Methods
C57BL/6J, SCID (CB17-Prkdcscid/J), NOD/SCID gamma (NSG; NOD.Cg-PrkdcscidIl2rgtm1Wjl/SzJ), and human HGF knock-in (HGF-KI) SCID (Hgftm1.1(HGF)AveoPrkdcscid/J) mice were obtained from the Jackson Laboratory. Female SCID mice aged 4 weeks were irradiated with 9 Gy γ-rays and intravenously injected with 4 × 106 of bone marrow cells from HGF-KI or control SCID mice. The recipient mice were injected with LM2-4175 human breast cancer cells after 6 weeks as described in the “Metastasis models” section. All studies were conducted in accordance with licensed permission from Institutional Animal Care and Use Committee of the Albert Einstein College of Medicine (#20120304) and the UK Home Office (P526C60B3). Sample size to generate significant results (P < 0.05) was calculated with on-line software (OpenEpi).
Peripheral blood was collected from five healthy donors. Blood samples kept on ice were processed to prepare monocyte-derived macrophages (MDM) within 1 hour after collection. Informed consent was obtained from all donors included in this study. All study protocols were approved by the Institutional Review Board of the Albert Einstein Medical College (Bronx, NY).
E0771 mouse mammary adenocarcinoma cell line was kindly provided by Dr. E. Mihich (Roswell Park Cancer Institute, Buffalo, NY) in 2010. The LM2-4175 cell line was kindly provided by Dr. J. Massagué (Memorial Sloan Kettering Cancer Center, New York, NY) in 2007. MCF-7 and MDA-MB-231 human breast cancer cells and 3B-11 mouse endothelial cells were obtained from the ATCC in 2011. These cells were authenticated and certified by the ATCC. All of these cells were cultured in DMEM (Invitrogen) including 10% v/v FBS (Sigma-Aldrich) and 1% v/v penicillin/streptomycin (Sigma-Aldrich). We did not culture these cell lines longer than 3 months after thawing our stocks that were frozen at passage 3 after they were received. Mouse bone marrow–derived macrophages (BMM) and human MDMs were isolated as described previously (11, 12) and cultured in alpha-Minimal Essential Medium (αMEM, Invitrogen) including 10% v/v FBS and recombinant human colony-stimulating factor 1 (CSF1, 1 × 104 U/mL, Chiron Corporation). Conditioned medium was collected from macrophages cultured in αMEM including 10% v/v FBS and recombinant human CSF1 (1 × 103 U/mL) for 24 hours. All cells were negative for Mycoplasma.
To obtain cancer cell subpopulations with high metastatic potential, we injected 1 × 106 of E0771 cells into the mammary fat pad or the tail vein of C57BL/6 mice and obtained the lung with metastatic tumors as described in “Metastasis models.” The tumor-bearing lungs were minced and incubated with dispase (Gibco) dissolved in Ca2+/Mg2+-free PBS (2.4 U/mL) for 30 minutes at 37°C. The digested tissue was washed by PBS and cultured in DMEM including 10% v/v FBS and 1% v/v penicillin/streptomycin. The in vivo selection was performed through two cycles. The metastasized cancer cells retrieved from spontaneous or experimental metastasis model were named E0771-HML2 or E0771-LG, respectively.
E0771-parental, -HML2, and -LG cells were subcloned by limited dilution method. E0771-LG cells were manipulated to express firefly luciferase and transfected with a TRIPZ-inducible lentiviral shRNA vector (Dharmacon) including mouse Met shRNA (shMet#1; 5′-GCCAATCTTGCTAAGCAAA-3′ or shMet#2; 5′-GCTACTTATGTGAATGTAA-3′) or nonsilencing shRNA (shControl; 5′-CTCGCTTGGGCGAGAGTAA-3′). These cells were cultured in DMEM supplemented with 10% v/v tetracycline-free FBS for their maintenance or with doxycycline (5 μg/mL, Sigma) for shRNA induction up to 4 days.
In a spontaneous metastasis model, 1 × 106 of E0771 cells were injected into the mammary fat pad of female C57BL/6J mice (7 weeks old), and the primary tumor was surgically removed after 4 weeks. Three weeks later, the lung was dissected, and the existence of surface metastatic foci was confirmed under stereoscopic microscopy. The lung with metastatic tumors was used to retrieve cancer cells with higher metastatic potential (E0771-HML2) as described above.
In experimental metastasis models, 1 × 106 of cancer cells were injected into the tail vein of female mice. E0771-parental, E0771-HML2, and E0771-LG cells expressing shRNA (shCont, shMet#1, and shMet#2) were injected into syngeneic C57BL/6 mice (7 weeks old). E0771-LG:shMet#1 cells were also injected into SCID and NSG mice (7 weeks old). LM2-4175 cells were injected into SCID mice that have received bone marrow cells from HGF-KI or control SCID mice as described above. To determine tumor load in the lung area, mice were injected with d-luciferin (GoldBio, 1.5 mg/20 g mouse) into the peritoneum and imaged using Photon Imager Optima (Biospace Lab) every 3 to 4 days. Photon counts (photon/second/cm2/sr) were quantified by M3 Vision Software (Biospace Lab). In some experiments using E0771-LG cells expressing shRNA, we gave doxycycline in the drinking water (Sigma, 2 mg/mL in 5% w/v sucrose water) or vehicle from 4 days after tumor injection to the experimental endpoint (day 10, 14, or 16 post-tumor injection). In some experiments, we injected blocking antibodies against mouse NK1.1 (PK136; BioXCell, 200 μg/20 g mouse) into the peritoneum on days 4 and 7 after tumor injection.
Spheroid invasion assay
E0771-parental and E0771-HML2 mouse mammary tumor cells or MCF-7, MDA-MB-231, and LM2-4175 human breast cancer cells (5 × 104) were cultured on top of Matrigel (2.5 mg/mL, BD Biosciences) in 35 mm glass bottom dishes and incubated for 48 hours in αMEM including 10% v/v FBS with or without recombinant mouse/human HGF (10 ng/mL, PeproTech) or undiluted conditioned media (CM) from macrophages (mouse BMMs or human MDMs for mouse and human cancer cells, respectively). In some experiments, cells were incubated with 1 μmol/L crizotinib (Sigma) or an MET-blocking antibody (20 μg/mL; R&D Systems). We imaged randomly selected five fields with a Zeiss Axioskop II microscope at 10× magnification and enumerated spheres and invading cells using Fiji Software (v1.49, NIH).
In vitro extravasation assay
3B-11 mouse endothelial cells (2 × 104) were cultured on top of growth factor–reduced Matrigel Invasion Chambers (BD Biosciences) for 48 hours, and BMMs (2 × 104) were loaded and attached to the bottom of the chambers. The chambers were then placed into a plate with DMEM including 10% v/v FBS and CSF1 (1 × 104 U/mL). E0771 cells (2 × 104) labeled with CellTracker CMFDA (Molecular Probe) were loaded into the chambers with DMEM including 0.5% v/v FBS and 1 × 104 U/mL CSF1. In some experiments, 1 μmol/L crizotinib (Sigma) was added into the culture. After 36 hours, the chambers were fixed with 4% w/v paraformaldehyde, and cells on top were removed. Five randomly selected fields in each chamber were imaged by Olympus IX81 fluorescence microscope at 20× magnification, and the number of migrated cancer cells was counted using Fiji software.
We extracted RNA from E0771-parental and E0771-HML2 cells using the RNeasy Micro/Mini Kit (Qiagen). RNA samples (15 μg) were hybridized on a GeneChip Mouse Genome 430 2.0 Array and scanned by GeneChip Scanner 3000 (Affymetrix). Datasets were annotated and normalized using the robust multichip average algorithm from the HuGene 1.0 transcript cluster database (Bioconductor). Genes with FDR ≤ 0.05 and log2 fold change (FC) ≥ +1.0 were considered differentially expressed. Among genes that were differentially expressed in E0771-HML2, transmembrane receptor genes were identified as targets by Ingenuity Pathway Analysis software. Data are deposited into Gene Expression Omnibus (GEO; accession number: GSE138139).
Kaplan–Meier Plotter database analysis
Using open access software Kaplan–Meier (KM) Plotter (13), correlation between distant metastasis-free survival (DMFS) of patients with breast cancer and expression of target genes (described above) was analyzed. A database was established using multiple microarray datasets downloaded from GEO, and 146-patient data fitting to the selected parameters (survival: DMFS, intrinsic subtype: basal, and grade: 3) were analyzed. For each gene of interest, patients with grade 3 basal-type breast cancer were separated into a high- and low-expression group based on the median value of the target mRNA expression, and KM survival curves were plotted. A log-rank P < 0.01 was considered statistically significant. The gene IDs used for the analysis are as follows: 203510_at (MET), 202638_s_at (ICAM1), 215346_at (CD40), 238050_at (ANTXR2), 202803_s_at (ITGB2), 201656_at (ITGA6), 1556582_at (PVR), 203650_at (PROCR), 210845_s_at (PLAUR), 206703_at (CHRNB1), 205718_at (ITGB7), 232317_at (PLXNA4), 218684_at (LRRC8D), 206211_at (ELAM1), 201743_at (CD14), 207072_at (IL18RAP), 204137_at (GPR137B), 209816_at (BCNS), 205891_at (ADORA2B), 204116_at (IL2RG), 219761_at (CLEC1A), and 224392_s_at (OPN3).
Total RNA was isolated from untreated cultured cells (BMMs, 3B-11, E0771-parental, -HML2, and -LG cells) using TRI Reagent (Sigma), and cDNA was synthesized from 2 μg of RNA using SuperScript III RT (Life Technologies). Real-time RT-PCR was performed using SYBR Master Mix (Invitrogen) with the following primers: Gapdh, 5′-AGAACATCATCCCTGCATCC-3′ and 5′-CACATTGGGGGTAGGAACAC-3′; Hgf, 5′-ATGGGGAATGAGAAATGCAG-3′ and 5′-CTCCCTCACATGGTCCTGAT-3′; Met, 5′-ATCATGGGACTTTGCTGGAC-3′ and 5′-ACATTGGGATGGCTG AAGTC-3′. Expression of the target gene was normalized using Gapdh and reported as 2−ΔΔCt.
E0771 cells cultured to 80% confluency were stimulated with recombinant mouse HGF (10 ng/mL, PeproTech) or undiluted BMM-CM for the indicated time in the presence of 300 nmol/L crizotinib (Sigma) or vehicle (DMSO, Sigma). Cells were lysed with RIPA Buffer including 1% v/v Halt Protease/Phosphatase Inhibitor (Thermo Fisher Scientific), separated by 4% to 15% w/v SDS gel electrophoresis (Bio-Rad), and transferred onto PVDF membrane (Millipore). The membrane was blocked by Odyssey Blocking Buffer (LI-COR) overnight at 4°C, probed with a primary antibody (1:1,000 dilution with blocking buffer) overnight at 4°C, and incubated with horseradish peroxidase–conjugated secondary antibody (1:2,000 dilution with blocking buffer) for 1 hour at room temperature after washing with Tris-Buffered Saline Tween-20. Signals were detected using Super Signal Femto (Thermo Fisher Scientific) and Odyssey Fc (LI-COR). The following antibodies from Cell Signaling Technology were used: Phospho-Met (#3077P), Met (#4560S), Phospho-Gab1 (#3234T), Gab1 (#3232T), β-actin (#3700S), anti-Rabbit IgG (#7074P2), and anti-mouse IgG (#7076P2).
Metastatic lungs were isolated at day 10 after tumor injection from C57BL/6 mice injected with E0771-LG:shMet#1 cells and treated with doxycycline or vehicle as described in “Metastasis models.” The lungs were minced by razor blade and incubated with the Lung Dissociation Kit (Miltenyi) at 37°C for 30 minutes. The single-cell suspensions were washed by PBS including 2% v/w BSA (Sigma), filtered through a 40-μm cell strainer, and treated with RBC Lysis Buffer (BioLegend). A total of 1 × 106 of cells were resuspended in PBS including 2% v/w BSA, were blocked with antibody for mouse CD16/CD32 (BD Bioscience) on ice for 30 minutes, and then labeled on ice for 30 minutes using the following antibodies from BioLegend: anti-CD45 (30-F11), anti-F4/80 (BM8), anti-Ly6G (1A8), anti-CD4 (GK1.5), anti-CD8 (53–6.7), anti-NK1.1 (PK136), and anti-CD69 (H1.2F3). Samples from the lung of mice without doxycycline treatment were used as a control.
To compare the MET expression, human cancer cells (MCF-7, MDA-MB-231, and LM2-4175) were harvested with 0.05% w/v Trypsin-EDTA (Gibco) and resuspended in PBS including 2% v/w BSA. A total of 1 × 106 of cells were labeled with antibodies for human HGFR/c-MET (#95106, R&D Systems) for 30 minutes on ice. Viability of stained cells was assessed by DAPI Stain (BioLegend). The stained cells were detected using LSRII Cytometer (BD Biosciences) and analyzed using FlowJo Software (TreeStar). The absolute number of cells in tissues was determined as described previously (14).
To determine the size of metastatic tumors, the lungs were isolated at day 14 or 16 after tumor injection from C57BL/6 mice injected with E0771-LG cells expressing shRNA and treated with doxycycline as described in “Metastasis models.” The lungs were fixed with 4% w/v PFA overnight at 4°C, embedded into paraffin, and sectioned for hematoxylin and eosin (H&E) staining. All lobes were imaged using a Slide Scanner Zeiss Axio Scan Z.1 and analyzed using the Definiens Tissue Studio software to determine average nodule size.
To detect HGF expression in immune cells, the metastatic lungs were isolated at day 10 after tumor injection from C57BL/6 mice injected with E0771-LG cells and directly embedded in Optimal Cutting Temperature (OCT) compound (Sakura Finetek). Frozen sections were fixed with cold acetone 5 minutes on ice, washed by cold PBS, and blocked with PBS including 3% v/w BSA and 10% v/v horse serum (Sigma). The sections were then incubated overnight at 4°C with antibodies to mouse HGF (15 μg/mL, R&D) and antibodies (1:100) to Ly6G (1A8), CD3 (17A2), B220 (RA3-6B2) from BioLegend, F4/80 (CI:A3-1, Bio-Rad), or fibroblast antibody (ER-TR7, Novus Biologicals) following 1-hour incubation with fluorescent secondary antibodies (1:500, Alexa555 anti-rat IgG and Alexa488 anti-goat IgG from Molecular Probes) with DAPI (1:250, Invitrogen). Images were taken using Olympus BX61W1 Multiphoton FV1000 Microscope at 20× and 60× magnification. The region with dense DAPI-positive staining was outlined as the tumor area, which was confirmed by H&E staining of a serial section.
To detect apoptotic cancer cells, the lungs were isolated at day 10 after tumor injection from C57BL/6 mice injected with E0771-LG:shMet#1 and treated with doxycycline as described in “Metastasis models” and embedded in OCT compound. Sections were fixed and blocked as described above and stained with antibodies (1:100) to ErbB2 (ab16901, Abcam) and cleaved caspase 3 (#9664L, Cell Signaling Technology) using the M.O.M. Detection Kit (Vector Labs) and Alexa555 anti-rabbit IgG. Images were taken using Olympus IX73 fluorescence microscope at 10× magnification. The ErbB2+ region (tumor signal) and cleaved caspase 3+ region restricted to the tumor area (apoptosis signal) were quantified using Fiji software (v1.49, NIH). The final apoptotic index was obtained by dividing the apoptosis signal value by the tumor signal value.
E0771-LG cells expressing shRNA (shCont, shMet#1, and shMet#2) were cultured with or without doxycycline (5 μg/mL) for 3 days. A total of 1 × 103 of the pretreated cells were seeded into 96-well plates with phenol red–free DMEM including 10% v/v FBS with or without doxycycline (5 μg/mL). After 3 days, cells were incubated with phenol red–free DMEM including 10% v/v FBS and 1.2 mmol/L thiazolyl blue tetrazolium bromide (MTT, Sigma) for 4 hours, and then lysed by equal volume of water with 10 μmol/L hydrochloride and 0.1% w/v SDS (Sigma) to determine absorbance of 570 nm.
To investigate effects of MET signal on in vitro cancer cell apoptosis, E0771-LG:shMet#1 cells were cultured with or without doxycycline (5 μg/mL) for 3 days, and 1 × 103 of these cells were seeded into 96-well plates with phenol red–free DMEM including 10% v/v FBS and either recombinant mouse HGF (20 ng/mL), IFNγ (250 U/mL), TNFα (25 ng/mL), TRAIL (200 ng/mL) from PeproTech, or FAS-activating antibody (1 μg/mL, JO2, BD Pharmingen). For a low-attachment condition, 96-well plates were coated with Poly-2-hydroxethyl methacrylate (Sigma). These cells were cultured for 3 days, incubated with MTT, and lysed as described above.
NK-cell cytotoxicity assay
NK cells were isolated from the spleen of normal C57BL/6 mice using EasySep Mouse NK Cell Isolation Kit (Stemcell Technologies) and resuspended in αMEM including 10% v/v FBS. E0771-LG:shMet#1 cancer cells were manipulated to express a red fluorescent protein (mKate) in the nucleus (E0771-LG:shMet#1_NLR) using NucLight Rapid Red Reagent (Essen Bioscience). In some experiments, E0771-LG:shMet#1_NLR were preincubated with doxycycline (5 μg/mL; Sigma) or PBS for 3 days and then stimulated with recombinant mouse HGF (20 ng/mL; PeproTech) or PBS for 2 days in the presence or absence of doxycycline (5 μg/mL). In some experiments, CM was collected from E0771-LG:shMet#1_NLR cells cultured in αMEM including 10% v/v FBS with or without HGF (20 ng/mL) for 2 days. The pretreated (or untreated) cancer cells were harvested with 0.05% w/v Trypsin-EDTA (Gibco) and resuspended in αMEM including 10% v/v FBS. Target cancer cells (1 × 103) and 4 × 103 effector NK cells were seeded in 96-well plates coated with basement membrane extract (Geltrex, Gibco) and cocultured in αMEM including 10% v/v FBS (normal medium) or CM with 1,000 U/mL IL2 (PeproTech) and green fluorogenic caspase-3 substrate (NucView488, Biotium). The cultured cells were imaged by IncuCyte Zoom Live-Cell Analysis System (Essen Bioscience) at 10× magnification for 48 hours, and the number of apoptotic cancer cells (large red/green overlapping nuclei) was counted using the IncuCyte Zoom Software (Essen).
All samples were collected independently and analyzed from at least two independent experiments. Data were expressed as mean ± SEM and analyzed by the Student t test unless it is specified. In some cases, data were analyzed by the χ2 analysis. P < 0.05 was considered significant. Statistical analyses were carried out using GraphPad Prism 6.
Cancer cells with high metastatic potential are responsive to macrophage-derived factors

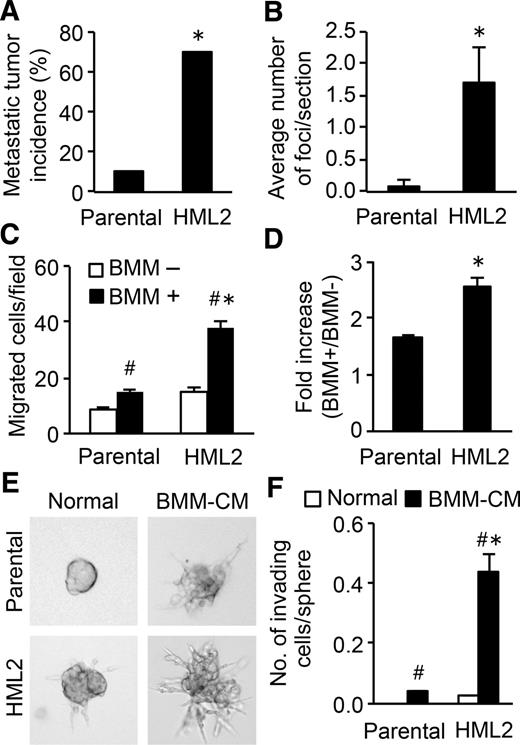

To obtain cancer cell subpopulations with high metastatic potential, we injected E0771 mouse mammary tumor cells (15) into the mammary fat pad of syngeneic C57BL/6 mice and retrieved the metastasized cells from the lung. We repeated this in vivo selection and established a second-generation population (named HML2). This selected population developed pulmonary metastases with a significantly higher incidence and more lesions compared with parental cells (Fig. 1A and B). To compare responses to macrophages between HML2 and parental cells, we performed an in vitro extravasation assay (7, 16). The migration of cancer cells through the endothelial monolayer was promoted by BMMs placed on the opposite side of the endothelial layer, and this macrophage-promoting extravasation was significantly enhanced in HML2 cells (Fig. 1C and D). We also performed a spheroid invasion assay that recapitulates the invasion of cancer cell clusters in solid tumors (17). Parental E0771 cells formed compact, multicellular tumor spheroids when cultured on high-density Matrigel with unconditioned culture medium (DMEM with 10%v/v FBS), whereas the cells cultured in the medium conditioned with BMMs dissociated from the spheroids and invaded into the Matrigel (Fig. 1E). The number of invading cells in the presence of BMM-CM was more than 10-fold higher in HML2 (0.44 ± 0.06) than in parental cells (0.03 ± 0.001; Fig. 1E and F). These data indicated that the population of E0771 cells with high metastatic potential is more responsive to macrophage-derived secreted factors.
MET activation by macrophage-derived HGF is enhanced in metastatic cancer cells

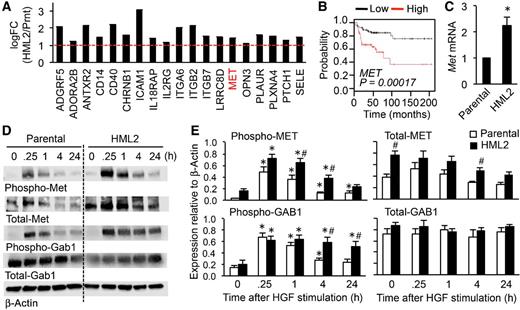

We hypothesized that HML2 compared with parental cells have higher expression of receptors for macrophage-derived ligands that may transmit prometastatic signals to the cancer cells. To test this hypothesis, gene expression profiles between HML2 and parental cells were compared by microarray analysis. An unsupervised multidimensional scaling plot of all expressed genes showed clear separation of HML2 and parental cells (Supplementary Fig. S1A), and Ingenuity Pathway Analysis identified 19 candidate genes encoding transmembrane receptors that had high expression (log FC > 1.0, P < 0.05) in HML2 compared with parental cells (Fig. 2A; Supplementary Fig. S1B). One of these genes encodes MET, an HGF receptor that can promote tumor metastasis in mice (18). Gene set enrichment analysis also suggests that the MET pathway–associated genes are differentially expressed by HML2 compared with parental cells (Supplementary Fig. S1C and S1D). Using a survival analysis tool (13), we further identified that high expression of MET, ATRAB2, and PLAURI, but not others, significantly correlated with lower metastasis-free survival of patients with breast cancer (Fig. 2B; Supplementary Fig. S2). Therefore, we hypothesized that enhanced expression of MET can make breast cancer cells more responsive to macrophages and, thereby, promote metastatic tumor expansion.
Consistent with the microarray data, we found significantly higher expression of Met mRNA (Fig. 2C) and protein (Fig. 2D and E; total MET) in HML2 cells compared with parental cells. We also found that the ligand-dependent phosphorylation of MET, as well as its downstream target GRB2-associated binder 1 (GAB1), was enhanced and sustained for longer periods in HML2 cells compared with parental cells (Fig. 2D and E). GAB1 activation was induced by CM from BMM to a higher extent in HML2 than in parental cells, and this was significantly suppressed by crizotinib, a small-molecule MET inhibitor (Fig. 3A). These data indicated that a population of cancer cells with high metastatic potential (i.e., E0771-HML2 cells) expressed high MET that resulted in the enhancement of MET signaling in response to macrophage-derived HGF. We then investigated whether MET activation in HML2 contributed to their hyper-responsiveness to macrophages. In a spheroid invasion assay, invasion of HML2 cells enhanced by BMM-CM was completely suppressed by crizotinib or an MET-neutralizing antibody (Fig. 3B). In an in vitro extravasation assay, BMM-enhanced extravasation of HML2 cells was also suppressed by crizotinib (Fig. 3C). Recombinant HGF alone significantly increased the number of extravasated cancer cells to a comparable level to that induced by BMMs, indicating that HGF was sufficient for cancer cell extravasation (Fig. 3C). These results highlighted the HGF/MET pathway as a prometastatic signal that macrophages transmit to metastatic cancer cells. Supporting this conclusion, BMMs expressed higher Hgf mRNA compared with E0771-HML2 cancer cells or 3B11 endothelial cells that were present in the in vitro extravasation assay (Fig. 3D). Using high-resolution IHC detection, we further identified that HGF expression in E0771 metastatic tumors was detected mainly in F4/80+ macrophages (i.e., MAMs), but not in Ly6G+ neutrophils, CD3+ T cells, or B220+ B cells (Fig. 3E; Supplementary Fig. S3A and S3B). Consistent with a previous report (19), HGF expression was not found in F4/80+ macrophages in the adjacent normal area that represented resident alveolar macrophages (Fig. 3F). These results showed that MAMs were the major source of HGF in the metastatic tumor microenvironment. Although cancer-associated fibroblasts have been reported to produce HGF (20), we could not find ERTR7+ fibroblasts in the metastatic foci (Supplementary Fig. S3C). Collectively, these results indicated that breast cancer cells with high metastatic potential exhibited high expression of MET and were, thus, more responsive to HGF secreted by MAMs in the metastatic site.
Macrophage HGF activates MET in human breast cancer cells to promote metastasis

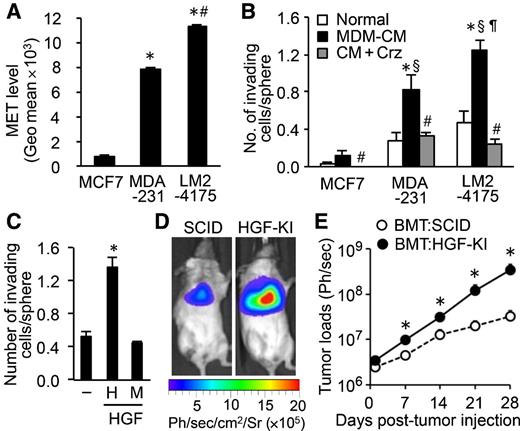

Similar to mouse mammary tumor cells, a highly metastatic subpopulation of MDA-MB-231 human breast cancer cells (LM2-4175; ref. 21) expressed significantly higher MET compared with their parental cells (Fig. 4A). We also found that in vitro invasion of LM2-4175 and MDA-MB-231 was promoted by human MDM–CM to a significantly higher extent than in MCF-7 cells that expressed low levels of MET (Fig. 4A and B). The effect of MDM-CM on tumor cell invasion was completely suppressed by crizotinib (Fig. 4B) and was comparable with that of recombinant human HGF (Fig. 4C). These results indicated that metastatic human breast cancer cells expressed high MET, which enhanced their response to human macrophage–derived HGF.
It has been reported that a subpopulation of circulating tumor cells in patients with breast cancer express high MET and that patients with high number of MET+ circulating cancer cells show more metastasis and shorter survival than patients with a low number of the cells (22). We, thus, hypothesized that MET activation by MAM-derived HGF was required for circulating breast cancer cells to establish metastatic tumors. To investigate this hypothesis, we injected LM2-4175 breast cancer cells expressing luciferase (21) into the tail vein of immunocompromised SCID mice, a means by which cancer cells are directly introduced into the circulation without being affected by early metastatic steps in the primary site. The recipient SCID mice were irradiated and transplanted with bone marrow cells from human HGF knock-in (HGF-KI) SCID mice in which mouse Hgf coding region is replaced by human HGF cDNA. Thereby, leukocytes in the bone marrow–transplanted (BMT:HGF-KI) mice secrete human HGF, whereas other host cells secrete mouse HGF. Mouse HGF binds to human MET with low affinity (23) and did not signal, as shown by the spheroid invasion assay where LM2-4175 human breast cancer cells did not respond to mouse HGF but showed a robust response to human HGF (Fig. 4C). Therefore, in the metastatic site of BMT:HGF-KI mice, the MET signal in the injected LM2-4175 cells would only be activated by HGF secreted from tumor-infiltrating leukocytes. In support of our hypothesis, the metastatic tumor loads in the lung were significantly higher in the BMT:HGF-KI mice compared with those in control mice without the human HGF gene (Fig. 4D and E). Because only MAMs expressed a significant amount of HGF among tumor-infiltrating leukocytes in mice (Fig. 3E), our results suggest that MAM-derived HGF promotes circulating human breast cancer cells to establish metastatic tumors.
Reduced MET expression suppresses metastatic tumor outgrowth of breast cancer cells

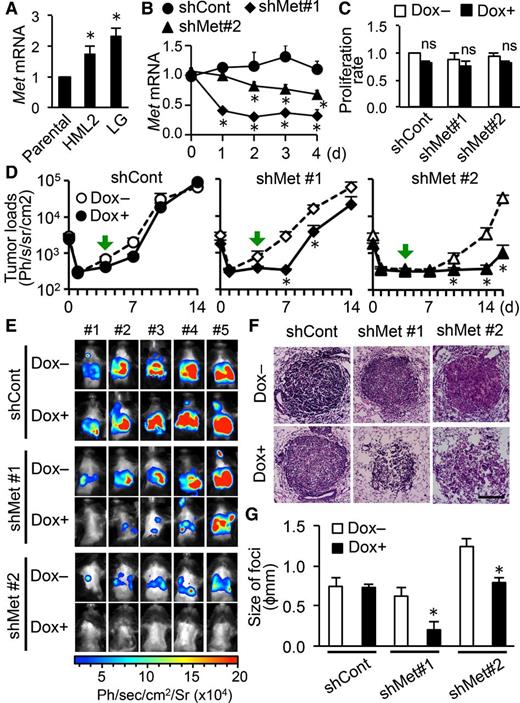

We further investigated whether MET signaling was required for the expansion of circulating tumor cells in the metastatic site. To this end and to indicate our data were not due to clonal variability in the selected HML2 cell line, we used E0771-LG cells, another metastatic derivative of E0771 cells that reproducibly extravasate and establish micrometastasis via MAM-mediated mechanisms by day 4 and develop into lethal macrometastasis by day14 after i.v. injection (16, 24). Expression of Met mRNA in E0771-LG cells was comparable with that in E0771-HML2 and significantly higher than E0771-parental cells (Fig. 5A). We manipulated E0771-LG cells to express luciferase and an inducible shRNA against Met mRNA (shMet). Expression of Met mRNA in cancer cells with shMet, but not control nonsilencing shRNA (shCont), was decreased by doxycycline treatment within 2 days without affecting their in vitro proliferation (Fig. 5B and C). We injected the E0771-LG:shMet or E0771-LG:shCont cells into C57BL/6 mice, and treated the animals with doxycycline from day 4 after tumor injection. As expected, the metastatic loads were not affected by the doxycycline treatment in mice with E0771-LG:shCont cells. In contrast, the doxycycline treatment significantly reduced pulmonary tumor burden by day 10 after tumor injection in mice that have received E0771-LG:shMet#1 cells (Fig. 5D). Although tumor load at day 14 in these mice was also lower than that in control mice, it was not statistically significant due to an outlier with significant tumor growth (Fig. 5E). At day 14, we isolated the lung and analyzed H&E sections (Fig. 5F) using a rigorous and accurate stereological method that reads out size of foci (i.e., tumor growth; ref. 6). The doxycycline treatment also significantly reduced the average size of metastatic tumors established by E0771-LG:shMet#1 cells, whereas it did not affect the size of E0771-LG:shCont tumors (Fig. 5G). We found the reduction in metastatic tumor growth in mice injected with E0771-LG cells expressing another shMet construct (shMet#2), even though metastasis formation of this clone of cells was lower than that of E0771-LG:shMet#1 cells for unknown reasons (Fig. 5D and G). These results showed that breast cancer cells required MET signals for their metastatic tumor outgrowth.
MET prevents metastatic tumor cell apoptosis associated with NK cells

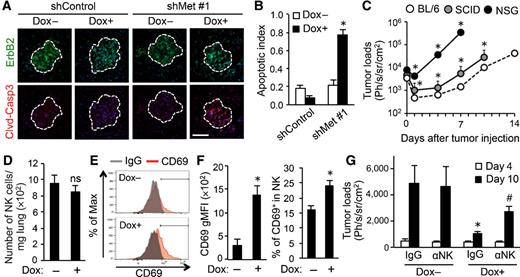

Because metastatic foci established by E0771-LG:shMet cells in doxycycline-treated mice were sparse in contrast to tightly aggregated foci in control mice (Fig. 5F), we hypothesized that the MET signal might promote metastatic tumor outgrowth by preventing tumor cell apoptosis. We, thus, detected cleaved caspase-3, an apoptosis marker, in the metastatic tumor area indicated by ErbB2 expression (Supplementary Fig. S3D). Although cleaved caspase-3 expression was very low in control tumors, it was significantly increased in tumors established by E0771-LG:shMet cells in doxycycline-treated mice (Fig. 6A and B), suggesting that disseminated cancer cells require MET signal to suppress apoptosis. To further investigate whether the HGF/Met signal transmits survival signals to cancer cells, we cultured E0771-LG:shMet cells with or without HGF and/or doxycycline under apoptotic conditions (depletion of serum, prevention of cell attachment, and incubation with recombinant IFNγ, TNFα, TRAIL, and FAS-activating antibody). Although these conditions, except for the incubation with TRAIL, significantly reduced viability of cancer cells, neither HGF stimulation nor reduced MET expression altered the extent of tumor cell death induced by these in vitro conditions (Supplementary Fig. S4).
We, thus, hypothesized that cancer cell apoptosis in the MET-inhibited metastatic tumor was mediated by in vivo factors, possibly cytotoxic lymphocytes within the tumors. To investigate this hypothesis, we first evaluated the involvement of CD8+ T and NK cells in metastasis formation. We injected E0771-LG:shMet#1 cells intravenously into SCID mice (lack functional T cells) or NSG mice (lack mature T and NK cells). Although the metastatic tumor growth in the lung was significantly enhanced in SCID mice compared with immune-competent C57BL/6 mice, it was further accelerated in NSG mice (Fig. 6C). NK cells induced apoptosis in E0771-LG cells in vitro (Supplementary Fig. S5). Together, these results suggest possible roles of NK cells in suppressing metastasis formation. We thus investigated whether reduced MET expression in cancer cells increased accumulation of NK cells within the metastatic lung of C57BL/6 mice, but we did not find a significant difference in the number of NK cells in the lungs between MET-expressing (Dox–) and -inhibited (Dox+) tumors (Fig. 6D; Supplementary Fig. S6A). We then determined the activation status of these NK cells indicated by CD69 expression (25) and found that CD69 expression and the ratio of CD69+ cells to total tumor-infiltrating NK cells were significantly increased in MET-inhibited tumors compared with MET-expressing tumors (Fig. 6E and F). These results suggest that inhibition of MET expression in cancer cells promotes NK-cell activation in the metastatic site.
To further investigate the contribution of NK cells to the growth suppression of MET-inhibited tumors, we injected a NK1.1-blocking antibody or control IgG at days 4 and 7 post-tumor injection into C57BL/6 mice with E0771-LG:shMet#1 tumors with or without doxycycline treatment from day 4 (Supplementary Fig. S6B). The anti-NK1.1 treatments depleted NK cells in the lung (Supplementary Fig. S6C), and this treatment partially, but significantly, reversed the metastatic tumor load reduced by doxycycline treatment at day 10 after tumor injection (Fig. 6G), suggesting involvement of NK cells in metastasis suppression caused by MET inhibition. To investigate whether MET activation in cancer cells altered their susceptibility to NK cells, we cultured E0771-LG:shMet cells with NK cells in the presence or absence of HGF and/or doxycycline, but neither MET knockdown nor HGF stimulation affected the NK-cell–induced tumor cell apoptosis in vitro (Supplementary Fig. S7A and S7B). CM from E0771-LG:shMet cells cultured with HGF did not suppress NK-cell cytotoxicity (Supplementary Fig. S7C and S7D), suggesting a minor contribution of MET activation in the secretion of NK-cell–suppressive molecules from cancer cells. Collectively, our data indicated that a population of cancer cells with high metastatic potential upregulate the expression of MET and thereby become more responsive to MAM-derived HGF, and that the enhanced HGF/MET signaling promotes metastatic tumor outgrowth by enhancing trans-endothelial migration and suppression of NK-cell functions (Fig. 7).
Previous reports show that a subpopulation of circulating tumor cells in patients with breast cancer have high MET expression, and this minor population can establish metastatic tumors in immune-deficient mice (22). This data suggests that MET overexpression is advantageous for circulating breast cancer cells to form metastasis. However, very few studies have investigated the requirement of MET signals for cancer cells in the metastatic site. In this study, we identified that mouse mammary and human breast cancer cells, selected for high metastasis rates, expressed high MET and, thereby, had enhanced responses to HGF delivered by MAMs. We also showed that MET overexpression in breast cancer cells was required for their transendothelial migration in vitro and persistent tumor growth in the lungs of mice. Knockdown of MET in human breast cancer cells also reduces their metastatic expansion in the bone of mice (26). These results indicated that breast cancer cells utilized HGF/MET signal for extravasation and metastatic tumor outgrowth in preferred sites for metastasis.
Although activating mutations and amplification of the MET gene can lead to constitutive MET activation, such genetic alterations are unusual in breast cancer (27). In a mouse model of breast cancer metastasis, blockade of DNA methyltransferase reduces MET expression in cancer cells and suppresses tumor growth in the bone (28). In human breast cancer cells, blockade of DNA methyltransferase increases miR-34-5p expression and concomitantly reduces MET expression (29). Because miR-34-a-5p expression negatively correlates with MET expression in human breast cancer bone metastases (29), it is possible that epigenetic modification of the MET gene induces MET overexpression in metastatic breast cancer cells. Several studies suggest that the MET overexpressing in cancer cells is activated via ligand-dependent mechanisms. For example, MET phosphorylation is scarcely found in a steady state but is increased by HGF stimulation in cultured breast cancer cells originating from patient-derived xenografts (30).
MET and HGF are frequently coexpressed in human breast cancer, and high MET/HGF coexpression associates with high tumor grade (27). Because 59% of MET-overexpressing breast cancer expresses HGF in stromal cells (31), it is likely that MET signal in cancer cells is activated in a paracrine manner in a certain number of breast cancers. Several studies have shown that fibroblasts or neutrophils in squamous cell carcinoma or hepatocellular carcinoma secrete HGF and promote invasion of cancer cells (32–34), which indicate these stromal cells as a source of HGF in the tumor microenvironment. However, in our models of breast cancer pulmonary metastasis, MAMs rather than neutrophils expressed high HGF and fibroblasts are rarely found in these metastatic tumors. These results suggest that HGF-producing cells differ between the primary and secondary site and between tumor types. In this study, we demonstrated that macrophage-derived HGF promoted invasion and extravasation of high metastatic derivatives of breast cancer cells to a higher extent compared with low metastatic parental cancer cells in vitro, and that MET inhibition in cancer cells suppressed metastasis formation in mice. Using the same model, we have shown that metastasizing cancer cells directly interact with MAMs that accumulate in the metastatic site, and that inhibition of the MAM accumulation reduces metastasis formation (6, 16). Collectively, our results suggest that the enhanced response to MAMs via an HGF/MET paracrine signal is one of the key characteristics of metastatic breast cancer cells, enabling them to extravasate and subsequently expand in metastatic sites.

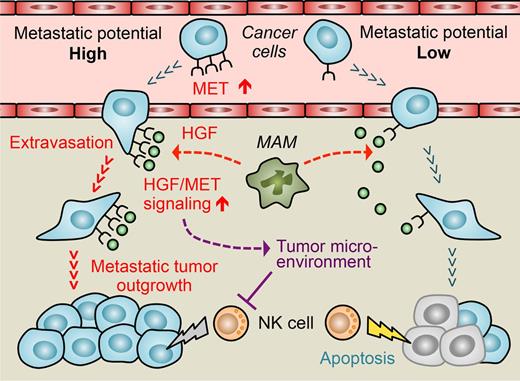

We have previously reported that MAMs in the metastatic lung produce VEGF and promote extravasation of metastatic cancer cells through increasing vascular permeability (7). Here, we demonstrated that HGF from macrophages also promoted extravasation of cancer cells. HGF enhances in vitro endothelial adhesion and migration of MDA-MB-231 human breast cancer cells (35, 36). However, HGF decreases rather than increases pulmonary endothelial cell permeability in vitro (37). Taken together, MAMs may promote three critical steps in extravasation via secretion of VEGF and HGF: (i) adhesion to endothelial cells, (ii) increasing vascular permeability, and (iii) migration through the vasculature wall (38). In future studies, it will be interesting to determine if MAM-derived HGF contributes to extravasation in different metastatic sites.
MAMs are also reported to promote metastatic tumor outgrowth via suppressing tumor cell apoptosis in the metastatic lung (6). Our results suggest that this process was also promoted via MET signaling. It is reported that MET activation in cancer cells can suppress anoikis and apoptosis induced by nutrient depletion, FAS, and TRAIL (39–42), conditions that circulating tumor cells may encounter during metastasis formation. In our in vitro model, however, HGF did not inhibit tumor cell death under these proapoptotic conditions. Instead, our in vivo data suggested that MET activation in cancer cells reduced NK-cell–induced apoptosis. A study demonstrates that MET overexpression in renal cell cancer cells increases expression of PD-L1 (43), a ligand of the checkpoint receptor PD-1 that can suppress NK-cell cytotoxicity (44). MET signaling prompts lymphoma cells to produce TGFβ (45) that can also suppress NK-cell functions (46). These studies suggest that enhanced MET activation in cancer cells can reduce their susceptibility to NK cells via expression of molecules that directly suppress NK-cell cytotoxicity. However, HGF stimulation did not reduce apoptosis of E0771-LG mouse breast cancer cells induced by NK cells in vitro, suggesting the involvement of tumor microenvironment mediated by immune suppressor cells such as regulatory T cells and myeloid-derived suppressor cells (47).
Adoptive NK-cell transfer has emerged as a novel cancer immunotherapy (48). However, efficacy of this therapy is limited by immunosuppressive tumor microenvironment. It is thus important to identify the mechanisms that modulate NK-cell killing capability within the metastatic lesions to improve NK-cell–mediated immunotherapy (49). Our results suggest that blockade of MAM-mediated HGF/MET signaling might be an attractive approach to improve NK-cell transfer therapy. We have previously reported that the accumulation of MAMs in the metastatic site is promoted by cytokines and chemokines, such as CSF1, CC-chemokine ligand 2 (CCL2), and CCL3 (5–7, 16). Therefore, targeting these cytokine/chemokine receptors in MAMs may reduce the local concentration of HGF in the metastatic tumors. Further investigation regarding synergistic therapeutic effects of antagonists against these cytokine/chemokine receptors in combination with MET inhibitors and NK-cell therapy may lead to novel therapies for metastatic breast cancer.
