Bispecific antibodies (BsAb) that engage T cells bind to tumor cells via a tumor-associated antigen and to T cells through surface CD3. BsAbs have promising antitumor properties in vivo. Here, we describe the effects of Fc silencing on BsAb-driven T-cell trafficking to solid tumors. We used BsAbs specific for disialoganglioside GD2 or oncoprotein ErbB2 (HER2) and built on the IgG(L)-scFv platform with or without Fc silencing. We studied the kinetics of T-cell infiltration from blood into solid tumor masses when driven by these BsAbs. We also investigated the therapeutic efficacy of these BsAbs in two mouse models: immunodeficient mice xenografted with patient-derived GD2+ neuroblastoma or HER2+ breast cancer, and human CD3ϵ transgenic mice implanted with a GD2+ murine tumor. BsAbs built with intact Fc domain were unable to drive T cells to tumor, thereby failing to achieve an antitumor effect in mice. T cells became sequestered in lungs by myeloid cells or depleted in circulation. In contrast, when Fc function was silenced by N297A ± K322A mutations, T cells were able to infiltrate into subcutaneous solid tumors, a prerequisite for successful therapy outcome.
T cell–engaging bispecific antibody (BsAb) binds to both CD3 on T cells and antigens on tumor cells simultaneously to facilitate T cell–mediated cytotoxicity. A number of BsAbs, across a variety of formats, have been shown to successfully redirect T cells to kill tumor cells in vivo (1–7). T-cell infiltration is essential for BsAbs to successfully mediate antitumor responses. The extent of T-cell infiltration is a useful indicator for the potential of successful immunotherapy against solid tumors (8, 9). Strong T-cell infiltration has been associated with beneficial clinical outcome for various solid tumor diagnoses (10). Various methods have been developed to study T-cell trafficking into solid tumors in vivo, including use of radioactive isotopes, such as 111In (11) and 89Zr (12). Luciferase has proven to be a nontoxic reporter for imaging gene-modified T cells noninvasively and monitoring their persistence and distribution in various organs over time in preclinical models (13, 14).
For BsAbs, Fc-mediated immune functions are not necessary and are at times unwanted (15). In order to avoid or reduce antigen-independent cytokine release syndrome (CRS) due to cross-linking of CD3 and Fcγ receptors followed by nonspecific activation of immune cells, mutations have been introduced into Fc domain to eliminate FcγR binding for T cell–engaging BsAbs (1, 2, 4, 16, 17).
Human IgG contains a single conserved site in the CH2 domain of Fc, Asn297, for N-linked glycosylation. Glycans at this site determine the interaction between IgG Fc domain and Fcγ receptors. The N297A mutation removes N-glycosylation (18), thereby preventing binding to Fcγ receptors. The K322A mutation removes binding to C1q and prevents activation of the complement cascade (19). The K322A mutation has been used to reduce complement activation and in attempts to reduce IgG-related pain side effects (20). However, it has not been determined whether these mutations could affect T-cell trafficking and antitumor activity of BsAbs.
Here, we focused on the N297A and K322A mutations to study the effects of loss of FcγR and C1q binding on T-cell trafficking and antitumor efficacy in two mouse models. We also investigated the fate of T cells when they are exposed to BsAbs with intact Fc. Our results confirmed the necessity of Fc silencing, proved the association between T-cell infiltration and antitumor effect for immunotherapy using BsAbs, and clarified the effect of deglycosylation and/or silencing of C1q binding on BsAb-driven T-cell trafficking to solid tumors and antitumor activity in vivo.
Materials and Methods
Construction and expression of BsAbs
The constructions of GD2 and HER2 series of BsAbs were as described previously (1, 2). For each BsAb, scFv of huOKT3 was fused to the C-terminus of the light chain of human IgG1 via a C-terminal (G4S)3 linker (21). Both mutations on Fc, N297A and K322A, were generated with site-directed mutagenesis via primer extension in PCRs (22). The nucleotide sequence encoding each BsAb was synthesized by GenScript and was subcloned into a mammalian expression vector. Each BsAb was produced using the Expi293 expression system (Thermo Fisher Scientific) separately. Antibodies were purified with protein A affinity column chromatography. The purity of these antibodies was evaluated by size-exclusion high-performance liquid chromatography (SEC-HPLC). The stabilities of these antibodies were monitored by SEC-HPLC weekly for 4 weeks at 37°C. Purity was quantified by the percent monomeric peak eluting at the correct retention time.
M14 (melanoma) was obtained from University of California, Los Angeles; Neuroblastoma IMR-32 (CCL-127) and breast carcinoma AU565 (CRL-2351) were obtained from American Type Culture Collection. All the cell lines used were authenticated by short tandem repeat profiling with PowerPlex 1.2 System (Promega) and routinely tested for mycoplasma using the MycoAlert PLUS Mycoplasma Detection Kit (Lonza). The cells were cultured in RPMI1640 (Sigma) supplemented with 10% heat-inactivated FBS (Life Technologies) at 37°C in a 5% CO2 humidified incubator. The cells were passaged 3 times after thaw.
Cell-mediated cytotoxicity 51Cr release assay
Cell-mediated cytotoxicity was assayed using 51Cr release as detailed in ref. 23. Effector T cells were isolated from human peripheral blood mononuclear cells using Pan T cell isolation kit (Miltenyi Biotec), and then activated and expanded using Dynabeads Human T-Activator CD3/CD28 (Thermo Fisher Scientific) for 14 days. Effector-to-target ratio was 10:1 for T cell–mediated cytotoxicity assays. NK92MI cells, which were transfected with human FcγRIIIa-158V, were used for antibody-dependent cell-mediated cytotoxicity (ADCC) assays with effector-to-target ratio of 20:1.
In vitro binding kinetics studies by surface plasmon resonance
The interactions between BsAbs and Fcγ receptors were measured using Biacore T-100 Biosensor system (GE Healthcare). The protein ligands were immobilized on the sensor chip using the Amino Coupling Kit (GE Healthcare). A blank flow cell was used as negative control. All the BsAbs were diluted in HBS-EP buffer (0.01 mol/L HEPES, pH 7.4, 0.15 mol/L NaCl, 3 mmol/L EDTA, and 0.05% v/v Surfactant P20) and injected over the sensor surface. The results were analyzed using the Biacore T-100 evaluation software.
Antitumor effect in human tumor xenografts
All animal procedures were performed in compliance with Memorial Sloan Kettering Cancer Center's (MSKCC) Institutional Animal Care and Use Committee guidelines. BALB/c Rag2−/−IL-2Rγc−/− (double knockout, DKO) mice and heterozygous human CD3ϵ transgenic mice [B6.Cg-Tg(CD3E)600Cpt/J mice were bred with wild-type (WT) C57BL/6 mice to generate huCD3ϵ transgenic F1 heterozygotes] were used in this study. Patient-derived xenografts (PDX) were established from fresh surgical specimens with MSKCC Institutional Review Board approval. Tumor cells in Matrigel (Corning) were implanted subcutaneously on the right flank of each mouse. Tumor size was measured using handheld Peira TM900 imaging device (Peira bvba). T cells isolated from peripheral blood were stimulated with Dynabeads Human T-Activator CD3/CD28 and expanded for 8 days before injection with the presence of IL2 (30 IU/mL). BsAbs and activated human T cells were injected intravenously at the same time and 1,000 IU IL2 given subcutaneously. Intravenous immunoglobulin (IVIG; 50 mg/dose) and 2.4G2 (BioXCell, 200 μg/dose) were given 3 times per week intraperitoneally. The first doses were injected 48 hours before human T cells. The weights of the mice were monitored, and no weight loss >15% was observed.
T cells isolated from peripheral blood were stimulated with Dynabeads Human T-Activator CD3/CD28 for 24 hours. T cells were transduced with retroviral constructs containing tdTomato and click beetle red luciferase in RetroNectin-coated 6-well plates in the presence of IL2 (100 IU/mL) and protamine sulfate (4 μg/mL). Transduced T cells were cultured for 8 days before being used in animal experiments.
To monitor homing of T cells to tumor, BsAbs and luciferase transduced T cells were injected intravenously to mice at the same time, and 1,000 IU IL2 was given subcutaneously. Mice were then anesthetized and imaged after intravenous injection of 3 mg D-luciferin (Gold Biotechnology) at different days post T-cell injection. Images were acquired using IVIS SpectrumCT In Vivo Imaging System (Caliper Life Sciences). Bioluminescence images were overlaid with photographs, and regions of interest (ROI) were drawn based on the location and contour of tumor using Living Image 2.60 (Xenogen). The total counts of photons (photon/s) were obtained. Bioluminescence signals before T-cell injection were used as baselines.
IHC and immunofluorescence staining
IHC and immunofluorescence (IF) were performed at the MSK Molecular Cytology Core Facility using Discovery XT processor (Ventana Medical Systems) as described in ref. 2. Tumor samples were fixed and embedded in paraffin. Anti-human CD45, anti-Myeloperoxidase, anti-mouse CD31, and anti-mouse CD68 were used, which was followed by biotinylated secondary antibody. The detection was performed using a DAB detection kit (Ventana Medical Systems) or Alexa Fluor 488 or 568 Tyramide Reagent (Invitrogen). IHC images were captured from tumor sections using a Nikon ECLIPSE Ni-U microscope and NIS-Elements 4.0 imaging software. IF images were captured with Leica Inverted Confocal SP8 and processed with Imaris (Bitplane). Cells were counted with Qupath 0.1.2.
Flow cytometry analysis and cytokine assay
For cell lines, goat anti-human IgG-PE was purchased from SouthernBiotech. For blood samples from mice, the following antibodies were purchased from BioLegend: anti-human CD45-APC (HI30), anti-human CD3-Percp/Cy5.5 (SK7), anti-mouse CD45-Brilliant Violet 711 (30-F11), anti-mouse CD11b-Brilliant Violet 570 (M1/70), and anti-mouse Ly6G-PE/Dazzle 594 (1A8). Cytokine amounts were measured with flow cytometry using LEGENDplex Human and mouse Th1 Panel (5-plex; BioLegend) following the manufacturer's protocol. The experiments were conducted using a BD LSRFortessa flow cytometer and analyzed with FlowJo v10.
Plasma amounts of GD2-BsAb, GD2-BsAb (N297A), and GD2-BsAb (N297A + K322A) were assayed by ELISA. The rat anti-hu3F8 anti-idiotypic antibody A1G4 (24) was adsorbed onto 96-well microtiter plates to capture the serum BsAb, which was detected with peroxidase-conjugated mouse anti-human IgG1 (Jackson ImmunoResearch) using o-Phenylenediamine dihydrochloride (OPD) as substrate. Pharmacokinetics analysis was performed by noncompartmental modeling of the BsAb concentration over time using the Phoenix WinNonlin software (v7.0, Certara).
Mouse anti-human antibody response (MAHA) was determined by ELISA. Diluted mouse plasma was allowed to react with GD2-BsAb (N297A + K322A) coated on 96-well microtiter plates, and the bound MAHA was detected by peroxidase-conjugated goat anti-mouse IgG Fc (Southern Biotech) using OPD substrate.
Plasma amount of human IgG was determined by the Human ELISA Kit (Thermo Fisher Scientific) according to the manufacturer's instructions. The plasma amount of mIgG1 in huCD3ϵ transgenic mice and DKO mice was measured using the Mouse IgG ELISA Kit (Bethyl Laboratories) according to the manufacturer's instructions.
Differences between samples indicated in the figures were tested for statistical significance by the Student t test with GraphPad Prism 8, and P < 0.05 was considered statistically significant.
Area under the curve (AUC) was calculated using GraphPad Prism 8 (25).
Mutations on Fc domain have no effect on in vitro antigen binding or T-cell cytotoxicity
We analyzed six purified BsAbs of interest: three specific to GD2 including GD2-BsAb, GD2-BsAb (N297A), and GD2-BsAb (N297A + K322A); and three specific to HER2, including HER2-BsAb, HER2-BsAb (N297A), and HER2-BsAb (N297A + K322A). The control BsAbs (Ctrl-BsAb) used in this study bound to CD3 but not the tumors of interest based on IHC (negative staining).

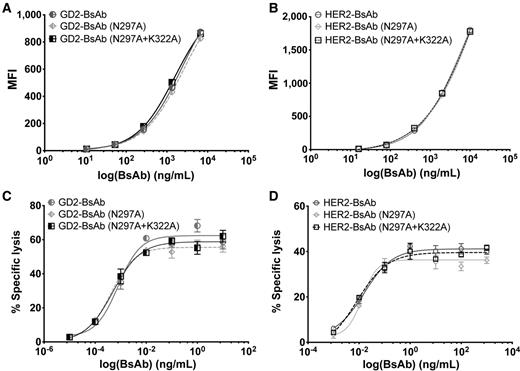

To confirm that the mutations on Fc domain did not affect binding to antigen, we used the GD2+ melanoma cell line M14 and the HER2+ breast cancer cell line AU565 for flow cytometry analysis. In the GD2-binding series, GD2-BsAb, GD2-BsAb (N297A), and GD2-BsAb (N297A + K322A) showed comparable binding to M14 (Fig. 1A). In the HER2-binding series, we demonstrated equivalent binding to AU565 regardless of Fc mutations on HER2 series of BsAbs (Fig. 1B).
To verify that Fc mutations did not affect BsAb-dependent T cell–mediated cytotoxicity (ADTC) of BsAbs, we performed 51Cr release assays on GD2+ neuroblastoma cell line IMR-32 (Fig. 1C) and HER2+ breast cancer cell line AU565 (Fig. 1D). For each antigen-specific series, all three BsAbs showed comparable T cell–killing efficiency, confirming the preservation of in vitro ADTC potency despite Fc modifications.
Mutations on Fc domain do not affect purity, stability, or pharmacokinetics
To confirm that these Fc mutations did not differentially affect stability, we examined the purity of six BsAbs by SEC-HPLC, right after purification and over 4 weeks of continuous incubation at 37°C. For both GD2-specific BsAb (Supplementary Fig. S1A) and HER2-specific BsAb sets (Supplementary Fig. S1B), WT Fc, N297A, and N297A + K322A mutants, the percentage of monomer peaks was comparable and remained comparable over the course of the entire 37°C incubation. The HER2 series of BsAbs all started out with lower purity than that of the GD2 series but remained comparable over time. When pharmacokinetics of GD2-BsAb and its two Fc mutants were studied in C57BL/6 and BALB/c Rag2−/−IL-2Rγc−/− (DKO) mice, no differences were found among any of the Fc mutants (Supplementary Fig. S2).
N297A on Fc domain abolishes binding to human and mouse Fcγ receptors

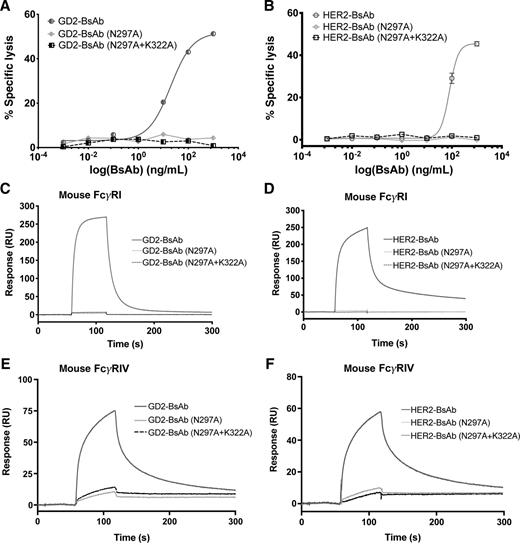

To confirm that N297A eliminates binding to human FcγRIIIa, we evaluated ADCC for the two sets of BsAbs using NK92MI effector cells that were stably transfected with human FcγRIIIa-158V and either GD2+ IMR-32 or HER2+ AU565 cells (Fig. 2A and B). As expected, all BsAbs containing N297A mutations showed no ADCC, whereas BsAbs with intact Fc, GD2-BsAb and HER2-BsAb, mediated lysis of target cells.
We also investigated binding of BsAbs to mouse FcγRI and FcγRIV using surface plasmon resonance (SPR). Although GD2-BsAb and HER2-BsAb with WT Fc showed affinity for FcγRI and FcγRIV, BsAbs with Fc mutations N297A or N297A + K322A lost binding to mouse FcγRI and retained only minimal binding to mouse FcγRIV (Fig. 2C–F).
K322A on Fc domain eliminates complement-dependent cytotoxicity
To evaluate the role of N297A and K322A mutations in reducing binding to C1q and complement activation, we compared antibody-dependent complement-dependent cytotoxicity (CDC) of the GD2 series of BsAbs using GD2+ IMR-32 cell lines (Supplementary Fig. S3A). Removal of glycosylation reduced CDC; double mutations on Fc domain eliminated CDC. SPR showed that GD2-BsAb and HER2-BsAb bound human C1q strongly. The single mutation of N297A reduced binding, and the double mutations of N297A + K322A abolished C1q binding (Supplementary Fig. S3B and S3C).
Fc silencing led to differences in antitumor effect in huCD3ϵ transgenic mice
To determine the role of Fc mutations on BsAb function in vivo, we first studied the effect of a single dose (5 μg) of GD2-BsAb and GD2-BsAb (N297A + K322A) on peripheral T cells in tumor-free huCD3ϵ transgenic mice. Mice treated with GD2-BsAb displayed significantly lower frequencies of huCD3+ T cells in the peripheral blood (24 hours after BsAb) and in the spleen (72 hours after BsAb) than mice treated with BsAbs carrying the double mutations (Supplementary Fig. S4A and S4B). In addition, after four doses of BsAbs, GD2-BsAb–treated mice had significantly lower percentages of huCD3+ T cells in the peripheral blood when compared with the other three groups (Supplementary Fig. S4C), possibly contributing to these differences in tumor response. This indicates a possible depletion effect on circulating T cells from BsAbs when Fc domain was not silenced.
Next, we sought to identify how these mutations affected each BsAb's in vivo antitumor efficacy. Here, we used human CD3ϵ transgenic mice, subcutaneously implanted with 5 |\times $| 104 EL4, a GD2+ mouse lymphoma. Mice (n = 10 per group) were treated with 5 μg of each BsAb intravenously, twice per week, starting on 4 days after tumor implantation. All three GD2+-specific BsAbs delayed tumor growth compared with the control group. The two Fc mutants (N297A and N297A + K322A) showed stronger antitumor responses than that with WT Fc domain (Fig. 3A). To compare the treatment effects of different BsAbs, the AUC was calculated for each mouse on the last day of follow-up (day 31 after treatment). BsAb treatment groups were compared using unpaired t tests (Welch correction, unequal variance), showing significant differences between GD2-BsAb and GD2-BsAb (N297A + K322A) groups (P = 0.04) and between GD2-BsAb and GD2-BsAb (N297A) groups (P = 0.006; Fig. 3B). Mice in the control group had to be sacrificed before day 31 because of tumor size exceeding 10% of the body weight (∼2 g, or 2,000 mm3). Three out of the 10 mice in the GD2-BsAb group showed no treatment effect, whereas all 10 of 10 mice in both the GD2-BsAb (N297A + K322A) group and the GD2-BsAb (N297A) groups showed tumor suppression (Supplementary Fig. S5). One of the limitations of using human antibodies in huCD3ϵ transgenic mice is the mouse antidrug antibody (ADA) response after 2 weeks of treatment (341 ± 188 ng/mL, n = 5), which confounded interpretation of antitumor response after the initial weeks of treatment. For these reasons, instead of using the immunocompetent mouse model, we focused our studies in the immunodeficient BALB/c Rag2−/−IL-2Rγc−/− DKO mouse model.
BsAbs with intact Fc domain fail to mediate effective T-cell infiltration into tumor
To evaluate the role of BsAb Fc mutations in T-cell infiltration, we examined the GD2 series of BsAbs in the xenograft immunodeficient mouse model. Here, we implanted GD2+ PDX neuroblastoma (Piro 20) tumors subcutaneously into DKO mice and treated the mice intravenously with BsAb (1 μg) and activated human T cells (10 million). T cells were transduced with luciferase-expressing retrovirus (54% transduction), for trafficking in vivo. BsAbs were administered twice per week for a total of 2 weeks. To improve the survival of the human T cells, mice were also supplemented with subcutaneous human IL2 (1,000 U) twice per week. When imaged by bioluminescence, T cells first appeared to localize to the lung, and we used this to confirm successful T-cell injection for all T cell–trafficking experiments (Supplementary Fig. S6). By day 3, GD2-BsAb failed to draw T cells into the tumors, which showed no more infiltration than those treated with a control antibody. In contrast, both GD2-BsAb (N297A) and GD2-BsAb (N297A + K322A) groups showed accumulation of T cells in the tumor (>50-fold greater than GD2BsAb), peaking around day 6 and decreasing thereafter (Fig. 4A and B). These differences in infiltration were confirmed by IHC staining with human CD45, where only mice treated with Fc-silenced BsAbs showed high numbers of T cells in tumor. Mice treated with BsAb with WT Fc displayed minimal T-cell numbers inside the tumors (Fig. 4C). AUC analysis also showed significant differences in T-cell accumulation caused by Fc silencing (Supplementary Fig. S7A).

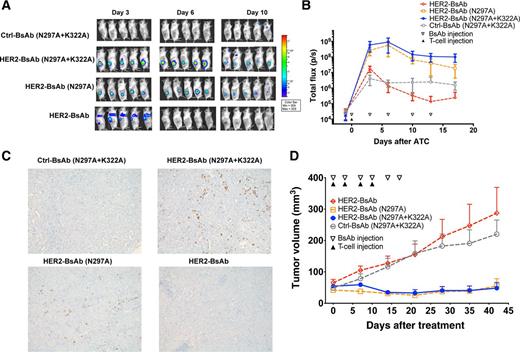

We next used a second tumor model, implanted with an HER2+ breast cancer PDX (M37) subcutaneously into DKO mice and treated with a single injection of 10 million T cells transduced with luciferase. BsAbs and IL2 were also administered as described above. Based on bioluminescence, T cells driven by HER2-BsAb showed minimal tumor infiltration (Fig. 5A and B). In contrast, T cells driven by HER2-BsAb Fc-silenced by N297A + K322A or N297A mutations showed >400-fold greater tumor infiltration on day 6, showing similar trends with GD2-BsAb (N297A + K322A) and (N297A), which was statistically significant by AUC analysis for the cumulative effect (Supplementary Fig. S7B). The presence and absence of tumor-infiltrating T cells were confirmed by IHC (Fig. 5C).
Irrespective of target or tumor models, BsAbs (N297A) seem comparable to BsAbs (N297A + K322A) in driving T-cell infiltration into tumor. BsAbs with intact Fc domain failed to demonstrate T-cell trafficking into tumors; instead, they remained sequestered in the lungs as late as day 3 after T-cell injection (Figs. 4A and 5A).
BsAbs with intact Fc domains have no antitumor effects in xenograft mouse model

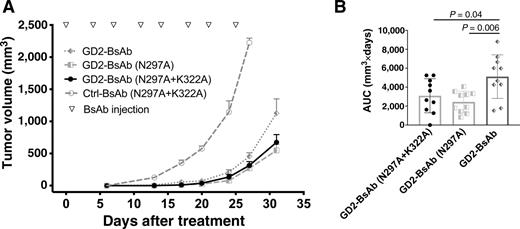

To investigate the therapeutic impact of T-cell trafficking, we evaluated T cell–antitumor function using two PDX models: GD2+ Neuroblastoma (Piro 20) or HER2+ Breast Cancer (M37). Tumor-bearing mice were treated with three doses of T cells (20 million cells per dose, i.v.) and five doses of BsAb (1 μg per dose, i.v.) given twice per week together with IL2 (1,000 U, s.c.). Similar to what we saw in the huCD3ϵ transgenic mice, GD2-BsAb (N297A) and GD2-BsAb (N297A + K322A) significantly suppressed GD2+ tumor growth. GD2-BsAb with intact Fc domain failed to show any antitumor effect compared to Ctrl-BsAb (Fig. 4D). AUC analysis again showed significant benefit following Fc silencing (Supplementary Fig. S8A).
Results were similar for the HER2 series of BsAbs, where tumor growth was suppressed by HER2-BsAb (N297A) and HER2-BsAb (N297A + K322A), whereas mice treated with HER2-BsAb with WT Fc domain failed to show any antitumor effect (Fig. 5D). Again, AUC analysis showed significant enhancement of antitumor effect following Fc silencing (Supplementary Fig. S8B). These results confirmed that the Fc domain controls the antitumor effects of T cell–engaging BsAbs and can interfere with T-cell trafficking to tumors.
BsAbs with intact Fc domain sequester T cells in lungs in xenograft mouse model

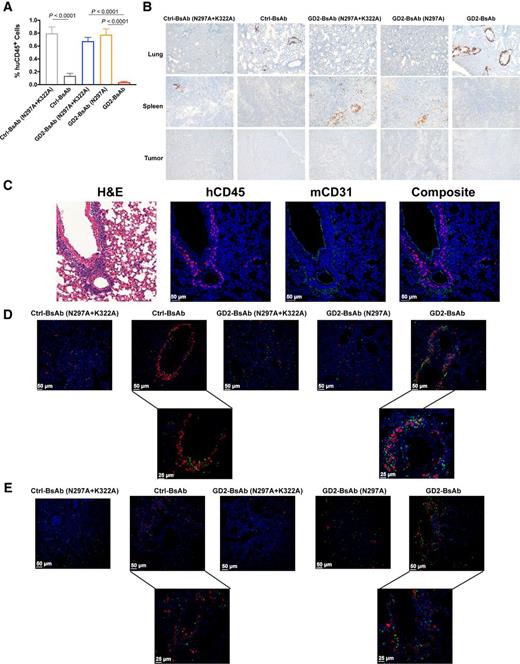

To understand how BsAbs with intact Fc domain failed to direct T cells into tumor, we went back to our bioluminescence model to evaluate the distribution of T cells in BsAb-treated xenografted mice. Thirty minutes after the infusion of T cells and BsAb, T cells were visible in the lungs for all treatment groups regardless of Fc status. By 24 hours, mice treated with BsAbs carrying WT Fc domain displayed lower human CD45+ T-cell percentages in peripheral blood compared with the other groups (Fig. 6A). Similar to Ctrl-BsAb, the WT Fc GD2-BsAb group also had significantly more circulating human IFNγ when compared with the other groups (Supplementary Fig. S9A) and more circulating mouse IL6 (Supplementary Fig. S9B). We observed significantly higher percentages of mouse polymorphonuclear myeloid-derived suppressor cells (PMN-MDSC, CD11b+Ly6G+) in peripheral blood among mice treated with WT GD2-BsAb or Ctrl-BsAb when compared with mice treated with the Fc-silenced GD2BsAb variants (Supplementary Fig. S10). By 72 hours, IHC (n = 5 mice/group) revealed a difference in T-cell distribution in lungs versus spleens (Fig. 6B). With intact Fc, the majority of T cells were sequestered in the lung around the perivascular space, confirmed by mouse CD31 IF staining (Fig. 6C); few or no T cells homed to the spleen or the tumor. In contrast, when Fc domain was silenced, T-cell distribution in the lung was scant and scattered, accompanied by robust homing to the spleen and migration into the tumor. By confocal microscopy, mouse macrophages and neutrophils were concentrated around T cells in the perivascular regions when Fc-intact BsAbs were used (Fig. 6D and E). The results suggest an active process in which human T cells are trapped through an Fc-dependent process mediated by mouse myeloid cells.
Because DKO mice do not contain B cells, the quantity of circulating immunoglobulins should be lower than that of immunocompetent mice. To test if the occupation of Fcγ receptors by circulating IgG could play a role in sequestration of T cells, we treated DKO mice bearing GD2+ melanoma M14 cells with either IVIG or an anti-CD16/CD32 (2.4G2) in addition to GD2-BsAbs, to block the mouse Fc receptors. By day 5, more tumor infiltration was evident in both IVIG and 2.4G2-treated groups, although this rescue of the interference by Fc of the WT Fc BsAb was only partial (Supplementary Fig. S11).

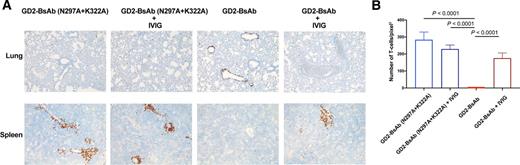

We next studied the effect of IVIG on T-cell sequestration in lung and engraftment in spleen. Tumor-free DKO mice were injected with T cells, together with either GD2-BsAb ± IVIG or GD2-BsAb (N297A + K322A) ± IVIG. Immunodeficient DKO mice had no endogenous IgG as measured by ELISA. After administration of human IVIG to saturate the FcRs in these mice, serum human IgG amount was measurable (9.4 ± 1.6 mg/mL, n = 5) when the BsAb treatment injections were initiated. These IgG amounts were higher than the endogenous mouse IgG amount in immunocompetent huCD3ϵ transgenic mice (1.56 ± 0.43 mg/mL, n = 5). IVIG had no effect on T-cell distribution in the lung for Fc-silenced GD2-BsAb (N297A + K322A). In contrast, IVIG allowed T cells in the WT Fc domain–treated mice to redistribute from the lungs to the spleens (Fig. 7). These results suggested that Fc receptor blockade could alleviate but could not entirely eliminate the sequestration mediated by intact Fc domain in GD2-BsAb, implying additional mechanisms being responsible for the failure of T cells to infiltrate to tumor.
Relation of Fc silencing and T-cell infiltration into kidney
We next examined kidney infiltration by T cells at 72 hours after injection (Supplementary Fig. S12A) using IHC. Mice treated with GD2-BsAb and GD2-BsAb (N297A) showed significantly higher ratios of T cellkidney/T cellspleen (Supplementary Fig. S12B) when compared with mice treated with GD2-BsAb (N297A + K322A), suggesting that complement activation was associated with renal T-cell infiltration. We did not observe any morphologic evidence of acute renal damage associated with T-cell infiltration during this 2-week observation.
In this study, we showed that BsAb-driven T-cell infiltration into solid tumors in vivo was necessary for tumor response. We used a luciferase reporter for noninvasive dynamic, bioluminescence monitoring of T-cell trafficking in individual mice and delineated T-cell trafficking patterns in vivo. Our results showed that Fc silencing could play a role in permitting T-cell trafficking into tumors and that differences in Fc functions could affect the overall antitumor response, sequestration of T cells into the lung, splenic engraftment, and renal infiltration.
In this study, we investigated six BsAbs, with and without Fc mutations, directed at two targets, GD2 and HER2. The N297A mutation silenced Fc function by removing N-glycosylation (18) eliminating most ADCC and CDC functions. The K322A mutation removed binding to C1q and prevented activation of the complement cascade. The two mutations (N297A and N297A + K322A) did not affect antigen binding or efficiency in T cell–mediated cytotoxicity in vitro, stability in vitro, or pharmacokinetics in vivo. In addition, N297A did not fully eliminate binding to FcγRI or C1q.
For both antigen systems, N297A and the double-mutant N297A + K322A were most efficient in driving T cells into solid tumors and maintaining them for the longest duration inside solid masses. In contrast, when the Fc domain was fully functional, T-cell infiltration was minimal to nonexistent. These homing capabilities translated into large differences in antitumor efficacy of these antibodies. In both antigen systems, near-complete tumor ablation was observed when BsAbs with N297A + K322A or N297A mutations were administered to mice after adoptive transfer of activated human T cells. In contrast, BsAbs with intact Fc domain had minimal therapeutic benefit in immunodeficient mice engrafted with activated human T cells, or in transgenic mice carrying huCD3ϵ+ naïve T cells. In addition, BsAbs with intact Fc functions depleted T-cell numbers in the peripheral blood and spleens of huCD3ϵ transgenic mice.
We also found that T cells could not escape from the lungs of mice injected with BsAbs with intact Fc, which led to failure of T-cell trafficking to tumor. Injected human T cells mostly stayed in the perivascular region of lung. We further showed that mouse neutrophils and macrophages, cells that expressed Fcγ receptors, also tended to gather in the same regions. In contrast, in mice treated with Fc-silenced BsAbs, T cells and mouse myeloid cells did not congregate in the same distributions. After Fcγ receptor blockade using IVIG, T-cell infiltration into tumors improved but did not fully recover. Similarly, following blockade with anti-FcγR (2.4G2), T-cell infiltration into tumor improved but did not fully recover. Additional mechanisms of T-cell trafficking by functional Fc might be involved.
Catumaxomab, a T cell–engaging BsAb (anti-EpCAM × anti-CD3), has functional Fc. Catumaxomab was designed to bind and activate Fcγ receptor bearing cells for ADCC (26). A dose-limiting toxicity was the CRS via T-cell activation induced by Fc domain (27). In our study, we observed elevated cytokine expression induced by BsAbs with WT Fc, IFNγ from injected human T cells and IL6 from host myeloid cells. IL6 could be released when neutrophils are cross-linked with FcγRI or FcγRII (28), and with the high PMN-MDSC/neutrophil count, this elevated cytokine was expected. In addition, when T cells were sequestered and destroyed in the lungs by myeloid cells, an “inflammatory” response would lead to neutrophilia. However, after Fc silencing, cytokine release in DKO mice could be substantially reduced. These data support the role of Fc silencing in reducing CRS that is otherwise expected to accompany BsAb therapy.
The single N297A mutation did not show any significant differences when compared with double-mutant N297A + K322A in Fcγ receptor binding, or in T-cell infiltration into solid tumor, or in antitumor effect in the mouse models. However, we observed a preferential T-cell infiltration into kidney if complement activation was not removed. Although we did not observe morphologic evidence of acute renal damage associated with a single injection of T cells, longer observation, especially after multiple doses of both T cells and BsAb, will be needed to study the effects of kidney tropism. Other studies have also used Fc silencing to avoid complement inactivation so as to avoid infusion reactions (29–31). Before we can extrapolate these results from mouse models to the clinic, further studies may be needed, given species differences in complement systems, efficiency of Fc, and complement activation by human IgG1-Fc (32). Some renal toxicities have emerged as late effects in response to treatment with immune checkpoint (e.g., CTLA-4 and PD-1) inhibitor (ICI) antibodies (33). In addition, residual Fc functions of the IgG4 subclass ICI have been associated with trogocytosis and paralysis of natural killer (NK) cells (34). Whether residual complement activation could cause renal damage by BsAb will have to await results from clinical trials.
BsAbs have emerged as a strategy for the treatment of hemophilia (35) and cancer (36). To date, two BsAb formats have been approved by the FDA for clinical use (35, 36); over 60 are in preclinical and clinical development (37–39). The majority utilize human IgG-Fc, built either on the IgG framework or using Fc fusion systems to increase serum half-lives of small recombinant fragments. Our study suggests that WT Fc domain in BsAbs could decrease their efficacy with the potential for undesirable cytokine storm and organ infiltration by T cells. None of these adverse properties were predicted by in vitro assays. Many mutations have been described to silence Fc domain (e.g., N297G, D265A, and L234A + L235A ± P329G; refs. 40–44), but little is known about their in vivo immunologic properties other than pharmacokinetics (45). Attempts to maintain or enhance FcR competence have been utilized to provide additional antitumor activity without considering the negative impact beyond cytokine release and nonselective T-cell activation. It is possible that BsAbs with silenced Fc domain will be more able to prevent sequestration of T cells by BsAb in the lung or the reticuloendothelial system.
Reduction in circulating T cells could be the result of T-cell redistribution and/or T-cell destruction. In our studies, all injected T cells were labeled with luciferase and their trafficking followed and quantified by bioluminescence in real time, as well as by IHC at necropsy. These orthogonal methods of live imaging and immunohistology were the basis of our conclusions. Besides Fc-mediated sequestration, T-cell trafficking or redistribution is likely an orchestrated interplay of adhesion ligands and receptors on both T cells and endothelial cells, as well as the network of chemokines and receptors, that require investigations beyond the scope of our studies. Both humanized SCID or huCD3ϵ transgenic mouse models have limitations in predicting clinical efficacy or toxicity in human. We have mainly focused on the immunodeficient DKO mice model because it allowed us to study human T-cell trafficking utilizing the luciferase reporter system without the confounding issues of neutralizing antibodies. Despite their limitations, immunodeficient mice mimic the clinical setting in that patients who come to phase I/II studies with high-risk metastatic disease (e.g., neuroblastoma) usually have undergone myelo- and lympho-suppressive chemoradiotherapy and have deficient T-cell functions. Our data suggest that with an intact Fc, BsAb can bind to the Fcγ receptors on immune cells, such as neutrophils, macrophages, and even NK cells while activating the complement cascade, and in that process activate and damage T cells, sequestering them to the reticuloendothelial system, releasing cytokine, and preventing T cells from tumor infiltration. A deeper understanding of the role of residual Fc functions, whether in ADCC or in CDC, should avoid unexpected acute or late effects in the clinical development of BsAbs, a requisite consideration since the lesson of TGN1412 (46, 47).
