Entinostat Converts Immune-Resistant Breast and Pancreatic Cancers into Checkpoint-Responsive Tumors by Reprogramming Tumor-Infiltrating MDSCs

Immunotherapy has changed the standard of care for some patients with advanced cancers and has great promise to prevent recurrence and prolong survival due to the long-term memory capabilities of the adaptive immune system. Although the presence of tumor-infiltrating lymphocytes (TILs) and evidence of immune activation have been associated with improved outcomes in HER2⁺ and triple-negative breast cancers (TNBCs; refs. 1, 2), only modest response rates have been observed with use of single-agent immune-checkpoint inhibitors (ICIs; refs. 3–10). Preclinical studies have focused on understanding these therapies in TNBC models (11) but have yet to thoroughly examine other subtypes of breast cancer. It has also been previously reported that antibodies blocking programmed cell death protein-1 (anti–PD-1) can significantly improve the activity of anti-HER2 therapies, but we have yet to understand if there is any added benefit of other ICIs (12). Similarly, single-agent ICIs have been shown to be ineffective in the clinical setting in metastatic pancreatic ductal adenocarcinomas (PDACs; refs. 13, 14). However, efficacy has been seen using combinatorial approaches in preclinical models. It has been shown that priming the tumor with a vaccine sensitizes PDAC to anti–PD-1 therapy by inducing the infiltration of cytotoxic CD8⁺ T cells (15). In PDAC patients, a similar vaccine was reported to induce TILs (15). Improved efficacy of both anti–PD-1 and anti–CTLA-4 was achieved in murine models of PDAC by reprogramming immunosuppressive tumor-associated macrophages (TAMs; ref. 16). Taken together, these studies indicate the possibility to sensitize traditionally nonimmunogenic tumors to ICI therapy if TILs can be recruited and induced and/or immunosuppressive factors reduced within the tumor microenvironment (TME).

The natural resistance of breast and pancreatic tumors to single-agent ICI therapy is due to a lack of infiltrating T cells and an abundance of suppressive immune cells such as MDSCs. Specifically, granulocytic (G-MDSC) and monocytic MDSCs (M-MDSC) collectively inhibit T-cell function by depleting L-arginine through arginase-1 (Arg-1) expression and by inducing PD-L1 expression and the recruitment of regulatory T cells (Treg; refs. 16–19). High numbers of tumor-infiltrating myeloid cells correlate with early or local metastatic relapse (11). Previous studies have also shown changes in both circulating and tumor-infiltrating G-MDSCs in response to ICIs as a potential mechanism inhibiting antitumor responses (11, 20, 21). Thus, targeting and strategic reprogramming of these myeloid responses may overcome the immunosuppressive microenvironment and lead to an enhanced response to immune therapy through improved T-cell infiltration and function.

Studies using epigenetic modulatory drugs have shown promise in decreasing the infiltration and inhibitory capabilities of immunosuppressive cells. ENT ablates MDSC-mediated immunosuppressive activity when combined with ICIs in in vivo models of lung and renal cell cancer (21). Tomita and colleagues reported decreased circulating G-MDSCs and M-MDSCs in clinical samples of breast cancer patients treated with ENT in combination with an aromatase inhibitor compared with placebo combined with an aromatase inhibitor (22). Taken together, these data suggest that ENT can alter suppressive myeloid populations in multiple tumor types and synergize with immunotherapies to slow tumor growth and progression.

Our work explored the impact of ENT on the HER2⁺ breast and PDAC TMEs in immunocompetent mice. Combination therapy of ENT + anti-PD-1 or ENT + anti-CTLA4 significantly improved survival as compared with mice treated with ENT alone, anti-PD-1 alone, or anti-CTLA-4 alone. ENT increased tumor infiltration by G-MDSCs and changed the polarity of their immunosuppressive ability to a nonfunctional phenotype. Flow cytometry and gene-expression profiling of treated tumors demonstrated altered expression of functional molecules and specific genetic pathways involved in proliferation and motility. Our observations suggest that G-MDSCs can exhibit multiple phenotypes, and support that a possible mechanism by which ENT allows ICIs to augment the infiltration and cytotoxicity of cancer-killing T cells is through the ablation of the immunosuppressive function of these infiltrating myeloid cells.

All animal studies were approved by the Institutional Review Board of Johns Hopkins University. Animals were kept in pathogen-free conditions and were treated in accordance with institutional and American Association of Laboratory Animal Committee policies. The neu-N mice were originally from W. Muller McMaster University, Hamilton, Ontario, Canada. Colonies were renewed yearly from Jackson labs and bred in house by brother/sister mating. For studies of metastatic pancreatic cancer, we used male C57BL/6J (The Jackson Laboratories, stock #000664) mice. The T-cell receptor (TCR) transgenic mice are specific for the immunodominant HER2/neu epitope neu_420–429 and were made in house at the JHU Transgenic Core Laboratory as previously described (23). These mice were bred in house by brother/sister mating, and each animal was assessed for expression of the desired neu-specific Vβ region via staining with the H-2D^q rat HER2/neu_420–429 PDSLRDLSVF tetramer (NIH Tetramer Core Facility).

All cell lines were regularly tested for Mycoplasma every 3 months in accordance with laboratory policy. NT2.5 cells were derived from spontaneous mammary tumors growing in female neu-N mice. In vitro cell lines were established and authenticated as previously described (24, 25). Culture conditions for NT2.5 cells were as follows: 37°C, 5% CO₂ in RPMI 1640 (Gibco, cat. 11875-093) supplemented with 20% fetal bovine serum (Gemini, cat. 100-106), 1.2% HEPES buffer (Gibco, cat. 15630-080), 1% l-glutamine (Gibco, cat. 25030-081), 1% MEM nonessential amino acids (Gibco, cat. 11140-050), 0.5% penicillin–streptomycin (Gibco, cat. 15140-122), 1% sodium pyruvate (Sigma, cat. S8636), 0.2% insulin (NovoLog, cat. U-100), and 0.02% gentamicin (Sigma, cat. G1397). Panc02 is a murine pancreatic tumor cell line with ductal morphology derived from a methylcholanthrenetreated C57B1/6 mouse and authenticated as previously described (26, 27). Culture conditions for Panc02 cells were as follows: 37°C, 10% CO₂ in DMEM (Gibco, cat. 11965-084) supplemented with 10% fetal bovine serum (Gemini, cat. 100-106), 1% l-glutamine (Gibco, cat. 25030-081), and 0.5% penicillin–streptomycin (Gibco, cat. 15140-122). T2D^q cells are a fibroblast cell line established via transfection with murine H-2D^q as previously described (28). Culture conditions for T2D^q cells are as follows: 37°C, 5% CO₂ in RPMI supplemented with 10% fetal bovine serum (Gibco, cat. 100-106), 1% l-glutamine (Gibco, cat. 25030-081), 1% sodium pyruvate (Gibco, cat. 11965-084), 1% MEM nonessential amino acids (Gibco, cat. 11140-050), 0.5% penicillin–streptomycin (Gibco, cat. 15140-122), and 0.0007% Hygromycin B (Roche, cat. 10843555001). T2D^q cells were cultured from frozen stocks and passaged three times before use.

The neu-N model is a syngeneic model where NT2.5 cells derived from a spontaneous mammary tumor were implanted via injection of 5 × 10⁴ cells into the mammary fat pad of 7- to 8-week-old female neu-N mice (24). NT2.5 cells were cultured from frozen stocks and passaged twice before injection. Tumors were allowed to seed for 3 days prior to initiating treatment with various drug combinations as described below. Untreated mice developed palpable tumors within 1 week.

To study metastatic PDAC, we used a hemisplenectomy model using 7- to 8-week-old syngeneic male C57BL/6J mice. This involved giving an intrasplenic injection of 2 × 10⁶ of the pancreatic adenocarcinoma cell line (Panc02), as previously described (29–31). Panc02 cells were cultured from frozen stocks and passaged twice before injection. Metastases were allowed to establish for 7 days prior to starting treatment with various drug combinations as described below.

We selected the Panc02 hemisplenectomy model in order to recapitulate late-stage, metastatic disease, as this is most commonly how patients present. It should be noted that the Panc02 cell line was derived from a chemically induced tumor and contains a high mutational burden. Other groups circumvent this issue by using the genetically engineered KPC PDAC model, which results in pancreatic tumors that are more genetically and pathologically similar to human PDAC (30, 32, 33). Although the KPC model more accurately recapitulates primary disease in humans, these animals take a minimum 16 weeks to develop locally invasive PDAC and develop salivary tumors before metastases occur. These tumors grow large and often prohibit maintenance of mice long enough to study natural metastases (30). We recognize the shortcomings of using the Panc02 cell line, which is why we paired the findings in this model with those in an extremely tolerant and nonimmunogenic breast cancer model (31). Future work with the KPC model could yield informative data to further translate the outcomes from preclinical models to human disease.

The ENT dosing solution (5 mg/kg) was made by suspending solid ENT (generously provided by Syndax Pharmaceuticals) in 0.5% methylcellulose via sonication and given by oral gavage daily for 3 weeks as described in Fig. 1A. To imitate oral gavage in control groups, 0.5% methylcellulose was given to vehicle mice, as well as mice receiving only antibody therapy, during the 3 weeks of ENT dosing. Mice received anti–PD-1 and/or anti–CTLA-4 twice a week for 3 weeks as stated in Fig. 1A. All studies in the neu-N model were performed with and without an anti-HER2 antibody to mimic treatment with and without trastuzumab. Anti-HER2 antibody was given once a week for 3 weeks as described in Fig. 1A. Following the initial 3 weeks of treatment maintenance dosing was continued with antibodies every other week. During maintenance therapy, animals receive 2 doses of anti–PD-1 and/or anti–CTLA-4 as well as one dose of anti-HER2 every other week as shown in Fig. 1A. Dosage of antibodies was as follows: anti–PD-1, 100 μg/mouse via intraperitoneal injection (i.p.); anti–CTLA-4, 100 μg/mouse i.p.; anti-HER2, 100 μg/mouse i.p. Monoclonal antibodies were obtained from Bio X Cell [anti–PD-1 (clone RPM1-14), anti–CTLA-4 (clone 9H-10), and anti-HER2 (clone 7.16.4)] and all were diluted to 0.5 mg/mL in PBS. Isotypes were used to treat vehicle mice and were also obtained from Bio X Cell [anti–PD-1 isotype: rat IgG2a (clone 2A3); anti–CTLA-4 isotype: polyclonal Syrian Hamster IgG; anti-HER2 isotype: mouse IgG2a (clone C1.18.4)]. All isotype antibodies were also diluted in PBS to 0.5 mg/mL. Dosages of each antibody were based off of prior studies (11). For mice receiving dual checkpoint antibody therapy, anti–CTLA-4 was given alone twice prior to addition of anti–PD-1, given that anti–CTLA-4 has been described as a T-cell repertoire–expanding agent, whereas anti–PD-1 has been determined to expand antigen-experienced T cells and help prevent the exhaustion of activated T cells (34).

For preliminary experiments using the demethylating agent SGI-110 (Astex) and the histone deacetylase inhibitor ACY-1215 (Acetylon), the PDAC hemisplenectomy model described above was used. Murine GVAX was prepared by irradiating a 1:1 mixture of Panc02 and the GM-CSF–secreting bystander line B78H1 as previously described (27, 35). A low dose of cyclophosphamide (100 mg/kg) was given 4 days after surgery, and GVAX was administered 5 days after surgery subcutaneously into 3 limbs of the mice. SGI-110 was administered subcutaneously into the flank of the animal at 24.4 mg/kg once a week over the course of 3 weeks while ACY-1215 was administered i.p. at 50 mg/kg daily. Following dosing of ACY-1215 and GVAX, survival was monitored until 120 days after surgery.

It has previously been shown that inhibition of class I HDACs targeted by ENT improves TLR signaling and cytokine production in myeloid cells (36), as well as cytokine signaling in T cells (37). Therefore, we hypothesized that use of ENT acted on these cell types to help sensitize nonimmunogenic tumors to ICIs. Although we showed that ENT did improve efficacy of ICIs in the neu-N and PDAC models, the mechanism appeared to be largely dependent on inhibiting the ability of MDSCs to produce immunosuppressive factors, specifically arginase-1 (Arg-1). Although a specific class I HDAC has not been identified as a regulator of Arg-1, a few studies illustrate a potential mechanism for the regulation of Arg1 transcription involving HDAC2. It has previously been shown that a complex of Tet2 and HDAC2 is required for regulating the transcription of various inflammatory genes in macrophages, such as Il6 and Tnfα, and this regulation can be abrogated with HDAC2 siRNA, as well as entinostat in vitro (38). Pan and colleagues showed that myeloid-specific knockout of Tet2 resulted in decreased Arg-1 expression in TAMs, as well as decreased ability to suppress T-cell proliferation (39). Taken together, these studies suggest Arg-1 could be regulated in a similar way to IL6, where Tet2 recruits HDAC2 to the arginase-1 promoter to regulate gene transcription. A rationale for addition of ICIs to ENT was also provided by two promising ongoing clinical trials that combine nivolumab, ipilimumab, and ENT (NCT02453620 and NCT03250273). However, mechanisms of action of these drug combinations remain elusive, and, thus, these preclinical studies were designed to inform rational design of clinical correlates for these trials and elucidate mechanisms behind potential antitumor responses.

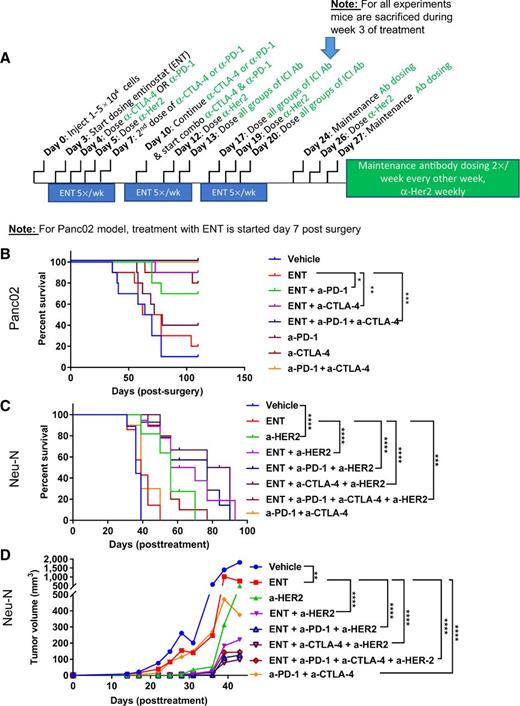

Following injection of either Panc02 or NT2.5 cells, mice were treated for 3 weeks as depicted in Fig. 1A and then received maintenance therapy until succumbing to disease or requiring sacrifice due to tumor burden (up to 2 cm³). In the neu-N model, mice were examined for palpable tumors starting 1 week after tumor cell challenge, and subsequently measured by calipers (±0.01 mm) twice weekly. Survival experiments were continued until mice were euthanized according to protocol due to tumor burden (neu-N model) or the development of ascites (PDAC model).

To obtain single-cell suspensions from breast tumors, tumors were harvested, weighed, diced, and then dissociated using a tumor dissociation kit (Miltenyi Biotec, cat. 130-096-730) and the gentleMACS Octo Dissociator with heaters (Miltenyi Biotec, cat. 130-096-427) per the manufacturer's instructions. The 37C_m_TDK_2 program was used to dissociate tumors per the manufacturer's instructions. Samples were filtered using a 40-μm cell strainer, and red blood cells were lysed using ACK lysis buffer (Quality Biological, cat. 118-156-721). The resulting single-cell suspensions were used for subsequent isolation of specific immune cell types or flow cytometry as described below. Blood from neu-N mice was obtained via retro-orbital bleeds as per protocol. Red blood cells were lysed using ACK lysis buffer (Quality Biological, cat. 118-156-721). Isolated cells were analyzed via flow cytometry.

To obtain single-cell suspensions of livers containing metastases in the PDAC model, livers were harvested and processed by mashing the liver through 100-μm and 40-μm cell strainers as previously described (35). Red blood cells were lysed using ACK lysis buffer (Quality Biological, cat. 118-156-721), and liver pellets were resuspended in 40% Percoll (GE Healthcare Life Sciences, cat. 17-0891-01) and underlaid with 80% Percoll. The immune cell layer was then removed and analyzed via flow cytometry.

G-MDSCs were isolated from single-cell suspensions from tumors following tumor dissociation using Miltenyi Biotec's Myeloid-Derived Suppressor Cell Isolation Kit (cat. 130-094-538) according to the manufacturer's protocol. Ly6G⁺ cells were positively selected to isolate G-MDSCs from Ly6G^– M-MDSCs and were passed through LS columns (Miltenyi Biotec, cat. 130-042-401) twice to increase purity. M-MDSCs were isolated from the primary flow-through by subsequent Gr-1 antibody incubation and MS column isolation, as per manufacturer's instructions. Eluted G-MDSCs and M-MDSCs were then used for downstream assays described below.

CD8⁺ neu-specific T cells were negatively isolated from spleens of the TCR transgenic mice described above by mashing spleens through 100-μm cell strainers. Red blood cells were lysed using ACK lysis buffer (Quality Biological, cat. 118-156-721), and CD8⁺ T cells were isolated from spleen pellets using the EasySep Mouse CD8⁺ Isolation Kit (StemCell, cat. 19853) per the manufacturer's instructions. CD8⁺ T cells were then used for the ex vivo suppression assay described below.

Isolated single-cell suspensions were washed and then incubated for 30 minutes with Live/Dead Near-IR (Thermo Fisher, cat. L10119) according to the manufacturer's protocol, followed by a 30-minute incubation with the appropriate flow cytometry antibodies (Supplementary Table S1). For samples being analyzed for cytokine expression, single-cell suspensions obtained from tumor dissociations were plated at 37°C with anti-CD3/CD28 beads (Thermo Fisher, cat. 11453D) overnight at a bead-to-cell ratio of 1:1 per the manufacturer's instructions for T-cell activation. A protein transport inhibitor cocktail (eBioscience, cat. 00-4980-03) was introduced at 1× concentration during the last 4 to 6 hours of stimulation. The samples were harvested after 16 hours. For samples being stained for intracellular markers, cells were fixed and permeabilized (Transcription Factor Fixation/Permeabilization kit, eBioscience, cat. 00-5523-00) and then incubated with the appropriate antibodies for 30 minutes. Samples were run on a CytoFLEX or Gallios (Beckman Coulter) cytometer and analyzed using FlowJo (FlowJo LLC) or Kaluza (Beckman Coulter).

G-MDSCs and M-MDSCs were identified by gating out debris from bulk tumor based on forward scatter and side scatter. Single cells were then gated by forward scatter-area and forward scatter-height. Dead cells were then gated out of the bulk tumor cell population. T cells and mature macrophages were gated out by selecting the CD3 and F4/80 double-negative population, respectively. CD11b⁺ cells were then gated, and G-MDSCs and M-MDSCs were differentiated using Ly6G versus Ly6C. G-MDSCs were defined as Ly6G⁺Ly6C^lo, and M-MDSCs were defined as Ly6G^–Ly6C⁺. See Supplementary Fig. S1A.

Of note, we found that staining with CD45 in combination with more specific markers, such as CD3 and CD11b, did not further exclude nonimmune cell types from the final gated populations compared with single staining with CD3 or CD11b. For example, there were very few cells that were positive for CD3 or CD11b and negative for CD45. Given these findings, we did not use CD45 in our final FACS panels. See Supplementary Fig. S1B.

In order to characterize the CD8⁺ T cells, debris was gated out of bulk tumor based on forward scatter and side scatter. Dead cells were then gated out of the bulk tumor population and lymphocytes were subsequently selected as CD3⁺ and then gated by CD4 versus CD8. To determine the activation state of CD8⁺ T cells, CD8⁺ cells were then gated by CD44 versus CD62L, as well as CD8 versus granzyme-B. The exhaustion state of CD8⁺ T cells was determined by gating CD8⁺ cells by PD-1 versus Lag3. In order to characterize the CD4⁺ T cells, debris was gated out of bulk tumor based on forward scatter and side scatter. Dead cells were then gated out of the bulk tumor population and lymphocytes were subsequently selected as CD3⁺ and then selected as CD4⁺. See Supplementary Fig. S2A.

Isolated G-MDSCs were cocultured with peptide-specific stimulated T cells and quantified for T-cell proliferation. G-MDSCs were isolated from tumors following tumor dissociation as described above. Eluted G-MDSCs were cocultured with 1 × 10⁵ CSFE-labeled CD8⁺ neu-specific T cells isolated from untreated neu-specific TCR transgenic mice (23) at varying ratios (1:1–1:8 MDSC:T cells). Prior to plating, T-2D^q antigen-presenting cells (APC) were pulsed with 0.4 μg of either R-neu_420–429 or control peptide (NP) for 4 hours; both purchased from the Johns Hopkins University Synthesis and Sequencing facility at greater than 95% purity. The APCs were simultaneously added to the cocultured CD8⁺ T cells and MDSCs at a ratio of 2:1 APCs:T cells, and plates were incubated at 37°C for a total of 48 hours. Cells were then harvested, stained with Live/Dead NIR (Thermo Fisher, cat. L10119), as well as CD8 and Thy1.2, and analyzed via flow-cytometric analysis as described above. Dilutions of initial CFSE were indications of T-cell divisions, where fewer divisions indicated greater suppressive G-MDSC activity. All antibodies used are listed in Supplementary Table S1.

Due to the small number of infiltrating M-MDSCs, we were unable to isolate sufficient numbers of these cells to perform a suppression assay. We attempted using fluorescence activated cell sorting as an alternative method of isolating M-MDSCs. However, the sorted M-MDSCs had poor viability, which had confounding effects on this assay.

Arginase activity was measured colorimetrically ex vivo using Abcam's Arginase Activity Assay Kit (cat. ab180877). G-MDSCs were isolated from tumors and processed as described above and plated per manufacturer's instructions. In short, cells were lysed with kit's lysis buffer at 1 × 10⁶/1 mL and plated carefully in varying dilutions (30k or 60k cells per well) in duplicate in a flat-bottom, low-retention plate to avoid bubble formation. Target samples were incubated for 20 minutes at 37°C with H₂O₂ substrate solution, while background wells were incubated with additional buffer. Standards were prepared per kit instructions, and the enzymatic reaction mixture was prepared and added to all wells. Raw absorbance values were immediately obtained over a 30-minute period using a plate reader (Molecular Devices SpectraMax M3) at OD = 570 nm at 37°C. Arginase Activity Units were then calculated from raw absorbance values. ΔOD [ΔOD = (OD2 − ODbg2) − (OD1 − ODbg1)] was used to obtain the nmol of H₂O₂ generated by arginase, extrapolated from a standard curve of known H₂O₂ concentrations. Arginase activity is calculated as (B/ΔT*V)*D in units/mL, where B is the amount of H₂O₂ from standard curve (nmol), V is the sample volume added into reaction well (μL), D is the sample dilution factor. One unit of arginase activity refers to the amount of arginase that will generate 1.0 nmol of H₂O₂ per minute at pH 8 at 37°C.

RNA was extracted from whole tumors or G-MDSCs isolated from tumors using the Qiagen RNeasy extraction kit (cat. 74104). Using a NanoDrop ND-1000, RNA quality and quantity were determined (samples with A260/280 < 1.8 were excluded). Gene expression was measured on the NanoString nCounter Analysis System (NanoString Technologies). The NanoString PanCancer Immune CodeSet (cat. XT-CSO-MIP1-12) was used to perform the nCounter Gene-Expression Assay for whole tumor samples, whereas the Mouse Myeloid Innate Immunity CodeSet (cat. XT-CSO-MII2-12) was used to perform nCounter Gene-Expression Assay for isolated G-MDSCs. Quantification of target mRNA in each sample was performed by detection within the nCounter Digital Analyzer. The data obtained from the PanCancer Immune CodeSet were deposited on the public database GEO under the accession number GSE121031. The data obtained from the Mouse Myeloid Innate Immunity CodeSet were deposited on the public database GEO under the accession number GSE121030.

Data from the NanoString nCounter system were normalized to the internal positive controls and housekeeping genes using the recommended settings in the nSolver software normalization module (NanoString Technologies). Normalized data were exported, and differential expression analysis was performed using a linear model method with the limma package (40) for the R programming language. To identify pathways that were differentially expressed in each treatment, the gage package (41) was used to test for differentially expressed KEGG pathways. Pathways of interest were visualized using the pathview package (42).

The QC plots show the correlation between genes included in the assay that are used to call specific cell types. nSolver uses expression data from Lag3, Cd244, Eomes, and Ptger4 to call the “Exhausted CD8” set and expression data from Cd6, Cd3d, Cd3e, Sh2d1a, Trat1, and Cd3g to call the “T-cell” set. These plots report how well the expression of the genes within each cell type set correlate with each other. In our data from the PanCancer Immune panel, the algorithm to call cell types uses Cd3g and Cd3d for “T cells” and Lag3 for “Exhausted CD8” cells. Due to the inherent variability between animals, more than the recommended 4 biological replicates are likely necessary to prevent the nSolver algorithm from discarding genes used to make cell type calls. See Supplementary Fig. S2B and S2C.

Reverse transcription of mRNA and subsequent qPCR was performed on RNA isolates to validate expression changes seen in the NanoString analysis. RNA extracted from isolated G-MDSCs and whole tumor (Qiagen RNeasy kit, cat. 74104) were normalized to 10 ng/μL, and 1 μg of total RNA was used for reverse transcription. The SuperScript VILO cDNA Synthesis Kit (Invitrogen; #11754050) was used following the manufacturer's instructions. qPCR of subsequent cDNA was performed using gene-specific proprietary primer and probe constructs for selected genes obtained from TaqMan (Thermo Fisher, see individual product numbers per gene) and used with TaqMan Universal Master Mix II, no UNG (Applied Biosystems; #4440040) following the manufacturer's instructions. qPCR was performed on the StepOnePlus real-time PCR system (Applied Biosystems). To validate the ERBb pathway, Tgfα (Mm00446231_m1) and Egf (Mm004438696_m1) were checked; for the mTOR pathway, Tgfα (Mm00446231_m1) and Frizzled4 (Mm00433382_m1) were checked; for the VEGF pathway, Vegfa (Mm01281449_m1) and Cox2 (Mm03294838_g1) were checked. For the leukocyte transendothelial migration pathway, Pik3cg (Mm00445038_m1) and Vcam1 (Mm01320970_m1) were checked; for the osteoclast differentiation pathway, Infγ (Mm01168134_m1) and Il1b (Mm00434228_m1) were checked. 18s (Mm04277571_s1) was used as a control, and Stat3 (Mm01219775_m1) and Arg1 (Mm00475988_m1) were also checked. The two-step real-time PCR cycling conditions used were 95°C for 20 seconds, 40 cycles of 95°C for 3 seconds, and then 60°C for 30 seconds. Gene expression was quantified from raw data by calculating mean CT values from the 3 replicates and comparing the ΔCT values of each gene to the 18s reference gene. Fold changes were quantified as 2^ΔΔCT and plotted against corresponding NanoString fold-change values.

G-MDSCs were isolated from whole tumor of treated animals using Miltenyi Biotec's MDSC Isolation Kit and pooled by treatment group. Samples being used for phospho-STAT3 analysis were subsequently stimulated with IL6 (20 ng/μL) for 25 minutes. Samples were lysed in RIPA buffer with added 1 mmol/L DTT, 1 mmol/L PMSF, and 1:100 protease/phosphatase inhibitor cocktail (Cell Signaling Technology; #5872S) and quantified by BCA (Pierce; #23225). Protein (125 μg) was run in 4% to 12% Bis-Tris gels under denaturing conditions. The LiCor Odyssey developing and imaging system was used, and the following primary antibodies were diluted in Odyssey Blocking Buffer (TBS) plus 0.2% Tween 20 at specified concentrations: Abcam anti-interferon gamma rabbit (1:1,000), Abcam anti-VEGFA rabbit (1:1,000), Abcam anti-EGF (1:1,000), Cell Signaling TNFα Rabbit monoclonal antibody (mAb; 1:1,000), Cell Signaling PI3 Kinase p110γ Rabbit mAb (1:1,000), Cell Signaling Stat3 Rabbit mAb (1:2,000), and Cell Signaling Phospho-Stat3 (Tyr705) Rabbit mAb (1:2,000). Membranes were blocked with Odyssey Blocking Buffer (TBS) for 1 hour and then incubated with primary antibody solution overnight at 4°C with gentle shaking. Membranes were washed with 1× TBS-T and subsequently incubated with the following secondary antibodies: 680RD Donkey anti-Chicken IgG (1:10,000), 800CW Donkey anti-Rabbit IgG (1:10,000) in Odyssey Blocking Buffer (TBS) plus 0.2% Tween 20. Membranes were protected from light during incubation with secondary mixture for one hour at room temperature with gentle shaking. Membranes were subsequently washed with 1× TBS-T and imaged with the Odyssey imaging system. Images were analyzed using ImageJ.

For survival data, results were plotted using a Kaplan–Meier curve, and statistical significance was determined via a log-rank test (n = 10 mice/group). For tumor growth data, statistical significance was determined using a two-way analysis of variance (ANOVA; n = 10 mice/group). For all flow and functional assessments, mice were sacrificed during the third week of treatment. For dot plots, each dot represents one mouse and each bar represents mean ± SEM (n = 3–5 mice/group). Significance was determined by a one-way ANOVA with Tukey multiple comparisons test. All experiments were repeated at least 3 times. All statistical analyses listed here were performed using GraphPad Prism v7.00. Statistically significant P values are shown as follows: *, P < 0.05; **, P < 0.01; ***, P < 0.001; ****, P < 0.0001.

Previous studies have examined the expression of PD-L1 as a predictor of response and showed varied correlation between protein expression and response (8, 43, 44). Thus, we evaluated changes in expression of PD-1, PD-L1, and CTLA-4 via flow cytometry in bulk tumors, as well as on intratumoral CD8⁺ T cells, CD4⁺ T cells, and MDSCs (cell types determined by gating strategies outlined in the Materials and Methods section) to determine if changes in expression following treatment with ENT alone validate a rationale for combining ICIs with ENT. We found no significant changes in expression of these checkpoint molecules on bulk tumor, as well as on intratumoral CD8⁺ T cells, CD4⁺ T cells, and MDSCs, with the exception of PD-1 expression on CD8⁺ T cells, which showed an increase in expression (Supplementary Fig. S3A–S3D). Thus, we considered that increased expression of checkpoint molecules within the TME may not be predictive of response to ICIs in our models. However, various groups have previously shown synergy between HDAC inhibition and various immunotherapies, including checkpoint inhibition, which does provide a rationale for addition of these checkpoint inhibitors to ENT as completed in our study (11, 21, 36, 37, 45). Specifically, previous studies showed that in the 4T1 breast cancer model, 5-azacytidine plus ENT decreased infiltration of MDSCs into the tumor and concluded that it was ENT driving this effect (11). We also performed a comparison of the HDACis ENT and ACY-1215 as well as a demethylating agent (SGI-110) in the murine PDAC model. We determined only ENT significantly improved survival over other drugs (Supplementary Fig. S4A). Thus, we chose to move forward using ENT given its efficacy in both tumor models. We substituted anti–PD-1 for GVAX as our immunotherapy, which yielded the same survival benefit when combined with ENT (Fig. 1B; Supplementary Fig. S4A). Thus, moving forward, we used checkpoint inhibitors as our immunotherapy instead of GVAX.

We hypothesized that ENT would sensitize naturally immune-resistant tumors, which often fail to recruit T cells into their TME, to ICIs. To test this hypothesis, we evaluated ENT given in combination with anti–PD-1, anti–CTLA-4, or a combination of the 3 drugs in neu-N/HER2⁺ breast cancer and Panc02 metastatic PDAC models. A final dosing schedule is shown in Fig. 1A. In the PDAC model, ENT + anti–PD-1, ENT + anti–CTLA-4, ENT + both ICIs, and anti–PD-1 + anti–CTLA-4 significantly improved survival over treatment with vehicle or ENT alone (Fig. 1B). In the neu-N model, treatment with anti-HER2 significantly improves survival and inhibits tumor growth (Fig. 1C and D), consistent with studies showing efficacy in patients treated with HER-directed therapy (46). Combination ENT + anti–PD-1 + anti-HER2, ENT + anti–CTLA-4 + anti-HER2, or ENT + anti-HER2 + both ICIs significantly improved survival compared with vehicle or ENT alone in the neu-N breast tumor model (Fig. 1C). Combination immunotherapy alone did not improve survival when compared with vehicle or ENT (Fig. 1C). The combination of ENT + both ICIs in the absence of anti-HER2 significantly improved survival (Supplementary Fig. S4B). Future studies will focus on the specific contribution of anti-HER2 to these therapies. However, for the remainder of the experiments presented herein, addition of anti-HER2 served to prove that the results were similarly efficacious (with and without it) to better inform the use of ENT + ICIs in patients receiving ongoing anti-HER2 therapy. Combination therapies with ENT + single ICIs led to a significant decrease in tumor burden in the neu-N model, both with and without anti-HER2 (Fig. 1C; Supplementary Fig. S4C).

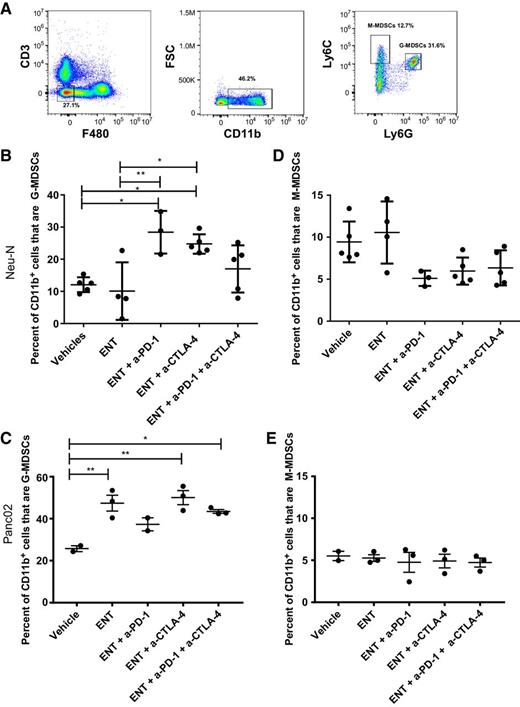

Given the improved antitumor immune responses observed in the mouse tumors, we next asked if ENT + ICIs were affecting MDSCs, as previous studies demonstrate decreased recruitment of MDSCs into the TME following similar therapies (11). To evaluate changes in MDSC populations, breast tumors and PDAC liver metastases were harvested following a full course of treatment. Immune cells were isolated and characterized as G-MDSCs and M-MDSCs via flow cytometry (Fig. 2A; Supplementary Fig. S1A). Analysis showed that treatment with ENT in combination with anti–PD-1 or anti–CTLA-4 shifted the MDSC population to be dominated by the less immunosuppressive G-MDSCs (ref. 20; Fig. 2B and C). Single-agent treatment with ENT significantly increased G-MDSCs in PDAC hepatic metastases (Fig. 2C), resembling the increased trends observed in the periphery of tumor-bearing neu-N mice (Supplementary Fig. S5A and S5B). However, the addition of ICIs was required to observe significant G-MDSC induction in the primary breast tumors. The observed increase in G-MDSCs was not the result of a redistribution between the proportions of myeloid cells because treatment of mice with combination therapies significantly increased the absolute number of G-MDSCs adjusted to tumor or liver weight (Supplementary Fig. S5C and S5D). Treatment with ICIs alone did not alter MDSC infiltration into the TME compared with vehicle, and no significant difference in infiltration by M-MDSCs in either model was seen (Fig. 2D and E).

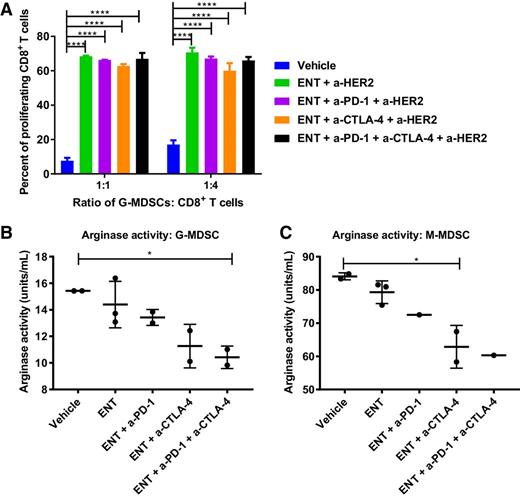

Because we observed increased recruitment of G-MDSCs into tumors of mice in the setting of decreased tumor burden, we evaluated the function of these cells. Traditionally, production of Arg-1 by MDSCs is used as a marker of their immunosuppressive capability (21). Thus, we performed immunosuppression assays and determined Arg-1 production both ex vivo and by flow cytometry. Data from immunosuppression assays revealed that the ability of G-MDSCs to suppress T-cell proliferation is inhibited in mice receiving ENT (Fig. 3A). Arg-1 protein expression was evaluated in both G-MDSCs and M-MDSCs using a colorimetric arginase activity assay in the neu-N model (Fig. 3B and C) and by flow cytometry in the neu-N and PDAC models (Supplementary Fig. S6A–S6D). Results from both assays indicated that G-MDSCs and M-MDSCs isolated from ENT + ICI–treated mice produced significantly less Arg-1. Taken together, these data suggest that the impaired immunosuppressive function of tumor-infiltrating G-MDSCs is, at least in part, due to decreased Arg-1 production.

Evaluation of PD-L1 was also investigated as a measure of MDSC-suppressive cell function. We analyzed the surface expression of PD-L1 on intratumoral G-MDSCs by flow cytometry. PD-L1 expression was significantly reduced on G-MDSCs with ENT + ICI treatment (Supplementary Fig. S6E and S6F). This suggested that treatment of G-MDSCs with ENT reduced their ability to inhibit T-cell activity by diminishing availability of the PD-L1/PD-1 T-cell inhibitory pathway.

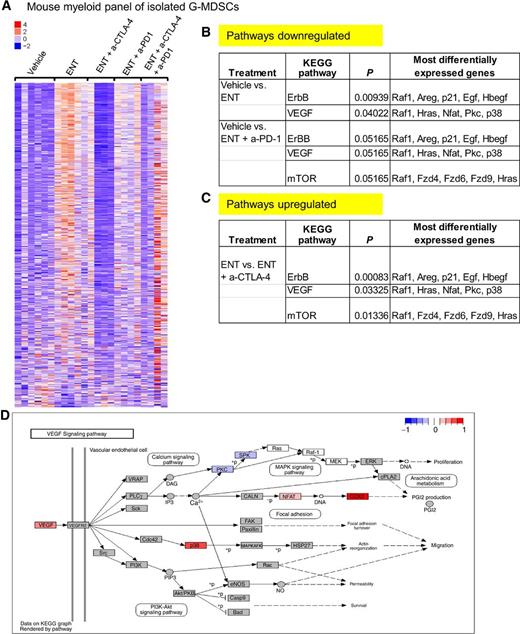

ENT alters the global acetylation state of cells (47), but its effect on subpopulations of myeloid cells has not been thoroughly studied. To identify possible mechanisms for their impaired function, we utilized NanoString transcript profiling to evaluate broad changes in the transcriptome of isolated G-MDSCs induced by treatment. Treatment with ENT and subsequently anti–CTLA-4 and/or anti–PD-1 significantly altered the expression of many genes important to G-MDSCs’ function (Fig. 4A). Further evaluation revealed relevant pathways that were significantly upregulated or downregulated and contained significantly altered genes that drove the differential regulation of these pathways (Fig. 4B and C; Supplementary Fig. S7A and S7B). We narrowed our focus to certain pathways and genes that may be more specifically responsible for the observed MDSC phenotypes and only report treatment combinations that showed significant changes across all biological replicates (Fig. 4B and C). Our data reveal several observations. First, treatment with ENT alone and ENT + anti–PD-1 decreased expression of genes in both the ErbB and VEGF signaling pathways compared with vehicle-treated mice (Fig. 4B). However, expression was increased in both pathways in mice treated with ENT + anti–CTLA-4 (Fig. 4C). Second, treatment with ENT + anti–PD-1 downregulated the mTOR pathway (Fig. 4B), whereas ENT + anti–CTLA-4 increased overall expression of the pathway (Fig. 4C). Figure 4D depicts the VEGF pathway, highlighting key genes altered due to treatment with ENT compared with vehicle. Fourth, significant changes due to ENT + ICI treatment in pathways involving adhesion and motility suggested that treatment with ENT + ICI increased G-MDSC trafficking, which may explain the observed increased in infiltration of G-MDSCs (Supplementary Fig. S7A and S7B). Fifth, changes in pathways controlling different hormone production, apoptosis, and MAPK signaling were observed (Supplementary Fig. S7A and S7B). Finally, we found over 100 significantly differentially expressed genes independent of the aforementioned pathways. Key genes of interest are listed (Supplementary Fig. S7C). Expression of significantly altered pathways and genes of interest was validated using qPCR (Supplementary Fig. S8). We also validated these findings by investigating changes in protein expression via Western blot. EGF expression was analyzed to represent the ErbB pathway, VEGFA for the VEGF pathway, and TNFα for the mTOR pathway. Protein expression of STAT3, a key gene of interest, was evaluated along with activation of the STAT3 protein via phosphorylation at Tyr705. These data show that although the protein expression changes observed in G-MDSCs isolated from treated mice did not correlate with changes seen at the mRNA level (Supplementary Figs. S9A and S9B; S7C), a decrease in phospho-STAT3 was observed in treated mice (Supplementary Fig. S9A and S9B), indicating a decrease in STAT3 activity. Changes in protein expression of EGF, VEGFA, and TNFα correlated with mRNA expression in groups treated with ENT + anti–CTLA-4 compared with ENT-treated animals (Supplementary Fig. S9C). Changes in protein expression of EGF correlated with mRNA expression in groups treated with ENT compared with vehicle-treated animals (Supplementary Fig. S9D). However, changes in EGF protein expression did not correlate with mRNA expression in the ENT + anti–PD-1 group compared with vehicle-treated animals (Supplementary Figs. S7C and S9E). No correlation between changes in VEGFA protein expression and mRNA expression in either the ENT or ENT + anti–PD-1 groups was seen (Supplementary Fig. S9D and S9E), as well as for TNFα expression in the ENT + anti–PD-1 group (Supplementary Fig. S9E). Future work will focus on changes in expression of both genes and proteins within these pathways to determine if they play a mechanistic role in altered G-MDSC function.

After determining that ENT + ICIs inhibited the immunosuppressive function of G-MDSCs, we sought to establish whether this change was sufficient to promote infiltration of functioning CD8⁺ T cells into the TME (36). Cells were isolated from tumors, and changes within the T-cell populations were evaluated using flow cytometry. We observed increased infiltration of CD8⁺ T effector cells and decreased naïve and memory CD8⁺ T cells when ENT was combined with anti–PD-1, anti–CTLA-4, or both (Fig. 5A and B). Evaluation of the proliferative capacity of infiltrating CD8⁺ T cells within the PDAC TME showed increased proliferation with the addition of ICIs, determined by Ki67 staining (Supplementary Fig. S10A). PDAC mice treated with ENT + anti–CTLA-4 also showed a significant increase in granzyme-B–producing CD8⁺ T cells. A pattern suggesting an increase in granzyme-B–producing CD8⁺ T cells was also observed in the anti-HER2 + ENT + anti–CTLA-4–treated neu-N mice. The addition of anti–PD-1 reduced this effect in both tumor types (Fig. 5C and D). IFNγ production by CD8⁺ T cells was also measured. However, combination-treated mice only showed a trending increase in both models (Supplementary Fig. S10B and S10C). These data indicate that the combination of ENT with ICIs induced infiltration of effector CD8⁺ T cells with cytotoxic capabilities.

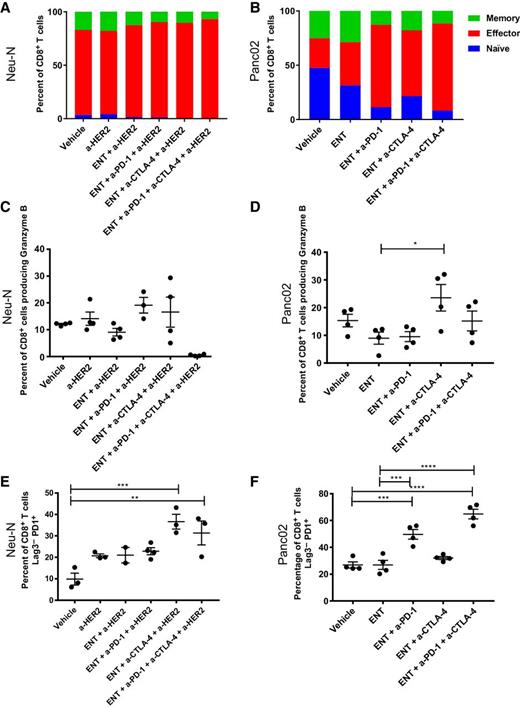

Although the CD8⁺ T cells appeared to exhibit improved antitumor activity, we wanted to characterize the ability of treatment to promote T-cell activation versus exhaustion. We evaluated the expression of various surface markers in CD8⁺ T cells from tumors in both models, and first observed significantly increased expression of PD-1 (Supplementary Fig. S11A and S11B). Because PD-1 can be a sign of activation as well as exhaustion, we evaluated the coexpression of a second marker, Lag3. Coexpression of these molecules is indicative of exhausted CD8⁺ T cells, whereas the absence of Lag3 on PD-1⁺ CD8⁺ T cells is indicative of activated T cells (48, 49). Our results only showed a significant increase in PD-1⁺Lag3^–CD8⁺ tumor infiltrating T cells from both models (Fig. 5E and F). We noted a pattern of nonsignificant increases of exhausted PD-1⁺Lag3⁺CD8⁺ T cells (Supplementary Fig. S11C and S11D). These data support that most CD8⁺ tumor infiltrating T cells in response to ENT + ICIs were activated and not exhausted. We also checked the coexpression of Tim3 and CTLA-4 with PD-1 as additional markers of exhaustion (48, 49) and found similar trends. Analysis of transcription factor expression revealed a 50% increase in terminally exhausted CD8⁺ T cells in mice treated with ENT + anti–PD-1 + anti-CTLA-4 in both neu-N tumors and PDAC metastases (Supplementary Fig. S11E and S11F). These are also the treatment groups with the highest proliferative capacity. This analysis showed no significant change in progenitor exhausted CD8⁺ T cells in the neu-N model and a 35% to 60% increase in the PDAC model (Supplementary Fig. S11G and S11H). Taken together, these data support that treatment generally induces an activated T-cell state.

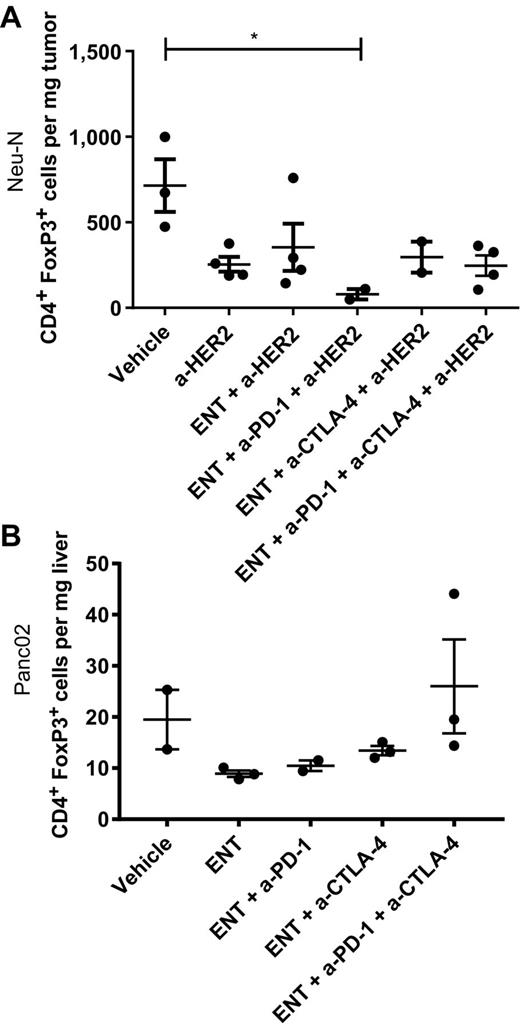

Previous studies revealed that ENT + IL2 induces a decrease in tumor burden, which correlates with an increase in effector T cells and a reduction in tumor-infiltrating Tregs (33). Because Tregs have also been described as a major immunosuppressive component of the TME (50), we used flow cytometry to determine if ENT altered Treg infiltration. However, we only observed a trending decrease in Tregs in both models (Fig. 6A and B), which was not statistically significant.

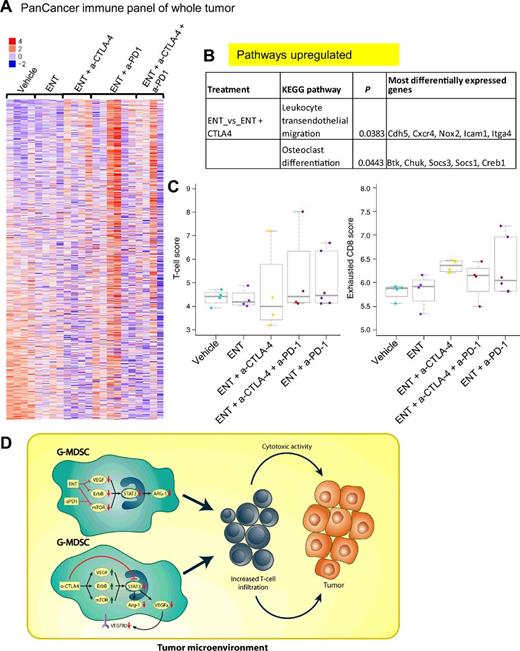

Our data showed that ENT broadly affected multiple populations of immune cells within the TME. Thus, we performed general immune transcriptome profiling on whole tumors isolated from the neu-N model using a PanCancer Immune-profiling gene panel for the NanoString platform. Numerous significant changes were found in multiple genes and pathways (Fig. 7A). Specifically, two pathways were found to be significantly altered (listed in the table in Fig. 7B). We report only treatment combinations that showed significant changes. One of these pathways, leukocyte transendothelial migration, was upregulated, suggesting a mechanism by which leukocytes may be able to traffic into the TME and contribute to an antitumor response in mice treated with ENT + anti–CTLA-4 (Fig. 7B). The osteoclast differentiation pathway was significantly upregulated in tumors from mice treated with ENT + anti–CTLA-4 versus ENT alone (Fig. 7B). Many of the genes involved in this pathway were also involved in pathways that contribute to the regulation of adaptive immunity. Our experiments also identified 20 individual genes significantly altered in cells from whole tumors treated with ENT + anti–CTLA-4 and ENT + anti–CTLA-4 + anti–PD-1 (Supplementary Table S2). Detailed investigation of these genes is necessary to determine how other immune compartments are being affected. Use of NanoString enables evaluation of immune cell subsets and related pathways. However, none of the immune cell subsets were significantly altered in this evaluation. Figure 7C demonstrates an increase in gene-expression profiles that suggest both “T cells” (determined by expression of Cd3g and Cd3d) and “exhausted CD8” (determined by expression of Lag3) showed a trending increase in treated groups, corroborating findings from flow cytometry (Fig. 5). QC plots depicting the correlations of the genes used to call these cell types are included in Supplementary Fig. S2B and S2C. Platforms for more directed approaches to investigation of gene-expression profiling are still evolving and can be limited in feasibility by large cohort animal studies, as seen with our findings using the NanoString platform. Future studies will evaluate gene expression at the single-cell level to work around the inherent biological variability associated with animal studies.

We demonstrated in the neu-N and PDAC models that mice treated with the combination of ENT + ICIs exhibited significantly improved survival compared with mice treated with either ENT or ICIs alone. We also showed that the efficacy of ENT + anti–CTLA-4 treatment was associated with a significant increase in tumor-infiltrating G-MDSCs that exhibited impaired immunosuppressive function. We also identified changes in important signaling pathways that converged to control and regulate myeloid immunosuppressive activities, which suggest novel mechanisms responsible for the observed MDSC dysfunction in tumors. ENT was primarily responsible for significantly affecting genes controlling myeloid function, such as those within the VEGF and ErbB pathways, and may have also acted to prime CD8⁺ T cells by increasing their expression of PD-1, although the addition of anti–PD-1 further augmented these changes, resulting in altered signaling in the mTOR pathway. The combination of ENT + anti–CTLA-4 induced changes in expression of downstream signaling molecules, at which the three pathways converged, leading to a similar outcome on myeloid suppression. These data showed that it was the addition of ICIs to ENT that led to improved infiltration of activated CD8⁺ T effector cells and increased cytotoxic characteristics. Examination of gene-expression changes in whole tumors revealed that addition of anti–PD-1 and/or anti–CTLA-4 affected T-cell trafficking. Taken together, these data elucidate a suggested mechanism by which ENT alters the function of myeloid cells and the addition of ICIs to ENT further alters the myeloid compartment and improves T-cell responses. This mechanistic understanding delineates the important effects of each individual drug on specific immune compartments within the TME. These data could be used for developing scientifically driven combinations of epigenetic- and immune-based therapies.

Various studies have shown that ENT can reduce tumor burden and alter MDSC infiltration, facilitating increased efficacy of single-agent ICIs in other murine models of cancer (11, 21, 36, 37, 45). These data support the therapeutic strategy of using agents that target multiple immune compartments within the TME, where ENT inhibits the immunosuppressive myeloid populations and ICIs allow for the activation and recruitment of T cells in order to induce a robust antitumor response. We showed that whereas ENT + anti–PD-1 + anti–CTLA-4 was efficacious, it did not significantly improve survival over ENT + anti–PD-1 or ENT + anti–CTLA-4. A previously proposed mechanism for improved survival is that addition of ENT to anti–PD-1 leads to decreased immunosuppressive capacity of tumor-infiltrating MDSCs and allows for increased infiltration of cytotoxic T cells (21). We not only confirmed these findings in breast and PDAC models but also expanded upon them by showing a decrease in Arg-1 protein activity and production (21). Given that our data were generated entirely ex vivo, it supports changes in Arg-1 protein production as a significant mechanism underlying the MDSC impairment reported. In further support of this proposed mechanism, our gene-expression profiling of isolated G-MDSCs allowed us to identify changes specific to the G-MDSC transcriptome in key signaling pathways such as VEGF, mTOR, and ErbB. Changes in Arg-1 and PD-L1 protein expression have not been analyzed in human MDSCs treated with ENT. However, a clinical trial has analyzed changes in MDSC populations as well as changes in CD40. CD40 has previously been described to be necessary in human MDSC-mediated T-cell suppression (51). Tomita and colleagues show that treatment of breast cancer patients with ENT significantly decreases CD40 expression (22), suggesting ENT may also induce immunosuppressive dysfunction in human MDSCs.

The most impactful finding of our work is the identification of changes in gene-expression responsible for the impaired immunosuppressive functions of G-MDSCs that are driven by ENT. First, we observed downregulation of genes within the VEGF signaling pathway in isolated G-MDSCs in ENT or ENT + anti–PD-1–treated versus vehicle-treated mice. Previous studies showed that elimination of VEGF can abrogate Arg-1 protein expression in intratumoral MDSCs and subsequently their ability to suppress T-cell proliferation (52), highlighting the importance of VEGF signaling in immunosuppressive functions of MDSCs. Second, decreased expression of genes in the ErbB signaling pathway was seen in isolated G-MDSCs with ENT or ENT + anti–PD-1 treatment. This may also contribute to the decrease in suppressive nature of these cells because EGFR-deficient macrophages are known to produce less immunosuppressive factors, including Arg-1 (53). Taken together, ENT appears to be the treatment driving these observed changes, indicating that it may be inducing MDSC dysfunction by decreasing signaling within both pathways (Fig. 7D). Third, treatment with ENT + anti–PD-1 significantly decreased expression of genes within the mTOR pathway. It has previously been shown that inhibition of mTORC1 can disrupt the immunosuppressive abilities of myeloid cells, including Arg-1 protein expression (54, 55). Therefore, it is likely that PD-1 inhibition also contributes to the observed MDSC dysfunction through decreased mTOR signaling (Fig. 7D). We evaluated protein expression of representative proteins for each pathway in order to attempt to validate the observed changes in gene expression of each pathway. Although some of these observed gene-expression changes correlated with similar changes in protein expression, others did not. This was expected given that posttranscriptional modifications often cause discrepancies between levels of message and protein. The reported changes in overall pathways were not determined by changes in expression of single genes, rather by the cumulative change of all genes in the pathway. Thus, expression of individual genes within a pathway was not representative of the overall reported pathway changes. Key genes directly affecting MDSC function will need to be identified before further protein analysis is pursued.

Gene expression within the mTOR, ErbB, and VEGF pathways was upregulated with ENT + anti–CTLA-4 treatment, although this treatment also inhibited MDSC function similar to the combination of ENT + anti–PD-1. We hypothesize that these differential gene-expression changes across treatment groups may converge at the transcription factor Stat3, which is downstream of all of the pathways we have mentioned (53, 56). STAT3 is known to be essential in MDSC immunosuppressive function (57) and has previously been shown to be specifically targeted by ENT in MDSCs in in vitro systems (21, 58–60). G-MDSCs from mice treated with ENT + anti–CTLA-4 showed a significant decrease in Stat3 expression, whereas significant downregulation in upstream activators was observed in the ENT or ENT + anti–PD-1–treated groups. This suggests that the ultimate change in regulation of Stat3 occurs either directly or indirectly depending on ICI treatment but leads to the same effect on G-MDSC function. The ENT + anti–CTLA-4–treated mice also exhibited a significant decrease in the expression of Vegfa, which has been shown to be a target of STAT3 transcriptional activity (61–63). Despite the increase in signaling intermediates in this pathway, a decrease in Vegfa expression, and subsequent VEGFR2 signaling, could be caused by less STAT3 activity. This could help explain the observed MDSC dysfunction with ENT + anti–CTLA-4, as inhibition of VEGFA signaling can prevent Arg-1 production (Fig. 7D; ref. 52). G-MDSCs from ENT + anti–CTLA-4–treated mice did show lower expression of Arg1 compared with the mice receiving ENT + anti–PD-1, further indicating that inhibition of STAT3 signaling may be one of the driving mechanisms in the observed MDSC dysfunction. Taken together, we hypothesize that the mTOR, ErbB, and VEGF signaling pathways converge at Stat3 to drive immunosuppressive functions of MDSCs. This hypothesis requires significantly more investigation, but given previous studies linking treatment with ENT to STAT3 activity (21) and linking STAT3 to the suppressive function of Arg-1 (57), this seems like a plausible explanation for our observations. Analysis of protein expression of STAT3 from neu-N mouse tumors did not follow the same trends as those observed at the mRNA level. However, investigation of phospho-STAT3 in isolated G-MDSCs showed a decrease in STAT3 phosphorylation in all-treatment groups compared with vehicle, indicating decreased STAT3 activity may play a role in the observed MDSC dysfunction in treated animals. It has been shown that HDAC2 is important in the regulation of inflammatory genes in myeloid cells (39), suggesting class I HDACs may play a role in the regulation of Arg-1 (38). Lastly, it should be noted that preliminary work using the HDAC6 inhibitor ACY-1215 did not improve survival when combined with immunotherapy, suggesting class II HDACs may not play a pivotal role in the functional capabilities of MDSCs. This is an area where future studies can aim to delineate the roles of class I and II HDACs in MDSC function as well as Stat3 regulation.

Whereas modulation of MDSC function seemed primarily responsible for the improved survival observed with ENT + ICIs in these models, the addition of ICIs also significantly improved the infiltration and cytotoxic ability of CD8⁺ T effector cells within the TME. We identified significant upregulation of the leukocyte transendothelial migration pathway, which likely aids in the infiltration of TILs, and the addition of anti–CTLA-4 to ENT drives this observed change. The 20 genes that were found to be significantly affected by treatment with ENT + anti–CTLA-4 seemed to be expressed in a wide range of immune cell types. This suggests that other cell types, such as dendritic cells and natural killer cells, may also be secondarily affected by ICIs but are not primarily responsible for improved survival in response to treatments in these tumor models. The observed increase in infiltration of activated T cells may also be explained by the induction of expression of immunogenic noncoding long terminal repeats (LTR) in tumor cells. A study by Brocks and colleagues showed that treatment with both a DMNTi and an HDACi leads to activation of these LTR elements (64). In the future, we will examine whether treatment with ENT without DNMTi can induce a biologically relevant amount of LTR expression in vivo.

In summary, these data support the use of ENT as a method of sensitizing nonimmunogenic tumors to ICI therapy. ENT primed the MDSC compartment of the TME to permit T-cell infiltration into tumors, thereby making them available for activation by ICI therapy. ICI therapy may also contribute to reprogramming MDSCs in favor of T-cell activity. These data have provided a deeper understanding of how to improve response to ICIs in patients with breast and pancreatic cancers. Specifically, they are informing the laboratory correlates for our clinical trials evaluating ENT + combined ICIs in advanced solid tumors with a dose expansion in advanced breast cancer (NCT02453620), as well as ENT + nivolumab in patients with unresectable PDAC (NCT03250273). The preclinical work presented here will provide the necessary scientific evidence to create rational combinations of immune therapies in future clinical trials to maximize efficacy of these promising treatments.
