Concurrent PD-1 Blockade Negates the Effects of OX40 Agonist Antibody in Combination Immunotherapy through Inducing T-cell Apoptosis Free

Immunotherapy has emerged as an effective treatment modality for cancer and has improved long-term survival in some patients. Effective antitumor immunity depends mainly on effector T cells whose fate is mediated by the interaction of immune inhibitory and stimulatory receptors or their ligands (1, 2). Antibodies (Abs) against programmed cell death protein 1 (PD-1) or one of its ligands (i.e., PD-L1) have generated clinical responses and an increase in survival in many types of cancers (3–5). However, anti–PD-1/PD-L1 Ab as a single agent is not sufficient to improve clinical outcome in most patients, emphasizing the need to develop combination immunotherapy strategies (4, 5). Combination therapies with two checkpoint inhibitor Abs, anti–PD-1 and anti-cytotoxic T lymphocyte–associated protein 4 (CTLA-4), resulted in an increase in the response rate but severe immune-associated adverse events were also reported (3, 6).

T-cell costimulation through receptors, such as OX40, GITR, or 4-1BB, provides a potent stimulatory signal that promotes the expansion and proliferation of killer CD8⁺ and helper CD4⁺ T cells (7). OX40 is a tumor necrosis factor receptor superfamily member 4 (TNFRSF4) that promotes activation and expansion of T cells leading to enhanced effector functions, memory generation, and immune inflammatory antitumor responses (8–11). Agonist antibody to OX40 alone or in combination with other immune-modulatory Abs is being tested against various types of cancers in early phase clinical trials (8). The combination of checkpoint inhibitor Abs, anti–PD-1 or anti–PD-L1, and anti-OX40 agonist Ab are candidates for combination immunotherapy. Few clinical trials have started and others are being planned to test this combination. However, response results have not yet been reported (12, 13). Further, the potential immune effect of such combination and the interaction of the two molecules on the downstream immune outcome are not fully clear. Furthermore, several challenges remain to determine whether the positive outcome of any of the immune modulator single agents is positively or negatively affected when combined with another immune modulating agent. Therefore, there is a need to identify ideal partners for combination immunotherapy, and standardize their dosage and sequencing to achieve maximum treatment efficacy.

Here, we tested the effect of adding anti–PD-1 on agonist anti-OX40 activity with a vaccine when combined for therapeutic intent in the TC-1 tumor model. We found that the concurrent administration of anti–PD-1 with anti-OX40 agonist Ab and vaccine inhibits the positive effect of anti-OX40 on the immune response and suppresses its antitumor therapeutic efficacy. We further found that simultaneous blocking of PD-1/PD-L1 pathway with OX40 activation drives T cells into apoptosis in vitro and in vivo, which leads to abolishing of the therapeutic effect of agonist OX40 Ab/vaccine. Furthermore, we report that a delayed treatment schedule of anti–PD-1 did not improve the antitumor effects of the anti-OX40 and vaccine regimen.

C57BL/6 female mice 6 to 8 weeks old were purchased from The Jackson Laboratory and housed under pathogen-free conditions. In vitro experiments used pMel-1 mice [B6.Cg-Thy1^a/Cy Tg(TcraTcrb)8Rest/J] that carry a rearranged TCR transgene (Vβ13) specific for the mouse homolog (pmel-17) of human gp100 (14). All procedures were carried out in accordance with approved Augusta University IACUC animal protocols.

TC-1 cells that were derived by stable transfection of mouse lung epithelial cells with human papillomavirus strain 16 (HPV16) early proteins 6 and 7 (E6 and E7) and activated h-ras oncogene were obtained from Dr. T-C Wu (Johns Hopkins University; ref. 15). Cells were grown in RPMI 1640 supplemented with 10% FBS, 2 mmol/L L-glutamine, penicillin (100 U/mL) and streptomycin (100 μg/mL) at 37°C with 5% CO₂ and maintained at a confluence of 70% to 80%. These cells were tested routinely for absence of mycoplasma by using PCR at Georgia Cancer Center, Augusta University (Augusta, GA). All tests were negative.

The CTL epitope from HPV16 E7_49–57 (9 amino acid (aa) peptide, RAHYNIVTF, 100 μg/mouse) mixed with synthetic T helper epitope PADRE (13 aa peptide, aK-Cha-VAAWTLKAAa, where “a” is D alanine and Cha is L-cyclohexylalanine, 20 μg/mouse; both from Celtek Bioscience) and QuilA adjuvant (20 μg/mouse; Brenntag) were used as the model vaccine in all experiments (16). Three doses of vaccine were administered subcutaneously (s.c.), every seven days (D) in tumor-bearing mice. The gp100_25–33 9-mer peptide (KVPRNQDWL; ANASPEC Inc.) was used for in vitro activation of magnetically enriched CD8⁺ T cells from spleens of pMel-1 mice (14). The purity of the enriched cells was more than 90%.

Purified anti-mouse anti–PD-1 (RMP1-14 clone, Rat IgG2a) was obtained from Biolegend. Anti-OX40 (clone OX86, Rat IgG1) was obtained from MedImmune. Live/Dead Fixable cell stain kit was obtained from Invitrogen, ThermoFisher Inc. Appropriately fluorochrome-labeled anti-mouse Abs against CD45, CD3, CD4, CD8, Annexin, Foxp3, PD-1, PD-L1, and OX40 were obtained from BD Biosciences for flow cytometric measurements. Intracellular Foxp3 staining kit was obtained from eBiosciences and E7 FITC dextramers were from Immudex. CD8⁺ enrichment kits (Miltenyi) were used per manufacturer's instructions.

In the therapeutic experiments, mice were implanted with 70,000 TC-1 cells/mouse s.c. into the right flank at D0. Ten to twelve days (D10–D12) later, when tumors measured approximately 6 to 8 mm in diameter, mice from appropriate groups (5 mice per group) were injected with vaccine (s.c., total 3 doses, 1 week apart). Anti–PD-1 was administered intraperitoneally (i.p.) twice weekly throughout the experiment at a dose of 1 mg/kg beginning either at the time of first or second (Late; L) vaccination. Agonist anti-OX40 was administered i.p. twice weekly throughout the experiment at a dose of 1 mg/kg beginning with the first vaccination (continuous; C). In some experiments, anti-OX40 administration was stopped after the second vaccination (Short-term; ST). Tumors were measured every 3 to 4 days using a digital vernier caliper and the tumor volume was calculated using the formula: V = L × W²/2, where V is tumor volume, L is the length of tumor (longer diameter) and W is the width of the tumor (shorter diameter). Mice were monitored for tumor growth and survival. Mice were sacrificed when tumors reached 1.5 cm³ in volume or tumors became ulcerated or when mice became moribund.

For immune response experiments, mice were treated following the same schedule as for the therapy experiment, except only two doses of weekly vaccines were given to be able to collect tissues from control animals before their tumors reach a volume of 1.5 cm³. Three days after the second vaccination, mice from the appropriate groups were euthanized to harvest spleens and tumors, which were further processed using GentleMACS dissociator and the solid tumor homogenization protocol, as suggested by the manufacturer (Miltenyi Biotec). Each experiment was repeated at least twice.

One million cells were stained for live and dead staining (Invitrogen, ThermoFisher Inc.) followed by Foxp3 fixation and permeabilization, which were done according to the manufacturer's (BD Pharmingen) protocol. Intracellular staining for Foxp3 was performed using anti–Foxp3-APC monoclonal Ab (eBioscience). Data acquisition was performed on FACSCalibur or LSRII (BD Biosciences). Results were analyzed with CellQuest (BD Biosciences) or FlowJo (TreeStar). Total number of CD3⁺, CD8⁺, CD4⁺, CD8⁺E7⁺, and CD4⁺Foxp3⁺ cells were analyzed within a CD45⁺ hematopoietic cell population and represented in 1 × 10⁶ live cells in tumors.

IFNγ production in E7 restimulated (10 μg/mL) splenocyte cultures from various treatment groups was detected by ELISpot assay performed as suggested by the manufacturer (BD Biosciences). In brief, splenocytes from variously treated groups were incubated with ACK lysis buffer for 5 minutes to lyse red blood cells. Following lysis, cells were washed, filtered, counted, and 0.4 × 10⁶ cells were plated along with E7 peptide in anti-IFNγ coated plates at 37°C/5% CO₂ for 24 hours. Plates were washed, blocked, and further developed with anti-IFNγ detection Ab using biotin-streptavidin-HRP complex. Finally, plates were washed and allowed to dry for spots to develop. Spots were counted and analyzed using CTL Immunospot Analyzer (Cellular Technology), and results were examined for differences of E7-specific IFNγ spots between various treatment groups. One set of samples were also activated with DMSO as a control.

For in vitro activation, magnetically enriched (Miltenyi Biotec) CD8⁺ T cells (>95% purity) from pMel-1 mice were stimulated in vitro by gp100_25–33 peptide at 0.01 μmol/L concentration (day 0) for 48 hours. For this CD8⁺ T cells were cultured in T-cell medium containing RPMI-1640 (Lonza) supplemented with 10% fetal bovine serum (FBS), penicillin (100 U/mL), streptomycin (100 mg/mL), 0.1% β-mercaptoethanol (Life Technologies, Invitrogen), and IL2 (100 U/mL; Peprotech) at 37°C/5% CO₂. This activation step was followed by a resting period of 24 hours during which activated cells were cultured in IL2-containing T-cell medium. At various time points, samples were collected for analyzing the expression of PD-1, PD-L1, and OX40 using FACS. Following the resting period, cells were further cultured with 0.2 μmol/L gp100_25-33 for 96 hours, with or without anti–PD-1 and/or anti-OX40. In some assays, after resting period, cells were rechallenged with gp100_25-33 peptide for 24 hours in combination with anti–PD-1 and/or anti-OX40 followed by further incubation with these Abs for 48 hours. In all experimental setups, at the end of incubation, cells were harvested for either FACS or Western blot analyses. For determination of apoptosis, activated cells were stained for cell surface markers including fixable live/dead staining and washed once in 1X PBS, then once in 1X Annexin V Binding Buffer (eBioscinces). Cells were incubated for 10 to 15 minutes in 100 μL of Annexin V binding buffer containing 3 μL of APC-conjugated Annexin V at room temperature and protected from light. Moreover, in some assays, cell proliferation was determined by using CellTtrace Violet (CTV) cell proliferation kit (Invitrogen, ThermoFisher Inc.) using FACS analysis. Results for cell proliferation were normalized for three independent experiments. For negative control, non-stimulated (NS) cells were left in media containing IL2 for duration of the experiment.

For determination of apoptosis in vivo, CD8⁺ T cells from tumors and spleens of variously treated mice were processed into single-cell suspensions as explained above followed by Annexin V–positive-APC staining in Annexin V binding buffer and FACS acquisition as described above.

After final restimulation, CD8⁺ T cells in the various groups were harvested and treated with cell lysis buffer (RIPA buffer + 1% phosphatase inhibitor + 1% protease inhibitor) for preparing the cell lysates. Protein concentrations in the various cell lysates were determined by Pierce BCA Protein Assay Kit (ThermoFisher Scientific). Twenty to thirty microgram protein was loaded onto Novex 4% to 20% Tris-Glycin Mini Gels (ThermoFisher Scientific) followed by transfer onto nitrocellulose membranes. Membranes were blocked with 3% BSA in Tris-buffer followed by overnight probing of the proteins with Abs directed against mouse-pro–caspase 3, cleaved caspase 3, Bcl-xL, and β-actin. All Abs were purchased from Cell Signaling Technology. Blots were developed with rabbit anti-mouse horseradish peroxidase (HRP) labeled secondary Abs.

Three days after second vaccination tumors and spleens were harvested and single-cell suspensions were prepared as described above for immune response studies. Cells were then sent to Adaptive Biotechnologies as frozen samples in freezing medium (10% DMSO in FBS) for T-cell receptor (TCR) variable β-chain sequencing. Immunosequencing of the CDR3 regions of mouse TCRβ chains was performed using the ImmunoSEQ Assay (Adaptive Biotechnologies). Extracted genomic DNA was amplified in a bias-controlled multiplex PCR, followed by high-throughput sequencing. Sequences were collapsed and filtered in order to identify and quantitate the absolute abundance of each unique TCRβ CDR3 region for further analysis as previously described (17–19).

All statistical parameters (average values, SD, SEM, significant differences between groups) were calculated using GraphPad Prism or Excel as appropriate. Statistical significance between groups was determined by Student t test or one-way ANOVA with Tukey's multiple comparison post-test (P ≤ 0.05 was considered statistically significant). Survival in various groups was compared using GraphPad Prism using log-rank (Mantel–Cox) test. SK plots were generated by internally developed software (https://skylineplotter.shinyapps.io/SkyLinePlotter/). Contrary to the survival plot made using GraphPad Prism, the SK plot gives dynamic simultaneous presentation of tumor volumes and mouse survival at a specific time point.

For statistical analyses of TCR-β sequencing results, clonality was defined as 1- Peilou's evenness and was calculated on productive rearrangements by |$1 + {\frac{{\sum\limits_i^N {{p_i}{{\log }_2}({p_i})} }}{{{{\log }_2}(N)}}$| where p_i is the proportional abundance of rearrangement i and N is the total number of rearrangements (20). Clonality values range from 0 to 1 and describe the shape of the frequency distribution: clonality values approaching 0 indicate a very even distribution of frequencies, whereas values approaching 1 indicate an increasingly asymmetric distribution in which a few clones are present at high frequencies. To estimate the fraction of T cells in the tissue samples, we considered 6.5 pg of DNA per diploid cell, which is equal to approximately 154 productive TCR loci per ng of DNA, and normalized the total T-cell estimates in each sample to the amount of input DNA multiplied with the value of 154 productive TCR loci per ng of input DNA.

To evaluate the antitumor therapeutic response of the anti-OX40 agonist Ab, we used the TC-1 syngeneic mouse model. Because the TC-1 model requires vaccine to generate an effector immune response, we first combined the anti-OX40 with an HPV16 E7 peptide vaccine (Fig. 1A). Both the anti-OX40 and the vaccine were administered simultaneously on D12 (Fig. 1A). Although neither E7 vaccine nor anti-OX40 alone affected tumor growth, OX40 Ab in combination with vaccine led to significant (P ≤ 0.05) slowdown of tumor progression (Fig. 1B and C) associated with prolonged survival (Fig. 1D and E). Although none of the mice survived for more than 30 days following vaccine or anti-OX40 treatments, about 80% of the mice were alive at day 40 following anti-OX40/vaccine treatment (Fig. 1D and E). With the intention to further enhance the antitumor effects of OX40 Ab, tumor-bearing mice were concomitantly treated with anti–PD-1 together with anti-OX40/vaccine on day 12 (Fig. 1A). Surprisingly, the antitumor effects observed after simultaneous treatment of tumor-bearing mice using anti–PD-1 and anti-OX40/vaccine were significantly less than the effects observed after anti-OX40/vaccine treatment (P ≤ 0.05; Fig. 1B and C). Although 60% of the mice survived following anti-OX40/vaccine treatment, addition of anti–PD-1 led to a reduction of survival to only 20% at day 50 (Fig. 1D and E). Accordingly, the addition of anti–PD-1 negated the effect of anti-OX40/vaccine on both tumor-growth inhibition and survival when administered simultaneously.

To understand the mechanisms underlying the negative effects of PD-1 blockade on anti-OX40 treatment, we compared the infiltration of immune cells in the tumor microenvironment (TME) following combination treatment. In accordance with the therapeutic response obtained following agonist anti-OX40 treatment in combination with E7 vaccine, a significant increase in number of tumor-infiltrating CD3⁺ T cells was observed compared with monotherapies (vaccine; P ≤ 0.001 or anti-OX40; P ≤ 0.0001; Fig. 2A). Similar results were obtained for CD4⁺ and CD4⁺Foxp3⁻ T cells with maximum increase following anti-OX40 in combination with the vaccine (Fig. 2B and C). However, the numbers of tumor-infiltrating CD3⁺, CD4⁺, and CD4⁺Foxp3⁻ T cells were significantly reduced following the addition of PD-1 blockade to anti-OX40/vaccine combination (P ≤ 0.05 for each subset of T cells; Fig. 2A–C). This result further reflects the negative therapeutic effect obtained following the addition of anti–PD-1 to anti-OX40. We also found that PD-1 blockade significantly reduced the number of tumor-infiltrating CD8⁺ (P ≤ 0.01) and antigen-specific E7⁺CD8⁺ T cells (P ≤ 0.05) induced by anti-OX40/vaccine treatment (Fig. 2D and E). Finally, adding anti–PD-1 to anti-OX40/vaccine did not affect the tumor infiltration of Foxp3⁺CD4⁺ T regulatory cells (Tregs; Fig. 2F), although the ratio of CD8⁺/Treg, a well-established criteria that correlates with cancer prognosis (21–24), was significantly reduced due to the decrease in CD8⁺ T cells tumor infiltration (P ≤ 0.05; Fig. 2G). Moreover, the E7⁺CD8⁺/Treg ratio that was significantly increased in mice treated with anti-OX40/vaccine compared with the control (P ≤ 0.0001) and vaccine groups (P ≤ 0.05) were decreased significantly when anti–PD-1 was added (P ≤ 0.01; Fig. 2H). These results collectively demonstrate that the addition of PD-1 blockade to anti-OX40/vaccine treatment negatively modulates the immune response by decreasing the number of effector CD8⁺ T cells in the TME and abrogates the therapeutic effects obtained following OX40 costimulation with vaccine.

As shown above, combining anti–PD-1 with anti-OX40/vaccine leads to a decrease in the number of E7-specific CD8⁺ T cells in the TME. To further define the immune mechanism underlying this effect, we next evaluated whether the addition of anti–PD-1 negatively affects the levels of IFNγ-producing antigen-specific CD8⁺ T cells in spleens harvested from treated TC-1 tumor bearing mice using a standard ELISpot assay. As expected, vaccine treatment induced significant levels of IFNγ-producing E7-specific CD8⁺ T cells compared with controls (P ≤ 0.01; Fig. 3), which was further enhanced by addition of anti-OX40 (P ≤ 0.05; Fig. 3). A significant increase in the numbers of IFNγ-producing E7-specific CD8⁺ T cells was observed when anti–PD-1 was added to the anti-OX40/vaccine treatment (P ≤ 0.05; Fig. 3). These results demonstrate that contrary to the decrease in the number of total and antigen-specific CD8⁺ T cells in the TME, PD-1 blockade does not suppress the peripheral antigen-specific immune responses. Consequently, the peripheral effect of the combination does not explain the decrease in the number of antigen-specific CD8⁺ T cells in the TME.

Simultaneous treatment with anti–PD-1 and anti-OX40 led to a decrease in the number of total and antigen-specific CD8⁺ T cells in the TME despite enhanced IFNγ production in the periphery by antigen-specific CD8⁺ T cells. Therefore, we next wanted to determine the underlying mechanism of the anti–PD-1–mediated decrease in CD8⁺ T cells.

For that purpose, we utilized the pMel-1 mouse model for in vitro stimulation (25). CD8⁺ T cells from pMel-1 mice were activated with cognate gp100 peptide and the expression of PD-1, PD-L1, and OX40 was analyzed. There was a progressive increase in the expression of OX40, PD-1, and PD-L1 upon activation of cells with gp100 peptide for 48 hours compared with IL2 controls, which remained high even after resting period of 24 hours in IL2 containing medium alone (Supplementary Fig. S1A–S1C). After confirming the expression for these markers, we activated pMel-1 CD8⁺ T cells with gp100 in the presence or absence of anti-OX40 and anti–PD-1 as outlined in Fig. 4A. We observed that under specific antigen stimulation, simultaneous addition of anti–PD-1 and anti-OX40 increased cell proliferation (Fig. 4B) compared with gp100 group (Supplementary Fig. S1D–S1F). However, this increased cell proliferation was associated with a significant increase in CD8⁺ T-cell apoptosis (P ≤ 0.01) as shown by increased numbers of Annexin V–positive CD8⁺ T cells (Fig. 4C and D). Several studies have shown that OX40 enhances Bcl-xL and Bcl-2 expression and T-cell survival while suppressing apoptosis (10, 26). Therefore, we investigated the effects of different treatments on the expression of the anti-apoptotic protein, Bcl-xL. Consistent with the increase in number of Annexin V–positive apoptotic cells, we found reduced expression of pro–caspase-3 with a corresponding increase in expression of cleaved caspase-3 and decrease in Bcl-xL following addition of anti–PD-1 to the anti-OX40/vaccine (Fig. 4E). These results suggest that simultaneous blocking of PD-1/PD-L1 signaling with OX40 costimulation leads to induction of T-cell apoptosis.

We further tested in vivo if enhanced apoptosis is responsible for the observed decrease in the number of CD8⁺ and antigen-specific CD8⁺ T cells in the TME following addition of PD-1 blockade to anti-OX40/vaccine treatment. We treated mice with the same concurrent treatment schedule as outlined above for Figs. 1 and 2 and tested antigen-specific CD8⁺ T cells for apoptosis by analyzing Annexin V–positive E7⁺CD8⁺ T cells in both spleen and tumor samples. A significant increase in the percentage of Annexin V–positive E7⁺CD8⁺ T cells out of the total number of CD8⁺ T cells was found in the spleen of mice when treated with anti–PD-1 in combination with anti-OX40/vaccine, compared with vaccine/anti–PD-1 and anti-OX40/vaccine treatments (P ≤ 0.05 for both; Fig. 4F). These results suggest that PD-1 blockade when combined with OX40 costimulation leads to increased proliferation and activation of antigen-specific T cells resulting in their apoptosis. A significant increase in the percentage of Annexin V–positive E7⁺CD8⁺ T cells was also observed in tumor samples obtained from mice treated with anti-OX40/vaccine combined with anti–PD-1 compared with anti–PD-1/vaccine (P ≤ 0.0001) and anti-OX40/vaccine (P ≤ 0.001) treatments (Fig. 4G). These results indicate that despite the enhancement of frequency of IFNγ-producing E7-specific CD8⁺ T cells by adding anti–PD-1 to anti-OX40 in the periphery, these actively proliferating cells are rapidly undergoing apoptosis both in the periphery and in the TME.

To further explore the above findings, CD8⁺ T cells from pMel-1 mice were treated with different sequencing of anti–PD-1 and anti-OX40 with simultaneous activation using gp100-peptide (Fig. 4H) and the effects on proliferation and apoptosis were determined. We found that only when anti–PD-1 was added to the culture concurrently with anti-OX40 (schedules 5 and 6) did proliferation (P ≤ 0.001; Fig. 4I) and apoptosis (MFI: P ≤ 0.01 and % Annexin V–positive: P ≤ 0.001; Fig. 4J and K) increase significantly compared with the gp100+anti-OX40 group (schedule 2) and other groups where anti–PD-1 was not added concurrently (Supplementary Fig. S1G–S1I). This increase in proliferation and apoptosis was induced regardless of the follow-up costimulation with OX40 tested (schedules 5 and 6). This was further confirmed by demonstrating a reduction in expression of pro–caspase-3 (and increase in cleaved caspase-3) and Bcl-xL by Western analysis (schedule 2 versus 5 and 6; Fig. 4L). No significant changes in proliferation or apoptosis or expression of apoptosis-related proteins were observed when anti–PD-1 was added 24 hours after stimulation with gp100+anti-OX40 alone or in combination with continuous anti-OX40 costimulation (schedules 3 and 4) compared with gp100+anti-OX40 (schedule 2; Fig. 4H–L).

These results suggest that PD-1 blockade simultaneously with OX40 costimulation concurrent to TCR engagement with cognate antigen leads to not only increased proliferation but also significant induction of apoptosis of CD8⁺ T cells. On the other hand, PD-1 blockade after induction of OX40 costimulation does not result in enhanced apoptosis.

Our in vitro data suggested that, in contrast to simultaneous treatment, sequential treatment of gp100-activated CD8⁺ T cells with anti-OX40 followed by anti–PD-1 treatment did not induce significant apoptosis or enhance proliferation of CD8⁺ T cells (Fig. 4). Hence, we next evaluated the effects of PD-1 blockade in vivo where anti–PD-1 was delayed after the administration of anti-OX40 to determine if different sequencing of treatments could enhance the antitumor efficacy. Mice were implanted with TC-1 cells on day 0 and agonist OX40 Ab was administered with the peptide vaccine starting on day 12 and either continued throughout the experiment (αOX40-C; Fig. 5A) or given for short-term until day 19 and then discontinued (αOX40-ST; Fig. 5E). Anti–PD-1 was administered at the time of the second vaccination (day 19; αPD1-L; Fig. 5A and E). Similar to the in vitro results, PD-1 blockade following anti-OX40 and vaccine treatment was not detrimental to anti-OX40 treatment, but did not show any additive or negative effects on tumor growth and survival compared with the anti-OX40/vaccine treatment with (Fig. 5B–D) or without (Fig. 5F–H) continuation of OX40 costimulation.

These results are consistent with the in vitro stimulation experiments outlined above and demonstrate that adding anti–PD-1 after administration of anti-OX40/vaccine treatment does not result in inhibition of the effect of anti-OX40/vaccine treatment.

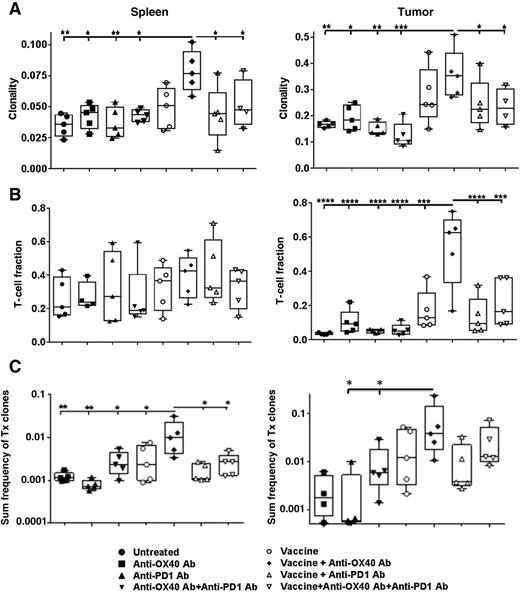

To further examine the effects of adding anti–PD-1 to anti-OX40/vaccine treatment, we performed high-throughput immunoSequencing on the β chain locus of T cells from tumor and spleen samples in mice treated with each therapy alone or in combination. We sequenced an average of 157,836 (range: 28,160–457,940) and 48,821 (range: 3,530–307,535) TCRs in spleen and tumor, respectively, providing a quantitative snapshot of the relative abundance of each T-cell in a sample. The shape of this T-cell frequency distribution, summarized by the clonality metric, correlated with treatment outcome in an immunotherapy setting (27), where a highly skewed repertoire and higher clonality indicate mono- or oligo-clonal expansion of T cells responding to therapy. In both spleen and tumor, we observed significantly greater clonality in the anti-OX40/vaccine group compared with mice in the untreated control (P ≤ 0.01), anti-OX40 (P ≤ 0.05), and anti–PD-1 (P ≤ 0.01) groups (Fig. 6A). T-cell infiltration was also significantly greater following anti-OX40/vaccine treatment in tumors but not in spleen compared with untreated control, anti-OX40, anti–PD-1 (P ≤ 0.0001 for each), and the vaccine group (P ≤ 0.001; Fig. 6B). Further, we observed a significant decrease in clonality (P ≤ 0.05 for tumor and spleen) and T-cell fraction (P ≤ 0.001 in tumor) following addition of PD-1 blockade to anti-OX40/vaccine treatment compared with the anti-OX40/vaccine group (Fig. 6A and B). Clonality and T-cell fraction were also correlated across tumors (Supplementary Fig. S2A) suggesting that the antitumor response in these mice consisted mainly of the expansion of a small number of specific T cells. In order to assess the possibility of common TCRs being generated against the tumor in anti-OX40Ab/vaccine-treated mice, we compared CDR3 amino acid sequences across different mice. We defined 41 public T cells that may be responding to treatment as CDR3 amino acid sequences that were present in the top 500 most frequent tumor T-cell clones of at least two mice treated with anti-OX40/vaccine, but not present in any of the untreated mice (Fig. 6C). We found that these T cells were present at lower frequencies in the tumors of mice treated with anti–PD-1 or anti-OX40+anti-PD-1 (P ≤ 0.05). In spleen, these patterns held true for the anti–PD-1 and anti-OX40 groups, although we also saw a significant decrease in clone frequencies in the mice treated with anti–PD-1/vaccine or vaccine+anti-OX40+anti–PD-1 groups (P ≤ 0.05; Fig. 6C). For comparison, we also identified clones using the same criteria for the vaccine+anti-OX40+anti–PD-1 treatment group and another set of clones present in the top 500 of at least two untreated mice (Supplementary Fig. S2B and S2C). Both of these groups show different patterns of frequency across mice. For instance, the anti–PD-1/vaccine group had higher frequencies of the clones associated with the vaccine+anti-OX40+anti–PD-1 treatment group than the anti-OX40/vaccine group. These data indicate that the T-cell response induced by the anti-OX40/vaccine treatment is distinct from that induced in the untreated controls or the vaccine+anti-OX40+anti–PD-1 treatment group. Together, these data obtained through immunoSequencing are consistent with immune cell infiltration in the TME (Fig. 2), demonstrating that concurrent addition of PD-1 blockade attenuates the antitumor effects of anti-OX40/vaccine treatment and that these effects may be mediated through apoptosis of antigen-specific T cells.

The use of checkpoint-inhibitor Abs against PD-1/PD-L1 has led to improvement in the survival of cancer patients, although only in <40% of the cases and in a few types of cancers (3–5). The generation of a strong immune response is essential to enhance the effects of immunotherapy. Several agonist costimulatory Abs have been utilized both in preclinical and clinical studies for this purpose (7–10). Accordingly, development of combination strategies utilizing different immune modulators, including agonist costimulatory Abs and checkpoint inhibitor Abs, is needed (3–6). Because anti-OX40 agonist Ab, already in early phase clinical trials (8), generates strong immune responses (8–10), the combination of anti–PD-1/PD-L1 Ab and anti-OX40 is an obvious choice for combination immunotherapy. A few clinical trials have already started; others are in the planning stage to test this combination (12, 13). However, the immune effect of such a combination and the interaction of the two molecules on the downstream immune outcome remain unclear.

Here, we discovered that addition of anti–PD-1 exhibits a detrimental effect on the anti-OX40 agonist Ab-mediated tumor response when combined in a therapeutic approach. As expected, anti-OX40 significantly increased E7-specific CD8⁺ T cells induced by the HPV E7 vaccine, leading to an antitumor response and prolonged survival of tumor bearing mice. We hypothesized that combining the PD-1 blockade with anti-OX40 treatment could improve the antitumor immune response, leading to a better therapeutic outcome. However, we found that, despite the fact that the addition of PD-1 blockade concurrently with anti-OX40 enhanced the antigen-specific peripheral immune response, it negated the antitumor effects mediated by OX40 costimulation. Addition of anti–PD-1 abrogated the increase in the numbers of infiltrated CD4⁺, CD8⁺, and E7-specific CD8⁺ T cells in the TME induced by anti-OX40/vaccine and resulted in decreased therapeutic ratios of CD8⁺/Tregs and E7⁺CD8⁺/Tregs. As addition of the PD-1 blockade to anti-OX40/vaccine treatment resulted in reduction of CD8⁺ and antigen-specific CD8⁺ T cells in the TME, we asked whether numbers of IFNγ-producing antigen-specific CD8⁺ T cells were reduced following concurrent treatment of anti-OX40 and anti–PD-1. We found that the combination of anti-OX40 and anti–PD-1 actually enhanced antigen-specific T-cell activation and IFNγ production in the periphery compared with anti-OX40.

In a plasmodium-infected rodent model, OX40-mediated signaling enhanced helper CD4⁺ T-cell activity, humoral immunity and parasite clearance (28). This effect was abrogated following simultaneous PD-1 blockade because the combination resulted in excessive induction of IFNγ secretion that impaired T helper cell-mediated humoral immunity and parasite control (28). Overexpression of IFNγ leads to activation-induced cell death of lymphocytes (29–31). Further, PD-1 blockade can reverse T-cell suppression and exhaustion (32, 33). As we found that the concomitant treatment with anti-OX40 and anti–PD-1 enhances IFNγ production, we hypothesized that the combination of these Abs will lead to apoptosis of CD8⁺ T cells. Indeed, our results demonstrate that blocking PD-1/PD-L1 signaling concomitantly with initiation of antigen stimulation and OX40 costimulation leads to an increase in apoptosis of antigen-specific CD8⁺ T cells in vitro. We also observed a reduction in the expression of pro–caspase-3 and anti-apoptotic Bcl-xL proteins in treated cells. Concomitant treatment with anti–PD-1 at the time of initiation of anti-OX40 treatment with vaccine resulted in apoptosis of E7⁺CD8⁺ T cells in both tumors and spleens in vivo. These findings indicate that PD-1 signaling is required during early T-cell activation and proliferation mediated by anti-OX40. These data also suggest that simultaneous OX40 costimulation and PD-1 pathway blockade lead to increased activation and proliferation of T cells, resulting in their apoptosis both in the periphery and in the TME.

ImmunoSequencing and analysis of the tumor and spleen T-cell repertoires returned analyses consistent with increased apoptosis after addition of PD-1 blockade. Analyses of T-cell infiltration revealed a significant reduction in the T-cell fraction in the TME following addition of PD-1 blockade to anti-OX40/vaccine treatment. The clonality of the T-cell repertoire in a TME quantitates the expansion of clones that may be responding to antigens. Increases in clonality in the TME post- anti–PD-1/anti-CTLA-4 therapy have correlated with response (34) and clonality in the pretreatment TME is a predictive biomarker of response to anti–PD-1 treatment (27). Here, we observed a trend toward decreased clonality when PD-1 blockade was added to anti-OX40/vaccine treatment, suggesting that antigen-specific T cells are at lower frequencies in these mice. Upon identifying a set of T cells that may be antigen-specific in the mice treated with anti-OX40/vaccine, we found that these T-cell clones trended toward a lower frequency after the addition of PD-1 blockade. In the future, sequencing of antigen (E7)-specific T cells may provide corroborating evidence for this hypothesis.

Our results demonstrate that addition of PD-1 blockade is detrimental for therapeutic outcomes when combined with anti-OX40 and vaccine at the initiation of therapy. However, addition of anti–PD-1 in a delayed schedule, whether sequential or overlapping, did not exhibit the same negative effect on anti-OX40. Our in vitro data were consistent with our in vivo findings. In vitro pMel-1 CD8⁺ T-cell stimulation experiments show that contrary to when anti–PD-1 and anti-OX40 were added simultaneously, addition of anti–PD-1 after the initial costimulation with anti-OX40 and antigen does not lead to apoptosis of CD8⁺ T cells. Similarly, we found that the delayed administration of anti–PD-1 did not result in a therapeutic benefit.

Several mechanisms may underlie the effect of treatment schedules on therapeutic outcome. For example, PD-1–induced TCR-mediated signaling alters dynamics of contact interactions between T cells and antigen-bearing dendritic cells (DCs; ref. 35). It is possible that a different sequencing of PD-1 blockade or addition of PD-1 blockade to other therapies modulate the interaction of T cells with the DCs so the T cells remain migratory and become anergic. PD-1 signaling is also involved in altering T-cell metabolism. Activated T cells receiving signals from PD-1 have a more oxidative environment, leading to PD-1–mediated T-cell dysfunction during chronic infections and cancer (35). PD-L1 expression is also associated with cancer cell-intrinsic signaling through the PI3K/Akt/mTOR pathway, leading to enhanced glycolytic metabolism in cancer cells (35). The scheduling of PD-1 blockade before, during, and after vaccine or anti-OX40 may alter these signaling events leading to modulation of metabolism and the effector function of T cells.

Our results may not be applicable to other checkpoint inhibitor combinations with anti-OX40. A combination of anti-OX40 and anti-CTLA-4 Abs with peptide vaccine induces expansion of tumor-specific pMel-1 CD8⁺ T cells (36). And, in a spontaneous tumor model where a combination of anti-OX40 and anti-CTLA-4 Abs induced T-cell anergy, addition of vaccine overcomes T-cell anergy, promotes expansion of effector T cells, and augments Th1 cytokine-producing CD8⁺ T cells (36). However, that study did not report the effects of combination of vaccine and anti-OX40 on tumor growth, survival or immune response making the comparison with our results problematic.

We show that simultaneous blockade of PD-1 and costimulation of OX40 has an adverse effect on the antitumor activity of OX40 costimulation. Our data has important implications for cancer immunotherapy, particularly the combination of anti–PD-1 and anti-OX40. Based on these results, the identification of optimum sequencing for targeting immune checkpoint modulators in combination immunotherapy of cancer is critical to achieve a maximum, long-lasting response, and clinical success.
