Accumulating evidence shows that PD-L1 expression on dendritic cells (DC) is critical for cancer immunotherapy and that Porphyromonas gingivalis (Pg) colonization aggravates the progression of upper gastrointestinal cancers. However, the effects of Pg infection on PD-L1 expression on DCs and related immune consequences in the infection milieu of oral cancer remain unexplored. Here, we found that Pg infection robustly enhanced PD-L1 expression on DCs in a gingipain-dependent manner in cultured cell and systemic infection assays. Pg infection suppressed antigen-specific CD8+ T cells through upregulation of PD-L1 expression on ovalbumin (OVA)-pulsed DCs. This suppression was manifested by decreased IFNγ, perforin, granzyme B, and CD107a. Further analysis showed that Pg drastically reduced CD8+ T cells’ ability to lyse OVA-pulsed target cells. Additionally, Pg infection increased the phosphorylation of Akt and STAT3, leading to a significant increase in PD-L1 expression. This was substantiated by using siRNA, overexpression plasmids, and pharmacologic inhibitors. Consistent with the in vitro observations, in a syngeneic mouse oral cancer model, Pg infection significantly enhanced PD-L1 expression on DCs from intratumoral tissues and cervical lymph nodes and exacerbated oral cancer progression, whereas a Pg lysine-specific, gingipain-defective mutant failed to do so. These influences of Pg were largely diminished when tumor cells were pretreated with antibiotics or a STAT3 inhibitor. Therefore, we demonstrated that Pg infection upregulates PD-L1 expression on DCs through Akt-STAT3 signaling, suppresses CD8+ T-cell cytotoxicity, and aggravates oral cancer growth, suggesting targeting Pg, and/or its mediated signaling, could be a therapeutic strategy to improve the efficacy of checkpoint blockade immunotherapy.
Activated CD8+ T cells [cytotoxic T lymphocyte (CTL)] express a range of effector molecules to defend against pathogens and cancer cells (1). Major CTL activities are mediated either directly by synaptic exocytosis of cytotoxic granules containing perforin (Prf) and granzyme B (GrB) into the target, resulting in infected or cancer cell destruction, or indirectly through secretion of cytokines such as interferon (IFN)γ to promote tumoricidal activity (2). Adhesion/co-stimulatory molecules on CTLs play a critical role in the T-cell receptor (TCR)–mediated lysis of target cells by interacting with their cognate ligands. In this regard, programmed cell death protein 1 (PD-1), an inducible immunoglobulin expressed on activated T and B lymphocytes, plays a key role in controlling peripheral tolerance and lymphocyte activation and has two ligands, PD-L1 (B7-H1) and PD-L2 (B7-DC). The binding of PD-1 to its ligands results in the inhibition of T-cell proliferation and secretion of cytokines. Therefore, PD-1 and its coligand interaction act as a threshold in the modulation of adaptive immunity by restraining the cytotoxic activity of CD8+ T cells. Such immunoregulatory properties of PD-1/PD-L1 signaling have been targeted for the development of novel therapies in chronic infections and tumor progression (3, 4), which have achieved highly impressive successes during the last decade (3, 5).
In the tumor microenvironment, PD-L1 is widely expressed on tumor cells and various immune cells including dendritic cells (DC), macrophages, and myeloid-derived suppressor cells (MDSC; refs. 6, 7). The expression of PD-L1 on tumor cells (tumoral PD-L1) has been approved by the US Food and Drug Administration as a companion diagnostic indicator for PD-L1/PD-1 blockade therapy (8). However, almost half of patients positive for tumoral PD-L1 do not respond to PD-L1 blockade, whereas some patients with PD-L1–negative tumor cells respond well (9–11). Importantly, a growing body of studies has demonstrated that PD-L1 expressed by DCs (DC-PD-L1) is critical for the regulation of CTLs in the tumor microenvironment (12–15). A lack of PD-L1 on DCs drastically reduces the therapeutic effect of PD-L1 blockade immunotherapy in different tumor models (12–15). Additionally, recent studies show that PD-L1 expression by myeloid cells could serve as the sole predictor of immune responses (15, 16). These findings highlight the significance of DC-PD-L1 in the efficacy of immune-checkpoint blockade therapy (12–14) and suggest that the relative contributions of PD-L1 on different lineages of cells remain incompletely understood and that further investigations are needed to clarify the working model of how PD-L1/PD-1 signaling inhibits immune responses.
Porphyromonas gingivalis (P. gingivalis) is a gram-negative, pathogenic oral bacterium that is associated with multiple systemic inflammatory diseases, such as atherosclerosis, arthritis, and some cancers (17). Apart from lipopolysaccharide, fimbriae, and capsule, P. gingivalis secretes a unique group of cysteine proteases called gingipains that cleave extracellular matrix components, cell receptors, and intracellular molecules, demonstrating the involvement of this bacterium in various host cell responses (17). Our and other previous studies have demonstrated that P. gingivalis infection promotes the growth and metastasis of different cancers, suppresses chemotherapy-induced apoptosis, and worsens the prognosis of cancer patients (18–21). Moreover, recent studies show that P. gingivalis infection promotes anti-inflammatory macrophage polarization and enhances PD-L1 expression by oral epithelial and cancer cells (22–24). Notably, P. gingivalis infection is also found to affect the activity and differentiation of various T-cell subsets (25, 26). Because DC-PD-L1 was recently demonstrated to be critical for the efficacy of checkpoint blockade immunotherapy (13–15), it would be of paramount importance to know whether P. gingivalis infection affects DC-PD-L1 expression and the molecular mechanisms involved, as well as the subsequent influences on CD8+ T-cell cytotoxicity and oral cancer progression.
In this study, we demonstrated for the first time that P. gingivalis infection enhanced the expression of DC-PD-L1 in a gingipain-dependent manner, which downregulated CD8+ T-cell cytotoxicity and exacerbated oral cancer progression in a syngeneic mouse model. Moreover, we found that this increased DC-PD-L1 expression arose through modulation of Akt–STAT3 signaling. Considering the newly identified critical role of DC-PD-L1 in various cancers and chronic infections, measuring and targeting P. gingivalis and its associated signaling pathways will advance the understanding of P. gingivalis–induced immunosuppression and provide insights into improvement of immune-checkpoint blockade therapy.
Materials and Methods
EL4 T-lymphoma cells (EL4; ATCC TIB-39) were purchased from ATCC in 2022, and murine oral cancer cells (MOC1) were purchased from Kerafast in 2020. Both cell lines were authenticated using short tandem repeat profiling according to the vendor's information and not reauthenticated after acquisition. All cells were used at 1 to 5 passages after thawing and routinely tested for Mycoplasma contamination using the MycoAlert Mycoplasma Detection kit (Lonza, cat.# LT07-318) before each experiment. Both cell lines were expanded and frozen at early aliquots, and each were cultured for less than a total cumulative time of 6 months from the time of acquisition to the experiment. All cells (including DCs and T cells below) were cultured in 37°C, 5% CO2 in RPMI-1640 medium (ThermoFisher, cat. #21870092) supplemented with 10% fetal bovine serum (R&D Systems, cat. #S11550H), 2 mmol/L L-glutamine (ThermoFisher, cat. #25030081), 20 mmol/L pH7.3 HEPES (Corning, cat. #25–060-CI), 7.5% (W/V) sodium bicarbonate (Corning, cat. #25-035-CI), 100 mmol/L sodium pyruvate (Corning, cat. #25-000-CI), 50 μmol/L 2-mercaptoethanol (Sigma, cat. #M3148-100ML), 1% penicillin/streptomycin (ThermoFisher, cat. #15140-122) and 2.5 mg/mL Plasmocin Prophylactic (InvivoGen, cat. #Ant-mpp).
Mice, bacteria, and cell culture
Ten- to 12-week-old C57/BL6 wild-type and C57BL/6-Tg (TcraTcrb)/J (also known as OT-I mice) female mice were obtained from the Jackson Laboratory. Mice were housed in the animal facility of Virginia Commonwealth University in accordance with animal care standards of the institution. Animal experiments were approved by Virginia Commonwealth University.
Different P. gingivalis strains including ATCC 33277, W83, and their isogenic mutants lacking lysine- or arginine-specific gingipain protease, described as ΔKgp and ΔRgp, respectively, were from Jan Potempa's Lab (University of Louisville School of Dentistry, Louisville, KY). The deletion of target genes was confirmed with PCR before use. The bacteria were cultured anaerobically in trypticase soy broth (BD Bacto; cat. #211825) supplemented with yeast extract (1 mg/mL, BD Bacto, cat. #212750), hemin (5 μg/mL, MilliporeSigma, cat. #51820), and menadione (1 μg/mL, MilliporeSigma, M9429). Streptococcus sanguinis SK36 (from Dr. Kitten's lab, Virginia Commonwealth University School of Dentistry) was grown at 37°C in Anoxomat jars (Spiral Biotech) under microaerobic conditions (7% H2, 7% CO2, 80% N2, and 6% O2) in brain heart infusion (BHI; Bacto) broth. Fms-related tyrosine kinase 3 ligand (Flt3l)- and granulocyte-macrophage colony-stimulating factor (GM-CSF)–mediated bone marrow–derived DCs, abbreviated as Flt3l-DCs and GMDCs, respectively, were generated according to the procedures described in previous studies (27, 28).
CD3+ T cells were isolated from the spleens of wild-type and OT-I mice using a CD3+ T-cell isolation kit (R&D System). DCs were infected with P. gingivalis or ΔKgp for 4 hours at MOI 10 for all in vitro cell infections. For bacterial treatment, DCs were directly seeded in either a 96- or 6-well plate for the indicated studies. All DCs and EL4 T-lymphoma cells (EL4) were cultured in RPMI-1640 medium and maintained at a temperature of 37˚C in a humidified growth chamber under 5% CO2 as described above.
For ELISAs in mixed lymphocyte reactions, 2×103 cells were plated into each well per 96-well U-shaped bottom microplate (ThermoFisher, cat. #168136) in RPMI-1640 medium as specified above. After coculturing for 3 days, cell-free supernatants were collected, and the production of IL2 and GrB was assayed using ELISA kits (ELISA MAX Mouse IL2 kit, cat. #431001, BioLegend; GrB Mouse ELISA kit, cat. #BMS6029, ThermoFisher) according to the manufacturer's instructions. 20 μL cell-free supernatants was first diluted 1:10 for IL2 assay and 100 μL was diluted 1:2 for GrB assay, followed by a serial 2-fold dilution until the dilution reached 1:80 and 1:16, respectively. Dilution buffer (including in the kit) and the supernatant from unstimulated cells were used as a blank and sham control, respectively. The recombinant standard proteins were included in the kit and a standard curve was generated in each assay. SpectraMax iD3 (Molecular Devices) was used for optical density (OD) measurements at 450 and 540 nm, in triplicate. The optical imperfections in the plate were corrected by subtracting OD at 540 nm from that at 450 nm. Concentrations were calculated using GraphPad Prism with the interpolation of a linear standard curve. The average of triplicate samples was used for quantification.
For Western blots, DCs in 6-well plates were pretreated with type I IFN receptor 2 antibody (10 μg/mL, R&D Systems, cat. #AF1083), type II IFN antibody (0.5 μg/mL, R&D Systems, cat. #AF-585), isotype control (0.5 μg/mL, R&D Systems, cat. #AB-1098) antibody, Akti (2.5 μmol/L, SelleckChem, cat. #S7776), MK2206 (5 μmol/L, APExBIO, cat. #A3010), or WP-1066 (10 μmol/L, SelleckChem, cat. #S2796) for 2 hours, or transfected with specific stat3 siRNA or a plasmid encoding stat3 with a scramble siRNA and vehicle plasmid as controls for 72 hours (as described below), then challenged with P. gingivalis or ΔKgp for 0.5, 1, 2, 4, 6, 12, or 24 hours followed by lysis of cells with radioimmunoprecipitation assay (RIPA) buffer (MilliporeSigma, cat. #R0278) containing ReadyShield Phosphatase and Protease inhibitor cocktail (MilliporeSigma, cat. #PPC2020). Protein concentrations were determined using the bicinchoninic acid (BCA) protein assay kit (ThermoFisher, cat. #23225). An equal amount of protein samples (10 μg) was separated in NuPage Novex 4% to 12% bis-Tris polyacrylamide gels (Invitrogen, cat. #NP0326BOX) and electroblotted onto polyvinylidene difluoride membranes (PVDF; Millipore, cat. #03010040001). After blocking by 5% BSA (MilliporeSignma, cat. #A7906), PVDF membranes were incubated with primary antibodies at 4°C overnight and then secondary antibodies for 1 hour at room temperature. The primary antibodies used were: anti–PD-L1 (R&D Systems, #AF1019, 1:1,000), anti-phospho-Akt (Ser473; Cell Signaling Technology, #4058, 1:1,000), anti-phospho-STAT3 (Tyr705; Cell Signaling Technology, #9145, 1:1,000), anti-phospho-STAT3 (Ser727; Cell Signaling Technology, #9134, 1:1,000), anti-Akt (Cell Signaling Technology, #4691, 1:1,000), and anti-STAT3 (Cell Signaling Technology, #4904, 1:1,000). The secondary antibodies used were: HRP-linked anti-rabbit antibody (Cell Signaling Technology, #7074, 1:3,000) and HRP-linked anti-goat antibody (Santa Cruz, cat. #sc-2354, 1:3,000). Anti-β-actin (Cell Signaling Technology, #4970, 1:2,000), anti-GAPDH (Cell Signaling Technology, #5174, 1:2,000), and anti-P38 (Cell Signaling Technology, #9212, 1:2,000) were used as loading control antibodies for protein normalization. Images were acquired using the G:Box Chemi XXI (Syngene).
Stat3 siRNA and plasmid transfection
For transfections, 3 × 106 Flt3l-DCs were transfected with a library of four stat3 siRNA with the following sequences: 5′ CUCAGAGGGUCUCGGAAAU 3′, 5′ CCGCCAACAAAUUAAGA AA 3′, 5′ CUCAGAGGGUCUCGGAAAU 3′, 5′ GAGUUGAAUUAUCAGCUUA 3′, 5′ CAGU UUACCACGAAAGUCA 3′. These siRNAs were arrayed as a SMARTPool (Dharmacon) and transfected using Lipofectamine RNAiMAX (ThermoFisher, cat. #13778075) according to the manufacturer's instructions. A scrambled siRNA was used as a control with the sequence: 5′ UUCUCCGAACGUGUCACGUdtdt 3′. The plasmid encoding STAT3 (Addgene, cat. #8706) and a vehicle control plasmid (Addgene, cat. #10792) were also transfected into DCs using Lipofectamine LTX/Plus reagent (ThermoFisher, cat. #15338100) following the manufacturer's procedure. After transfection for 72 hours, the cells were treated with P. gingivalis for 6 or 24 hours. The cells were lysed as described above for Western blots. Anti-STAT3 (Cell Signaling Technology, #4904, 1:1,000) and anti-GAPDH (Cell Signaling Technology, #5174, 1:2,000) were used to assess the transfection efficacy.
Mice were euthanized by CO2 asphyxiation followed by cervical dislocation and immersed in 75% ethanol for 3 to 5 minutes, then transferred to the biosafety cabinet. The spleen and cervical lymph nodes (CLN) were collected and placed in sterile 6-well plates (Corning Costar, cat. #07-200-83) with 3 mL 1× phosphate-buffered saline (PBS; ThermoFisher, cat. #10010) on ice. Spleen tissues were minced with a razor (ThermoFisher, cat. #G535010) and CLNs were dissociated with two frosted slides (ThermoFisher, cat. #12-548) followed by digestion with 1× PBS solution including 1 mg/mL collagenase A (Worthington, cat. #LS004174), 1 mg/mL DNase (MilliporeSigma, cat. #10104159001), and 2% heat-inactivated FBS (R&D Systems, cat. #S11550H) for 20 minutes at 37°C with 5% CO2. The digested tissues were then passed through 70-mm cell strainers (MilliporeSigma, cat. #CLS431750) using mechanical force with the rubber end of a 5-mL syringe. Cell suspensions were then treated with 0.1M EDTA (ThermoFisher, cat. #15575) for 5 minutes at 37°C and washed 2 times with 1×PBS. After lysis of red blood cells with ammonium chloride potassium (ThermoFisher, cat. #A1049201), cells were collected by centrifugation at 450 × g for 10 minutes at 4°C.
DCs and OT-I T-cell coculture
DCs were collected and seeded into U-bottom 96-well plates (ThermoFisher, cat. #168136) at 0.02 × 106 cells per well. Cells were treated with a serial concentration of ovalbumin (OVA) peptide 257–264 (SIINFEKL; 0.1, 0.5, 1, and 10 ng/mL, AnaSpec Inc., cat. #AS-60193) for 2 hours, followed by treatment with a STAT3 inhibitor, WP-1066 (10 μmol/L, SelleckChem, cat. #S2796) or PD-L1 antagonist binding peptide, (D)-PPA (NYSKPTDRQYHF; 5 mg/mL, R&D Systems) for 1 hour. The cells were then challenged with P. gingivalis or ΔKgp (MOI = 10) for 3 hours, followed by washing three times with 1× PBS (ThermoFisher, cat. #10010), and cocultured with 0.08 × 106 CD3+ splenic T cells isolated from OT-I mice in RPMI-1640 medium as specified above. After coculturing for 3 days, cells were treated with 1:500 diluted eBioscience Protein Transport Inhibitor Cocktail (ThermoFisher, cat. #00-4980), which includes brefeldin A (5.3 mmol/L) and monensin (1 mmol/L), for 6 hours and then harvested for CD8+ T-cell analysis of Prf, GrB, IFNγ, and CD107a, as well as PD-L1 on MHC-II+CD11c+PD-L1+ cells by flow cytometry as described below. ELISAs (as described above) were also used as a confirmatory approach to examine the secretion of IL2 (ELISA MAX Mouse IL2, cat. #431001, BioLegend) and GrB (GrB Mouse ELISA, cat. #BMS6029, ThermoFisher). In addition, after challenge with P. gingivalis for 24 hours, the percentages of CD11b+/CD11c+, CD80+/86+, or CD3+/CD8+ cell populations were analyzed by flow cytometry as described below.
Cell staining and flow cytometry
Cocultured cells were blocked with a transport inhibitor cocktail as described above (ThermoFisher, cat. #00-4980) for 6 hours before harvest. They were then collected and washed twice with Flow Cytometry Staining Buffer (ThermoFisher, cat. #00-4505-51) and stained with Zombie Aqua (BioLegend, cat. #423101), to exclude dead cells, followed by incubation with CD16/CD32 antibody (ThermoFisher, cat. #14-0161-82) for 20 minutes on ice to block nonspecific Fc receptor binding. Cells were then incubated with the following fluorescently labeled anti-mouse antibodies from ThermoFisher: CD3-Alex700 (cat. #56-0032-82), CD8+-APC-Cy7 (cat. #A18637), CD11c-PerCP-cy5.5 (cat. #45-0114-82), PD-L1–PE (cat. #12-5982-82), and CD107a-efluor450 (cat. #48-1071-82). The stained cells were then washed, fixed/permeabilized using eBioscience Fixation and Permeabilization Buffer Set (ThermoFisher, cat. #88-8824-00) and stained with PE-Cyanine 7-IFNγ (ThermoFisher, cat. #25-7311-82), APC-Prf (ThermoFisher, cat. #17-9392-80), and FITC-GrB (ThermoFisher, cat. #11-8898-82). Isotype control antibodies were also used including Rat IgG2b kappa (Alexa Fluor700, cat. #56-4031-80), Armenian Hamster IgG (PerCP/Cyanine5.5, cat. #45-4888-80), Rat IgG2a kappa (PE, cat. #12-4321-80), Rat IgG2a kappa (eFluor 450, cat. #48-4321-82), Rat IgG1 kappa (PE-Cyanine7, cat. #25-4301-82), Rat IgG2a kappa (APC, cat. #11-4321-81), and Rat IgG2a kappa (FITC, cat. #11-4321-80). Cells were acquired with an LSRFortessa flow cytometer (BD Biosciences). Data were analyzed with FlowJo v10 software (BD Biosciences).
Cross-presentation assay and CD8+ T-cell cytotoxicity assay
The Flt3l-DCs (1×105/mL) were incubated with 1 ng/mL OVA (MP Biomedicals) for 2 hours, followed by challenge with P. gingivalis or ΔKgp (MOI = 10) for 3 hours. Cells were then washed three times with warm PBS. Splenic CD8+ T cells from OT-I mice were purified using a CD8+ T-cell isolation kit (ThermoFisher, cat. #8804-6822-74) and primed via coculturing with DCs as above for 3 days. EL4 cells were used as target cells in cocultures with mouse CD8+ cytotoxic T cells. Equal amounts of EL4 target cells, in two separated groups, were labelled with high and low concentrations of carboxyfluorescein succinimidyl ester (CFSE; 1 and 0.1 μmol/L, eBioscience, cat. #65-0850-84), respectively. The 1 μmol/L-CFSE-labelled EL4 cells were prepulsed with OVA peptide (5 μmol/L, AnaSpec Inc., cat. #AS-60193) for 12 hours, mixed with 0.1 μmol/L-CFSE-labelled unpulsed cells (used as an internal control), and then cocultured with primed CD8+ T cells at 5:1, 10:1, or 20:1 effector-to-target cell ratios in three independent replicates. After 6 hours of incubation, Zombie Aqua was used to assess cell viability, and living EL4 cells could then be monitored and analyzed using flow cytometry, showing negative staining with Zombie Aqua. Target cell killing (target cell lysis) by CD8+ T cells was determined by calculating the number of low-concentration CFSE-stained cells minus the number of high-concentration CFSE-stained cells: 100× [1 − (% of 1 μmol/L CFSE cells/% of 0.1 μmol/L CFSE cells)], as previously described (29).
Systemic bacterial infection assay
Ten- to 12-week-old C57/B6/J mice were randomly divided into four different groups for intraperitoneal (i.p.) injection of P. gingivalis 33277, P. gingivalis ΔKgp mutant, S. sanguinis, or PBS as a solvent control (1×108 bacterial cells in 100 μL PBS). Spleens were harvested 24 hours after i.p. injection. In a separate experiment, four groups of mice were orally infected with the same bacteria mentioned above every other day for three infection periods as described in our previous studies (23, 30). CLNs were collected after 30 days from the first infection. Splenocytes and lymphocytes were isolated as described above, then harvested and stained with antibodies to assess the expression of PD-L1 on MHC-II+CD11c+PD-L1+ cells by flow cytometry as described above.
MOC1 cell inoculation induced syngeneic oral cancer model and IHC
MOC1 with/without pretreatment of P. gingivalis 33277 were inoculated into 10- to 12-week-old wild-type C57/BL6 mice (n = 5 to 7) tongues. Mice were then orally infected with 1 × 109 CFU of the bacteria above suspended in 100 μL of PBS with 2% carboxymethylcellulose (MilliporeSigma, cat. #C4888) for a total of three times every other day. Additional experimental groups included intraperitoneally administering WP-1066 (10 mg/kg) every other day or metronidazole (5 mg/mL) ad libitum in drinking water for 30 days with/without bacterial infection. Control groups included untreated mice or those treated with antibiotic water or inhibitor only. In a separate experiment, we also examined the effect of the ΔKgp mutant using the same protocol outlined above. Additionally, to examine the clinical relevance of P. gingivalis infection in tumor progression under the natural infection milieu of the oral cavity, we modified this model by orally infecting mice every other day for three infection periods, followed by inoculation with uninfected MOC1 cells. The mice were euthanized with CO2 and cervical dislocation 24 days after the final infection on the sixth day. Tumor growth was evaluated after the mice were sacrificed via measuring the area of each tumor mass by three different operators, which was used to represent approximate tumor volume as described in a previous study (31). Given there is not a widely accepted measuring approach to estimate the tumor volume in a MOC1-mediated syngeneic model, we used an approach from the clinical practice guideline, Response Evaluation Criteria in Solid Tumors v.1.1. (RECIST 1.1), in which the largest diameter of each tumor mass was measured to represent its volume (18, 32).
After tongue-bearing tumors were collected, tumors were cut in the middle along the longest direction, fixed in 4% paraformaldehyde, embedded in paraffin wax, and stained with hematoxylin and eosin (H&E) using a staining kit (Vector Laboratories, cat. #H-3502). Tissue blocks were prepared and cut into 4-μm sections, with the first three sections from each half block used to calculate the largest diameter of each tumor. Measurements were performed under microscopy after HE staining. Additionally, CLNs were harvested. Lymphocytes were isolated as described above, followed by the analysis of PD-L1 by flow cytometry. The paraffin-embedded tissue sections were also used for immunostaining with mouse CD11c (Bioss, cat. #bs-2508, dilution 1:100) and PD-L1 (ThermoFisher, cat. #14-5982-82, dilution 1:100) antibodies, followed by secondary goat-anti-rabbit Alexa Fluor 488– (ThermoFisher, cat. #A11034, dilution 1:1,000) or goat-anti-rat Alexa Fluor 647 (ThermoFisher, cat. #44181, dilution 1:1,000)-conjugated IgG. PBS containing normal goat serum (R&D Systems, AB-1908, dilution 1:1,000) was used as a sham control. Images were captured using a fluorescence microscope (Nikon Elipse E800) and processed by Neurolucida, an image analysis software designed by MBFBioscience that can accurately perform fluorescence signal analysis. Quantification of the percentage of the PD-L1–positive area in region of interest (ROI) was performed using the image processing software ImageJ (Fiji; https://imagej.net/Fiji/Downloads), following the standard recommended algorithm (33). The images were imported and processed with color deconvolution and adjusted by threshold and measurement settings to get the percentage of positive areas.
The statistical significance of differences between multiple groups was evaluated by the analysis of variance (ANOVA), one-way or two-way, followed by the Tukey multiple comparison test using the InStat program (GraphPad). A two-tailed unpaired Student t test was used for the comparison between the two groups. All described results are representative of at least three independent experiments. Statistical analyses and the number of samples (n) are described in detail in the legend for each figure panel. Data were presented as the mean ± standard error (SE). A value of P < 0.05 was considered statistically significant. *, **, ***, and ****, represent P < 0.05, P < 0.01, P < 0.001, and P < 0.0001, respectively. The experiments were not randomized, except that the mice were randomly grouped before treatment.
The data generated in this study are available upon request from the corresponding author.
P. gingivalis infection upregulates PD-L1 expression on DCs in a gingipain-dependent manner

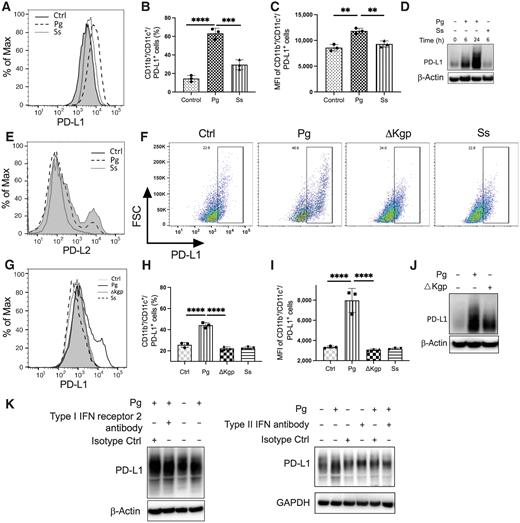

PD-L1 is reported to be constitutively expressed on the surface of DCs to restrain the activation of effector T cells (34). Using 10 day-cultured GMDCs and Flt3l-DCs, we first examined if P. gingivalis infection affected the frequency and maturation of DCs. Compared with unstimulated controls, P. gingivalis infection elevated expression of CD80/CD86, but did not substantially change the expression of CD11b and CD11c on either kind of DCs (Supplementary Fig. S1), indicating P. gingivalis infection may affect DC maturation with little influence on the number of DCs. Next, we examined PD-L1 expression on GMDCs in response to P. gingivalis infection. We found that P. gingivalis infection significantly increased PD-L1 expression on GMDCs compared with the unstimulated or the commensal bacterium-, S. sanguinis, stimulated cells (Fig. 1A–C), which was further confirmed by Western blot (Fig. 1D). We did not observe any notable changes in PD-L2 expression on DCs (Fig. 1E). Because GM-CSF stimulation preferentially expands the type 2 conventional DC (cDC2) subset, whereas Flt3l stimulation expands higher percentages of type 1 cDCs (cDC1; ref. 35), we next examined if P. gingivalis infection promoted PD-L1 expression on Flt3l-DCs. The expression of PD-L1 on Flt3l-DCs robustly increased upon P. gingivalis challenge (Fig. 1F–J).
Given that Flt3l-mediated cDC1 cells are more efficient in tumor antigen cross-presentation compared with CD8+ T cells (36, 37), we used Flt3l-DCs throughout this study. To investigate the virulence factors of P. gingivalis in the regulation of PD-L1 expression, we next examined if infection with the ΔKgp mutant affected PD-L1 expression on Flt3-DCs. The absence of gingipain abrogated the ability of P. gingivalis to upregulate the expression of PD-L1 (Fig. 1F–J), which was further confirmed by Western blot (Fig. 1J). Because interferon is a dominant contributor to the expression of PD-L1 on DCs (38, 39), we also utilized neutralization antibodies to block type I IFN receptor 2 and type II interferon to examine if P. gingivalis promoted PD-L1 expression through the de novo synthesis of interferons. No substantial changes of PD-L1 were observed on DCs between treatments with neutralization antibodies and isotype controls (Fig. 1K), indicating that interferon may not be involved in P. gingivalis–enhanced PD-L1 expression. Altogether, our results demonstrate that P. gingivalis infection promotes PD-L1 expression on DCs, and the gingipain protease is a key factor in this process.

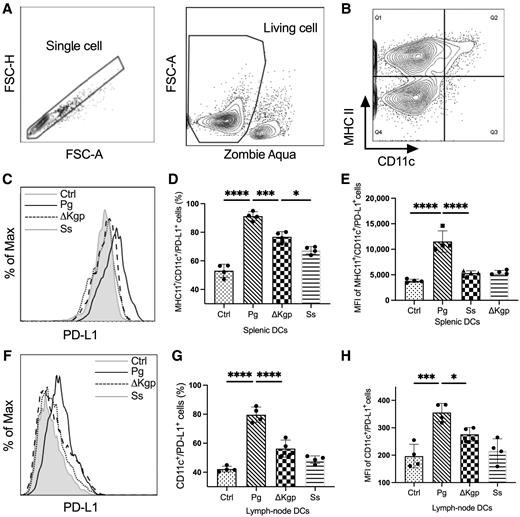

We next examined PD-L1 expression on splenic DCs (MHC-II+CD11c+; Fig. 2A and B) from mice inoculated with P. gingivalis or its mutant, ΔKgp, for 24 hours. Likewise, S. sanguinis was used as a commensal control bacterium. P. gingivalis significantly enhanced PD-L1 expression on CD11c+MHC-II+ cells, whereas ΔKgp largely lost this ability, compared with infection with the commensal bacterium (Fig. 2C–E). Additionally, we used an in vivo P. gingivalis chronic infection model, as performed in our previous studies (23, 30), to examine the possible alteration of DC phenotypes in infected mice. We found that oral infection with P. gingivalis led to a significant increase of PD-L1 expression on DCs from CLNs, whereas the ΔKgp mutant and the commensal control failed to do so (Fig. 2F–H). Altogether, these results demonstrate for the first time that P. gingivalis promotes PD-L1 expression on DCs in vitro and in vivo in a manner that is dependent on the presence of the lysine-specific gingipain protease.
P. gingivalis infection enhances DC-PD-L1 expression through Akt and STAT3 signaling

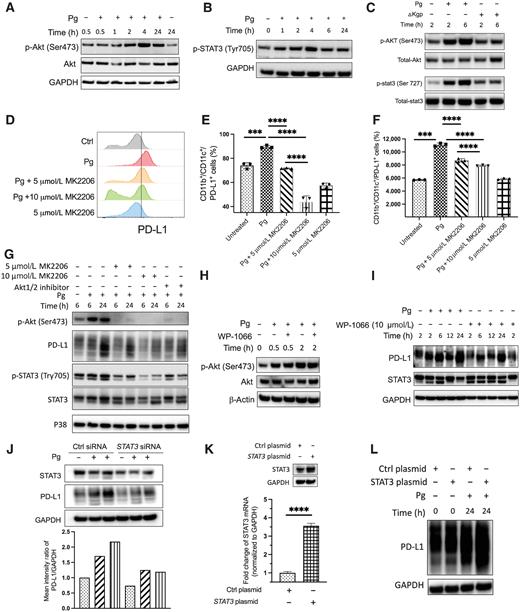

P. gingivalis infection activates a multitude of signaling cascades that lead to inflammatory immune responses. Given that both Akt and STAT3 are critical drivers for the expression of PD-L1 (40, 41), we next examined if P. gingivalis infection-mediated upregulation of DC-PD-L1 was through Akt and STAT3. As expected, P. gingivalis infection robustly increased phosphorylation of Akt and STAT3 (Fig. 3A and B), but the ΔKgp mutant only slightly enhanced phosphorylation of STAT3 and failed to induce Akt phosphorylation (Fig. 3C). Given that the trend of Akt and STAT3 phosphorylation (Fig. 3A–C) was similar to that of PD-L1 expression (Fig. 1G–J) in response to the challenge of P. gingivalis and ΔKgp, it is possible that P. gingivalis–elevated PD-L1 is through the regulation of Akt and STAT3. To further prove this point, we utilized a specific Akt inhibitor, MK2206, to treat DCs and examine PD-L1 expression upon the challenge of P. gingivalis. We found that inhibition of Akt decreased PD-L1 expression on P. gingvialis–stimulated DCs in a dose-dependent manner (Fig. 3D–F) and was confirmed via Western blot (Fig. 3G). Moreover, Akt inhibition led to decreased phospho- and total-STAT3 (Fig. 3G), suggesting STAT3 might be a downstream target of Akt (Fig. 3G). This was inversely verified by the observation that STAT3 inhibition failed to affect Akt phosphorylation in P. gingivalis–stimulated DCs (Fig. 3H). Additionally, we found that chemical inhibition or gene silencing of STAT3, via siRNA, resulted in a significant decrease in PD-L1 expression in P. gingivalis–stimulated DCs (Fig. 3I and J). To exclude the possible off-target effects of the siRNA and verify the effect of STAT3 on PD-L1 expression, we transfected a plasmid encoding STAT3 into DCs and found that STAT3 overexpression (Fig. 3K) led to a significant increase of PD-L1 upon P. gingivalis challenge (Fig. 3K and L). These data suggest that the P. gingivalis–induced elevated PD-L1 expression on DCs was through modulation of Akt–STAT3 signaling.
P. gingivalis–mediated Akt–STAT3 signaling promotes PD-L1 expression and suppresses CD8+ T-cell activity

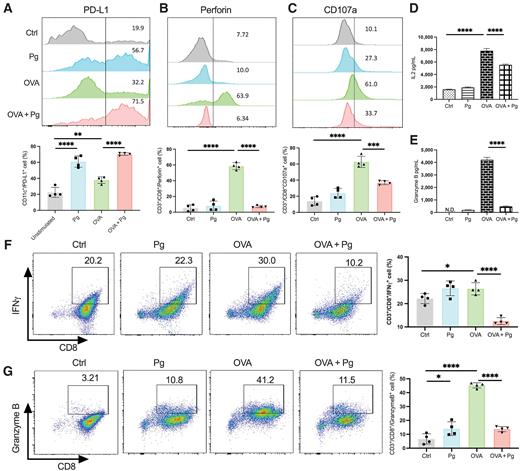

We next examined the possible influences of P. gingivalis on CD8+ T-cell activation. To do this, Flt3l-DCs were prepulsed with antigenic OVA peptide (SIINFEKL) at concentrations ranging from 0.1 to 10 ng/mL, followed by a challenge with P. gingivalis and coculture with OVA-specific, splenic CD8+ T cells from OT-I mice for 3 days. Because 1 ng/mL OVA stimulation was observed to produce the highest level of IL2 (Supplementary Fig. S2), we used this concentration throughout the following experiments. P. gingivalis treatment significantly elevated PD-L1 expression on DCs, which is consistent with our observations in Fig. 1, suggesting that P. gingivalis infection promotes the expression of PD-L1 in different contexts (Fig. 4A). Moreover, OVA-pulsed DCs effectively activated CD8+ T cells, represented by a significant increase of effector molecules, including Prf, GrB, and CD107a, and hallmark cytokines, IFNγ and IL2 (Fig. 4B–G). However, when antigen-pulsed DCs were challenged with P. gingivalis, the production of effector molecules and hallmark cytokines was significantly decreased (Fig. 4B–G), which was further confirmed by ELISA (Fig. 4D and E). These results suggest that P. gingivalis infection enhances PD-L1 expression and suppresses CD8+ T-cell activity.

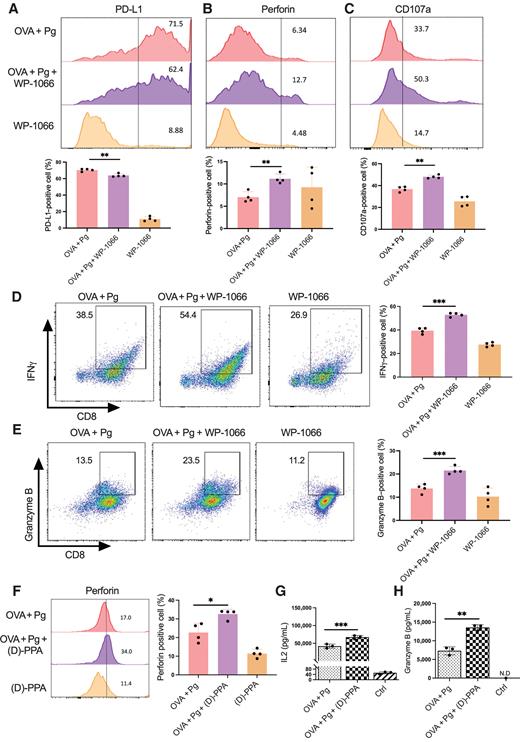

To further determine whether P. gingivalis–mediated suppression of CD8+ T cells was through modulation of STAT3 and PD-L1, we first utilized a STAT3 inhibitor, WP-1066, to treat antigen-pulsed DCs, followed by challenge with P. gingivalis and coculture with CD8+ T cells. After 72 hours, we found that treatment with WP-1066 significantly reduced PD-L1 expression while concurrently elevating the expression of IFNγ, Prf, CD107a, and GrB from CD8+ T cells (Fig. 5A–E). Additionally, we also utilized a PD-L1 antagonist binding peptide, (D)-PPA, to block PD-L1/PD-1 binding to determine the role of PD-L1 in P. gingivalis–suppressed CD8+ T-cell activity. As expected, blockade of PD-L1 on DCs with (D)-PPA peptide significantly attenuated the suppressive effect of P. gingivalis infection on the production of Prf, IL2, and GrB (Fig. 5F–H). Taken together, these data indicate P. gingivalis infection suppresses CD8+ T-cell activity through STAT3-mediated PD-L1 expression on DC cells.
Infection of P. gingivalis dampens the cytotoxicity of CD8+ T cells

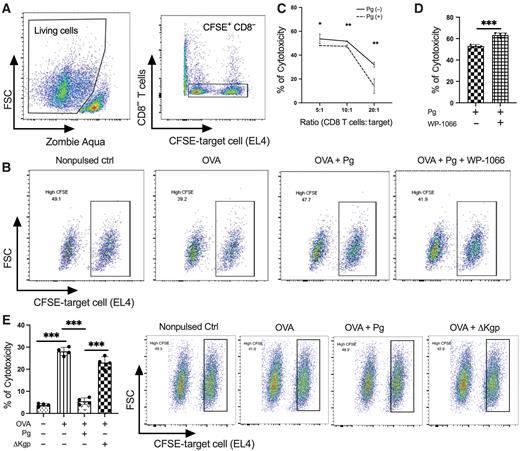

To further assess the effect of P. gingivalis infection on the cytotoxicity of CD8+ T cells, we next cocultured primed CD8+ T cells with target cells (EL4 cell line) that were prestained with two different concentrations of CFSE (1 and 0.1 μmol/L; see Materials and Methods). By gating CFSE+CD8− cells, we excluded the possible interference of the dead cells in further analysis (Fig. 6A). P. gingivalis significantly reduced CD8+ T-cell cytotoxicity in all groups (three different effector/target ratios), represented by the amount of lysed target cells (Fig. 6B and C). The percentage of lysed target cells in the groups primed by P. gingivalis pretreated DCs was significantly lower than those of non–P. gingivalis treated cells (Fig. 6C). Moreover, STAT3 inhibition significantly elevated CD8+ T-cell cytotoxicity upon the challenge of P. gingivalis (Fig. 6D). Notably, infection with ΔKgp mutant significantly increased lysed target cells compared with the wild-type parent strain (Fig. 6E). Altogether, these results demonstrate that P. gingivalis infection impairs the cytotoxicity of CD8+ T cells through modulation of STAT3 activation and PD-L1 expression in DCs, and this ability is dependent, at least partially, on the presence of the lysine-specific gingipain protease.
P. gingivalis infection promotes PD-L1 expression on DCs and aggravates progression of oral cancer in a syngeneic oral cancer model

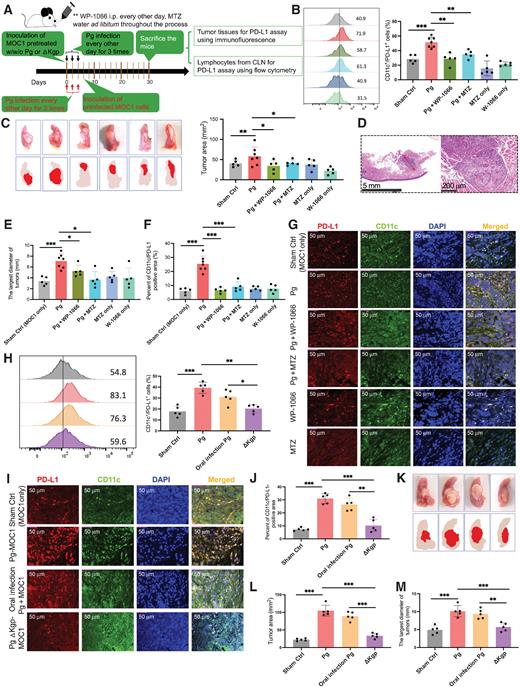

To assess the effects of P. gingivalis infection on DC-PD-L1 expression and CD8+ T-cell activity in oral cancer, we next utilized a syngeneic mouse model in which MOC1 cells pretreated with or without P. gingivalis were inoculated into mouse tongues (Fig. 7A). We found that CD11c+MHC-II+ DCs from the lymph nodes of P. gingivalis–infected mice had a significantly higher expression of PD-L1 than DCs from control mice (Fig. 7B; P < 0.001). However, treatment with a STAT3 inhibitor or feeding with antibiotic water significantly decreased PD-L1 expression (Fig. 7B). In addition, P. gingivalis infection led to a significant increase of PD-1 expression on CD8+ T cells (Supplementary Fig. S2), suggesting both PD-L1 and PD-1 could be the target of P. gingivalis to modulate CD8+ T-cell activity. Overexpression of PD-L1 on DCs has been demonstrated to reduce the efficacy of immunotherapy and aggravate cancer progression (13, 14). We therefore examined if P. gingivalis infection would aggravate the progression of oral cancer. MOC1 cells pretreated with P. gingivalis developed into larger tumors than that of untreated MOC1 cells, estimated by the area of the tumor mass in tongue tissues as described in a previous study (Fig. 7C; see Materials and Methods; ref. 31). However, mice infected with P. gingivalis followed by treatment with antibiotics or WP-1066 had a significant decrease in tumor mass compared with the mice infected with P. gingivalis only or the sham control groups (Fig. 7C). These results are consistent with a multitude of previous studies showing P. gingivalis infection promotes tumor growth and worsens the prognosis of cancer patients (18–20, 22, 42). Given there is not a widely accepted measuring approach to estimate the tumor volume in a MOC1-mediated syngeneic model, we utilized the clinical RECIST 1.1 guidelines (18, 32) and estimated the tumor volume using the longest dimension of the tumor mass. As expected, by measuring the largest diameter of tumor mass from H&E-stained images (Fig. 7D and E), we observed a similar trend in tumor volume alteration in various groups, as was observed by measuring the area of tumor mass (Fig. 7D and E). In addition, we also examined expression of PD-L1 by DCs that infiltrated tumor tissues using immunofluorescence. P. gingivalis infection significantly promoted expression of PD-L1 on intratumoral DCs, but antibiotic or STAT3 inhibition significantly decreased it (Fig. 7F and G, P < 0.001), which is consistent with the alteration of PD-L1 expression on DCs from lymph nodes.
To examine the clinical relevance of P. gingivalis infection to tumor progression under the natural infection milieu of the oral cavity, we orally infected mice with P. gingivalis first and then inoculated uninfected MOC1 cells into mouse tongues. The expression of PD-L1 on DCs from CLNs and tumor tissues and the growth of tumors were examined as described above. We found that DC-PD-L1 expression from the mice orally preinfected with P. gingivalis was significantly higher than that of uninfected controls, despite being slightly lower than the mice inoculated with preinfected MOC1 cells and subsequent oral infection with P. gingivalis (Fig. 7H–J, P < 0.001). Moreover, the trends of tumor volume alteration were similar to those of DC-PD-L1 expression (Fig. 7K–M, P < 0.001), indicating that P. gingivalis infection may be involved in tumor progression via alteration of the immune landscape in the tumor microenvironment. In addition, infection with P. gingivalis ΔKgp mutant in MOC1 cells failed to significantly promote PD-L1 expression and tumor progression (Fig. 7H–M, P < 0.001). Altogether, these data validated our in vitro results and demonstrated that P. gingivalis infection enhances PD-L1 expression and exacerbates the progression of oral cancer in a syngeneic mouse model.
P. gingivalis infection has been shown to promote cancer progression by the modification of cell cycle, proliferation, apoptosis, and tumor cell responses to chemotherapeutic drugs (18, 20, 43, 44). Ours and other recent studies demonstrate that P. gingivalis infection facilitates macrophage polarization toward M2 in the inflammatory milieu of oral cavity, thereby exacerbating the prognosis of cancer patients (22, 23). In this study, we found for the first time that P. gingivalis infection promotes expression of DC-PD-L1 and suppresses the cytotoxicity of CD8+ T cells, which could be another immune mechanism P. gingivalis uses to aggravate cancer progression. Moreover, we showed that P. gingivalis infection promotes the expression of PD-1 on CD8+ T cells from mouse CLNs, suggesting both PD-L1 and its receptor could be manipulated by P. gingivalis to evade immune attack and suppress the host immune responses against tumors. Therefore, our findings provide insights to the immunosuppressive property of P. gingivalis and aids in identifying potential interventional targets to improve the effectiveness of immunotherapies in the future.
The regulation of PD-L1 expression is a complex and highly coordinated series of signaling events. It occurs through dynamic modulation of multiple transcriptional factors (TF) such as STAT3, HIF, Myc, AP-1, and NF-κB or autocrine signaling (39). Although we found that P. gingivalis–activated Akt–STAT3 was critical for DC-PD-L1 expression, we cannot exclude the possible regulatory function of other TFs or the involvement of autocrine signaling pathways in this process. One possible autocrine signaling pathway is P. gingivalis–mediated secretion of interferon, which was demonstrated as a dominant inducer of PD-L1 (14). Whereas recent studies report opposite effects of P. gingivalis infection on the production interferon and its signaling (45, 46), our results clearly showed that neutralization of either type I IFN receptor or type II interferon did not affect P. gingivalis–induced elevation of PD-L1 expression on DCs, suggesting interferon signaling may not be involved in this process.
In this study, we did not observe a substantial change of PD-L1 in S. sanguinis–stimulated DCs, but we cannot exclude the possibility that this bacterium may affect PD-L1 expression by altering the growth of P. gingivalis and/or the composition of the local microbiome in the infectious milieu. Previous studies have reported that commensal bacteria and composition of the microbiome indeed affect the efficiency of anti–PD-L1 immunotherapy (47, 48). Considering the de facto status of the microbiome in the oral cancer microenvironment, the indirect impact of other oral microbes on PD-L1 expression warrants further investigation to characterize the influences of P. gingivalis and other bacteria, both individually and in combination, on the response of cancer patients to PD-1/PD-L1 blockade immunotherapy.
Recent studies have demonstrated that PD-L1 can bind B7.1 (CD80) in cis on DCs and prevent PD-L1 binding to PD-1 on T cells (42, 49). Therefore, P. gingivalis–elevated PD-L1 on DCs may mediate inhibitory effects on CD8+ T-cell activity by a two-pronged strategy: (i) strengthening PD-L1/PD-1 interaction in trans between DCs and T cells, thus enhancing PD-1–mediated inhibitory signaling on T cells and (ii) intensifying the PD-L1/B7.1 interaction in cis on DCs, leading to increased sequestration of B7.1 that would reduce the costimulatory signals of B7.1/CD28 and lead to T-cell immune suppression. On the other hand, because B7.1 also competitively binds CTLA-4, we cannot exclude the possibility that sequestered B7.1 by increased PD-L1 might also repress CTLA-4–mediated suppressive signals, offsetting the effect of P. gingivalis on CD8+ T-cell cytotoxicity to some degree. Additionally, despite that PD-L1:B7.1 cis-heterodimerization inhibits both PD-L1:PD-1 and B7.1:CTLA-4 interactions, it was reported to preserve the ability of CD80 to activate the T-cell costimulatory molecule CD28 (50). Expression of PD-L1 on antigen-presenting cells robustly reduces CTLA-4–mediated trans-endocytosis of CD80 (50). These results indicate that an increase of PD-L1 may lead to several negative feedback loops to restrain the immunosuppressive effect that PD-L1 exerts on CD8+ T cells. Therefore, further studies focusing on the comprehensive impact of P. gingivalis infection on PD-1, B7.1, and CTLA4 will advance our understanding of this complex network and provide more innovative insights into the strategies P. gingivalis exploits to manipulate tumor immune responses.
To the best of our knowledge, we have demonstrated for the first time that P. gingivalis suppresses CD8+ T-cell cytotoxicity through promoting the expression of DC-PD-L1. It is well known that the decrease of IFNγ, Prf, GrB, and CD107a will directly reduce the granule exocytosis of CD8+ T cells and reduce their capability to eliminate infected cells, which may aggravate some virus infection–mediated chronic inflammatory diseases. Some studies have reported this, showing P. gingivalis infection exacerbates the infection of Epstein–Barr virus (EBV), human immunodeficiency virus, and hepatitis B virus (HBV)/hepatitis C virus, and thus aggravates related diseases (46). Although various distinct mechanisms are reported in different contexts, P. gingivalis enhances PD-L1 expression and debilitated cytotoxic T cells could compromise the “antiviral state” of immune cells and aggravate infection with viruses in general, potentially including SARS-CoV2. Therefore, future investigations on the interactions between P. gingivalis and viruses will yield insights into the pathogenicity of P. gingivalis, aiding in the development of novel strategies to optimize the efficacy of immunotherapies for the control of virus infection.
Oral administration of metronidazole to mice bearing P. gingivalis–exposed MOC1 cells resulted in a significant decrease in tumor growth compared with mice treated with the vehicle alone. Treatment with metronidazole was associated with a significant decrease in tumor volume and PD-L1 expression on DCs from both CLNs and tumoral tissues. These results indicate the potential for control of P. gingivalis infection as a target for oral cancer therapy. However, it may be premature to advocate the use of metronidazole. Because metronidazole targets a group of anaerobic bacteria including some anaerobes with established interactions with P. gingivalis, the development of a P. gingivalis–specific antimicrobial agent may be required. Additionally, further studies on the effect of metronidazole on cancer cell immune evasion and related clinical evidence are required to comprehensively assess the influence of antibiotics on the progression and prognosis of oral cancer.
In summary, we have demonstrated for the first time that P. gingivalis infection elevates PD-L1 expression on the surface of DCs, suppresses cytotoxicity of CD8+ T cells, and aggravates the progression of oral cancer. Moreover, we revealed that the presence of gingipains and P. gingivalis–mediated activation of Akt–STAT3 signaling are critical for the upregulation of DC-PD-L1 and subsequent suppression of CD8+ T-cell cytotoxicity. Considering the successful application of antibodies targeting PD-1 and its ligands in cancer immunotherapy, our findings provide more insights into immune-suppressive properties of P. gingivalis and identify potential targets to manipulate the immune response and thereby improve the efficacy of cancer immunotherapies.
