Abstract
Pancreatic ductal adenocarcinoma (PDA) has a poor prognosis, and new strategies for prevention and treatment are urgently needed. We previously reported that histone H4 acetylation is elevated in pancreatic acinar cells harboring Kras mutations prior to the appearance of premalignant lesions. Because acetyl-CoA abundance regulates global histone acetylation, we hypothesized that altered acetyl-CoA metabolism might contribute to metabolic or epigenetic alterations that promote tumorigenesis. We found that acetyl-CoA abundance is elevated in KRAS-mutant acinar cells and that its use in the mevalonate pathway supports acinar-to-ductal metaplasia (ADM). Pancreas-specific loss of the acetyl-CoA–producing enzyme ATP-citrate lyase (ACLY) accordingly suppresses ADM and tumor formation. In PDA cells, growth factors promote AKT–ACLY signaling and histone acetylation, and both cell proliferation and tumor growth can be suppressed by concurrent BET inhibition and statin treatment. Thus, KRAS-driven metabolic alterations promote acinar cell plasticity and tumor development, and targeting acetyl-CoA–dependent processes exerts anticancer effects.
Pancreatic cancer is among the deadliest of human malignancies. We identify a key role for the metabolic enzyme ACLY, which produces acetyl-CoA, in pancreatic carcinogenesis. The data suggest that acetyl-CoA use for histone acetylation and in the mevalonate pathway facilitates cell plasticity and proliferation, suggesting potential to target these pathways.
See related commentary by Halbrook et al., p. 326.
This article is highlighted in the In This Issue feature, p. 305
Introduction
Activating mutations of KRAS are found in >90% cases of pancreatic ductal adenocarcinoma (PDA), a disease that accounts for 50,000 new cases every year in the United States and is currently the third-leading cause of cancer-related death (1). Because pancreatic cancer metastasizes early in disease progression (2) and effective treatments for advanced disease are lacking, patients face an extremely poor prognosis (∼9% 5-year survival rate; ref. 3). Improved strategies to prevent PDA in at-risk patients, to detect the disease earlier when it is clinically more manageable, and to treat advanced disease are all urgently needed to reduce deaths from PDA (1).
Metabolism is extensively reprogrammed in pancreatic cancer cells to support proliferation and enable survival in an extremely nutrient- and oxygen-depleted microenvironment (4, 5). Acetyl-CoA is a central metabolite with key roles in biosynthetic processes that are important for proliferation, including fatty-acid and cholesterol biosynthesis, as well as signaling functions, through serving as the acetyl group donor for lysine acetylation. The two major enzymes that produce acetyl-CoA in the cytosol and nucleus are ATP-citrate lyase (ACLY), which generates acetyl-CoA from the cleavage of mitochondria-derived citrate, and acetyl-CoA synthetase 2 (ACSS2), which produces acetyl-CoA from acetate (6). How the dual metabolic and signaling roles of these enzymes are coordinated in cancer cells remains poorly understood.
Histone acetylation, a dynamic chromatin modification with key roles in gene regulation, is highly sensitive to the production and availability of acetyl-CoA (6–8). Acetyl-CoA fluctuates in response to a number of stimuli in mammalian cells, including nutrient availability (9), oxygen availability (10), circadian oscillations (11), diet (12), and PI3K–AKT signaling (9). In human PDA tumors, high levels of histone acetylation have been found to correlate with high stromal content (13) and poor prognosis (14), and coculture of PDA cells with pancreatic stellate cells induces histone acetylation and gene-expression changes (15). Elevated global levels of histone acetylation are acquired in human PDA metastatic clones, as compared with primary tumors or peritoneal metastatic clones, in a manner dependent on alterations in glucose metabolism (16). Moreover, targeting the reading of histone acetylation by BET inhibition, particularly in conjunction with histone deacetylase (HDAC) inhibition, has been shown to suppress pancreatic tumor formation and growth (17–19). Thus, histone acetylation is dynamically regulated in PDA cells, contributes to pancreatic tumor development and progression, and may offer opportunities for therapeutic intervention in PDA.
ACLY is an AKT substrate, and in previous work we reported that AKT–ACLY signaling regulates histone acetylation in tumor cells (9). We also observed that global histone H4 acetylation was elevated in the acinar cells of young LSL-KrasG12D; Trp53L/+; Pdx1-Cre; RosaYFP (KPCY) versus wild-type (WT) mice, even prior to the appearance of premalignant lesions (9). Lineage-tracing studies in mutant KRAS-expressing animals have demonstrated that PDA can arise from cells that have undergone a metaplastic event termed acinar-to-ductal metaplasia (ADM), which occurs as part of a normal response to pancreatic injury or inflammation (20, 21). In WT cells, ADM is reversible, and acini regenerate once the injury resolves. However, Kras-mutant cells that undergo ADM can progress to pancreatic intraepithelial neoplasia (PanIN) lesions. The metabolic and epigenetic mechanisms by which KRAS orchestrates this irreversible ADM remain poorly understood. Notably, PI3K signaling is required for pancreatic carcinogenesis (22–26), and AKT inhibition has been shown to suppress ADM (24). We thus wondered if ACLY as a substrate of AKT might contribute to the regulation of histone acetylation in acinar cells or play a role in facilitating ADM.
We hypothesized that elevated histone acetylation in Kras-mutant acinar cells might reflect early alterations in acetyl-CoA metabolism that may contribute to tumorigenesis or point toward metabolic and/or epigenetic vulnerabilities that could be exploited for PDA prevention or treatment. In this study, we identify a role for ACLY-dependent acetyl-CoA production in ADM and pancreatic tumor formation, and our data also point to the potential to target acetyl-CoA–dependent processes in established tumors. Using mice in which Acly is deleted from the pancreas (Pdx1-Cre; Aclyf/f), we find that ACLY is required for mutant KRAS-mediated elevation of histone acetylation in acinar cells, and facilitates efficient KRAS-driven ADM in vitro and pancreatic tumorigenesis in vivo. In human PDA cells, AKT–ACLY signaling is highly responsive to environmental conditions and regulates histone acetylation globally and H3K27ac at PDA enhancers. We find that targeting acetyl-CoA–dependent processes via BET inhibition and statin treatment suppresses PDA cell proliferation and can suppress tumor growth in vivo. These data establish a key role for ACLY in enabling KRAS-dependent tumor initiation and point to the potential for targeting acetyl-CoA–dependent processes in pancreatic cancer.
Results
AKT Inhibition Suppresses Histone Acetylation and ADM in Kras-Mutant Pancreatic Acinar Cells
We previously reported that AKT–ACLY signaling promotes acetyl-CoA production and global increases in histone acetylation in cancer cells (9). To comprehensively define the AKT-dependent changes in chromatin modification in Kras-mutant PanIN cells, we analyzed histone modifications by mass spectrometry (MS) following a 24-hour treatment with a selective AKT1/2 inhibitor (AKTi). We found that AKT inhibition suppressed several histone acetyl marks, including H3K23ac, H3K18ac, H3K9ac, H4K16ac, and H4K8ac (Fig. 1A and B; Supplementary Fig. S1A). AKT inhibition also reduced the presence of multiply acetylated histones (i.e., at lysines 5, 8, 12, and 16 of H4). AKT inhibition potently suppressed the abundance of H4 acetylated at 2, 3, or 4 sites, and reciprocally increased the abundance of the unmodified peptide (Fig. 1C and D). Additionally, several methyl modifications increased with AKT inhibition (Fig. 1A; Supplementary Fig. S1A). Thus, AKT inhibition promotes extensive remodeling of histone modifications, including broadly suppressing histone acetylation, in PanIN cells.
We next sought to determine the role of AKT in regulating histone acetylation in pancreatic acinar cells, because elevated histone H4 acetylation was observed in these cells in KPC mice even prior to appearance of PanIN lesions (9). We confirmed that pancreas-specific KrasG12D mutation alone was sufficient to promote elevated H4 and H3K27 acetylation in acinar cells (Supplementary Fig. S1B). Primary pancreatic acinar cells were isolated from Pdx1-Cre;LSL-KrasG12D (KC) mice and treated with AKTi for 24 hours. AKTi strongly reduced histone H4 acetylation as assessed by immunofluorescence (Fig. 1E, quantified in 1F) and by western blotting (Fig. 1G). Acetate supplementation boosted histone acetylation in all conditions tested (Fig. 1E–G). Thus, Kras mutation promotes global histone acetylation in acinar cells in an AKT-dependent manner.
Kras-mutant acinar cells undergo ADM when cultured ex vivo in a 3-D matrix (22). Time-course analysis showed that histone acetylation further increases in primary KC acinar cells within 24 hours of plating in Matrigel (Supplementary Fig. S1C–S1D), prior to changes in cell morphology (duct formation), which appear by 48 hours. Expression levels of lysine acetyl-transferases and deacetylases were minimally altered over this time course (Supplementary Fig. S1E–S1F). Consistent with prior work (24), AKT inhibition potently blocked the formation of ductal structures in vitro (Fig. 1H). Treatment with AKTi also suppressed the activation of ductal-specific genes (e.g., Krt19) and allowed expression of acinar-specific protease genes (Amy2 and Cpa1) to be maintained (Fig. 1I), indicating that AKT signaling is required for ADM in KRASG12D-expressing cells.

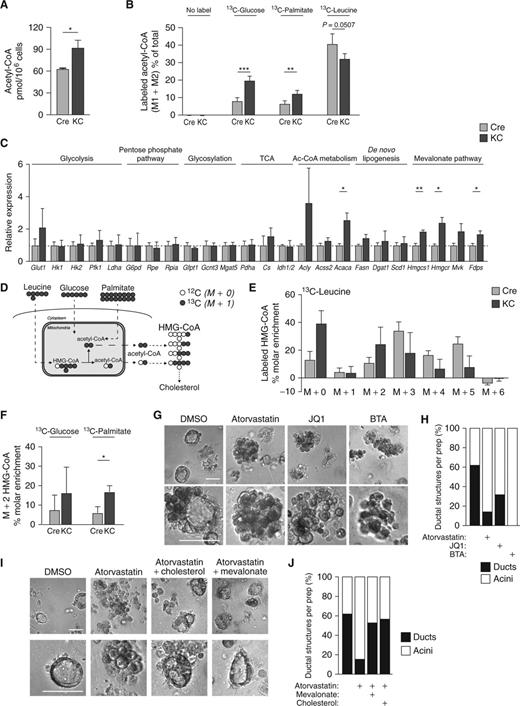

Targeting Acetyllysine Readers or the Mevalonate Pathway Suppresses ADM
We hypothesized that KRAS may promote ADM in part through regulation of acetyl-CoA production. We therefore investigated the effects of mutant KRAS on acetyl-CoA metabolism in primary pancreatic acinar cells. Consumption of glucose and glutamine, as well as lactate production, was similar between WT and KC acinar cells (Supplementary Fig. S2A). However, in a targeted analysis, we found that acetyl-CoA abundance was greater in KRASG12D-expressing acinar cells as compared with WT acinar cells (Fig. 2A), consistent with elevated global histone acetylation in these cells. To define the carbon sources that supply acetyl-CoA in acinar cells, we traced [U-13C]-glucose, [U-13C]-palmitate, and [U-13C]-leucine. In WT acinar cells, the branched-chain amino acid (BCAA) leucine was a major source of acetyl-CoA (Fig. 2B), consistent with a recent in vivo isotope-tracing study of BCAA metabolism, which reported high utilization of BCAAs by the pancreas (27). Glucose and palmitate were minor contributors (Fig. 2B). In KC acinar cells, leucine was also a major source of acetyl-CoA, and, in addition, labeling from both glucose and palmitate increased (Fig. 2B). Together, these data indicate that KRASG12D expression affects acetyl-CoA production in pancreatic acinar cells.
To gain initial insight into how acetyl-CoA might be used by acinar cells, we surveyed metabolic gene expression in acinar cells undergoing ADM, finding that mevalonate pathway gene expression was elevated in Kras-mutant acinar cells (Fig. 2C). The mevalonate pathway, which is necessary for the synthesis of sterols and isoprenoids, is initiated through synthesis of HMG-CoA from three molecules of acetyl-CoA in the cytosol (28). HMG-CoA is also produced during leucine catabolism (Fig. 2D). HMG-CoA M + 5, produced in 13C-leucine catabolism in mitochondria, was clearly detectable in both WT and KC acinar cells, though this isotopolog was reduced in KC cells as a percentage of the total HMG-CoA pool (Fig. 2E). The other detected isotopologs (M + 1, M + 2, M + 3, and M + 4) likely represent HMG-CoA synthesized from acetyl-CoA (Fig. 2D and E). Consistent with acetyl-CoA labeling patterns, increased HMG-CoA synthesis from 13C-palmitate, and a trend toward increased synthesis from 13C-glucose, were observed in KC acinar cells (Fig. 2F). Total HMG-CoA abundance was not different between the two genotypes (Supplementary Fig. S2B). These data indicate that mevalonate pathway gene expression increases in Kras-mutant acinar cells and that HMG-CoA is dynamically synthesized from acetyl-CoA in acinar cells, with some differences in substrate utilization between genotypes.
Together, our data suggest that acetyl-CoA metabolism in acinar cells both regulates histone acetylation levels and supports the mevalonate pathway. We next asked whether acetyl-CoA utilization in these pathways is functionally important for ADM. Catabolism of leucine, glucose, or fatty acids results in acetyl-CoA production within mitochondria, and acetyl-CoA is transferred to the cytosol via citrate synthesis and export (6). Inhibition of the mitochondrial citrate carrier (CiC) potently suppressed TGFα-stimulated ADM in collagen-embedded primary KC acinar cells (Fig. 2G). We therefore next interrogated the roles in ADM of acetyllysine reading using the BET inhibitor JQ1 and the mevalonate pathway using the HMG-CoA reductase (HMGCR) inhibitor atorvastatin. Both JQ1 and atorvastatin suppressed duct formation compared with treatment with vehicle alone (Fig. 2G and H). These findings were also validated in Matrigel-embedded primary KC acinar cells (Supplementary Fig. S2C–S2E). Importantly, supplementation with either mevalonate-5-phosphate or cholesterol rescued duct formation in the presence of atorvastatin, suggesting that cholesterol is the key product of the mevalonate pathway that facilitates ADM in Kras-mutant acinar cells (Fig. 2I and J; Supplementary Fig. S2F–S2G). Cells can synthesize cholesterol or take it up from the circulation by receptor-mediated endocytosis. Publicly available data sets (GTEx; ref. 29), as well as quantitative PCR (qPCR) analysis, showed that expression of LDLR [encoding the low-density lipoprotein receptor (LDLR)] is low in normal pancreas in both humans and mice (Supplementary Fig. S2H-S2I). IHC staining confirmed that LDLR protein has low expression in acinar cells, but is more highly expressed in areas of carcinoma (Supplementary Fig. S2J). Consistently, isolated acinar cells expressed lower Ldlr than murine PDA cells (Supplementary Fig. S2I). These data suggest that acinar cells may have limited capacity to uptake LDL-associated cholesterol, potentially underlying a need for de novo synthesis. In addition to cholesterol synthesis, the mevalonate pathway is also important for prenylation of membrane-targeted proteins such as KRAS. However, because cholesterol rescues duct formation (Fig. 2I and J) and because minimal effects on MAPK phosphorylation are observed in acinar cells in the presence of atorvastatin (Supplementary Fig. S2K), it is unlikely that the statin treatment suppresses ADM through direct interference with KRAS-dependent signaling. Together, these data indicate that acetyl-CoA levels are elevated in KRASG12D acinar cells and that either BET inhibition or cholesterol synthesis blockade suppresses ADM.

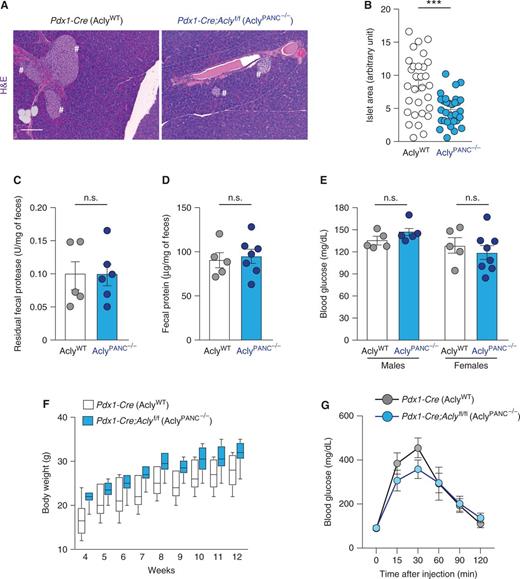

Pancreas-Specific Deletion of Acly Does Not Cause Overt Metabolic Abnormalities
The generation of acetyl-CoA from citrate in the cytosol and nucleus is dependent on ACLY (6). To interrogate the role of ACLY in ADM and pancreatic tumorigenesis, we crossed Aclyf/f mice (30) with Pdx1-Cre mice, producing pancreas-specific ablation of Acly (AclyPANC−/− mice). These mice are viable and born at the expected Mendelian ratios. Lack of ACLY protein in whole pancreas lysates was confirmed by western blotting (Supplementary Fig. S3A). Histologic analysis of pancreata revealed no obvious abnormalities (Fig. 3A), although islet size was significantly smaller (Fig. 3B). Fecal content was not significantly different between genotypes, indicating that exocrine function is intact in the absence of ACLY (Fig. 3C and D). In contrast to that observed in fibroblasts and in adipocytes upon Acly deletion (30), compensatory upregulation of ACSS2 was not observed in ACLY-deficient pancreas (Supplementary Fig. S3A), suggesting that baseline levels of ACSS2 may be sufficient to supply nucleocytosolic acetyl-CoA in the healthy pancreas. Consistent with this interpretation, ACLY deficiency in vivo did not notably alter histone H4 acetylation in ductal or islet cells (Supplementary Fig. 3B). Histone H4 acetylation was low in acinar cells in WT mice, consistent with our prior findings (9). Because pancreatic islet size was reduced in the AclyPANC−/− mice, we further investigated whether these mice develop impairments in control of blood glucose levels. We observed minimal differences in fasting blood glucose levels (Fig. 3E; Supplementary Fig. S3C) or body weight in either male or female AclyPANC−/− mice (Fig. 3F and Supplementary Fig. S3D, respectively). Moreover, glucose tolerance was not significantly different between the two genotypes (Fig. 3G), indicating that AclyPANC−/− mice can produce sufficient insulin to maintain glucose homeostasis. These data indicate that the lack of ACLY in mouse pancreas does not cause overt abnormalities in systemic glucose metabolism in unstressed mice fed a chow diet.

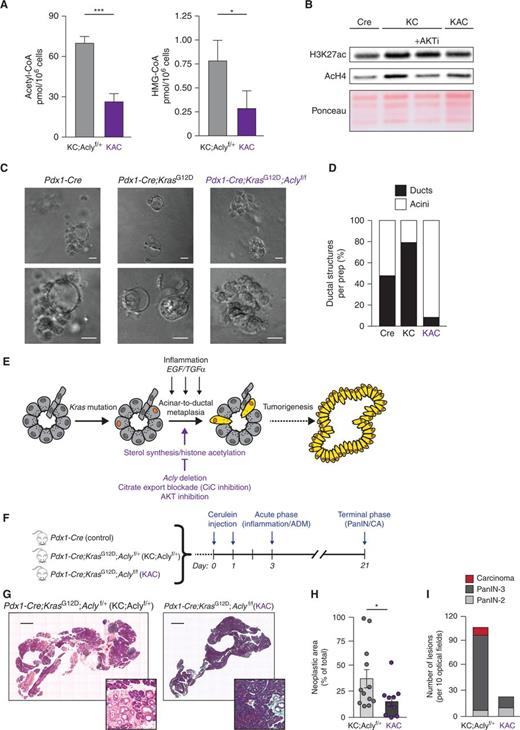

Genetic Ablation of Acly Inhibits ADM and Pancreatic Tumorigenesis
We next investigated whether Acly deficiency affects oncogenic KRAS-triggered ADM and pancreatic tumorigenesis. To test this, we crossed Pdx1-Cre;Aclyf/+ mice with LSL-KrasG12D;Aclyf/f mice to generate mice expressing mutant KRAS in the pancreatic epithelium that are either ACLY proficient (Pdx1-Cre;LSL-KrasG12D; Aclyf/+; hereafter referred to as KC;Aclyf/+) or ACLY deficient (Pdx1-Cre;LSL-KrasG12D; Aclyf/f; KAC hereafter). Mice were born at the expected Mendelian ratios and developed normally. Deletion of Acly significantly reduced the abundance of acetyl-CoA and HMG-CoA in acinar cells (Fig. 4A). Global histone acetylation (AcH4 and H3K27ac) levels were also suppressed in the absence of ACLY (Fig. 4B). In ADM assays, ACLY deficiency strongly inhibited duct formation and preserved acinar morphology (Fig. 4C and D), similar to that observed with AKT or CiC inhibition (Figs. 1H and 2G, respectively). These data suggest that although ACLY is not required for normal pancreatic function, it participates in ADM, prompting us to further investigate its role in tumor formation (Fig. 4E).
The cholecystokinin analogue cerulein induces acute pancreatitis in mice, accompanied by widespread ADM. Whereas WT acini regenerate upon resolution of the inflammatory stimulus, in the context of Kras mutation, ADM is not resolved but instead progresses to PanIN (20). We assessed whether Acly deletion could impair tumorigenesis in the context of cerulein-induced pancreatitis (Fig. 4F). After cerulein injection, mice showed a robust immune infiltration and disorganization of the pancreatic parenchyma, characterized by acinar cell loss, dilated interstitial space, and presence of ADM foci, regardless of the genotype (Supplementary Fig. S4A; hematoxylyn and eosin staining, top). ERK phosphorylation, although less intense in the control group, was comparable in the inflammatory areas in KC;Aclyf/+ and KAC mice (Supplementary Fig. S4A; pERK1/2 staining, middle). Staining for pACLY-S455 was observed in acinar cells of WT and KC;Aclyf/+ mice, but not in those of KAC mice (Supplementary Fig. S4A; pACLY staining, bottom). Interestingly, strong pACLY positivity was also observed in infiltrating cells in all groups, serving as internal positive controls for the staining, and also suggesting that some infiltrating cells likely have high ACLY activity (Supplementary Fig. S4A). By day 21, WT mice had recovered and exhibited normal pancreatic histology, as expected (data not shown). In contrast, KC;Aclyf/+ mice showed extensive neoplastic lesions and the occasional area of frank carcinoma. KAC mice had less acinar cell loss, reduced neoplastic area, and fewer high-grade lesions than KC;Aclyf/+ mice (Fig. 4G-I). Western blotting of whole organ lysates confirmed efficient deletion of Acly, as well as ERK activation (Supplementary Fig. S4B). ERK signaling was somewhat reduced in KAC animals (Supplementary Fig. S4B), likely due to a reduced neoplastic area in these animals. pERK1/2 positivity was more pronounced in neoplastic structures as compared with surrounding tissue (Supplementary Fig. S4C). Lesions that formed in both genotypes were PanINs positive for ductal marker CK19 (Supplementary Fig. S4D), and no differences in proliferation, as assessed by Ki67 positivity, were observed (Supplementary Fig. S4E). Together, the data indicate that ACLY facilitates KRASG12D-dependent initiation of pancreatic tumorigenesis in the context of pancreatitis.
Genetic Ablation of Acly Extends PDA Survival
We next investigated the role of ACLY in pancreatic tumorigenesis in the absence of injury. Kras mutation in murine pancreas results in the development of preneoplastic lesions (mostly PanIN), with PDA resulting after a long latency in 20% to 30% of mice (31). A lack of ACLY protein (residual signal ascribed either to infiltrating/stromal cells or to subabsolute recombination efficiency) and robust ERK1/2 phosphorylation were confirmed (Supplementary Fig. S5A). At 4 months of age, all KC;Aclyf/+ mice showed the presence of numerous PanIN lesions. The number of neoplastic foci was significantly lower in age-matched KAC mice (Fig. 5A, quantified in 5B), and total neoplastic area was also markedly reduced, though falling short of statistical significance due to variability in KC;Aclyf/+ mice (Fig. 5C). Of those lesions that do form, both KC;Aclyf/+ and KAC mice develop similar lesions that are CK19- and Alcian Blue (mucin stain)–positive (Supplementary Fig. S5B). Very few high-grade lesions (PanIN2 and PanIN3) were observed in KAC, in contrast to KC mice (Supplementary Fig. S5C). Immunofluorescence staining for AcH4 and the acinar cell marker carboxypeptidase A1 (CPA1) showed that ACLY deletion strongly reduces histone H4 acetylation in Kras-mutant acinar cells (Fig. 5D), consistent with our findings ex vivo (Fig. 4B). Thus, ACLY is necessary for elevated histone acetylation in Kras-mutant acinar cells and facilitates, but is not absolutely required for, PanIN formation.
In contrast to acinar cells, both ductal cells and PanIN cells showed high levels of AcH4 staining even in the absence of ACLY (Fig. 5D). ACLY protein was not detected in KAC pancreatic epithelial cells (Supplementary Fig. S5D), including in PanIN structures (Fig. 5E), indicating that lesions likely did not form from cells in which recombination was incomplete. Because use of acetate is a major mechanism of compensation in the absence of ACLY (30), we next asked whether ACSS2 is upregulated in ACLY-deficient tumors, potentially supporting histone acetylation and PanIN growth. Surprisingly, ACSS2 levels actually tended to be slightly higher in ACLY-proficient KC mice (Supplementary Fig. S5A). ACSS2 is frequently upregulated in cancerous and hypoxic regions (10, 32), and thus higher ACSS2 expression in KC mice is likely due to greater representation of premalignant cells. Indeed, by IHC, we noted intense nuclear ACSS2 staining in PanIN lesions (Fig. 5E). Neither proliferation nor apoptosis was significantly different in ACLY-deficient ADM or PanIN lesions (Supplementary Fig. S5E–S5F), further suggesting that ACSS2 may take on a more prominent role once tumors develop. Together, these data indicate that ACLY plays a distinct role during tumor formation, but that ACSS2 is strongly expressed in PanIN lesions and may be a key source of extramitochondrial acetyl-CoA to support growth of neoplastic lesions once formed.
To investigate the role of ACLY in later stages of tumor development, we allowed a small cohort of KC;Aclyf/+ and KAC mice to age to 1 year of age. Two of seven KC;Aclyf/+ mice developed PDA with large intraperitoneal tumor masses and had to be sacrificed prior to 1 year of age, whereas all KAC mice remained viable (Supplementary Fig. S5G). Of those mice that remained alive at 1 year of age, there was a strong trend toward reduced neoplastic area in KAC as compared with KC mice (Supplementary Fig. S5H–S5I). To further test the impact of ACLY deficiency on survival, we genetically deleted Acly in the aggressive KPC model of PDA tumorigenesis (33). We generated KPC mice that were either ACLY proficient (KPC;Aclyf/+) or ACLY deficient (KPAC). A cohort of mice was sacrificed at 9 weeks of age, an age at which PanIN lesions have developed in KPC mice (Fig. 5F). Counting of lesions (Fig. 5G) and calculation of neoplastic area (Fig. 5H) revealed substantial heterogeneity in KPAC mice, with some animals lacking lesions altogether at 9 weeks of age and others with lesions comparable to those in KPC mice. Although all animals developed terminal PDA regardless of Acly status, survival was significantly extended in KPAC as compared with KPC;Aclyf/+ mice (Fig. 5I; median survival 21 weeks vs. 18 weeks for KPC;Aclyf/+; log-rank test: P = 0.0236). The cumulative data indicate that ACLY deficiency hampers tumor initiation in mice, thus reducing tumor burden and improving overall survival.
Environmental Factors Influence Histone Acetylation in Human PDA Cell Lines
To probe the regulation of acetyl-CoA metabolism in established PDA cells, we examined the role of AKT signaling on ACLY phosphorylation and the regulation of histone acetylation in PDA cells. Surprisingly, AKTi treatment had minimal effect on histone acetylation in human PDA cells under standard culture conditions (denoted as DMEM in Supplementary Fig. S6A–S6B). Although initially puzzling, this observation is consistent with evidence that in PDA, stromal elements promote AKT activation (34) and histone acetylation (15). Indeed, when cultured in an insulin-containing medium [Pancreatic Duct Epithelial Cell Culture Medium (PDEC)], PANC-1 cells showed enhanced AKT signaling and increased histone acetylation that was suppressed by AKTi treatment (Supplementary Fig. S6A). Similar findings were made in HPAC cells, but not in the KRAS WT cell line BxPC3 (Supplementary Fig. S6B). PDEC medium did not alter glucose consumption rates, but did reduce lactate production in AsPC-1 cells (Supplementary Fig. S6C). We next specifically tested the role of exogenous growth factors in regulating AKT–ACLY signaling and histone acetylation in PDA cells. We found that EGF, TGFα, IGF, and insulin were all able to potently increase AKT and ACLY phosphorylation in PDA cell lines (Fig. 6A; Supplementary Fig. S6D–S6E). Growth-factor stimulation increased histone acetylation, in a manner dependent on AKT and ACLY (Fig. 6B and C). Thus, activation of the AKT–ACLY–histone acetylation axis in PDA cells is highly responsive to exogenous growth-factor signals.
To determine if growth-factor stimulation regulates histone acetylation at functionally relevant loci, we investigated the regulation of previously defined PDA enhancers (35) and stromal-responsive loci (15). Chromatin immunoprecipitation (ChIP) experiments confirmed that IGF treatment significantly increased H3K27 acetylation at several stroma-regulated gene promoters in an AKT-dependent manner (Fig. 6D). A control locus, TUBA1A (encoding tubulin-α), was not affected under these conditions (Fig. 6E). We also tested regulation of H3K27ac at the EGFR superenhancer (35) using primers spanning the region (Supplementary Fig. S6F). Treatment with IGF markedly increased H3K27 acetylation, and this was blocked by AKTi (Fig. 6F). A distal region downstream of the enhancer was not affected (Fig. 6G). Analogous results were obtained for the MYC superenhancer locus (Supplementary Fig. S6G–S6H). Thus, IGF-induced AKT signaling regulates H3K27ac at PDA enhancers and other stromal-responsive loci.
Targeting Acetyl-CoA–Dependent Processes Can Inhibit PDA Tumor Growth
Although ACLY is important for efficient tumor formation and AKT–ACLY signaling is dynamically regulated in response to growth-factor signals in PDA cells, ACSS2 may take on important roles in acetyl-CoA metabolism and allow tumors to grow independent of ACLY. To gain insights into the regulation of acetyl-CoA metabolic pathways in human PDA tumors, we surveyed gene expression using publicly available data sets [pipelined through Gene Expression Profiling Interactive Analysis (GEPIA); ref. 36]. Expression of both ACLY and ACSS2 is elevated in human PDA (Supplementary Fig. S7A). In addition, mevalonate pathway and sterol synthesis genes are upregulated in human PDA samples as compared with their expression in normal pancreata (Supplementary Fig. S7A). In contrast, these genes are not upregulated in human lung adenocarcinoma (Supplementary Fig. S7A). In cultured PDA cells, glucose and acetate, but not leucine, were found to be used for acetyl-CoA and HMG-CoA synthesis (Fig. 7A). The insulin-containing supplement ITS also boosted the contribution of glucose to acetyl-CoA pools in AsPC-1 cells (Fig. 7A). Thus, ACLY and ACSS2 likely both contribute to acetyl-CoA metabolism in PDA cells and may have at least partially overlapping roles in supplying acetyl-CoA–dependent pathways.
The expression of ACSS2 in tumors and major contribution of acetate to acetyl-CoA pools in PDA cells prompted us to consider that targeting acetyl-CoA–dependent processes, rather than acetyl-CoA production, might offer an opportunity to suppress tumor growth. Because mevalonate pathway gene expression is upregulated in PDA and histone acetylation is dynamically regulated in PDA cell lines (Fig. 6B–F; Supplementary Figs. S6A–S6B and S7A), we tested the effects of JQ1 and atorvastatin on PDA cell proliferation. At doses that only modestly affect pERK and MYC levels (Fig. 7B), each drug individually had growth-suppressive effects in some but not all of the cell lines tested (Fig. 7C). Culture conditions affected the effects of statin treatment; culturing cells in the presence of ITS partially alleviated atorvastatin-induced growth inhibition observed in DMEM (Fig. 7C). The atorvastatin-mediated inhibition of proliferation was rescued by the addition of either mevalonate or geranylgeranyl pyrophosphate (GGPP), but not with cholesterol (Fig. 7D), suggesting that the mevalonate pathway plays a distinct role in supporting proliferation in PDA cells as compared with that in facilitating ADM. Combining JQ1 and atorvastatin profoundly inhibited cell proliferation in each of the PDA cell lines that we tested, in both the presence or absence of ITS (Fig. 7C). Similar results were obtained in mouse PDA cell lines derived from Pdx1-Cre;KrasG12D;Trp53LSL-R172H/+;Aclyf/+;RosaYFP (KPCY) mice (ref. 37; Fig. 7E). Thus, at least in vitro, targeting the mevalonate pathway together with BET inhibition strongly suppresses PDA cell proliferation.
To test the impact of JQ1 and atorvastatin on tumor growth in vivo, we took advantage of the fact that the KPCY PDA cell lines were generated in C57BL/6J mice, allowing us to conduct allograft experiments in immune-competent animals. Growth of tumors from the 2838c3 clone was markedly suppressed upon combined administration of JQ1 and atorvastatin, demonstrating the proof of principle that targeting these acetyl-CoA–dependent pathways can suppress tumor growth (Fig. 7F–G). Tumors generated from a second clone, 6419c5, however, were less responsive, suggesting that additional factors in vivo modify responses to these drugs (Fig. 7F–G). Although determining the basis for this difference in responsiveness will require further investigation, these two clones elicit dramatic differences in the tumor microenvironment that affect therapeutic responses (37), raising the possibility that non–cell-autonomous effects influence the efficacy of this combination therapy. These data indicate that targeting acetyl-CoA–dependent pathways can suppress PDA tumor growth in vivo and that treatment responses may be affected by factors such as the composition of the tumor microenvironment.
Discussion
In this study, we report that generation of nucleocytosolic acetyl-CoA by ACLY plays a key role in facilitating pancreatic tumor formation. We further find that once tumors form, ACSS2 is highly expressed and tumors can grow even in the absence of ACLY, but that targeting acetyl-CoA–dependent pathways, using combined BET inhibition and statin treatment, can suppress proliferation and tumor growth. In regard to tumor formation, we show that Kras-mutant acinar cells exhibit increased acetyl-CoA abundance, correlating with elevated global histone acetylation. Inhibition of AKT, an upstream regulator of ACLY, inhibition of mitochondrial citrate export, or genetic deletion of Acly suppresses KRAS-induced histone acetylation and impairs ADM. Duct formation was also attenuated by either BET inhibition or mevalonate pathway inhibition, suggesting that acetyl-CoA is required for histone acetylation and cholesterol biosynthesis during ADM. We next specifically interrogated the role of ACLY in pancreatic tumorigenesis using genetic models. Importantly, mice lacking Acly in the pancreas developed normally and did not exhibit overt impairments in systemic glucose homeostasis. Strikingly, however, the absence of ACLY reduced acetyl-CoA levels in Kras-mutant acinar cells, impaired PanIN formation, and extended survival in the aggressive KPC model. Finally, we found that AKT–ACLY signaling potently regulates histone acetylation globally and H3K27ac at PDA enhancers. Concurrent BET inhibition and statin treatment potently suppressed proliferation in PDA cell lines and could also suppress tumor growth in vivo in immune-competent mice. Together, the data point to a key role for ACLY in early pancreatic tumorigenesis and suggest the potential to target acetyl-CoA–dependent processes in PDA.
The findings of this study implicate ACLY-dependent production of acetyl-CoA as playing crucial roles in early stages of pancreatic tumorigenesis. Lineage-tracing studies and genetic models in which mutant KRAS is expressed specifically in acinar cells have revealed that ADM can initiate a multistep carcinogenic process in the mouse. Although its relevance for the human disease has not been definitively demonstrated, human acinar cells can undergo ADM in vitro (38), and putative precursors (AcTUB+/DLCK1+) are present both in mouse and human preneoplastic foci (39, 40). In addition, ADM is observed in patients with chronic pancreatitis, who are at elevated risk for PDA, supporting the notion that human PDA can arise from ADM foci (20). Chromatin remodelers are known to participate in neoplastic lesion development (41), and dynamic changes in histone methylation and histone acetylation have been observed during ADM or tissue regeneration after pancreatic injury (42, 43). Nevertheless, a comprehensive epigenomic analysis of ADM during tissue injury or in response to mutant KRAS signaling has not been reported. Our findings confirm and build on prior work that has shown that BET inhibition suppresses ADM and impairs pancreatic tumorigenesis (17). Further work is needed to evaluate the impact of ACLY on genome-wide histone modification, chromatin accessibility, and gene regulation during metaplasia. Of note, we found that supplementation with exogenous acetate does not rescue ADM upon AKT inhibition or in the absence of ACLY (data not shown), suggesting a unique role for ACLY-dependent generation of acetyl-CoA. Emerging evidence suggests that ACLY and ACSS2 have some ability to compensate for each other but also each have distinct roles, particularly in chromatin regulation, likely related to a need for spatial and temporal control of acetyl-CoA production for specific functions (44).
The roles of metabolism in ADM are also poorly understood, although there are hints in the literature that metabolic alterations might participate. In particular, mutant KRAS signaling in acinar cells has been shown to stimulate increased mitochondrial reactive oxygen species production, and that this is critical for ADM (45). Our data implicate for the first time a role for cholesterol synthesis in ADM. Although the mechanisms through which cholesterol acts remain to be determined, possibilities include regulation of hedgehog signaling (46), which has been implicated in acinar cell regeneration after injury and early carcinogenesis (47, 48), or lipid rafts (49), which are cholesterol-rich and promote EGFR signaling (50–52). Cholesterol has also recently been shown to stimulate proliferation of intestinal stem cells and to promote tumor formation (53), suggesting that cholesterol metabolism might play similar roles in colon and pancreatic carcinogenesis. Our findings indicate that BCAAs are the primary source of acetyl-CoA used within the mevalonate pathway for cholesterol synthesis. This is consistent with a recent in vivo isotope tracing study that demonstrated that BCAAs contribute prominently to the TCA cycle in the pancreas (27). Although BCAA catabolism is suppressed in PDA as compared with normal pancreas and BCAT enzymes are dispensable for the growth of PDA tumors (54), the data suggest that the role of BCAAs in ADM and pancreatic carcinogenesis warrants further investigation. The data implicating cholesterol synthesis in pancreatic carcinogenesis thus open up a number of questions for future investigation and could have implications for disease prevention.
The finding that atorvastatin suppresses ADM and, when combined with BET inhibition, can reduce tumor growth aligns with an extensive epidemiologic literature that suggest that statins, which are widely prescribed clinically as cholesterol-lowering agents, may also exert anticancer effects (55). Although analysis of two large prospective studies found no difference in pancreatic cancer risk between regular and non–regular statin users (56), a modest increase in median survival was observed for patients who had been regular statin users for the 2 years prior to cancer diagnosis (57). In addition, numerous prior studies have found that statin use correlates with extended survival, particularly if precedent to pancreatic cancer diagnosis and in a high-dose regimen (55). Notably, statins were found to decrease the risk of pancreatic cancer development in patients with chronic pancreatitis (58) and type 2 diabetes (59). Statins have been found to inhibit progression of PanIN to PDA and extend survival in KPC mice (60, 61). Atorvastatin was also shown to delay PDA progression in a mouse model of acinar cell–derived PDA (62). Reciprocally, disruption of cilia in mouse pancreatic epithelial cells enhances KRAS-mediated tumorigenesis, via activation of the mevalonate pathway, and statin treatment reversed this effect (63). Sterol synthesis gene expression has also been linked to KRAS signaling in PDA (4, 64), and inhibition of cholesterol uptake suppressed PDA cell proliferation and enhanced the effects of gemcitabine in suppressing tumor growth (64), further pointing to the importance of this pathway in PDA. Currently, a phase III clinical trial testing the use of atorvastatin combined with other treatments in patients with cancer is ongoing (NCT02201381). Our data support the hypothesis that use of statins in a combinatorial regimen has the potential to restrict tumor growth.
The data also suggest that it will be crucial to understand the role of the microenvironment and, in particular, the role of immune cells in modulating the efficacy of statins and BET inhibitors. The two KPCY cell lines used to test the effects of these drugs on tumor growth have been shown to generate tumors with dramatically different immune compositions. Tumors grown from the 2838c3 clone, which are sensitive to the drug combination, are high in CD8+ T cells and low in myeloid-derived suppressor cells (MDSC). Tumors arising from the 6419c5 cell line, on the other hand, recruit few T cells and numerous MDSCs and are highly resistant to chemotherapy and immunotherapy (37). Notably, both statins and BET inhibitors can affect not only cancer cells but also immune cells, potentially contributing to their anticancer effects (65–68). Future studies aimed at elucidating how the tumor microenvironment affects responses to these drugs will aid in identifying the most appropriate contexts and strategies for use of these inhibitors.
Further work is also needed to understand the distinct roles of ACLY and ACSS2 in established PDA. The data suggest that although tumor formation is impaired in the absence of ACLY, once PanINs form, it is possible for ACLY-deficient tumors to grow. Prominent nuclear ACSS2 expression and maintenance of global histone acetylation were observed in lesions, suggesting that ACSS2 may play important roles in chromatin regulation in pancreatic cancer. Although ACSS2 is known to promote tumor growth in several types of cancer including liver, breast, and brain cancers (10, 32, 69), defining its role in PDA will require further study. We also noted that environmental factors potently activate AKT–ACLY signaling in PDA cells, driving elevated histone acetylation, globally and at PDA enhancers and stromal-responsive loci. Further elucidation of the impact of growth-factor signals in the dynamic regulation of chromatin modifications in PDA and implications for gene regulation could also be important for understanding the impact of the tumor microenvironment on PDA tumor growth and therapeutic responses.
Collectively, these data provide evidence for involvement of acetyl-CoA metabolism in pancreatic cancer and highlight the role of a metabolic enzyme in oncogene-driven acinar cell plasticity and tumorigenesis. These findings enhance our understanding of metabolic contribution to ADM and identify key questions for future investigation that could lead to improved strategies to prevent or potentially to treat pancreatic cancer.
Methods
Animal Studies
All animal protocols were reviewed and approved by the Institutional Animal Care and Use Committee of the University of Pennsylvania. Aclyf/f mice were previously described (30). To generate AclyPANC−/− mice, Aclyf/f mice were bred to Pdx1-Cre transgenic mice. To generate KAC mice, Aclyf/f mice were first bred to either Pdx1-Cre transgenic mice or LSL-KrasG12D transgenic mice. Pdx1-Cre;Aclyf/+ female mice were then crossed with LSL-KrasG12D;Aclyf/f male mice. Mice were largely born according to the Mendelian ratios, except for those concurrently carrying floxed Acly and Trp53 alleles, which were born at a much lower frequency, due to cosegregation (both encoded in chromosome 11). To generate KPAC mice, LSL-KrasG12D;Aclyf/+ male mice were bred with Pdx1-Cre;p53L/+;Aclyf/f female mice. Genotyping was performed by PCR amplification of ear snips digested with proteinase K, using primers listed in Supplementary Table S1. Effective recombination was tested by western blotting for ACLY on whole pancreatic tissue lysates; pancreatic expression of ACLY was the sole exclusion parameter used in our studies. Unless otherwise stated, all experimental mice were a mix of male and female. The numbers of animals used per experiment are stated in the figure legends.
For the xenograft study, atorvastatin was diluted in water +5% glucose +0.1% DMSO; a total volume of 200 μL was orally administered through gavage. JQ1 was diluted in 10% (2-hydroxypropyl)-β-cyclodextrin (Cayman Chem); 1 part of JQ1 was diluted in nine parts of solvent, as previously described (70).
C57BL/6J mice were injected subcutaneously (2.5 × 105 cells/mouse) with both 2838c3 and 6419c5 (37) in contralateral flanks. When tumors became palpable, mice were treated daily with atorvastatin (10 mg/kg, gavage), JQ1 (50 mg/kg, i.p.), and/or vehicle. Tumor volume was evaluated every other day using calipers and expressed in mm3 using the formula: V = π/6 × (Dmax2 × Dmin/2); ref. (71).
PanIN and PDA Cell Culture
PanIN- and PDA-derived mouse primary cells were previously described (9, 37). Unless otherwise noted in the text, they were cultured in a modified version of the PDEC medium as previously described (9). MIA PaCa-2, PANC-1, and BxPC3 were cultured in DMEM (GIBCO) supplemented with 10% cosmic calf serum (CS). Cell lines were authenticated by short tandem repeat profiling using the Geneprint 10 System (Promega). Data were matched against the ATCC reference database. All cell lines were matched to their identity with a score of >80%. ATCC names and numbers for the cell lines used in this study are as follows: MIA PaCa-2 (ATCC# CRL-1420), PANC-1 (ATCC# CRL-1469), HPAC (ATCC# CRL-2119), and AsPC-1 (ATCC# CRL-1682). All cell lines were routinely monitored for and confirmed to be free of Mycoplasma. Our laboratories routinely perform testing for Mycoplasma contamination, and positive cells are immediately discarded (most recent testing: April 13, 2018, for AsPC-1, PANC-1, HPAC, and BxPC3; January 30, 2018, for 2838c3 and 6419c5. Cells are normally maintained in culture for no longer than 15 passages.
For histone extraction and ChIP experiments, cells were allowed to adhere overnight, and then the medium was replaced with fresh medium containing indicated inhibitors and cultured for 24 hours, unless otherwise indicated. For gene silencing, siRNA smartpools targeting human ACLY and a nonsilencing control (Horizon Discovery/Dharmacon) were used. For proliferation assays, cells were plated in triplicate wells and allowed to adhere overnight. Cells were counted the following day (number indicated by a dashed line in Figs. 7C and E), culture medium was changed, and cells were allowed to proliferate for 4 days in the presence of indicated inhibitors. The medium was refreshed on the third day after plating.
Histone Extraction
Histones were purified using acid extraction, as previously described (9). Briefly, adherent cells were cultured in 6-well plates, and nuclei were harvested in cold nuclear isolation buffer (NIB; 15 mmol/L Tris-HCL pH7.5, 60 mmol/L KCl, 15 mmol/L NaCl, 5 mmol/L MgCl2, 1 mmol/L CaCl2, 250 mmol/L sucrose, freshly added: 1 mmol/L DTT, 1× protease inhibitors, 10 mmol/L sodium butyrate, 0.1% NP-40) and incubated in ice for 10 minutes with occasional vortexing. Suspension-growing acinar cells were resuspended in high-volume cold NIB for 15 minutes. Nuclei were pelleted at 600 relative centrifugal force (rcf) for 5 minutes at 4°C and washed twice using NIB without NP-40. The nuclear pellets were immediately resuspended in 0.4N H2SO4 and rotated at 4°C. After centrifugation, histones were precipitated from the supernatant by the addition of 20% tricholoracetic acid (TCA) for at least 1 hour, followed by centrifugation. The pellet was washed once with acetone containing 0.1% HCl and finally with 100% acetone. Histone proteins were dried at room temperature and resuspended in water.
MS Analysis of Histones
PanIN-derived cells were incubated for 24 hours in the presence of AKT inhibitor (see below) or vehicle control (DMSO). Histones were acid-extracted, as described. Total histones were subjected to chemical derivatization using propionic anhydride (Sigma-Aldrich) and digested with sequencing-grade trypsin at a 10:1 substrate:enzyme ratio for 6 hours at 37°C. The digested peptides were processed as previously described (72). A resolution of 60,000 was used in the Orbitrap for the full MS, followed by MS/MS spectra collected in the ion trap. Data were subsequently analyzed with in-house software (72).
ChIP
ChIP was performed essentially as previously described (71). Briefly, cells were fixed on the dish with 1% formaldehyde for 10 minutes at room temperature. The reactions were quenched with 0.25 M glycine. The cells were then washed twice with 1× PBS and scraped in cell lysis buffer (10 mmol/L Tris-HCl pH8.1, 10 mmol/L NaCl, 1.5 mmol/L MgCl2, 0.5% NP-40), supplemented with protease inhibitors (Roche). The cell pellet was resuspended in 0.5 mL of nuclear lysis buffer (50 mmol/L Tris-HCl pH 8.1, 5 mmol/L EDTA, 1% SDS) supplemented with protease inhibitors. The chromatin was fragmented with a Diagenode Bioruptor Pico (12 cycles of 30 seconds on followed by 30 seconds off, at 4°C). Samples were incubated with protein G magnetic beads (Millipore 16-662) and H3K27ac antibody (Abcam #ab4729) overnight at 4°C. The next day, samples were washed 5 times with decreasingly stringent buffers. ChIP DNA was eluted off the beads by incubating beads in 125 μL elution buffer for 10 minutes at 65°C. The combined supernatant was then incubated overnight at 65°C to reverse cross-links and proteinase K treated for 1 hour the next morning. Samples were purified using the Macherey-Nagel DNA purification kit, with NTB binding buffer.
qPCR
qPCR for ChIP samples were diluted 1:20 and used as template in the Power Sybr Master Mix (ABI 4367659), and DNA was amplified using the ViiA-7 Real-Time PCR system. Primers are listed in Supplementary Table S1.
RNA was isolated from triplicate wells under each condition using TRIzol (Invitrogen) and cDNA synthesized using high-capacity RNA-to-cDNA master mix (Applied Biosystems), as per the kit instructions. cDNA was diluted 1:10 and used as template in the Power Sybr Master Mix (ABI 4367659) and DNA was amplified using the ViiA-7 Real-Time PCR system. Fold change in expression was calculated using ΔΔCt, with indicated reference gene (18S, Actin, or GAPDH) as an endogenous control. All primers are listed in Supplementary Table S1.
Acinar Cell Isolation, Culture, and Tracing Experiment
Acinar cells were isolated as previously described (22). Briefly, pancreata from 6- to 8-week-old mice were collected upon sacrifice, washed twice in cold Hank's Balanced Salt Solution (HBSS) and subsequently minced. Tissue was then digested with 1 mg of collagenase P (Roche; #11215809103) in 5 mL HBSS at 37°C for 30 minutes, occasionally inverting the tubes and interrupting the digestion every 10 minutes to mechanically disrupt the clogs by pipetting with progressively smaller pipette tubes. The reaction was stopped and tissue homogenate was washed twice with HBSS containing 5% CS and then filtered through a 500-μm mesh and a 100-μm cell strainer. The flow through was carefully laid onto an HBSS +30% CS solution and centrifuged. The pellet was resuspended in Waymouth's medium containing 10% CS (supplemented with indicated inhibitors) for suspension culture. Cells were plated in low-adhesion petri dishes, incubated at 37°C for 24 hours and then harvested, unless otherwise reported.
For matrix-embedded culture, cells were resuspended in a 1:3 media:Matrigel (growth-factor reduced, from Trevigen) or a 1:2 media:collagen solution (purified Rat Collagen I, from Trevigen). Suspension (250 μL) was seeded onto a 48-well plate and incubated at 37°C for solidification for at least 1 hour. Upon Matrigel solidification, 500 μL of Waymouth's medium, containing 10% CS, 0.1 mg/mL soybean trypsin inhibitor, and indicated inhibitors/supplements, was added to each well. Cells were monitored daily, and images were acquired at day 2 using a DMI6000B inverted light and fluorescent microscope. Upon collagen solidification, 500 μL of Waymouth's medium supplemented with 10% CS and 0.1 mg/mL soybean trypsin inhibitor were added to each well. The following day, the medium was replaced with Waymouth's medium supplemented with 10% CS and 0.1 mg/mL soybean trypsin inhibitor and Tgfα (100 ng/mL). Cells were monitored daily and images acquired at day 5 (unless otherwise reported in the figure legend) using a DMI6000B inverted light and fluorescent microscope.
For nutrient tracing, suspension-plated cells were allowed to recover overnight in Waymouth's medium supplemented with 10% CS and 0.1 mg/mL soybean trypsin inhibitor. In the morning, cells were collected and rapidly spun down and resuspended in glucose- and leucine-free DMEM +10% dialyzed FBS (Gibco) supplemented with either 20 mmol/L [U-13C]-glucose (Cambridge Isotope Laboratories; #CLM-1396-1) or 500 μmol/L [U-13C]-leucine (Isotec, Millipore Sigma; #605239), plated in low-adhesion petri dishes and incubated at 37°C for 8 hours. Cold leucine (500 μmol/L) and 20 mmol/L of cold glucose were also respectively supplemented. For palmitate tracing, cells were spun down and resuspended in DMEM containing 120 μmol/L of [13C]-palmitate and supplemented with 10% charcoal-stripped FBS (Gibco) and cultured as above for 8 hours.
Blood Glucose Measurement and Glucose Tolerance Test
Blood glucose levels were measured from tail in either 9-week-old or 13-week-old mice after overnight fast using a portable glucometer (Breeze2; Bayer Pharmaceuticals). For the glucose tolerance test (GTT), mice were fasted overnight and weighed. Blood glucose levels were measured in the morning prior to glucose administration and values were used as t = 0 reference points. Mice were injected with 2.0 g/kg body weight of glucose (resuspended in PBS, filtered) via intraperitoneal injection. Blood glucose was measured by glucometer at 15, 30, 60, 90, and 120 minutes after injection.
Immunofluorescence of Acinar Cell Explants
Acinar cells were harvested from mice, plated in Matrigel, and treated as indicated. Cells were fixed with 4% paraformaldehyde for 15 minutes and permeabilized with 0.5% Triton X/PBS for 10 minutes at 4°C. Cells were then blocked in 10% goat serum in IF Wash buffer for 1 hour at room temperature. Primary antibodies (AcH4; 1:250) were incubated overnight at 4°C in IF Wash buffer + 10% goat serum. Secondary antibody was incubated with DAPI in IF Wash (+ 10% goat serum) for 1 hour at room temperature. Cells were immediately imaged. IF Wash buffer: 130 mmol/L NaCl2, 13 mmol/L Na2HPO4, 3.5 mmol/L NaH2PO4, 7.5 mmol/L NaN3, 0.1% BSA, 0.2% Triton X-100.
For quantification, fluorescence signals were quantified with ImageJ counting the number of pixels that exceeded a fixed background threshold, as previously described (73).
Antibodies and Reagents
Inhibitors used were as follows: AKT inhibitor VIII (Calbiochem; 10 μmol/L), MK2206 (Selleckchem; #S1078, 5 μmol/L), PD325901 (LC Laboratories; 1 μmol/L), HMGCR inhibitor (Atorvastatin, Cayman Chemicals; #10493; 20 μmol/L), JQ1 (AdooQ Biosciences; #A12729 for in vivo experiments; in vitro quantities provided by the James E. Bradner laboratory, Harvard; 500 nmol/L unless specified in the text), 1,2,3-benzenetricarboxylic acid (BTA; Sigma; #B420-1).
Recombinant proteins and supplements used for cell treatments were recombinant murine EGF (PeproTech; #215-09; 100 ng/mL); recombinant TGFα (R&D Systems; 100 ng/mL); recombinant murine IGF1 (PeproTech; #250-19, 200 ng/mL); bovine-extracted insulin (Sigma; #I5500; 50 ng/mL); cholesterol (SyntheChol NSO supplement—synthetic cholesterol; Sigma; #S5442; 12.5 μg/mL); mevalonate ((±)-mevalonic acid 5-phosphate trilithium salt hydrate; Sigma; #S79849; 100 μmol/L); ITS+ Premix (Fisher; #CB40352).
Antibodies used for western blots include AcH3, AcH4, H3, H4 (from Millipore), pAKT-Ser473, AKT, pACLY-Ser455, pERK, ERK, pS6, S6, H4K8ac, H3K23ac, ACSS2 (from Cell Signaling Technology), tubulin (Sigma), H3K27ac, H3K9ac (from Abcam), and ACLY (previously described; ref. 8). Secondary antibodies were IRDye680RD Goat Anti-Mouse (LI-COR 926-68070) and IRDye800CW Goat Anti-Rabbit (LI-COR 926-32211). Blots were analyzed using a LI-COR Odyssey CLx blot scanner.
Antibodies used for IHC on murine tissues were as follows: AcH4 (1:4,000; clone 06-759-MN; Millipore), Ki67 (1:250; #ab16667; Abcam) pACLY (1:100; #SAB4504020; Sigma), pERK (1:250; #9101; Cell Signaling Technology), ACLY (1:100; #ARP42737_P050; Aviva Biosystems), cleaved caspase-3 (1:200; #9661; Cell Signaling Technology), ACSS2 (1:250; #3658S; Cell Signaling Technology), H3K27ac (1:3,000; #ab4729; Cell Signaling Technology), and LDLR (1:200; #AF2255; R&D Systems).
Antibodies used for IF on murine tissues were as follows: AcH4 (1:2,000; clone 06-759-MN; Millipore) and CPA1 (1:200; #AF2765; R&D Systems).
IHC and Analysis of Murine Pancreatic Tissue
For histologic evaluation, tissue samples were harvested as described (9). Importantly, pancreata were laid on a planar surface and fixed with formalin overnight. Sectioning of paraffin-embedded tissues exposed the transverse axis and revealed whole organ morphology (4-μm sections; Abramson Family Cancer Research Institute Histopathology Core). For tumor evaluation, images of whole pancreata were reconstructed through software-guided tile merging. ImageJ software was used for quantification of the area of entire pancreata as well as of individual neoplastic foci. Similarly, area of Langerhans' islets was quantified. For each mouse, three consecutive tissue slides were analyzed. For each slide, area of Langerhans' islets was summed. Data points represent islets' total area in each individual slide. The number of animals evaluated in each experiment is reported in the figure legends.
IHC was performed on paraffin-embedded sections. Tissue sections were dewaxed and rehydrated. Antigen retrieval was performed by boiling samples in citrate buffer for 20 minutes and endogenous peroxidase was blunted by incubating samples with 3% H2O2 for 10 minutes. Primary antibody was incubated overnight at 4°C. For Alcian blue staining, rehydrated paraffin sections were stained with 1% Alcian blue 8GX in 3% acetic acid (pH 2.5) for 30 minutes and counterstained with hematoxylin. Histopathologic scoring was performed by a trained veterinary pathologist (E.L. Buza, University of Pennsylvania) in a blinded manner. For each animal, 10 low-magnification images from different, nonoverlapping microscopic fields were analyzed. Duct-like structures were counted and histologically evaluated according to the consensus criteria (74). At least seven mice per genotype were analyzed, and data were represented as the average number of lesions per optical field.
Acyl-CoA Quantification and Isotopolog Analysis
Acyl-CoA analyses were performed by liquid chromatograpy-mass spectrometry/high-resolution mass spectrometry (LC-MS/HRMS) as previously described (75). Briefly, approximately 20–50 × 106 acinar cells were cultured in suspension in low-adhesion 6-mm petri dishes. At harvest, cells were placed on ice, transferred to 15 mL falcon tubes, and centrifuged at 600 × g for 2 minutes at 4°C. The medium was aspirated, and the cell pellet was resuspended in 1 mL 10% (w/v) trichloroacetic acid (Sigma-Aldrich; catalog #T6399) for acyl-CoA extraction. For quantification, an equal amount (100 μL) of 13C315N1-labeled acyl-CoA internal standard (75) was added to each sample. Samples were pulse sonicated, centrifuged, and the supernatant was purified by solid-phase extraction using Oasis HLB 1cc (30 mg) SPE columns (Waters). Eluate was evaporated to dryness under nitrogen gas and resuspended in 50 μL of 5 % 5-sulfosalicylic acid (w/v) for injection. Samples were analyzed by an Ultimate 3000 autosampler coupled to a Thermo Q-Exactive Plus instrument in positive electrospray ionization mode. For isotopic tracer analysis, isotopic enrichment from [U-13C]glucose or [U-13C]palmitate or [U-13C]leucine or [1,2-13C]-acetate was calculated to compensate for the nonlinearity of isotopic enrichment using the FluxFix calculator (76).
Cerulein Treatment
Acute pancreatitis was induced in 6- to 7-week-old mice of the indicated genotype. Mice were injected with caerulein (50 μg/kg diluted in saline; Sigma-Aldrich) or saline on two consecutive days once every hour for 8 hours each day. The first day of injection was considered day 0. The number of animals is indicated in figure legends.
Protein Lysate Preparation for Western Blotting
The lysates were sonicated at 30% duty cycle and an output control setting of 3 to 4. The sonicated samples were pelleted for 5 minutes and 16,000 rcf, and the supernatant was collected and quantified by BSA (Thermo Scientific).
YSI Metabolite Measurements
Glucose and glutamine consumption and lactate production were measured using a YSI 2950 Bioanalyzer. Measurements were conducted over a 24-hour time period and normalized to cell number area under the curve, as previously described (9).
Human Gene-Expression Profiling
Gene expression was assessed though a web-based tool (GEPIA; ref. 36). Provisional data sets from The Cancer Genome Atlas and GTEx consortiums were used for the analysis.
Fecal Analysis of Exocrine Activity
To assess total fecal protein, 10 mg of feces was resuspended in lysis buffer (2% SDS, 150 mmol/L NaCl, 0.5 mol/L EDTA), sonicated, and the protein concentration was assessed using a BCA assay. Total fecal protease activity was measured in 10 mg of fecal matter, resuspended in 1 mL of buffer A (0.1% Triton X-100, 0.5 mol/L NaCl, 100 mmol/L CaCl2), sonicated, and centrifuged. The supernatant was then incubated with 3% Azo-Casein (Sigma-Aldrich; A2765) dissolved in 50 mmol/L Tris·HCl buffer, pH 8.5 at 37°C for 60 minutes. The reaction was stopped using 8% TCA and centrifuged. The absorbance of the supernatant (measured at 366 nm) was measured using a spectrophotometer.
Statistical Analysis
Data are presented as the means of experimental replicates with their respective standard deviations (SD), unless otherwise indicated. Student two-tailed t tests (two-sample equal variance, two-tailed distribution) were used for analyses, unless otherwise indicated. Repeated-measures ANOVA with Tukey–Kramer adjustment for multiple comparisons was used to evaluate significant differences in body weight. For survival, log-rank test was performed using GraphPad Prism. For tumor growth, two-way ANOVA was calculated using GraphPad Prism. Significance was defined as follows: *, P < 0.05; **, P < 0.01; ***, P < 0.001.
Disclosure of Potential Conflicts of Interest
No potential conflicts of interest were disclosed.
Authors' Contributions
Conception and design: A. Carrer, Y. Sela, B.Z. Stanger, K.E. Wellen
Development of methodology: A. Carrer, R.J. Norgard, K.E. Wellen
Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): A. Carrer, S. Trefely, S. Zhao, S.L. Campbell, R.J. Norgard, K.C. Schultz, S. Sidoli, H.C. Affronti, S. Sivanand, S. Egolf, Y. Sela, N.W. Snyder, B.Z. Stanger, K.E. Wellen
Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): A. Carrer, S. Trefely, S.L. Campbell, S. Sidoli, M. Trizzino, A. Gardini, N.W. Snyder, B.Z. Stanger, K.E. Wellen
Writing, review, and/or revision of the manuscript: A. Carrer, S. Trefely, S. Zhao, R.J. Norgard, J.L.D. Parris, H.C. Affronti, Y. Sela, N.W. Snyder, B.Z. Stanger, K.E. Wellen
Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): A. Carrer, B.A. Garcia
Study supervision: B.A. Garcia, B.Z. Stanger, K.E. Wellen
Acknowledgments
The authors acknowledge Cynthia Clendenin and the staff at the Pancreatic Cancer Mouse Hospital for their support for the in vivo drug-treatment experiments. The authors thank Jinyang Li (Stanger Lab) for providing C57BL/6 KPCY PDA cell lines. The authors also thank the PennVet Core (Elizabeth Buza) for histologic evaluation of murine pancreatic tumor samples. A. Carrer thanks Kyoung Lee for her help in establishing acinar cell culture. This work was supported by the 2014 Pancreatic Cancer Action Network–AACR Career Development Award, grant number 14-20-25-WELL, and the NIH grants R01CA174761 and R01CA228339 to K.E. Wellen. This project was also funded in part under a grant with the Pennsylvania Department of Health to K.E. Wellen and B.Z. Stanger. The Department specifically disclaims responsibility for any analyses, interpretations, or conclusions. N.W. Snyder is supported by the NIH grant R03HD092630. B.A. Garcia acknowledges NIH funding GM110174, AI118891, and CA196539. S.L. Campbell is supported by NIH predoctoral fellowship 1F31CA217070-01. S. Trefely is supported by the American Diabetes Association through postdoctoral fellowship #1-18-PDF-144. S. Zhao received funding from the NIH transition award F99CA222741. J.L.D. Parris was supported by the UPenn Baccalaureate Research Education fellowship R25-GM071745. H.C. Affronti is supported by NIH transition award 4K00CA212455-03.
The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked advertisement in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
Note: Supplementary data for this article are available at Cancer Discovery Online (http://cancerdiscovery.aacrjournals.org/).
