Advanced, metastatic melanomas frequently grow in subcutaneous tissues and portend a poor prognosis. Though subcutaneous tissues are largely composed of adipocytes, the mechanisms by which adipocytes influence melanoma are poorly understood. Using in vitro and in vivo models, we find that adipocytes increase proliferation and invasion of adjacent melanoma cells. Additionally, adipocytes directly transfer lipids to melanoma cells, which alters tumor cell metabolism. Adipocyte-derived lipids are transferred to melanoma cells through the FATP/SLC27A family of lipid transporters expressed on the tumor cell surface. Among the six FATP/SLC27A family members, melanomas significantly overexpress FATP1/SLC27A1. Melanocyte-specific FATP1 expression cooperates with BRAFV600E in transgenic zebrafish to accelerate melanoma development, an effect that is similarly seen in mouse xenograft studies. Pharmacologic blockade of FATPs with the small-molecule inhibitor Lipofermata abrogates lipid transport into melanoma cells and reduces melanoma growth and invasion. These data demonstrate that stromal adipocytes can drive melanoma progression through FATP lipid transporters and represent a new target aimed at interrupting adipocyte–melanoma cross-talk.
Significance: We demonstrate that stromal adipocytes are donors of lipids that mediate melanoma progression. Adipocyte-derived lipids are taken up by FATP proteins that are aberrantly expressed in melanoma. Inhibition of FATPs decreases melanoma lipid uptake, invasion, and growth. We provide a mechanism for how stromal adipocytes drive tumor progression and demonstrate a novel microenvironmental therapeutic target. Cancer Discov; 8(8); 1006–25. ©2018 AACR.
This article is highlighted in the In This Issue feature, p. 899
The tumor microenvironment (TME) is increasingly recognized to play an important role in cancer initiation and progression. The variety of TME components acts in concert with genetic changes in tumor cells to allow for a dynamic response to novel environments during tumor progression and after exposure to drugs (1). The TME can also provide growth factors such as WNT ligands that drive tumor cell proliferation and invasion (2), making tumor–TME cross-talk an attractive therapeutic target.
In melanoma, components of the TME continue to be elucidated. Immune cells such as T cells are a major component of this environment, underscored by the recent success of immunomodulators such as anti-CTLA4 (3) and anti–PD-1 (4) molecules that have had dramatic efficacy in a significant number of patients with melanoma. A recent single-cell sequencing study demonstrated significant heterogeneity within the immune component of the TME (5), which may in part be related to the ability of immune cells such as macrophages to respond to lactate secreted from tumor cells (6). These observations may provide new opportunities for patient-specific immune therapies.
Melanomas arise from neural crest–derived melanocytes (7), which are anatomically located at the dermal–epidermal junction of the skin. During the early stages of melanoma, referred to as a Clark's level I tumor, melanoma cells interact with microenvironmental keratinocytes, which provide endothelins required for melanoma growth (8). As melanoma progresses, tumor cells enter a vertical growth phase and grow past the dermis into subcutaneous tissue, which is largely populated with adipocytes. These advanced, Clark's level V primary melanomas are at high risk of systemic metastasis. Melanoma cells also come into direct contact with adipocytes when they metastasize to secondary subcutaneous tissues or bone marrow (9), making these stromal cells a relevant component of both primary and metastatic microenvironments.
Despite long recognition that the subcutaneous tissue is composed of adipocytes, relatively little attention has been paid to the mechanistic interaction between melanoma cells and adipocytes. Cross-talk between the two cell types is likely: In mice, the adipocytic, subcutaneous tissue surrounding engrafted melanoma cells shows morphologic changes consistent with an activated cancer-associated adipocyte (10), likely due to lipolytic factors secreted from the melanoma cells (11). Moreover, adipocytes are lipid-rich, highly secretory cells that release lipids and a number of adipokines such as leptin that can drive melanoma growth through MAPK activation (12). A recent study demonstrated that adipocyte-derived exosomes carry proteins that drive fatty-acid oxidation in melanoma cells, suggesting they may influence melanoma cell metabolism (13). Here, we utilize a combination of mouse and zebrafish in vivo models and human patient-derived tissues to interrogate how stromal adipocytes can promote melanoma progression. We demonstrate that adipocytes donate high levels of fatty acids to melanoma cells, fueling proliferation and invasion. These adipocyte-derived fatty acids are transported into melanoma cells through the fatty acid transporter proteins (FATP), which are highly expressed in subsets of patients with melanoma and act to promote melanoma progression.

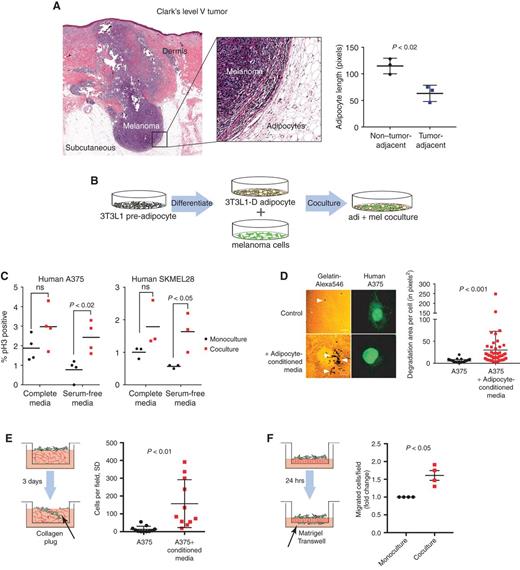

Advanced Melanomas Are in Direct Contact with Subcutaneous Adipocytes
Melanomas arise at the dermal–epidermal junction, where they initially expand in radial growth phase. During progression, these lesions extend down into the dermal tissue during vertical growth phase, and some lesions continue to grow into the subcutaneous tissues, where they are then classified as Clark's level V. Moreover, metastatic tumor cells can also reach subcutaneous tissues as in-transit metastases. Histologic examination of these advanced melanomas demonstrates that these tumors are encased by subcutaneous adipocytes present in the TME (Fig. 1A). We found that adipocytes directly adjacent to the tumor are diminished in size compared with those further away, consistent with tumor-induced lipolysis. Given the importance of adipocytes in other tumors, such as ovarian and breast cancers (14, 15), we reasoned that these subcutaneous adipocytes might promote melanoma growth and progression.
Adipocytes Increase Melanoma Cell Proliferation and Invasion
To assess the role of adipocytes in melanoma progression, we established an adipocyte–melanoma cell coculture system (Fig. 1B). We differentiated 3T3-L1 cells into adipocytes with mature lipid droplets and then grew human A375 or SKMel28 cells on top. We measured proliferation of melanoma cells with or without the adipocytes using pH3 staining (Fig. 1C). In both cell lines, we found a significant increase in melanoma cell growth when the cells were serum starved to remove other growth factors.
We next tested whether the adipocytes could also increase melanoma cell invasion, using several different assays. We found that adipocyte-conditioned media increased the ability of A375 melanoma cells to degrade a gelatin matrix in 2-D (Fig. 1D). We then utilized Transwell assays to measure if this increased the ability of the cells to invade through the membrane. We treated melanoma cells with adipocyte-conditioned media and found that this significantly increased the ability of the cells to invade into a collagen plug contained within the Transwell (Fig. 1E). Finally, we cocultured melanoma cells with or without adipocytes, FACS isolated the melanoma cells, and found that the adipocyte-exposed melanoma cells had a significantly increased ability to fully traverse a Transwell membrane that had been coated with Matrigel (Fig. 1F). Collectively, these data indicate that adipocytes can increase melanoma cells’ aggressiveness.
Adipocytes Increase Melanoma Cell Lipid Content
Adipocytes could enact these changes in the melanoma cells either through adipokines (e.g., leptin) or via changes in melanoma cell lipid content. We performed RNA sequencing (RNA-seq) on A375 melanoma cells in the presence or absence of adipocytes and used Gene Set Enrichment Analysis to identify the most dysregulated pathways from the MSigDB database (ref. 16; Supplementary Fig. S1; Supplementary Table S1). This revealed a strong enrichment for defects in cholesterol homeostasis and fatty-acid metabolism. Based on these data and other studies showing that adipocytes can directly alter lipid content of tumor cells (14, 17), we therefore focused on lipid content in the melanoma cells.
To test whether adipocytes increase lipid content in melanoma cells, we utilized the coculture system above and measured melanoma cell lipid content. Human A375 or SKMel28 cells or zebrafish ZMEL1 cells were grown either in the presence or absence of adipocytes, FACS isolated, and lipid content was measured using the global lipid dye LipidToxRED. In all three cell lines, we found a significant increase in cytosolic lipids in the cocultured cells (Fig. 2A). We reasoned that this global increase in lipid content in the melanoma cells would lead to aberrant formation of lipid droplets in the cytosol. To assess this, we performed electron microscopy on A375 cells with or without adipocytes. We found a significant increase in both the number and size of the lipid droplets in the cocultured melanoma cells, consistent with the effects we see with LipidToxRED (Fig. 2B).
Adipocytes Directly Transfer Fatty Acids to Melanoma Cells
The above data indicate that the presence of adipocytes increases melanoma cell lipid content but does not indicate whether this is a result of direct transfer or an indirect effect of a secreted factor that triggers de novo fatty-acid synthesis in tumor cells. Because tumor-adjacent adipocytes are smaller than those far away (Fig. 1A), we tested whether they were direct donors to the melanoma cells by a lipid “pulse-chase” approach. 3T3-L1 adipocytes were loaded with BODIPY-labeled fatty acids. Labeled adipocytes were washed to remove excess lipids from the media, and melanoma cells were plated on top (Fig. 2C). Within 24 to 48 hours, we observed the BODIPY-labeled fatty acids within the cytosol of melanoma cells, demonstrating that lipid species originating from adipocytes could be transferred to melanoma cells. To determine whether direct melanoma cell–adipocyte contact was necessary for transfer, we also performed a second iteration of the experiment with adipocytes and melanoma cells separated by a Transwell membrane (Fig. 2D). Similar to what we observed when the cells were in direct contact, adipocyte-derived BODIPY-labeled fatty acids can be transferred into the melanoma cell (Fig. 2E), demonstrating that cell–cell contact is not necessary. This effect was seen for both C12 and C16 BODIPY-labeled fatty-acid chain lengths (Supplementary Fig. S2A). These data indicate that adipocytes can release fatty acids into the extracellular milieu, which can be taken up by nearby tumor cells, a phenomenon also observed in omental metastases in ovarian cancer (14).
Adipocytes Increase Dependency on Extrinsic Lipid Uptake in Melanoma Cells

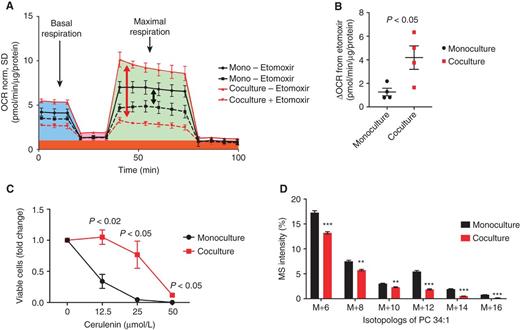

These data raised the possibility that the adipocyte-derived lipids were affecting melanoma cell metabolism. To test this, we used the Seahorse assay to measure both mitochondrial oxygen consumption (OCR) and extracellular acidification rate (ECAR) in melanoma cells in monoculture or after coculture with adipocytes. Although ECAR did not change significantly between each condition (Supplementary Fig. S3), indicating no change in rates of glycolysis, cocultured melanoma cells had significantly increased OCR (Fig. 3A). This increase could be suppressed by etomoxir, an inhibitor of carnitine palmitoyl transferase (CPT1), which is necessary for a critical step in β-oxidation of fatty acids. Whereas the monocultured cells saw a small decrease in OCR after the addition of etomoxir, cocultured cells dramatically reduced OCR. Because CPT1 is an important first step in β-oxidation, this decrease in OCR is consistent with the idea that the cocultured cells can utilize the adipocyte-derived lipids for fatty-acid oxidation (Fig. 3B). We next tested whether these adipocyte-derived lipids made the melanoma cells less dependent upon de novo lipogenesis by testing the sensitivity to the FASN inhibitor cerulenin. Whereas the monocultured cells had a significant decrease in cell viability from the FASN inhibitor, the cocultured cells were markedly protected from this effect (Fig. 3C). Finally, we reasoned that cocultured cells would have decreased rates of de novo lipid synthesis, as they were already taking up extrinsic lipids. We tested this by feeding melanoma cells 13C-labelled acetate and measuring incorporation into newly synthesized lipids via LC/MS. This showed a significant decrease in de novo fatty-acid synthesis in the cocultured cells (Fig. 3D). Taken together, these data demonstrate that adipocyte-derived lipids can be utilized in the β-oxidation pathway and decrease the dependence on de novo lipogenesis.
Adipocytes Increase Melanoma Cell Lipid Content In Vivo
We next wanted to test whether the increased lipid content from adipocytes occurred in vivo. We first examined a series of human subcutaneous metastases and tumors from patient-derived xenografts (PDX) and stained them for OilRedO, a commonly used lipid dye in human samples (Fig. 4A; Supplementary Fig. S4). In 3 of 5 patient biopsy samples and 4 of 4 PDXs, we found significant evidence of lipid accumulation in the cytosol of tumor cells that are directly adjacent to adipocytes (see additional data in Fig. 6 related to the mechanism of this lipid accumulation).
We next turned to an animal model of this process. Our lab has previously developed a BRAFV600E-driven transgenic zebrafish model of melanoma that closely recapitulates the human disease (18, 19). From this model, we also developed a GFP-labeled melanoma cell line called ZMEL1, which can be used for transplantation studies. We wished to determine if transplantation of ZMEL1 cells into adipocytes would recapitulate the increases in lipid content that we had observed in vitro (20). We first identified the location of the zebrafish adipocyte fat pad using a plin2-tdTomato transgenic line, which showed a depot of subcutaneous fat in the ventral and dorsal skin (Fig. 4B). Based on this anatomy, we transplanted ZMEL1-GFP melanoma cells directly into the ventral subcutaneous fat pad of the fish and then stained with BODIPY-RED to visualize lipids. This imaging revealed clear evidence of lipid-laden melanoma cells (Fig. 4C) in 76% of the fish, an effect that was not seen when the cells were next to adipocyte-free areas of the fish (Supplementary Fig. S5). To more precisely quantify this effect, we FACS isolated the GFP+ melanoma cells at 21 days after transplant (DPT) and analyzed them by ex vivo lipid analysis using LipidToxRED staining. Analogous to what we saw in vitro, by 21 DPT, we saw a significant increase in global lipid content in the ZMEL1 melanoma cells compared with cells growing in vitro or after a short 5-day period of in vivo growth (Fig. 4D).
Subcutaneous Metastases Grow Next to Adipocytes and Dysregulate Lipid Genes
Given the changes in tumor cell metabolism we observed in the melanoma–adipocyte cocultured cells and the parallel increases in lipid content in transplanted tumor cells, we next wanted to determine whether subcutaneous metastases showed changes in lipid metabolism. We utilized a previously developed zebrafish metastasis assay in which the ZMEL1-GFP cells can be injected either into the skin or directly into vasculature, and metastatic engraftment to secondary subcutaneous sites can be read out at 21 days. We sectioned recipient fish and found that 57% of the metastases developed directly adjacent to endogenous adipocytes (Fig. 5A). We isolated the subcutaneous metastatic cells by FACS and performed RNA-seq analysis on tumor cells that were growing next to adipocytes (Fig. 5B; Supplementary Table S2). Ingenuity Pathway Analysis showed that of the top dysregulated pathways, 3 of 7 were centered on abnormalities of adipogenesis, fatty-acid synthesis, or cholesterol synthesis (Fig. 5C). Moreover, most de novo lipogenesis genes were strongly downregulated due to feedback inhibition, as expected for cells avidly taking up extrinsic lipids (Fig. 5D) and consistent with our in vitro data using the FASN inhibitor and 13C incorporation (Fig. 3C and D). Taken together, these data confirm that the effects we observed in vitro are conserved in vivo.
Global Lipidomics Demonstrates That Long-Chain Fatty Acids Are Transferred to Melanoma Cells
The above data suggested that melanoma cells can take up lipids from adjacent adipocytes both in vitro and in vivo. To directly assess the lipid species donated by adipocytes to melanoma cells, we performed global lipidomic profiling of melanoma cells in both the in vitro and in vivo situations. For the in vitro experiments, we cocultured A375 or ZMEL1 melanoma cells with or without 3T3L1 adipocytes, as above. We then FACS isolated the melanoma cells, along with control melanoma cells that were maintained in monoculture. For the in vivo experiments, we transplanted ZMEL1 cells into the subcutaneous fat pad, as above, and FACS isolated the melanoma cells 21 DPT. Mass spectrometry–based lipid profiling of 1,088 individual lipid species was performed on these in vitro and in vivo tumor cell samples (Supplementary Fig. S6A; Supplementary Tables S3–S5). We calculated the fold change of each species compared with the monocultured cells and identified the lipid species that were increased across the in vitro and in vivo samples (Fig. 5E). Overall, the most significantly increased lipids were long-chain fatty acids, including both saturated (e.g., stearic acid) and unsaturated (e.g., oleic acid) species (Fig. 5F). To confirm the physiologic relevance of these lipids, we then determined whether these fatty acids were sufficient to promote melanoma growth even in the absence of adipocytes. We used a chemically defined lipid reagent (CDL) that contains a mixture of saturated and unsaturated fatty acids, and measured growth of A375 melanoma cells in complete media and serum-free media. In both conditions, the CDL mixture promoted melanoma growth across a range of time points (Supplementary Fig. S6B).

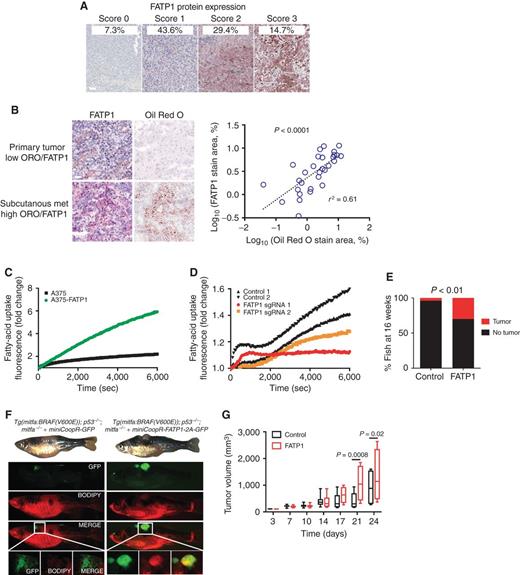

Long-Chain Fatty Acids Are Taken Up by FATP/SLC27A Proteins on the Melanoma Cells
Long-chain fatty acids such as stearic and oleic acid require active transport to enter the cytosol. In cells such as liver and brain, this uptake is mediated by the FATP family of lipid transporters (21, 22). Humans have 6 highly related FATP/SLC27A proteins, referred to as FATP1–6. To determine which was most relevant to melanoma, we examined the expression of this family of proteins using data from the Cancer Cell Line Encyclopedia and the Oncomine database (Supplementary Fig. S7A). This revealed a statistically significant enrichment of FATP1/SLC27A1 in melanoma compared with all other cancer types, and we found that in stage IV patients, higher mRNA levels correlated with worse survival (ref. 23; Supplementary Fig. S7B). This prompted us to examine protein expression of FATP1 in human patient biopsies as well. Consistent with the cell line data, we find that 44% of patients overexpress FATP1 specifically in the tumor cell compartment (Fig. 6A; Supplementary Fig. S4). To determine if there was a relationship between FATP1 expression and lipid uptake, we stained a series of freshly isolated tumors from both primary and metastatic sites (subcutaneous, lymph nodes, and brain) for both FATP1 and lipids using Oil Red O, which revealed a strong positive correlation (r2 = 0.61) for FATP1 versus Oil Red O staining (Fig. 6B). These data are in line with the known ability of FATP1 in mediating uptake of long-chain fatty acids.
To functionally assess whether FATP1 is capable of mediating lipid uptake into melanoma cells, we overexpressed FATP1 in A375 human melanoma cells and found that it significantly increased fatty-acid uptake (Fig. 6C). Conversely, fatty-acid uptake was impaired when FATP1 expression was abrogated with CRISPR/Cas9 (Fig. 6D; Supplementary Fig. S8A). To test the importance of FATP1 in vivo, we utilized both zebrafish transgenesis and mouse xenografts. We generated transgenic zebrafish in which the BRAFV600E gene is expressed with or without concomitant overexpression of FATP1. To do this, we utilized the previously described MiniCoopR system, a mosaic transgenic system in which any cargo gene of interest (e.g., FATP1) can be easily inserted and expressed coordinately with BRAFV600E under the melanocyte-specific mitfa promoter (24). This ensures melanocyte-specific BRAFV600E and FATP1 expression, limiting off-target effects in other cell types. We then followed a cohort of BRAFV600E versus BRAFV600E;FATP1 animals for a period of 4 months. In this time frame, only a small number of BRAFV600E-alone animals developed melanomas (4%). In contrast, we saw a marked acceleration of melanoma development in the BRAFV600E;FATP1 animals (30%; Fig. 6E). For a subset of animals that developed tumors, we stained the fish with BODIPY-RED to visualize lipid content. Whereas BRAFV600E alone had only scant amounts of lipid staining, nearly the entire BRAFV600E;FATP1 tumor stained strongly with BODIPY-RED, consistent with a lipid-filled tumor, as expected (Fig. 6F).
Next, we wanted to confirm if this effect was conserved in mouse xenograft studies. We stably infected BRAFV600E-mutant A375 melanoma cells with either an mCherry or FATP1-mCherry cassette using lentiviral transduction. We transplanted these cells into the subcutaneous tissues of recipient nude mice and followed tumor growth over 28 days. Similar to what we observed in the zebrafish studies, FATP1 overexpression increases tumor growth in the mouse (Fig. 6G). Taken together, these data indicate that FATP1 acts to promote melanoma growth in the context of BRAFV600E.
FATP Blockade Inhibits Melanoma Growth
These data raised the possibility that pharmacologic blockade of FATP proteins might have therapeutic utility in melanoma. We therefore wished to test this both in vitro and in vivo. Recent work has identified a small-molecule FATP inhibitor called Lipofermata/CB16.2 (25), which was initially isolated as a FATP2 inhibitor that could be used for the treatment of fatty liver disease (26). Given the similarities between FATP1 and FATP2, our data suggested that this molecule might be repurposed for use in melanoma. To test this, we first determined whether Lipofermata could also block FATP1 by measuring lipid uptake in FATP1-overexpressing or knockout cells. Lipofermata dose-dependently inhibited lipid transport in A375 cells overexpressing FATP1, an effect that was diminished in the CRISPR knockout cells (Supplementary Fig. S9). Next, we tested the effects of Lipofermata on A375 cells expressing endogenous levels of FATP1, and found it inhibited fatty-acid uptake in a dose-dependent manner (Fig. 7A). This effect did not occur using a molecule that is structurally similar to Lipofermata (CB16.6) but has previously been shown not to block lipid uptake (Supplementary Fig. S10A) in CaCO2 and HepG2 cells (26). Next, we tested Lipofermata using the lipid pulse-chase experiment described above. We differentiated 3T3-L1 cells into adipocytes, loaded them with BODIPY-RED fatty acids, and then plated melanoma cells onto these in the presence or absence of Lipofermata. This revealed a strong abrogation of lipid transfer from the adipocyte to the melanoma cell (Fig. 7B). We next measured proliferation and found a dose-dependent decrease in proliferation with Lipofermata treatment in multiple melanoma cell lines that was not observed with cells treated with the inactive compound CB16.6 (Fig. 7C; Supplementary Fig. S10B). This effect on proliferation was diminished in melanoma cells that had previously been cocultured with adipocytes, as they have already taken up extrinsic lipids in that setting (Fig. 7D). We measured the invasive capacities of melanoma cells with the gelatin degradation assay after FATP inhibition with Lipofermata. At concentrations that did not cause cell death (Supplementary Fig. S11), Lipofermata abrogated the invasive phenotype we previously observed in tumor cells treated with adipocyte-conditioned medium (Fig. 7E).
Finally, we tested Lipofermata in vivo. One major limitation of this approach is the short half-life of Lipofermata in vivo (26), likely due to rapid liver clearance. Therefore, to take this into account, we wished to apply the drug directly to the tumor in vivo, bypassing liver clearance. Using our zebrafish transplant assay, we transplanted ZMEL1-GFP cells into the subcutaneous fat pad as above, waited for the tumor to engraft, and then injected Lipofermata into the tumor bed over the next 5 days. We measured tumor area by GFP expression and found that Lipofermata caused a significant decrease in melanoma cell growth (Fig. 7F). This was accompanied by a significant decrease in lipid content in the drug-treated tumors as measured by LipidTox staining (Fig. 7G). We also tested Lipofermata in mouse xenografts using systemic administration but did not see significant effects (on either tumor volume or animal weight) because of its short-half life, precluding us from adequately assessing its efficacy in this setting. This indicates that although further work will be needed to optimize Lipofermata or related molecules for clinical use, our data from the in vitro and zebrafish studies are consistent with the importance of FATP proteins as a viable target aimed at adipocyte–melanoma cross-talk.
It has long been posited that tumor cells will optimally grow when surrounded by environments that enhance their ability to proliferate and avoid cell death, often referred to as the “seed and soil” hypothesis (27, 28). In vivo, this soil is provided by the TME, which is now appreciated to play a central role in metastasis and drug resistance (29). The cell types and factors that are important within the TME continue to be elucidated, and our data are consistent with emerging data from other cancer types, demonstrating the contribution of stromal adipocytes to tumor progression. In ovarian (14), breast (30, 31), and other cancers (32, 33) known to initiate in or metastasize to adipose tissue, adipocyte-derived lipids are recognized as potent energy sources that support tumor cell metabolism and growth (14, 34). Aside from this energetic effect, adipocyte-secreted adipokines stimulate angiogenesis and proliferation (35). In cutaneous melanoma, progression is marked by the vertical growth phase of the tumor, when cells drive down from the dermal–epidermal junction into subcutaneous tissue. Although subcutaneous tissues are well known to be enriched for adipocytes, adipocyte function in melanoma has remained minimally explored, with only a few studies directly addressing its role in metabolism, invasion, or drug resistance (13, 36, 37). In this work, we define these subcutaneous adipocytes as a potent source of lipids that drive melanoma progression.
In many tumors, lipids are provided via de novo lipogenesis, making lipid synthetic pathways such as FASN potential therapeutic targets (38). In contrast, we find that melanoma cells take up lipids from the subcutaneous adipocytes, bypass the need for de novo synthesis, and in fact turn off the enzymes needed for lipogenesis. Our data show that after exposure to adipocytes, melanoma cells can take up extrinsic lipids and become less dependent upon FASN-mediated de novo lipogenesis, implying that lipid pathways outside of lipogenesis may be necessary in melanoma. Our work suggests that interrupting the mechanisms of lipid uptake from microenvironmental adipocytes may offer one such route. In support of this idea, recent work has demonstrated that CD36, a scavenger receptor that can transport fatty acids and other molecules, is a relevant therapeutic target in metastasis-initiating cells (39). Because CD36 binds multiple ligands, it largely relies on cotransporters to mediate specific transport of fatty acids into cells, which are most typically members of the FATP/SLC27A family (21). We have demonstrated that melanomas express FATPs and that these proteins mediate delivery of lipids from adipocytes to melanoma cells. Thus, although CD36 may selectively mark a subset of metastasis-initiating cells, melanoma cells that coexpress CD36 along with FATP proteins may be more broadly involved in both growth and invasive properties. Supporting this notion, we find a strong positive correlation between FATP1 expression and lipid content in the tumor cells, suggesting that melanomas expressing especially high levels of FATP proteins may be most responsive to nearby adipocytes. Inhibition of FATP proteins with Lipofermata abrogates lipid transfer into melanoma cells. The relatively short half-life of this compound makes it more of a tool rather than a drug, but the FATP proteins may represent a future pharmacologic strategy to exploit the dependence of melanoma on adipocyte–melanoma cross-talk during tumor progression.
Lipids can exert complex effects on tumor cell behavior due to their structural diversity (40). Some lipids such as long-chain fatty acids can be used directly in beta-oxidation and act as a source of ATP for cell growth and metabolism (13). At the same time, high levels of lipids, especially saturated fatty acids, can lead to significant lipotoxicity (41). This can be due to increased levels of reactive oxygen species or induction of an endoplasmic reticulum stress response (42, 43). In addition to these metabolic functions, some lipids such as phospholipids and cholesterol can play major roles in signaling and membrane formation, which are required for cellular protrusions and invasive behaviors (44). Our lipidomics data suggest that melanomas can take up a complex mixture of multiple lipid species from adipocytes, including not solely long-chain fatty acids but also cholesterol, and it is likely that each of these lipids exerts specific effects on melanoma cell phenotypes.
One question that our study raises is the extent to which dietary factors and obesity play into the progression of melanoma. The fatty-acid content of subcutaneous adipocytes is influenced by dietary consumption, and this will in turn influence which lipids are most readily transferred into the melanoma cells. Some but not all studies have shown a connection between obesity and increased risk of melanoma (45–51), and this effect may be gender related, because a recent study demonstrated that obese males being treated with immunotherapy or targeted therapies had a better outcome in melanoma compared with obese females (52). In addition, high-fat diets are known risk factors for melanoma progression (53–55). Whether changing the dietary intake of either the total amount of fat or the ratio of saturated to unsaturated fats could prevent some early-stage melanomas from progressing to metastatic disease will be a question of great interest for future studies.
A375 and SKMel28 cells were obtained in August 2013 from the ATCC, which performs routine cell line authentication testing using morphology, karyotyping, and PCR-based methods including short-tandem repeat profiling to confirm the identity of human cell lines and to rule out interspecies contamination. The cells were also routinely tested for Mycoplasma using a luminescence-based assay (Mycoalert Mycoplasma Detection Kit, Lonza), most recently in March 2017. Cells were passaged no more than 25 times before a low-passage batch was thawed. ZMEL1 cells were established previously in the lab in 2012 and underwent routine Mycoplasma testing, most recently in March 2017.
All zebrafish experiments were carried out in accordance with institutional animal protocols. All zebrafish were housed in a temperature (28.5°C) and light-controlled (14 hours on, 10 hours off) room. Fish were initially housed at a density of 5 to 10 fish per liter and fed 3 times per day using brine shrimp and pelleted zebrafish food. After transplantation, the fish were housed in individual chambers for serial imaging. All anesthesia was done using Tricaine (Western Chemical Incorporated) with a stock of 4 g/L (protected for light) and diluted until the fish was immobilized. All procedures were approved by and adhered to Institutional Animal Care and Use Committee (IACUC) protocol #12-05-008 through Memorial Sloan Kettering Cancer Center.
All mouse experiments were carried out in accordance with institutional animal protocols. A375 cells (7 × 106) were suspended in 200 μL Matrigel (BD Bioscience) and injected subcutaneously into the left and right flanks of 6-week-old female athymic nude Foxn1nu mice (The Jackson Laboratory). Tumor growth was monitored using caliper measurements, and tumor volume was calculated using the formula 3.14159 × length × width 2/6,000. Mice were sacrificed by CO2 asphyxiation when tumor size exceeded 2,000 mm3. Statistical analysis between A375-mCherry and A375-FATP1-mCherry groups was determined using two-way ANOVA with multiple comparisons. All procedures were approved by and adhered to IACUC protocol #04-03-009 through Memorial Sloan Kettering Cancer Center.
ZMEL1-GFP Adult Transplants
Adult Casper fish between 4 and 9 months old were anesthesized with Tricaine and transplanted with 5 × 105 ZMEL1 cells suspended in 3 μL PBS in the subcutaneous tissue directly before the anal fin on the lateral side of the fish using a Hamilton 26s gauge, bevel tip syringe (Sigma, cat no. 20734). After transplant, fish were returned to water to recover and maintained on system for indicated times.
Generation of the FATP1 MinicoopR Transgenic
Experiments were performed as outlined in ref. 24. Briefly, Trp53/BRAF/Nacre embryos were injected with 25 ng/μL of either MiniCoopR alone or MiniCoopR;mitf:FATP1 (along with 20 ng/μL of Tol2 transposase mRNA) and selected for melanocyte rescue at 48 hours. Melanocyte-rescued embryos were grown to adulthood (n = 29 for control and n = 27 for mitf:FATP1) and scored for the emergence of raised melanoma lesions as per ref. 24 at 16 weeks after fertilization.
Generation of the Plin2:tdTomato Transgenic
Zebrafish Plin2 promoter fragment was amplified from zebrafish genomic DNA with 5′-cactgcattgaagagaaaatacaataac-3′ forward primer and 5′-GTTAGCAGAAAATctgcaaaagaaaatag-3′ reverse primer and introduced into a Gateway destination vector in the Tol2Kit that generated a Plin2:tdTomato cassette. This plasmid was injected into Casper embryos with Tol2 mRNA to introduce stable integration of the Plin2:tdTomato cassette.
In Vivo Lipofermata Treatment
Adult Casper fish between 4 and 9 months old were anesthesized with Tricaine and transplanted with 3 × 105 ZMEL1 cells suspended in 3 μL PBS in the subcutaneous tissue directly before the anal fin on the lateral side of the fish using a Hamilton 26s gauge, bevel tip syringe (Sigma, cat no. 20734). After transplant, fish were returned to water to recover and maintained on system. At 5 DPT, when successfully engrafted tumors were visible to the naked eye, 5 μmol/L of Lipofermata or 0.01% DMSO was injected directly into the tumor with a borosilicate needle once a day. Fish were imaged using a Zeiss AxioZoom at 5 days after treatment with GFP and brightfield channels on the left and right sides of each animal. Each image was imported from the Zeiss Zen software as a TIFF and analyzed in ImageJ. To measure tumor area, GFP+ tumor was segmented using the default ImageJ segmentation algorithm and thresholding applied uniformly across all groups.
To measure total lipid content in tumors treated with Lipofermata, fish were treated as stated above and then sacrificed 5 days after treatment. The tumor was dissected from the fish and then FACS isolated. Post-FACS, DMSO or Lipofermata-treated tumor cells were washed 1× with PBS, then stained with LipidTOX Red as described below.
3T3L1 Maintenance and Differentiation into Adipocytes
3T3L1 cells were obtained from ZenBio and culture and differentiation were performed according to the manufacturer's instructions. Briefly, cells were grown on various culture dishes until 2 days after 100% confluency in preadipocyte media (ZenBio, cat no. PM-1-L1). Two days after confluency, media were changed to differentiation medium (ZenBio, cat no. DM-2-L1) and incubated for 5 days. Then, cells were maintained in their adipocytic, differentiated state with maintenance media (ZenBio, cat no. AM-1-L1). This adipocyte maintenance media (ZenBio, cat no. AM-1-L1) was used for all coculture experiments.
FATP1 Expression Analysis
Expression of FATP1/SLC27A1 was examined using the Broad Institute Cancer Cell Line Encyclopedia database as well as the Oncomine Database. Within the Broad Institute portal, the RNA-seq mRNA expression levels for each tumor subtype were averaged across the 1,019 cancer cell lines, which includes 63 melanoma samples. For Oncomine, we used the default parameters to examine enrichment in the “Cancer vs. Cancer” data analysis tool, which showed enrichment of SLC27A1 only in melanoma and no other tumors.
Total RNA was isolated directly from cultured cells using the Quick-RNA Miniprep Kit (Zymo, R1054). Reverse transcription was performed with Superscript III First-Strand Synthesis System (Thermo-Fisher 18080). FATP1 mRNA levels were measured with 5′-TGACAGTCGTCCTCCGCAAGAA-3′ and 5′-CTTCAGCAGGTAGCGGCAGATC-3′ primers using the iQ SYBR Green Supermix (Bio-Rad) on a Bio-Rad CFX384-Touch System (Bio-Rad). Relative expression levels were normalized to beta-actin.
Lipid Visualization and Quantification
Live Staining and Imaging of Zebrafish with BODIPY.
To image lipids in melanoma in vivo, adult fish bearing ZMEL1-GFP tumors were stained with BODIPY as previously described (56, 57). Briefly, 21 DPT fish were stained with BODIPY 558/568 at a working concentration of 2 μg/mL in fish water for 1 hour in the dark. Fish were rinsed briefly in fresh fish water, and then placed on system with running water for 2 hours. After staining, fish were anesthetized with Tricaine and placed onto a petri dish. The fish were imaged from above using a Zeiss AxioZoom V16 Fluorescence Stereo Zoom Microscope with a 0.6 × or 1.6 × adjustable objective lens. Each fish was successively imaged using brightfield, GFP, and tdTomato filter sets on both sides. To image lipids in non–adipocyte-rich areas, 2 days after fertilization fish were transplanted with ZMEL1-GFP cells as previously described (20) and allowed to engraft and grow for 3 DPT. Embryos were then stained with BODIPY as previously described (56, 57). After staining, fish were anesthetized and imaged as described above, focusing on ZMEL1-GFP cells in the tail region of the animal. Differences in colocalization of the BODIPY and GFP signal between adipocyte-rich versus adipocyte poor areas were calculated using χ2 statistics.
LipidTOX Staining and Quantification.
To measure total lipid content in ZMEL1-GFP cells in vivo, fish were transplanted as described above and then allowed to grow to 5 or 21 DPT, when fish were dissociated using Trypsin and ZMEL1-GFP cells were FACS isolated. To measure total lipid content in melanoma cells after coculture, GFP+ human and fish melanoma cells were cultured with 3T3L1 adipocytes for 7 days, then FACS isolated. After FACS, cells in all conditions were washed 1× with PBS, then stained with LipidTOX Red (Invitrogen) at a 1:125 dilution in DMEM-10 for 30 minutes at room temperature protected from light. Cells were washed 2× with PBS, then diluted to similar concentrations in PBS and mounted in a disposable hemocytometer for imaging. More than 10 fields per condition were imaged with a Zeiss AxioImager with a 20× fixed objective in the GFP and mCherry channels. Signal intensity of LipidTOX Red was measured in each field in GFP+ cells and quantified in ImageJ.
Transmission Electron Microscopy.
For human cell lines, FACS-isolated melanoma cells grown in coculture with 3T3L1 adipocytes for 7 days were 4% paraformaldehyde, 2.5% glutaraldehyde, 0.002% picric acid in 0.1 mol/L sodium cacodylate buffer, pH 7.3 for transmission electron microscopy (12,000–15,000×). For electron microscopy in fish, ZMEL1-GFP cells were transplanted into adult Casper fish and grown until 21 DPT, when they were sacrificed in an ice bath. Tumors were resected from fish and fixed in fix solution described above, then processed for imaging. Imaging was performed on the JEOL JSM 1400, operated at 100 kV. Images were captured on a Veleta 2K × 2K CCD camera (EM-SIS). Quantification of lipid droplet number and size were performed using ImageJ software with 10 cells/condition.
To measure cell proliferation after Lipofermata treatment, SKMEL-28, A375, and ZMEL1 cells were plated at a density of 4,000 to 20,000 cells per well in a 96-well plate in 100 μL of DMEM-10. Cells were allowed to adhere for 24 hours, and then media changed to fresh media containing either DMSO, Lipofermata, or its inactive analogue CB16.6 at the indicated doses. The final concentration of all wells contained equivalent amounts of DMSO solvent (1%). After 48 hours of Lipofermata treatment, CellTiter-Glo reagent (Promega) was added to cells per the manufacturer's instructions and luminescence was read using a BioTek Synergy 96-well plate reader. All values were normalized to the DMSO control well, done in triplicate for all cell lines.
For phospho-Histone H3 staining, 3T3L1 cells were seeded and differentiated onto 4- or 8-well MilliCell slides (Millipore). Once 3T3L1 cells were fully differentiated into adipocytes, 10,000 to 20,000 A375-GFP or SKMel28-GFP cells were plated in either DMEM-10 or DMEM-0 media. Cells were fixed in fresh 4% paraformaldehyde and stained with a phospho-Histone H3 primary antibody (1:1,000; Millipore; cat no. 05-806) and AlexaFluor-594–conjugated anti-mouse secondary antibody (1:1,000; Thermo Fisher Scientific). Slides were imaged on a Zeiss AxioImager inverted widefield fluorescence microscope. More than 10 images were acquired for all conditions. The number of mitotic cells was quantified by calculating double-positive cells (GFP+, AlexaFluor594+) as a fraction of the total number of GFP+ cells in each field.
To test the effects of lipid supplementation, 4,000 A375 cells/well were seeded onto 96-well plates in DMEM-10 and allowed to adhere overnight. The next day, media were aspirated from plates and replaced with serum-free or glucose-free DMEM with or without supplementation with 1:100 Lipid Mixture 1 (Sigma-Aldrich; cat no. L0288). At 24, 48, and 72 hours after treatment, cells were quantified using Cyquant Direct Cell Proliferation Assay (Thermo Fisher Scientific) according to the manufacturer's instructions.
Drug Treatments in Monocultured versus Cocultured Cells
A375-GFP cells were seeded on MilliCell slides in monoculture or in coculture with adipocytes and allowed to adhere overnight. The next day, media were replaced by media containing either 1% DMSO, 1.25 to 5 μmol/L Lipofermata, or 12.5 to 50 μmol/L cerulenin. After 48 hours, cells were fixed and mounted for imaging. Cells were imaged with a Zeiss AxioImager with a 20× fixed objective in the GFP+ channel. More than 3 images were acquired for all conditions. Quantification of BODIPY in melanoma cells was performed using ImageJ software by calculating the total fluorescence area in the GFP+ channel in control- versus drug-treated samples.
Lipid Uptake Assays
SKMel28, A375, and ZMEL1 cells were seeded at a density of 10,000 to 20,000 cells per well in a 96-well plate in 100 μL DMEM-10. Cells were allowed to adhere and grow to 95% to 100% confluence for 2 days. To test the effect of Lipofermata, cells were starved for 1 hour in DMEM-0. After 1 hour, media were removed and replaced with fresh DMEM-10 media with either DMSO, Lipofermata, or CB16.6 at the indicated doses. After treatment for 1 hour, fatty-acid transport kinetics were evaluated according to the method described in Arias-Barrau and colleagues (58). Briefly, after 1 hour of Lipofermata or CB16.6 treatment, C1-BODIPY-C12 or BODIPY-C16 uptake was measured using a BioTek Synergy plate reader immediately after adding the C1-BODIPY-C12 or BODIPY C16 substrate to cells. The substrate was presented to the cells as a complex with fatty acid–free BSA to give BODIPY-FA to BSA ratios of 4:1 (5 μmol/L C1-BODIPY-C12 or 0.6–5 μmol/L BODIPY-C16 and 5 μmol/L BSA). Non–cell-associated fluorescence was quenched with Trypan blue. Uptake was measured at 485 nm excitation and 528 nm emission.
For the timed measurement of fatty-acid uptake in FATP-overexpressing and FATP CRISPR cells, cells were seeded into 96-well plates and grown as described above. Lipid uptake was measured with the QBT Fatty Acid Uptake Assay (Molecular Devices) using the BioTek Synergy plate reader. Fluorescence at 485 nm excitation and 528 nm emission was measured every 50 seconds for 1 to 2 hours. For the timed measurement of fatty-acid uptake in FATP-overexpressing and FATP1 CRISPR A375 cells treated with Lipofermata, cells were seeded into 96-well plates and grown as described above. To test the effect of Lipofermata and CB16.6, cells were starved for 1 hour in fresh DMEM-10 with either DMSO, Lipofermata, or CB16.6 at the indicated doses. After treatment, lipid uptake was measured with the QBT Fatty Acid Uptake Assay every 50 seconds for 1 to 2 hours.
Lipid Transfer Experiments
The 3T3L1 cells were seeded onto 4-well EZ MilliCell slides (EMD Millipore PEGZ0416) and differentiated according to the manufacturer's instructions (ZenBio). Lipids in adipocytes were labeled with 5 μmol/L BODIPY 558/568 C-12 or BODIPY C-16 in adipocyte maintenance media (ZenBio) for 4 hours. After 4 hours, extracellular BODIPY was removed from the cells by washing three times with 1× Hank's Balanced Salt Solution with 0.2% fatty acid–free BSA. After washing, GFP+ human and zebrafish melanoma cells were seeded on top of labeled adipocytes for 24 hours. Cells were then fixed and imaged on a Zeiss AxioImager, where BODIPY-laden GFP+ melanoma cells could be observed. To test whether lipid transfer required direct cell–cell contact and the effect of Lipofermata on lipid uptake, 3T3L1 cells were grown and differentiated on the top chamber of a Transwell system (Corning) and labeled with BODIPY as described above. In a separate well, GFP+ melanoma cells were plated onto a 12-mm circular coverslip in a separate well and allowed to adhere. After 4 hours of BODIPY labeling, 3T3L1 adipocytes were washed as described above, and the transwells containing BODIPY-labeled adipocytes were transferred to wells containing GFP+ melanoma cells on a coverslip. The melanoma cells on the bottom of the well on a coverslip were cocultured with the adipocytes on the top, separated by the Transwell, for 24 hours, in the presence of either 2.5 μmol/L Lipofermata or DMSO. Melanoma cell slides were then fixed and mounted onto slides. Slides were imaged on a Zeiss AxioImager inverted widefield fluorescence microscope. More than 10 images were acquired for all conditions. Quantification of BODIPY in melanoma cells was performed using ImageJ software by calculating the total fluorescence intensity in GFP+ cells in control- versus Lipofermata-treated samples.
RNA-seq of ZMEL1
The zebrafish ZMEL1 data are adapted from our previous publication (8). Total RNA was isolated using the Zymo RNA isolation kit after FACS. Because the amount of starting material was small, the RNA was amplified using the NuGen RNA kit, after which the samples were sequenced on an Illumina HiSeq2500. Samples were sequenced using the HiSeq2500 with approximately 20 million reads per sample, using 50 bp single-end reads. Reads from each RNA-seq run were mapped to the zebrafish reference genome version danRer7 from the UCSC Genome Browser using GSNAP and quantified on the gene level using HTSeq and Ensembl version 75. Differential expression analysis was performed using DESeq2. The zebrafish gene symbols were mapped to their human orthologs using the DIOPT tool (http://www.flyrnai.org/cgi-bin/DRSC_orthologs.pl). Genes with a corrected P value of less than 0.05 were considered statistically significant. To generate heat maps, log-transformed normalized counts were generated using the “rlog” transformation in the R package DESeq2 and plotted as mean-subtracted values for each gene using MATLAB (MathWorks). Pathway analysis was done using Ingenuity Pathway Analysis software (https://www.qiagenbioinformatics.com/products/ingenuity-pathway-analysis/) and the Gene Set Enrichment Analysis packages (http://software.broadinstitute.org/gsea/index.jsp) using the log2FC and FDR < 0.05.
RNA-seq of A375 Cells
A375-GFP cells were grown either in monoculture or in coculture with 3T3L1 adipocytes for 7 days in adipocyte maintenance medium (ZenBio AM-1-L1). Melanoma cells were then FACS isolated and processed for RNA sequencing. Total RNA was isolated using the Zymo RNA kit and used for cDNA synthesis and barcoding with Illumina adapters, followed by sequencing on the Illumina HiSeq2500. RNA-seq reads were mapped to a concatenated human (hg19) and mouse (mm10) genome. This approach was used to filter out any contaminating mouse reads from the coculture setting. The combined mapping was performed with STAR (v2.5.0a) using default parameters and the parameter “–outFilterMismatchNmax 0.” Gene counts were assessed using the “–quantMode GeneCounts” parameter in STAR with a custom gff file combining the mm10 and hg19 genomes. The subsequent count matrix was subset for human genes and used as an input for the R package DESeq2 for normalization and differential gene expression. Default parameters were used in DESeq2 and differentially expressed genes were called using a base mean of 15, log2 fold change of ± 1, and an FDR of 5%. Volcano plots were generated with the R package ggplot2, and the heat map in Fig. 4D was generated using the package pheatmap (https://CRAN.R-project.org/package=pheatmap). All data can be found in the GEO database with accession number GSE114941.
For human melanoma lipidomics, A375-GFP cells were grown either in monoculture or in coculture with 3T3L1 adipocytes for 7 days in adipocyte maintenance medium (ZenBio, cat no. AM-1-L1). Melanoma cells were then FACS isolated and processed for lipidomics. For lipidomics on fish melanoma cells in vivo, ZMEL1-GFP cells were transplanted into adult Casper zebrafish and grown for 21 days, when tumor-bearing fish were sacrificed and ZMEL1-GFP cells were FACS isolated and processed for lipidomics.
Global lipidomic profiling was performed by Metabolon. Lipids were extracted from samples using dichloromethane and methanol in a modified Bligh-Dyer extraction in the presence of internal standards with the lower, organic, phase being used for analysis. The extracts were concentrated under nitrogen and reconstituted in 0.25 mL of dichloromethane:methanol (50:50) containing 10 mmol/L ammonium acetate. The extracts were placed in vials for infusion-MS analyses, performed on a SelexION-equipped Sciex 5500 QTRAP using both positive and negative mode electrospray. Each sample was subjected to two analyses, with IMS-MS conditions optimized for lipid classes monitored in each analysis. The 5500 QTRAP was operated in MRM mode to monitor the transitions for over 1,100 lipids from up to 14 lipid classes. Individual lipid species were quantified based on the ratio of signal intensity for target compounds to the signal intensity for an assigned internal standard of known concentration. Lipid class concentrations were calculated from the sum of all molecular species within a class, and fatty-acid compositions were determined by calculating the proportion of individual fatty acids within each class. Fold change compared with the control situation was calculated by dividing the average of the (experimental/control) value, and statistical differences analyzed using a two-tailed unpaired t test.
Gelatin Degradation Assays
Coverslips were coated with Alexa 546-gelatin (1 mg/mL), crosslinked with 0.5% glutaraldehyde (Sigma), and washed three times with 1× sterile PBS. A layer of collagen I (0.5 mg/mL) is polymerized on top of the gelatin matrix, 4 hours at 37°C. A375-GFP cells were starved 4 hours before seeding on matrix with DMEM 4.5 g glucose l-glutamine, 0.8% BSA, and 0.5% FBS. Conditioned media from adipocytes cultivated 24 hours in ZenBio serum-free maintenance media (Zenbio AM-1-L1-SF) supplemented with 0.8% BSA and 0.5% FBS were collected and centrifuged for 5 minutes 1,000 × g to remove cell debris. Thirty thousand melanoma cells were seeded on coated coverslips and incubated with adipocyte starvation media or conditioned media or 30,000 adipocytes overnight, before fixation and staining. To test Lipofermata effect on matrix degradation, melanoma cells were seeded on the matrix as described above for 4 hours before adding DMSO or 1.5 μmol/L Lipofermata, and incubated overnight before fixation and staining. Coverslips were stained for DAPI to localize adipocytes. Microscopy was performed on LEICA DM5500 B with a LEICA DFC345 FX camera and a 100× oil objective. Matrix degradation was quantified with ImageJ software as previously shown (59).
For the ZMEL1 gelatin degradation assay, cells were grown in monoculture or in coculture with 3T3L1 adipocytes for 7 days in adipocyte maintenance media (Zenbio AM-1-L1) and then FACS isolated for GFP and plated onto gelatin-Cy3-coated coverslips cross-linked with 0.5% glutaraldehyde supplied in the QCM Gelatin Degradation Assay Kit (Millipore; cat. no ECM671) and incubated for 24 hours in DMEM-10 before fixation and staining.
Transwell Invasion Assay
A375-GFP cells in monoculture or cocultured with adipocytes were FACS isolated and then seeded onto Biocoat Matrigel Invasion chambers (Corning) at a density of 15,000 cells/well in serum-free DMEM-0. DMEM-10 was used in the wells of the companion plate as a chemoattractant. After 24 hours, cells were fixed, and cells remaining on the top section of the chamber were scraped away. Migrated cells were stained with DAPI and imaged. The number of cells migrated was counted with ImageJ.
Collagen Plug Assay
Collagen plug generation and protocol were adapted from Lopez and colleagues (60). Briefly, 2 mg/mL type I rat tail collagen (BD) was cross-linked with Alexa-546 to create a collagen gel. Gel was spread onto Transwell inserts (8-μm pore; Geiner Bio One) and polymerized at 37°C for 1 hour. Collagen gel matrices were then hydrated with DMEM (Life Technologies) supplemented with 50% FBS (Biomedia) for 4 hours. A375-GFP cells were starved in DMEM-0 for 4 hours, trypsinized, counted, and plated in the upper chamber of the Transwell insert. After 3 days, Transwell inserts were removed from the plate, and the quantity of invading cells into the gel matrix was determined by z-stack acquisition of GFP+ cells with nuclei stained with DAPI.
Extracellular Flux Analysis of Melanoma Cells
Fatty-acid oxidation of melanoma cells previously cocultured with adipocytes for 7 days was determined through real-time measurement of the OCR using the XF96 Extracellular Flux Analyzer (Agilent Technologies), according to the manufacturer's instructions for the XF Fatty Acid Oxidation Assay. Briefly, FACS-isolated melanoma cells were seeded into XFp 96-well microplate wells at a density of 15,000 cells/well and incubated overnight for cells to adhere. One hour prior to loading the cell plate into the analyzer, cells were washed twice with 1× KHB buffer: (111 mmol/L NaCl, 4.7 mmol/L KCl, 1.25 mmol/L CaCl2, 2 mmol/L MgSO4, 1.2 mmol/L NaH2PO4) supplemented with 2.5 mmol/L glucose, 0.5 mmol/L carnitine, and 5 mmol/L HEPES on the day of the assay, adjusted to pH 7.4 at 37°C and maintained in KHB buffer in a CO2-free 37°C incubator. Fifteen minutes prior to plate loading, etomoxir or vehicle was added to cells to a final concentration of 40 μmol/L, according to Agilent manufacturer's instructions, though other publications have used lower concentrations (61). OCR and ECAR were quantified following consecutive treatment of melanoma cells with four treatments: (i) assay medium alone, (ii) 2 μmol/L oligomycin, (iii) 2 μmol/L FCCP, and (iv) 0.5 μmol/L rotenone/antimycin A. For each assay, individual basal measurements were taken, followed by consecutive injection of treatments. Measurements were recorded after each injection, with each measurement consisting of 10-second mixing and 3-minute measurement period.
IHC and Oil Red O Staining on Patient-Derived Tumor Samples
IHC and Oil Red O for Cryopreserved Patient Biopsies and PDXs.
Fresh tumors or PDX tumor samples were obtained and immediately frozen in OCT in cryomolds. Serial 4-μm sections from each sample were cut using a cryostat (Leica). Immunohistochemistry was performed by HistoWiz Inc. on a Bond Rx autostainer (Leica Biosystems). Each sample was stained for Oil Red O and FATP1 (1:100; Biorbyt orb336775). All primaries were detected using Polymer HRP followed by DAB. All the sections were then counterstained with hematoxycilin, dehydrated, and film-coverslipped using a TissueTek-Prisma and Coverslipper (Sakura). Whole-slide scanning (40×) was performed on an Aperio AT2 (Leica Biosystems). For FATP1/Oil Red O quantification, 3 to 5 similar regions of serial sections on Oil Red O and FATP1 patient slides were collected using ImageScope (Leica Biosystems). RGB images were converted to an HSB Stack Splitter plugin in ImageJ. Areas of positive Oil Red O or FATP1 staining were quantified for each sample (revealed in the Saturation channel) and quantified as a percentage of total tumor area (revealed in the Brightness channel). For adipocyte size quantification, the maximal length of 10 to 20 adipocytes either directly adjacent to tumor or not adjacent to tumor was measured using ImageJ.
IHC on Tumor Microarrays.
Tumor microarrays (TMA) were obtained from the Memorial Sloan Kettering Cancer Center TMA Database and US Biomax (ME1007). Immunohistochemistry was performed by HistoWiz Inc. on a Bond Rx autostainer (Leica Biosystems). Each sample was stained for FATP1 (1:100; Biorbyt orb336775). Primaries were detected using Polymer-HRP followed by alkaline phosphatase. All the sections were then counterstained, dehydrated, film coverslipped, and scanned as described above.
TMA and PDX Scoring.
FATP1 staining was quantified by evaluating staining intensity (0–3 scale) and the percentage of positive cells (1:1%–24%, 2:25%–49%, 3:50%–74%, 4:75%–100%). The two values were multiplied together to obtain an integrated score ranging from 0 to 12. Each sample received a final score based on the integrated score. Final scores reflect integrated scores as follows:
0 = integrated score 0
1 = integrated score 1–3
2 = integrated score 4–7
4 = integrated score 8–12
IHC on Transplanted Casper Fish.
Adult Casper fish were transplanted with ZMEL1-GFP cells as described above. At 18 DPT, fish were sacrificed in an ice-water bath and fixed for 48 hours in 4% paraformaldehyde at 4°C. After fixation, fish were washed and incubated in 70% ethanol until paraffin embedding (HistoWiz). Sagittal sections (5 μm) were collected for the left and right sides of each fish as well as 5-μm sections in the center of the fish. Each section was stained with anti-GFP antibody to visualize metastases. Each slide was scored for total metastases and number of metastases occurring next to adipocytes.
Caspase 3/7 Assay
Cells were plated onto 96-well plates at a seeding density of 20,000 cells/well and grown for 2 days until confluent. 1.5 μmol/L, 5 μmol/L and 10 μmol/L Lipofermata or DMSO was added to cells for 24 hours. Caspase 3/7 reagent (Promega) was then added to cells and luminescence was read out on a Synergy H1 plate reader according to the manufacturer's instructions.
Generation of FATP-Overexpressing Cell Lines
A375-FATP1-mCherry and A375-mCherry cells were generated via viral transduction. To generate lentiviruses, viral expression plasmids containing CMV-FATP1-mCherry or CMV-mCherry alone were transfected into HEK293T cells at 90% confluency in 10-cm dishes along with pMDG2 and psPAX2 packaging plasmids using Lipofectamine 2000. Six hours after transfection, the media were replaced with 6 mL DMEM-30. Virus-containing supernatants were collected 24 hours later and passed through a 0.45-μm filter to eliminate cells and debris. A375 cells at 80% confluency in 6-well plates in the presence of 1 μg/mL polybrene (Millipore) were infected with 100 μL virus in a total of 1 mL media volume. Twenty-four hours after transduction, virus-containing media were removed, and cells were maintained for two passages. mCherry-positive cells were selected using FACS with the same gates to ensure similar transgene expression.
Generation of FATP1 CRISPR Knockout Cells
FATP1 was knocked out of A375 cells following the technique described by Ran and colleagues (62). Briefly, a single-guide RNA (sgRNA) expression construct was generated for FATP1. Oligonucleotides for top and bottom strands of the sgRNA were phosphorylated with T4 PNK (New England Biolabs), annealed, and then cloned into the dual Cas9/sgRNA expression vector pSpCas9n(BB)-2A-GFP (Addgene 48140, kindly deposited by F. Zhang; ref. 62). Validated expression constructs were transfected into A375 cells with Lipofectamine 2000 (Thermo Fisher Scientific). GFP+ cells were FACS isolated and plated as single cells into 96-well plates to generate single-cell clones. To identify clones that were successfully edited, genomic DNA was isolated from each clone and the genomic region targeted by each sgRNA was amplified via PCR, cloned into pCRII-TOPO via TOPO-TA cloning (Thermo Fisher Scientific), then Sanger sequenced. Cell lines were identified for FATP1 with insertions or deletions near the predicted PAM site (underlined) that led to frameshift mutations.
|FATP1 sgRNA1 target||5′-CCGTCACCTGCTGTGCACGACAA-3′|
|FATP1 sgRNA2 target||5′-CCGGCGGCGCTCGGCGTGTACGT-3′|
|FATP1 sgRNA1 target||5′-CCGTCACCTGCTGTGCACGACAA-3′|
|FATP1 sgRNA2 target||5′-CCGGCGGCGCTCGGCGTGTACGT-3′|
13C-Labeling and LC/MS Analysis of Lipid Synthesis in A375 cells
A375-GFP cells were cocultured with adipocytes for 6 days, then FACS isolated. These cells were then replated as monocultures in adipocyte maintenance media (ZenBio) that was supplemented with 10 mmol/L 13C-acetate (Cambridge Isotopes, cat no. CLM-440-1). After 24 hours of 13C treatment, the cells were then processed for LC/MS: cells were washed in-well with 1 mL of cold 0.9% NaCl. After consecutive addition of 600 μL of LC/MS grade methanol and 300 μL of LC/MS grade water, cells were scraped off and 750 μL of the suspension was mixed with 400 μL of LC/MS grade chloroform for nonpolar metabolites extraction. After 10 minutes of extraction by vortexing at 4°C and centrifugation for 10 minutes at 10,000 × g at 4°C, 350 μL of the lower lipid-containing layer was carefully collected and dried under nitrogen. Dried lipid extracts were stored at −80°C until LC/MS analysis. The dried samples were resolubilized in 50 μL of a 4:3:1 mixture (isopropanol:acetonitrile:water) and analyzed by UPLC/MS-MS with a polarity switching method modified from Vorkas and colleagues (63–65). The LC column was a Waters CSH-C18 (2.1 × 100 mm, 1.7 μm) coupled to a Dionex Ultimate 3000 system, and the column oven temperature was set to 55°C for the gradient elution. The flow rate of 0.3 mL/minute was used with the following buffers: A, 60:40 acetonitrile:water, 10 mmol/L ammonium formate, and 0.1% formic acid, and B, 90:10 isopropanol:acetonitrile, 10 mmol/L ammonium formate, and 0.1% formic acid. The gradient profile was as follows; 40%–43% B (0–1.25 minutes), 43%–50% B (1.25–2 minutes), 50%–54% B (2–11 minutes), 54%–70% B (11–12 minutes), 70%–99% B (12–18 minutes), 70%–99% B (18–32 minutes), 99–40% B (23–24 minutes), hold 40% B (1 minute). Injection volume was set to 1 μL for all analyses (25 minutes total run time per injection).
MS analyses were carried out by coupling the LC system to a Thermo Q Exactive HF mass spectrometer operating in heated electrospray ionization mode (HESI). Method duration was 20 minutes with a polarity switching data-dependent Top 10 method for both positive and negative modes. Spray voltage for both positive and negative modes was 3.5 kV and capillary temperature was set to 320°C, with a sheath gas rate of 35, aux gas of 10, and max spray current of 100 μA. The full MS scan for both polarities utilized 120,000 resolution with an AGC target of 3 × 106 and a maximum IT of 100 ms, and the scan range was from 350 to 2,000 m/z. Tandem MS spectra for both positive and negative modes used a resolution of 15,000, AGC target of 1 × 105, maximum IT of 50 ms, isolation window of 0.4 m/z, isolation offset of 0.1 m/z, fixed first mass of 50 m/z, and 3-way multiplexed normalized collision energies (nCE) of 10, 35, and 80. The minimum AGC target was 5 × 104 with an intensity threshold of 1 × 106. All data were acquired in profile mode.
The resulting lipids were identified by searching the LipidBlast tandem mass spectral library of lipids (66). The top scoring structure match for each data-dependent spectrum was returned using an in-house script for MSPepSearch_x64. Putative lipids were sorted from high to low by their reverse dot scores, and duplicate structures were discarded, retaining only the top-scoring MS2 spectrum and the neutral chemical formula, detected m/z, and detected polarity (+ or −) of the putative lipid was recorded. The relative intensities of these lipids (M+0 ion) were quantified at 10 ppm tolerance using an in-house script. Top lipid hits (e.g., PC 34:1) were manually examined by MS1, and significant 13C-acetate labeling was observed. The intensity of each isotopolog in the PC 34:1 envelope was extracted using the theoretical mass of the M+0 through M+34 ions (M+1 plus increments of 1.00335 representing addition of a 13C atom). For a given isotopolog window (mono or co samples), the isotopolog intensities were converted to relative intensity with respect to the M+0, i.e., monoisotopic peak. Unpaired multiple t tests (corrected for multiple comparisons using the Holm–Sidak method) for each isotopomer were carried out to determine if the total amount of 13C-acetate incorporation was significantly different between mono and co samples.
Statistical Analysis and Data Reproducibility
All statistical analysis was performed using GraphPad Prism Pro5 unless otherwise noted. Data are presented as mean ± standard error (SEM) unless stated otherwise in each figure legend. P < 0.05 was considered statistically significant. All in vitro experimenters were repeated in at least triplicate to ensure enough variation and numbers to measure significance by unpaired t tests as indicated in the legends. For in vivo experiments, n denotes either number of animals or independent experiments, as indicated in each figure legend. Experiments were repeated in at least triplicate to ensure enough variation and numbers to measure significance by unpaired t tests as indicated in the legends.
To ensure randomization of measurements used in image analysis, ≥10 fields/condition were acquired for each independent experiment. For zebrafish experiments, all fish were analyzed, with no randomization or blinding. Sex of fish was randomized.
We will make materials, data, code, and associated protocols available to readers promptly and without undue qualifications. All RNA-seq data will be uploaded to the Gene Expression Omnibus database (accession #GSE114941).
Disclosure of Potential Conflicts of Interest
C.E. Ariyan is a consultant/advisory board member for Bristol-Myers Squibb. No potential conflicts of interest were disclosed by the other authors.
Conception and design: M. Zhang, R.M. White
Development of methodology: M. Zhang, J.S. Di Martino, V. Yong-Gonzales, T. Hollmann, R.M. White
Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): M. Zhang, N.R. Campbell, S.C. Baksh, T. Simon-Vermot, I.S. Kim, P. Haldeman, C. Mondal, V. Yong-Gonzales, T. Merghoub, D.R. Jones, X.G. Zhu, C.E. Ariyan, K. Birsoy, T. Hollmann, J.J. Bravo-Cordero, R.M. White
Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): M. Zhang, J.S. Di Martino, R.L. Bowman, N.R. Campbell, S.C. Baksh, D.R. Jones, A. Arora, J.D. Wolchok, K.S. Panageas, J.J. Bravo-Cordero, R.M. White
Writing, review, and/or revision of the manuscript: M. Zhang, S.C. Baksh, C.E. Ariyan, J.D. Wolchok, J.J. Bravo-Cordero, R.M. White
Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): M. Zhang, J.S. Di Martino, M. Abu-Akeel, R.M. White
Study supervision: M. Zhang, R.M. White
The authors would like to thank Wenjing Wu for assistance with illustrations, Andreas Stahl for important discussions/reagents, and Lee Cohen-Gould and Juan Jimenez for help with transmission electron microscopy. We would also like to thank Histowiz, Metabolon, and Genewiz for help with immunohistochemistry, lipidomics, and RNA-seq, respectively. Further, we thank Rebecca Rose in the NYU Metabolomics Core for performing LC/MS. This work was supported by the NIH Director's New Innovator Award (DP2CA186572), Mentored Clinical Scientist Research Career Development Award (K08AR055368), the Melanoma Research Alliance, The Pershing Square Sohn Foundation, The Alan and Sandra Gerry Metastasis Research Initiative at the Memorial Sloan Kettering Cancer Center, The Harry J. Lloyd Foundation, Consano, and the Starr Cancer Consortium (all to R.M. White). M. Zhang is supported by the Memorial Sloan Kettering Translational Research Oncology Training Program fellowship and National Cancer Institute F32 Postdoctoral Training Grant (CA210536-01A1). J.J. Bravo-Cordero is funded by an NCI Career Transition Award (K22CA196750) and the TCI Young Scientist Cancer Research Award JJR Fund (P30-CA196521). N.R. Campbell is supported by the Kirschstein-NRSA predoctoral fellowship (F30) under award number F30CA220954, by a research grant from the Melanoma Research Foundation, and by a Medical Scientist Training Program grant under award number T32GM007739.
