Blockade of Specific NOTCH Ligands: A New Promising Approach in Cancer Therapy Free

The vasculature of tumors arises from two processes: (i) co-option of existent vessels present within the tissue that harbors the tumor and (ii) growth of new vessels, also referred to as angiogenesis. As an important hallmark of cancer, angiogenesis has been the successful target of therapeutic approaches aiming at depriving tumor cells of nutrients and oxygen. During angiogenesis, vascular sprouts are initiated by the departure of endothelial cells (tip cells) from the vessel core (stalk cells). Tip endothelial cells are morphologically, molecularly, and functionally distinct from stalk cells, and their emergence is essential to the formation of a new capillary sprout. Tip cells are specified by an intricate cross-talk between the VEGF and the NOTCH signaling pathways, both targets of past and current antitumor therapies. In this issue of Cancer Discovery, Kangsamaksin and colleagues (1) propose a novel therapeutic approach inhibiting NOTCH signaling through the use of ligand-selective decoy peptides.

The NOTCH signaling pathway is highly conserved across evolution and contributes to the development of multiple tissues and organs, including the vasculature. Mammals express four NOTCH receptors (NOTCH1 to NOTCH4) and five ligands (Delta-like: DLL1, DLL3, and DLL4; Jagged: JAG1 and JAG2). Canonical activation of the pathway requires binding of a transmembrane ligand from the signal-sending cell to a NOTCH receptor expressed on an adjacent signal-receiving cell. Formation of the ligand–receptor complex enables a series of sequential proteolytic cleavages that ultimately generate the functionally active form of NOTCH, also known as NOTCH intracellular domain (NICD). NICD is subsequently translocated to the nucleus, where it interacts with a complex composed of RBPJ_K/CSL and Mastermind-like proteins (MAML) to induce the transcription of target genes.

Activation of the NOTCH pathway has been shown to regulate multiple genes in a cell- and context-dependent manner (2). Its critical role in development and homeostasis is highlighted by the broad number of anomalies and disorders that arise once the pathway goes awry. These disorders include vascular anomalies (CADASIL), cardiac malformations (Alagille syndrome), and liver dysfunctions (Alagille syndrome). In addition, deregulation of NOTCH signaling has been described in a variety of cancers, portraying functions as both oncogene and tumor suppressor (3). Thus, it is not surprising that NOTCH frequently emerges as a potential target for cancer therapy, as indicated by several past and currently ongoing clinical trials (4).

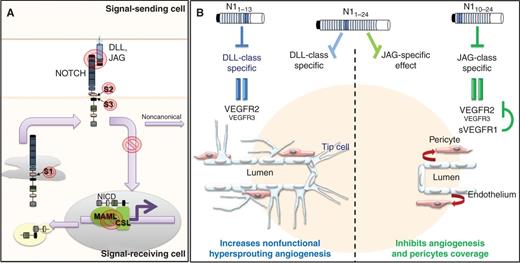

Our understanding of the molecular events in canonical NOTCH signaling offers multiple avenues for inhibition of the pathway (Fig. 1A). A frequent approach targets the γ-secretase complex, via the use of gamma-secretase inhibitors (GSI). Blockade of γ-secretase prevents the release of NOTCH from the plasma membrane and subsequent generation of NICD, thus inhibiting NOTCH signaling. Although GSIs have shown great promise in some pathologies, their chronic use is often associated with a number of severe side effects, including gastrointestinal toxicity. Nevertheless, GSIs continue to be explored in clinical trials. The current focus is to optimize regimen doses and reduce off-target effects through distinct formulations. Alternative therapies have explored the use of antibodies to block NOTCH ligand–receptor interactions. As observed with GSIs, concurrent administration of antibodies directed against several NOTCH receptors has also led to gastrointestinal toxicity. This effect was reduced by targeting only one receptor at a time. However, a frequent problem associated with the use of antibodies against specific NOTCH receptors relates to the fact that it is not always clear what receptor is dominant. Consequently, the use of ligand-directed antibodies has emerged as an attractive choice, as they could potentially block multiple receptors. In this regard, antibodies directed against DLL4 have been the most commonly used in clinical trials to disrupt tumor angiogenesis. However, long-term blockade of DLL4 in animal models has been shown to promote pathologic activation of endothelial cells with subsequent vascular neoplasm formation (5). Thus, given its impact in the vasculature, it is paramount to fully explore potential side effects of NOTCH therapy.

Additional challenges of targeting the NOTCH pathway relate to the potential specific roles of multiple receptors and ligands. This highlights an unexplored level of complexity in signaling outcomes that might underline particular ligand–receptor pairs. Although it might be intuitive that alternative signaling or transcriptional regulation would occur when different ligand–receptors are involved, a complete picture has been more difficult to attain. In relation to the vasculature, recent studies of global or conditional knockout for NOTCH receptors or ligands revealed nonredundant phenotypes. For example, whereas deletion of Dll4 leads to angiogenic hypersprouting in the retina, endothelial-specific loss of Jag1 impairs retinal angiogenesis (6). This body of knowledge has been expanded in this issue of Cancer Discovery. Here, Kangsamaksin and colleagues (1) elegantly showed that the DLL-type and JAG-type NOTCH ligands regulate physiologic and tumor angiogenesis through distinct mechanisms. By developing ligand-specific inhibitors, the authors uncovered that blocking distinct ligand subtypes reduces tumor angiogenesis through alternative modes of vascular regulation. Their approach took advantage of information from ligand–receptor binding to generate ligand-specific decoy peptides; the outcome proved extremely fruitful with strong potential for translation.

The human NOTCH1 extracellular domain is composed of 36 EGF-like repeats that bind to the Delta/Serrate/LAG-2 (DSL) domain of NOTCH ligands. EGF-like repeats 11 and 12 are required for the interaction of NOTCH with all ligands (7). Yamamoto and colleagues (8) have shown the specificity of NOTCH2 EGF-like repeat 8 for JAG1 but not DLL1. In addition, the NOTCH1 EGF-like repeats 6 to 15 were shown to have more affinity for the DLL-type ligands (9). In this study, the authors developed soluble peptides composed of different NOTCH1 EGF-like repeats fused to IgG γ heavy chain (1). They uncovered unique domains of NOTCH1 that preferentially and specifically bind to and functionally block either DLL- or JAG-type ligands (Fig. 1B).

Decoy N1_1–13 preferentially blocked DLL-type ligands, whereas N1_10–24 was specific to JAG-type. In addition, a decoy N1_1–24 was able to inhibit both. As expected from previous studies, the use of DLL-type inhibitor N1_1–13 induced angiogenic hypersprouting in vitro, in the retina, and in tumor models, the resulting nonfunctional vasculature being associated with a decrease in tumor growth. In contrast, when blocking JAG-induced NOTCH signaling via the N1_10–24 decoy, the authors were able to suppress vascular sprouting in vitro and in vivo. In tumor models, N1_10–24 also reduced vessel perfusion, pericyte coverage, and tumor growth. N1_1–24 administration resulted in differential effects depending on the experimental model. Specifically, N1_1–24 exhibited a DLL-type dominant effect in retinal vascular sprouting, whereas this decoy presented a JAG-type dominant effect in vitro and in tumor xenografts.

Curiously, although blocking DLL or JAG ligands led to the same outcome, that is, decreased vascular perfusion and suppression of tumor growth, the mechanisms of action of each decoy appear to be distinct. As mentioned, NOTCH/DLL4 functions in angiogenesis to regulate tip cell emergence and to promote the formation of a vascular sprout. Tip cells exhibit high levels of DLL4 that activate NOTCH in adjacent cells, rendering them as stalk cells. NOTCH/DLL4 also represses VEGFR2, while inducing the competitive inhibitor VEGFR1. This effect enhances the stalk cell phenotype, stabilizing the core emerging vessel (stalk) and still enabling a tip cell to expand the vascular tree. In accordance with these studies, the DLL-specific decoy promoted an increase in the expression of VEGFR2 and repressed the release of soluble (s) VEGFR1/sFLT1, facilitating endothelial cell proliferation. In contrast, the JAG-type decoy yields an increase of sVEGFR1/sFLT1, suppressing VEGF-mediated endothelial proliferation. Furthermore, they also observed defects in pericyte recruitment, an effect that was exclusive to the JAG-type decoy. Thus, through evaluation of these decoy receptors, Kangsamaksin and colleagues (1) clarified that JAG/NOTCH promotes angiogenesis through the inhibition of sVEGFR1/sFLT1 and enhancement of mural–endothelial cell interaction.

Importantly, the authors also showed that NOTCH decoys had only moderate gastrointestinal toxicity when compared with pan–NOTCH inhibitors, such as GSI. Also, N1_1–13 induced minor sinusoidal dilation, significantly less severe than what was previously observed with chronic inhibition of DLL4. Thus, the JAG decoys display a better tolerance with fewer side effects, while being as effective in the suppression of tumor angiogenesis.

Although the work presented clearly demonstrates the promising effects of targeting JAG1 within the context of tumor angiogenesis, the approach might hold a broader antitumoral effect. Indeed, JAG1 has been found to be overexpressed in multiple cancer types, and its main role in tumor growth was attributed to its direct effect on tumor cells themselves. JAG1 has also been reported to promote “stemness” in cancer cells, protect against apoptosis, and increase epithelial-to-mesenchymal transition through activation of NOTCH receptor presented at the surface of the tumor cells (10). Thus, targeting NOTCH signaling using a JAG-specific approach might offer double benefits, affecting both the vascular microenvironment and the tumor cell.

Current information in the literature indicates a low rate of mutations in NOTCH ligands in cancer, indicating that targeting the ligands might be a promising approach with low development of tumor resistance. However, such treatment would not be effective against hyperactivation of NOTCH receptors that bypass ligand–receptor interactions, as observed in T-cell acute lymphoblastic leukemia. Nonetheless, given the variety of diseases in which NOTCH deregulation emerges as a relevant player, the development of alternative and specific approaches to modulate the pathway is of extreme value.

No potential conflicts of interest were disclosed.

The work is supported by a grant from the NIH (R01 HL114086) to M.L. Iruela-Arispe.
