Leveraging The Cancer Genome Atlas (TCGA) multidimensional data in glioblastoma, we inferred the putative regulatory network between microRNA and mRNA using the Context Likelihood of Relatedness modeling algorithm. Interrogation of the network in context of defined molecular subtypes identified 8 microRNAs with a strong discriminatory potential between proneural and mesenchymal subtypes. Integrative in silico analyses, a functional genetic screen, and experimental validation identified miR-34a as a tumor suppressor in proneural subtype glioblastoma. Mechanistically, in addition to its direct regulation of platelet-derived growth factor receptor-alpha (PDGFRA), promoter enrichment analysis of context likelihood of relatedness–inferred mRNA nodes established miR-34a as a novel regulator of a SMAD4 transcriptional network. Clinically, miR-34a expression level is shown to be prognostic, where miR-34a low-expressing glioblastomas exhibited better overall survival. This work illustrates the potential of comprehensive multidimensional cancer genomic data combined with computational and experimental models in enabling mechanistic exploration of relationships among different genetic elements across the genome space in cancer.
Significance: We illustrate here that network modeling of complex multidimensional cancer genomic data can generate a framework in which to explore the biology of cancers, leading to discovery of new pathogenetic insights as well as potential prognostic biomarkers. Specifically in glioblastoma, within the context of the global network, promoter enrichment analysis of network edges uncovered a novel regulation of TGF-β signaling via a Smad4 transcriptomic network by miR-34a. Cancer Discov; 2(8); 736–49. ©2012 AACR.
Read the Commentary on this article by Babic et al., p. 676.
This article is highlighted in the In This Issue feature, p. 653.
Glioblastoma is the most common primary brain tumor in adults. Patients with newly diagnosed glioblastoma have a median survival of 12 months with generally poor responses to chemoradiotherapy (1). Recent genome-wide profiling studies have shown extensive genetic heterogeneity among glioblastoma samples with distinct molecular subtypes; that these transcriptomic subtypes reflect distinct underlying biology is supported by observed differences in clinical outcome of the patients (2, 3), enrichment of different genomic and epigenetic alterations within each subtype, and differential activation of major signaling pathways (4, 5).
Noncoding RNAs have emerged as an important class of regulatory molecules in both normal and neoplastic development. MicroRNA (or miR) is a class of noncoding small RNAs produced by RNA polymerase II as hairpins of longer precursor RNAs that are subsequently processed to approximately 22-nt-long fragments by RNase III enzymes, Drosha and Dicer. Mature miRs regulate gene expression by promoting mRNA degradation or by inhibiting mRNA translation (6, 7). The connection between miRs and cancer was first implicated by their genomic alteration and dysregulated expression in various human tumors (8–8). Multiple miRs have since been identified to promote or suppress oncogenesis in various tumors, presumably by modulating gene expression in the oncogenic and tumor suppressor networks. In addition, recent studies have proposed new mechanisms of miR–mRNA regulation such as modulation of mRNA with competitive miR-binding sites (sponge interactions) or mRNAs that affect constituents of the miR regulatory machinery (nonsponge interactions; refs. 13–15).
Global views of the relationship between miR and mRNA expression have been reported. For instance, Su and colleagues (16) used integrative genomics and genetic techniques to characterize the roles of mouse miRs within the mouse liver miR–mRNA network; Dong and colleagues (17) deciphered the pathway connecting mutations under the glioblastoma miR–mRNA expression network; Mestdagh and colleagues (18) established the miR body map online resource to dissect miR function through integrative genomics; Grigoryev and colleagues (19) presented the genome-wide miR regulation of T-lymphocyte activation through the mapped miR, mRNA, and protein networks; and Sharbati and colleagues (20) studied macrophage infection via an integrated miR–mRNA network. In these global integrative miR–mRNA network analyses, either general correlation coefficient methods (16–16) or putative miR target prediction methods (19, 20) have been used to construct or map miR–mRNA connections. These approaches preferentially quantify linear dependencies between pairwise variables.
Recognizing that the functional relationship between 2 variables in cancer is not necessarily linear, we explored a mutual information–based approach in this work that scores miR–mRNA interaction strength on the basis of relevant expression contexts. This mutual information–based approach has been used recently by Sumazin and colleagues (13) to uncover a novel class of modulators of miR–mRNA interactions. Here, we applied the Context Likelihood of Relatedness (CLR; ref. 21) network modeling algorithm to generate pairwise measures of associations on the basis of mutual information through calculation of the entropy. At the heart of the CLR algorithm is a unique statistical background correction test which uses the full set of mutual information values to estimate a significance value for each miR–mRNA pair under a given observed network context (see Supplementary Information). The algorithm evaluates the mutual information value of a miR–mRNA pair against the background mutual information distribution of all mRNAs in the data set with the miR, as well as with the distribution of mutual information values of all miRs with the mRNA under consideration. A combined z-score summarizing these 2 comparisons is generated, and the list of all such pairwise z-scores is subsequently used to generate P values by comparing with the normal distribution. A stringent false discovery rate of 5% is finally applied to identify putative miR–mRNA regulatory edges. Interactions whose mutual information values are outliers in the right tails of the pertinent context background distributions of mutual information scores have the greatest likelihood of being identified as significant. This background correction method allows the CLR algorithm to filter out those edges between miRs and mRNA that have spurious similarities with large numbers of other gene–miR species.
The Cancer Genome Atlas (TCGA) has characterized the genomes of glioblastoma on multiple dimensions including coding and noncoding RNAs (22). We applied the CLR modeling algorithm to this multidimensional data set to infer putative regulatory relationships (edges) between miRs and mRNAs in glioblastoma. Specifically, we were interested in directional miR–mRNA interactions where the miR downregulates mRNA expression either directly through binding or indirectly through intermediary effectors. Against this global network, we explored the functional relationship between miRs and mRNAs in gliomagenesis.

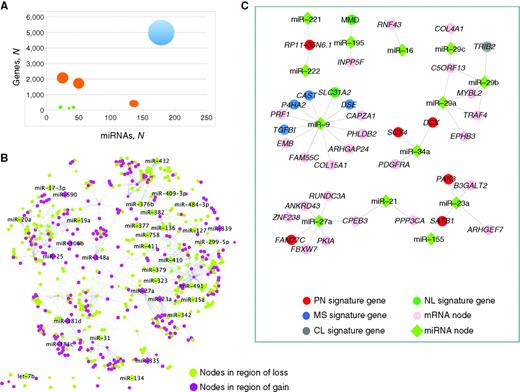

Global miR and mRNA Regulatory Network in Glioblastoma
To explore the relationship between miRs and mRNAs, we applied the CLR network algorithm to miR and mRNA transcriptome data from 290 glioblastoma samples from the TCGA (Supplementary Table S1). A total of 26,297 edges between 254 miR and 6,152 mRNA nodes were defined (Supplementary Table S2). Next, we integrated genome-wide copy number profiles with the inferred edges of the network with the assumption that biologically relevant miRs or mRNAs are likely to show additional levels of dysregulation across the samples. Here, we found that a third (34.1%) of the miR nodes or mRNA nodes in the CLR network resided in regions of copy number aberration in glioblastoma and 3.9% involved both miR and mRNA that are localized in regions of genomic alterations (Fig. 1A and B). This integrative analysis thus prioritized 1,018 edges involving 69 miRs and 467 mRNAs nodes as candidates with likely biologic importance.
To further rank the above nodes, we next applied a putative direct-target filter. Specifically, on the basis of previous findings showing that miRs downregulate their target mRNAs by binding to their 3′-untranslated regions (UTR; ref. 6), we defined a subset of mRNA nodes as putative direct targets of their miR nodes on the basis of the following parameters: (i) a significant negative correlation (Pearson correlation coefficient ≤ −0.3) between expression of miR and mRNA and (ii) sequence-based prediction of interaction in all 3 sequence-based prediction databases, namely, PicTar, TargetScan, and miRanda (23–23). This in silico analysis identified 3 edges involving 6 of the 536 prioritized nodes as representing putative direct interactions, namely, miR-34a:PDGFRA; mir-27a:CPEB3; and miR-23a:ARHGEF7. The same trend is observed with the global CLR network edges, where 45 (0.17%) of the 26,297 CLR-inferred edges were predicted computationally to be direct (Fig. 1C; Supplementary Table S3). This suggests that a significant proportion of the putative miR–mRNA relationships may be indirect, possibly mediated via intermediaries such as transcription factors (see below).

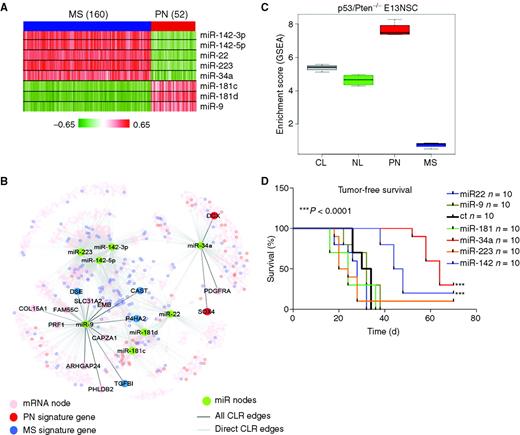

Functional Analyses of Subtype-Discriminant miR Nodes
Next, we asked whether the CLR-inferred global network captures the salient transcriptomic features of the 4 molecular subtypes of glioblastoma. Here, we looked for edges that are unique to each molecular subtype (Supplementary Table S4) as well as differential expression of the miR and mRNA nodes between any 2 molecular subtypes. We found that the variability among molecular subtypes appeared to be the predominant driver of relationships defined by CLR (Supplementary Fig. S1). For example, 67% (n = 17,934) of the network edges involved miR and mRNA that are differentially expressed (P < 0.001) between 2 molecular subtypes. While the difference in expression between the subtype signature genes is not surprising, it is striking that the CLR-identified miRs associated with these genes show a reciprocal and opposite change of expression along with their mRNA nodes. In particular, the greatest transcriptomic shift was observed between proneural and mesenchymal subtypes with nearly half of the edges in the global network (or 12,673 edges, 48%) marked by expression differences between them. This observation suggested that miR regulation of mRNA may play a role in defining the molecular signatures of these 2 subtypes. To this end, we looked for CLR-inferred edges among the 685 significantly overexpressed genes used by Verhaak and colleagues (3) for subtype pathway/Gene Ontology (GO) enrichment analysis. Of these 685 genes, 506 of them (73%) have inferred edges to a miR node in the global CLR network. Conversely, of the 2,984 inferred edges to these 506 subtype classifier genes, a disproportionate number (70%) are part of either the proneural or mesenchymal subtype signatures (e.g., 328 to classical, 560 to neural, 858 to proneural, and 1,238 to mesenchymal signature genes), suggesting that miR–mRNA regulation may contribute to gene signatures underlying these 2 molecular subtypes. Indeed, 8 miR nodes (P < 0.001) were found to be highly discriminatory between proneural and mesenchymal subtypes (Fig. 2A; see Supplementary Methods). Five of these miR nodes (miR-22, miR-34a, miR-223, miR-142-3p, and miR-142-5p) are underexpressed in proneural-subtype glioblastomas, harboring inferred negative edges with proneural signature genes; conversely, 3 of them (miR-9, miR-181c, and miR-181d) are underexpressed in mesenchymal-subtype glioblastoma with inferred negative edges with mesenchymal signature genes (Fig. 2B). When integrated with copy number and expression profiles as well as putative direct-target prediction as above (Supplementary Table S5), we found that miR-34a is the only one that also resides in a region of frequent loss and harbors a putative direct CLR edge to PDGFRA (platelet-derived growth factor receptor-alpha), a well-known proneural signature gene that is also a target of genomic amplification.
Next, we sought evidence that these 8 miRs are functionally active in a proneural context. Recognizing the limitation of established cell systems in modeling proneural molecular subtype, we first investigated whether a genetically engineered mouse (GEM) model of glioblastoma constructed with concomitant p53 and Pten deletion in neural stem cells (NSC) and neural progenitors (Gfap-Cre;p53L/L;PtenL/+) can be considered an appropriate model of proneural glioblastoma (28). Here, we conducted gene set enrichment analysis (GSEA; ref. 29) of the transcriptomes of premalignant p53/Pten double-null E13 embryonic NSC (Gfap-Cre;p53L/L;PtenL/L) and tumor spheroids isolated from malignant gliomas developed in the context of p53 and Pten deficiency (Gfap-Cre;p53L/L;PtenL/+; Supplementary Fig. S2A). As shown in Fig. 2C and Supplementary Fig. S2B, significant enrichments for the proneural signature genes were observed in both premalignant embryonic NSCs and in malignant tumor spheroids (P = 3.66 × 10−12 and P = 2.2 × 10−16, respectively), thus substantiating the p53/Pten double-null model as a proneural model. Next, we enforced expression of the miR precursors corresponding to the 8 subtype discriminant miRs in premalignant p53/Pten−/− NSCs (Supplementary Fig. S3). As summarized in Fig. 2D, both miR-34a and miR-142 significantly inhibited tumorigenesis of p53/Pten−/−E13 NSCs in vivo, suggesting tumor-suppressive activity in this context. In summary, subtype-discriminant miRs are functionally active in proneural glioblastoma context.

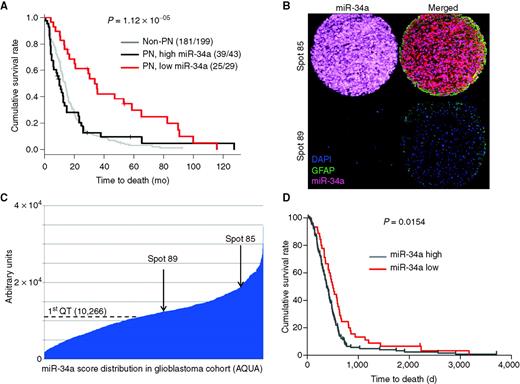

miR-34a Expression Is Prognostic in Glioblastoma
To explore the potential clinical relevance of subtype-discriminant miRs in human glioblastoma, we asked whether their expression tracks with any clinical parameters, particularly prognosis (see Methods). As summarized in Supplementary Table S6, when dichotomized, miR-34a expression was the only 1 of the 8 miRs that showed significant prognostic correlation (Bonferroni-adjusted, P = 0.0047) in the TCGA data set. Specifically, patients with miR-34a low-expressing glioblastomas exhibited an overall improved survival (Fig. 3A). Moreover, miR-34a low expression did not simply identify the proneural subtype, which is known to have better outcome (2, 3). Instead, within the proneural subtype, low miR-34a expression stratifies a subgroup of patients with proneural glioblastoma with improved overall survival (HR, 2.2; P = 2.2E-05), compared with miR-34a high-expressing proneural patients or other non-proneural patients (Supplementary Table S6); moreover, the prognostic significance of miR-34a was independent from other clinical variables such as therapy and gender or batches in multivariate analyses (Supplementary Table S7).
Importantly, this prognostic correlation of miR-34a was recapitulated in an independent cohort of human glioblastoma. Briefly, we conducted quantitative in situ hybridization using miR-34a as probe on a tissue microarray from an independent cohort of human gliomas (Fig. 3B and C; Supplementary Fig. S4 and Supplementary Tables S8 and S9) and showed that low miR-34a expressors were indeed associated with better overall survival (P = 0.0154; Fig. 3D).

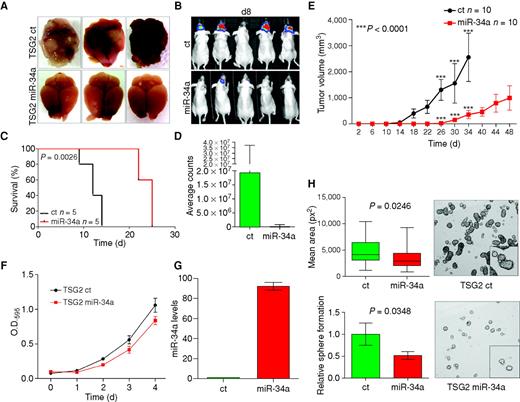

miR-34a Is a Tumor Suppressor in Proneural Glioblastoma
Its potent tumor-suppressive activity in vivo, evidence of genomic alteration, and its putative direct mRNA target PDGFRA, coupled with its prognostic significance, together strongly nominated miR-34a for mechanistic studies. Although it has been shown to be a tumor suppressor in multiple human cancer types including glioblastoma (30, 31), a specific role in proneural glioblastoma has not been fully shown. Similar to the pattern of lower expression in human proneural-subtype glioblastoma (P = 1.92e-19; Supplementary Fig. S5A), miR-34a expression was lower in p53/Pten double-null tumor spheroids or NSCs than in normal NSCs (P = 0.0034 and P = 0.0036, respectively; Supplementary Fig. S5B); moreover, the acute deletion of p53 and Pten by ex vivo CRE expression in early-passage primary astrocytes results in significant downregulation of endogenous miR-34a (P = 0.002; Supplementary Fig. S5C and S5D). Functionally, in TSG2, a tumor spheroid culture derived from a murine p53/Pten−/− glioblastoma, miR-34a expression significantly inhibited in vivo tumorigenesis in both orthotopic xenografts (P = 0.0026) and in subcutaneous transplants (P < 0.0001; Fig. 4A–E), resulting in prolonged survival of tumor-bearing mice and a less aggressive growth pattern (Supplementary Fig. S6A). While potently inhibiting tumorigenesis in vivo, it was interesting that miR-34a overexpression did not impact significantly on cell proliferation in 2-dimensional culture experiments (Fig. 4F and G). Although it is possible that the lack of growth phenotype may reflect the possibility that cells under the selective pressure of miR-34a overexpression may undergo negative selection in vitro, as observed in vivo in tumors arising from cells stably transduced with a miR-34a lentivector (Supplementary Fig. S6B), the phenotype of significant impairment of spherogenic potency in both human and mouse tumor neurospheres implicates renewal potential as a phenotype impacted by miR-34a expression. In particular, spherogenic renewal of murine TSG2 cultured in NSC medium in the presence of fibroblast growth factor (FGF) and epidermal growth factor (EGF) was inhibited by miR-34a expression (Fig. 4H). Similarly, this phenotype was recapitulated in TS543, a human proneural-like glioblastoma spheroid showing concomitant amplification and overexpression of PDGFRA, upon miR-34a overexpression (Supplementary Fig. S7A and S7B).

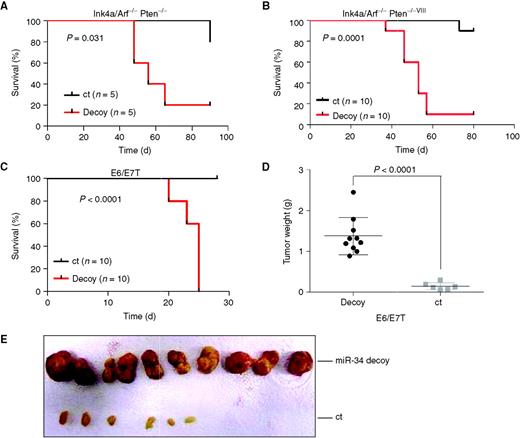

Conversely, to show a gain-of-oncogenic function in the context of miR-34a loss, we used a decoy 3′UTR system to functionally knockdown miR-34a as previously described (32). Indeed, stable decoy expression resulted in enhanced tumorigenicity in vivo in human E6/E7T astrocytes and in mouse Ink4a/Arf−/−;Pten−/− and Ink4a/Arf−/−Pten−/−;EgfrVIII/+ astrocytes resulting in decreased tumor-free survival (Fig. 5A–E; Supplementary Fig. S8A and S8B). Taken together, these in vitro and in vivo functional data in mouse and human systems, both by exogenous genetic perturbation and by endogenous downregulation of miR-34a, unequivocally prove that miR-34a is a glioblastoma tumor suppressor in the proneural subtype.

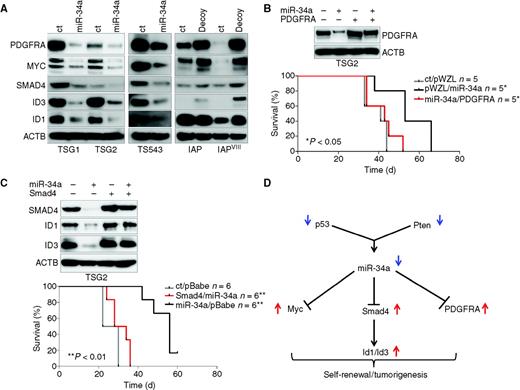

miR-34a Directly Regulates PDGFRA
To understand its mechanism of action in proneural glioblastoma, we explored the molecular basis of miR-34a action within the context of the established CLR network. First, we focused on PDGFRA as the predicted direct target of miR-34a as they represent the 2 nodes of a CLR-defined edge and both are subjected to genomic alterations, in addition to PDGFRA being a known signature oncogene in proneural subtype of glioblastoma (2). Specifically, we looked to confirm direct binding of PDGFRA by miR-34a using a 3′UTR luciferase reporter assay. Indeed, the direct nature of endogenous miR-34a–PDGFRA interaction was validated by this assay in E6/E7T human astrocytes (Supplementary Fig. S9A). Supporting the biologic relevance of this interaction, PDGFRA expression was downregulated by enforced expression of miR-34a in 2 independent mouse (TSG1 and TSG2) and human (TS543) proneural tumor spheroid cultures (Fig. 6A) as well as in established human and mouse glioblastoma cells (Supplementary Fig. S9B). Conversely, decoy-based miR-34a knockdown in primary mouse astrocytes induced expression of PDGFRA (Fig. 6A), and reintroduction of the Pdgfra open reading frame was able to reverse the inhibition of tumorigenesis by miR-34a in the TSG2 system (Fig. 6B) as well as the spherogenic potential of mouse and human proneural malignant spheroids (Supplementary Fig. S10A–S10C, respectively). Together, these experimental data confirm that PDGFRA is a direct target of miR-34a that is functionally linked to proneural glioblastoma biology, consistent with a recent report (33).

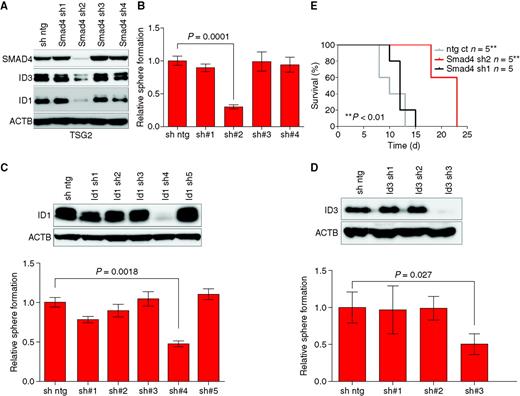

miR-34a Regulates TGF-β Signaling via a Smad4 Transcriptional Network
In line with the observation in the global CLR network, less than 1% of the miR-34a subnetwork (3 of the 342 nodes or 0.88%) was computationally predicted to be direct, suggesting that indirect mechanisms such as transcriptional regulation mediated through intermediate regulators, for example, transcription factors, may be at play (34). To identify such intermediates in the network, we conducted an in silico enrichment analysis for transcription factor–binding sites in promoter regions of mRNA nodes that are connected to miR-34a and defined as part of the proneural or mesenchymal signature (ref. 2; see Methods). Because miR-34a is strongly underexpressed in proneural samples, transcription factors that were (i) overrepresented in the binding sites of these proneural signature genes linked to miR-34a, (ii) overexpressed in proneural samples and exhibited (iii) a statistically significant negative correlation with miR-34a in the proneural subtype were defined as potential intermediaries through which miR-34a may act. This in silico analysis identified 3 transcription factors, PBX1, SMAD4, and MYC, whose binding sites were significantly enriched (P < 0.05; Supplementary Table S10). While PBX1 was not expressed in either our human or mouse glioblastoma systems (data not shown), MYC has been shown to be a target regulated by miR-34a (ref. 35; data not shown) and is known to play a pivotal role in gliomagenesis in the p53/Pten GEM model of glioblastoma (28), thus providing support that the computational approach taken to identify transcription factor intermediates is biologically sound. With that, we next explored the putative relationship between miR-34a and SMAD4, a connection that has not been reported in any tumor type including glioblastoma.
Smad4 is a co-Smad required for R-Smad–mediated activation of TGF-β (transforming growth factor-β) signaling. A large body of literature has implicated critical roles for TGF-β signaling in cancers (36). In glioblastoma, the TGF-β pathway has been shown to act as an oncogenic factor (37), and TGF-β signaling can enhance self-renewal capacity of tumor-derived spheroids in vitro, an effect that is dependent on ID1 and ID3 (38). This gains significance in view of the observed effect of miR-34a on the spherogenic potency in vitro. Against this backdrop, the bioinformatic prediction of SMAD4 as a putative transcription factor intermediate in the CLR network suggests that miR-34a may be a regulator of the TGF-β–SMAD–ID signaling pathway. Consistent with this is the observation of a strong negative correlation between expression of miR-34a and SMAD4 in the TCGA data set (Supplementary Fig. S11). To functionally test this hypothesis, we examined the expression of SMAD4 and the ID family proteins in independent mouse (TSG1 and TSG2) and human (TS543) proneural-like glioblastoma tumor spheroid cultures in response to miR-34a. As shown in Fig. 6A, miR-34a downregulated SMAD4 and ID1/3 expression, and such regulation was through direct binding to a conserved consensus region in the 3′UTR of SMAD4 based on the 3′UTR luciferase reporter assay (Supplementary Fig. S12). Conversely, in primary astrocytes, decoy sponging of endogenous miR-34a increased SMAD4 and ID1/3 expression (Fig. 6A). Next, to show a functional role of SMAD4 in the proneural system, we cotransduced p53/Pten−/− tumor spheroids cells with miR-34a and a Smad4 expression vector to show that SMAD4 expression was sufficient to reverse the effect of miR-34a on ID1 and ID3 expression (Fig. 6C) and rescues its antitumorigenic activity both in vitro and in vivo (Fig. 6C; Supplementary Fig. S13). Overall our functional rescue studies suggest that in proneural glioblastoma, both PDGFRA and SMAD4 are key effectors downstream of miR-34a (Fig. 6D). Furthermore, as the activity of TGF-β on renewal of glioblastoma spheroid cultures has been reported to depend on ID1/ID3 expression (38), we showed that lentiviral-based hairpin knockdown of Smad4, Id1, or Id3 in the mouse proneural-like system significantly reduced the number of spheroids when compared with the nontargeting control (Fig. 7A–D). Finally, we found that the stable knockdown of Smad4 impairs tumorigenesis in vivo in intracranial transplants (P < 0.01; Fig. 7E), suggesting that the SMAD4–ID1–ID3 axis is crucial in regulating the homeostasis of malignant glioma cells in mouse proneural-like glioblastoma. In summary, mechanistic exploration guided by integrative analyses of transcription factor–binding site enrichment in context of this CLR-inferred network established a novel mechanism of action by miR-34a whereby it exerts its diverse transcriptomic influences through the modulation of the TGF-β transcriptomic network through the direct binding of the SMAD4 3′UTR.
Glioblastoma is a heterogeneous disease characterized by distinct molecular subtypes underlying different biologic behaviors and response to therapies. Leveraging the multidimensional TCGA data set, reverse-engineering with the CLR algorithm has provided an inferred map of the putative miR–mRNA regulatory network in glioblastoma. Integrating this network model with molecular subtype definition and functional genomic screen, as well as in silico sequence-based target prediction and promoter analysis, we prioritized miR-34a for downstream mechanistic studies. These studies uncovered a novel regulatory network emanating from miR-34a, which acts as a tumor suppressor in proneural-like glioblastoma, in part, through direct action on PDGFRA as recently shown by Silber and colleagues (33) in addition to commandeering of the SMAD4 transcriptomic network to regulate ID1 and ID3 levels. That the majority of mRNAs computed to link to a miR node appears to be regulated indirectly through transcription factors, such as SMAD4 (this study) and MYC (35, 39) likely serves as an amplifier of an effect of miR on the global transcriptome. This finding thus provides a rationale for an alternative approach to inhibit transcription factor activity through modulating its upstream miR regulatory node. In sum, this work illustrates not only the power of comprehensive cancer genomic data sets such as that of TCGA and the importance of mining and interpreting such data sets in the context of cancer biology but also the value of computational and experimental models in enabling an understanding of the underlying complexity of the disease.
Although miR-34a has been implicated in multiple cancer types (40), its roles in the regulation of SMAD4–ID1–ID3 have not been previously suggested. While the relationship between PDGFRA and miR-34a is predicted by sequence-based algorithms, the relationship between miR-34a and SMAD4 or its downstream ID1 and ID3 are not; therefore, the hypothesis that they could be mediators of miR-34a activity came only through unbiased analysis for transcription factor–binding site enrichment in the promoters of CLR-inferred mRNA nodes linked to miR-34a. This reinforces the power of global system-biology approaches in generating unanticipated hypotheses.
Equally important are appropriate experimental models that enable genetic (or pharmacologic) perturbations to examine the validity of network connections inferred by the computational models. The importance of the GEM model of proneural-like glioblastoma is of particular relevance, as most of the well-established human glioblastoma cell models or human tumor spheroid cultures do not represent the proneural subtype; indeed, using this system, we show that miR-34a exerts its tumor-suppressive function by impinging on self-renewal through the TGF-β/SMAD pathway (38). The ability to show the relationship of miR-34a with PDGFRA and SMAD4–ID nuclear oncoproteins in spontaneous de novo glioblastoma in p53/Pten−/− GEM model, and the effects of the experimental perturbation of these oncogenic axes on cancer cell homeostasis in this system provide strong evidence that the predicted regulatory relationships are relevant and operative in vivo in an intact microenvironment.
Finally, our findings in this study have potential clinical application, as miR-34a expression level is shown in 2 independent cohorts of glioblastoma to stratify patients into good and poor prognosis subgroups with significant difference in overall survival. Furthermore, within the TCGA cohort, we found that miR-34a carries significant overlap in prognostic significance with glioma-CpG island methylator phenotype (G-CIMP) status (ref. 5; data not shown), suggesting a possible mechanistic relationship between miR-34a and G-CIMP, although elucidation of the molecular basis for this relationship will require further studies.
Previous studies have reported miR-34a expression level as a prognostic parameter. For instance, in pancreatic ductal adenocarcinoma, miR-34a loss (i.e., low to no expression) is associated with a decreased survival probability (41); in other words, miR-34a–expressing pancreatic ductal adenocarcinoma has a relatively better survival. In breast cancer, although high miR-34a expression is correlated with poor prognosis factors including positive nodal status, high tumor grade, estrogen receptor negativity, HER2 positivity, and high proliferation rate, after adjusting for these known prognostic parameters in multivariant analysis, high miR-34a expression is in fact associated with a lower risk of recurrence or death from breast cancer (42), indicating that high levels of miR-34a are a good prognostic factor. In contrast to these previous studies, our analyses of 2 independent cohorts of glioblastoma showed that miR-34a low-expressing glioblastomas have better outcome with longer overall survival. In other words, glioblastoma tumors driven by inactivation of miR-34a are less aggressive than glioblastomas that evolve through deregulation of other genetic elements. The differences in prognostic significance of miR-34a loss in different tumor types likely reflect the modulatory effects of preexisting genetic alterations and the specific susceptibility of different cell types to the aberrant activation of any given pathway. This is not dissimilar to the case of another glioma gene, IDH1, whose specific point mutation affecting a key residue in the protein (R132) has been shown to be oncogenic. Interestingly, gliomas carrying this mutation in IDH1 as well as analogous mutations affecting IDH2 have a significantly better prognosis (43–43). On the other hand, in cytogenetically normal acute myelogenous leukemia carrying NPM1 mutations, IDH1 mutations at the same residue are a poor prognostic factor as patients with IDH1 mutations do worse (47, 48). In summary, we illustrate here that computational network modeling of the complex interrelationships among diverse genetic elements can generate a logical framework in which to explore and understand the genetics and biology of cancers, and when integrated with disease knowledge and clinical annotation can lead to discovery of new pathogenetic insights in addition to potential prognostic biomarkers or therapeutic targets. In this regard, we believe that the results from this study should motivate future efforts to explore the therapeutic implication of miR-34a reconstitution. The potent tumor-suppressive activity in our preclinical models would suggest possible therapeutic benefit of miR-34a reconstitution by tumor-targeted delivery in low miR-34a–expressing glioblastoma. In view of its mechanism of action through PDGFRA, MYC, and SMAD4, one may further speculate that reconstitution of miR-34a could represent an attractive strategy to deliver combination therapy against multiple bona fide cancer gene targets.
Network inference was conducted, both globally and within each of the 4 molecular subtype sample sets, using the CLR algorithm on 290 matched miR and mRNA expression profiles from the TCGA. Copy number analysis was conducted on level 3 segmented data by the CN Tools Bioconductor package using 90th percentile segment gain or loss (SGOL) values as thresholds. Gene weight analysis was done to test for correlation of expression and copy number change for each miR and mRNA species. Transcription factor motifs were identified on the basis of coincidental prediction of binding sites by the CisGenome and MotifScanner programs in promoter regions (−8 kb, +2 kb of transcription start site).
Mouse and Human Proneural Glioblastoma Cell Lines
p53L/L;PtenL/+;Gfap-Cre and p53L/L;PtenL/L;Gfap-Cre mice have been previously described (28). Primary murine astrocytes were isolated from Gfap-Cre;Ink4a/ArfL/L;PtenL/L and Gfap-Cre;Ink4a/ArfL/L;PtenL/L;EgfrLSLVIII/+. GEM models were provided by Ronald A. DePinho. Murine cell lines were created by enzymatic and mechanical dissociation of individual samples, all genotypes were verified by PCR amplification of genomic DNA and gel electrophoresis. The Harvard Institutional Animal Care and Use Committee approved all animal studies and procedures. TS543 human malignant spheroids are short-term cultures derived from a primary proneural glioblastoma kindly provided by C. Brennan. PDGFRA expression was validated by Western blot analysis.
An extensive description of the materials and methods is provided in the Supplementary Information.
Disclosure of Potential Conflicts of Interest
D.L. Rimm is a consultant to and stockholder in HistoRx, the exclusive licensee of the AQUA patent. No potential conflicts of interest were disclosed by the other authors.
Conception and design: G. Genovese, S. Sarkar, J. Zhang, J.J. Collins, L. Chin
Development of methodology: G. Genovese, A. Ergun, S.A. Shukla, J. Hanna, S. Colla, S. Sarkar, J. Zhang, D.L. Rimm, J.J. Collins, L. Chin
Acquisition of data (provided animals, acquired and managed patients, provided facilities, etc.): G. Genovese, B. Campos, J. Hanna, P. Ghosh, S.N. Quayle, K. Rai, S. Colla, H. Ying, H. Zhang, K. Dunn, C. Brennan, H. Zheng, D.L. Rimm
Analysis and interpretation of data (e.g., statistical analysis, biostatistics, computational analysis): G. Genovese, A. Ergun, S.A. Shukla, B. Campos, P. Ghosh, S.N. Quayle, K. Rai, C.-J. Wu, S. Sarkar, Y. Xiao, J. Zhang, H. Zhang, L. Kwong, C. Brennan, D.L. Rimm, L. Chin
Writing, review, and/or revision of the manuscript: G. Genovese, A. Ergun, S.A. Shukla, B. Campos, J. Hanna, C.-J. Wu, S. Sarkar, D.L. Rimm, J.J. Collins, L. Chin
Administrative, technical, or material support (i.e., reporting or organizing data, constructing databases): W.R. Wiedemeyer, L. Chin
Study supervision: J.J. Collins, L. Chin
Formulated overall approaches for analysis and identification of most discriminatory miRs: A. Ergun, S.A. Shukla
Network inference modeling and integration with copy number data: A. Ergun
Conducted gene set enrichment, direct target prediction results, and promoter analyses: S.A. Shukla
Conducted correlation of copy number with expression analysis: J. Zhang, H. Zhang
Generated and analyzed the tissue microarray data: B. Campos, J. Hanna, D.L. Rimm
Conducted the survival analysis: C.-J. Wu
Conducted in vivo experiments: G. Genovese, P. Ghosh, H. Ying
Established the lentiviral vector systems: G. Genovese, S. Colla
Conducted luciferase reporter assays: S.N. Quayle
Conducted in vitro studies: B. Campos, K. Rai, S. Sarkar, K. Dunn
Conducted signaling analysis: W.R. Wiedemeyer
Analyzed microarray data: L. Kwong
The authors thank the support of the Belfer Institute for Applied Cancer Science for computational analyses; Drs. Ronald A. DePinho, Giulio Draetta, and members of the Chin laboratories; Alessandro Sgambato and Stefano Sioletic for comments and reagents; Joshua Mendell for the MSCV-PIG miR-34a construct; and Zhou Shan, Jiang Shan, and Carla Bianchi for mouse husbandry and colony care. All the expression clones were obtained through the Dana Farber/Harvard Plasmid Core Facility. The pHage vector was originally developed by Darrel Kotton. Human glioma spheroids were provided by C. Brennan. GEM models and immortalized human astrocytes with the E6/E7 oncoproteins and Tert were provided by Ronald A. DePinho.
This work is supported by funding from the NIH (PO1 CA095616, U01 CA141508, and U24 CA143845) and from the Ben and Catherine Ivy Foundation to L. Chin. J.J. Collins is an HHMI investigator. G. Genovese was supported by the AIRC “Associazione Italiana per la Ricerca sul Cancro” fellowship. S.A. Shukla was supported by The Robert A. and Renee E. Belfer foundation and by the GDAC grant (NIH U24 CA143845). P. Ghosh was supported by a NIH F32 fellowship. S.N. Quayle was supported by a fellowship from the Canadian Institutes of Health Research. K. Rai was supported by an NIH K99/R00 Pathway to Independence award (1K99CA160578-01) and Charles A. King Trust postdoctoral fellowship. K. Dunn was supported by the Terry Fox Foundation (#2009-700118). S. Sarkar was supported by a fellowship from the Ovarian Cancer Research Foundation. C. Brennan is supported by the NIH P01 CA95616 grant.
