Disseminated cancer cells that have extravasated into the tissue parenchyma must interact productively with its extracellular matrix components to survive, proliferate, and form macroscopic metastases. The biochemical and cell biologic mechanisms enabling this interaction remain poorly understood. We find that the formation of elongated integrin β1–containing adhesion plaques by cancer cells that have extravasated into the lung parenchyma enables the proliferation of these cells via activation of focal adhesion kinase. These plaques originate in and appear only after the formation of filopodium-like protrusions (FLP) that harbor integrin β1 along their shafts. The cytoskeleton-regulating proteins Rif and mDia2 contribute critically to the formation of these protrusions and thereby enable the proliferation of extravasated cancer cells. Hence, the formation of FLPs represents a critical rate-limiting step for the subsequent development of macroscopic metastases.
Significance: Although the mechanisms of metastatic dissemination have begun to be uncovered, those involved in the establishment of extravasated cancer cells in foreign tissue microenvironments remained largely obscure. We have studied the behavior of recently extravasated cancer cells in the lungs and identified a series of cell biologic processes involving the formation of filopodium-like protrusions and the subsequent development of elongated, mature adhesion plaques, which contribute critically to the rapid proliferation of the micrometastatic cells and thus are prerequisites to the eventual lung colonization by these cells. Cancer Discov; 2(8); 706–21. ©2012 AACR.
This article is highlighted in the In This Issue feature, p. 653.
Hematogenous metastasis, the major cause of cancer-associated mortality, proceeds through the dissemination of cancer cells from the primary tumor via the circulation. The circulating cells eventually lodge in the capillary beds of distant organs, from which they may extravasate into the adjacent tissue parenchyma (1). The majority of extravasated cells either quickly undergo apoptosis or persist in the parenchyma of host tissue in a viable but nonproliferating state and only rarely do they succeed in colonization, that is, in generating macroscopic growths within such tissues (2, 3). The inability of cancer cells to survive and proliferate following extravasation appears to be attributable, in part, to the difficulties that these cells experience in adapting to the novel tissue microenvironments in which they have landed (4, 5). These microenvironments are likely defined by complex mixtures of growth factors, cytokines, and extracellular matrix (ECM) components (6).
We and others have studied the behavior of cancer cells disseminated in the lung parenchyma using a set of 3 mouse mammary carcinoma cell lines, D2.0R, D2.1, and D2A1, with differing potentials for metastasis (7–7). When introduced into mice via tail vein injection, all 3 cell populations extravasate into the lung parenchyma with comparable efficiency and exhibit similar rates of initial survival (10). However, they show marked differences in subsequent proliferation and colony formation: the D2A1 cells proliferate rapidly after extravasation and colonize the lung tissue effectively, whereas the D2.0R and D2.1 cells fail to do so (10).
In the earlier studies, we and others undertook to model the post-extravasation behavior of the various D2 cell lines using an in vitro model system (9, 10). Thus, these cells were propagated in 3-dimensional (3D) culture using the “Matrigel on-top” (MoT) method (11), in which cells are plated above a layer of undiluted Matrigel and then covered with Matrigel diluted 1:50 with culture medium. In our own case, these cells were prepared as single-cell suspensions and seeded at low densities (500–2,000 cells/cm2 bottom area; ref. 10). This ensured that individual cells were initially surrounded on all sides by ECM components, which modeled the conditions encountered by cancer cells immediately after extravasating into the lung parenchyma.
Although these MoT conditions recapitulated only limited aspects of the in vivo microenvironment, they sufficed to reproduce the differing proliferation rates of the various D2 cell populations in the lungs. Thus, the D2A1 cells, which are far more aggressive in vivo, proliferated far more rapidly under MoT conditions than did the other 2 nonaggressive D2 cell types (9, 10). This contrasted with the behavior of these 3 cell types in monolayer culture, where they proliferated equally well (9, 10).
Subsequent analyses revealed that integrin-mediated interactions with the ECM proteins are essential for the aggressive D2A1 cells to proliferate rapidly both under MoT culture conditions and within the lung parenchyma (10). We also found that integrins containing the β1 subunit contribute critically to these interactions, which confirmed previously reported observations by others (9, 12), and that these interactions ultimately enable rapid cell proliferation by triggering intracellular signaling events including the activation of focal adhesion kinase (FAK; ref. 10).
In the present study, we identify the processes exploited by the recently extravasated micrometastatic cancer cells in the lungs to establish productive interactions with the surrounding ECM. In brief, these processes begin with the formation of thin, actin-rich protrusions that harbor integrin β1 together with other proteins that collaborate with integrins to form cell–matrix adhesions. These protrusions support the initial interactions between the extravasated cancer cells and ECM components of the lung parenchyma, thereby helping these cells to trigger adhesion-dependent signaling events including FAK activation. The resulting active FAK signaling, in turn, phosphorylates and activates extracellular signal–regulated kinases (ERK) and thereby enables rapid proliferation of these cancer cells within the lung tissue.
FAK/ERK Signaling as a Critical Trigger for the Post-Extravasation Proliferation

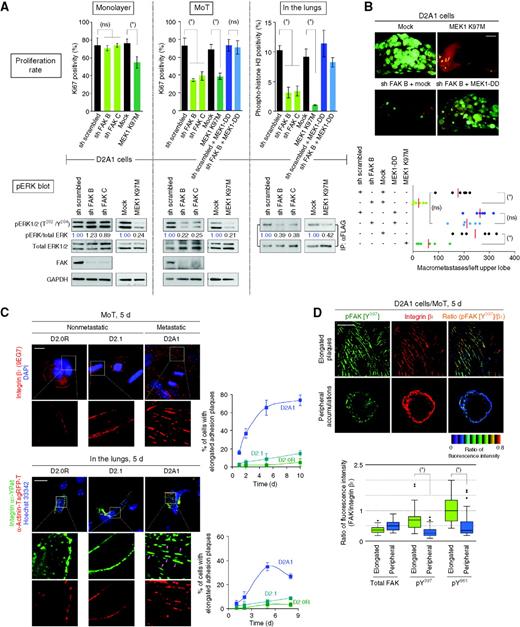

We undertook to elucidate the molecular basis for the differing proliferation rates of the various D2 cell populations, which were observed both when these cells were growing in MoT cultures and following their extravasation into the lung parenchyma (Supplementary Fig. S1A–S1E). This led us to discover the critical role of FAK-dependent activation of the ERKs—central mediators of various proliferation-promoting signals (13)—in determining the proliferation rates under these conditions (ref. 10; Fig. 1A; Supplementary Fig. S2A–S2D).
Thus, FAK knockdown in the otherwise aggressive D2A1 cells impaired their proliferation under MoT culture conditions, which was associated with a strong reduction in the phosphorylation of ERKs at residues critical to their activity (Fig. 1A). Working in the opposite direction, the ectopic expression of the constitutively active CD2–FAK fusion protein in the otherwise nonaggressive D2.0R and D2.1 cells elevated ERK phosphorylation levels and allowed these cells to proliferate rapidly under the MoT culture conditions (Supplementary Fig. S2A and S2B). Importantly, FAK signaling also contributed to ERK activation and thus to proliferation in vivo shortly after these cells had extravasated into the lung parenchyma (Fig. 1A and B; Supplementary Fig. S2D). In contrast, manipulation of FAK signaling did not discernibly affect either ERK phosphorylation levels or the proliferation rates when these various cell populations were growing as monolayers in vitro (Fig. 1A; Supplementary Fig. S2A–S2C).
We also found that the degree of the activation-associated phosphorylation of FAK and ERKs correlated closely with the abilities of the various populations of D2 cells to proliferate both under the MoT conditions of culture and within the lung parenchyma (ref. 10; Supplementary Fig. S3A–S3C). Taken together, these observations indicated that the activation status of FAK governed the activity of ERKs and thus critically determined the rate of cell proliferation under both conditions (Supplementary Fig. S3C). These observations prompted us to study the mechanisms that control FAK activation in cells growing under the MoT conditions of culture as well as in those that have extravasated into the lung parenchyma.
Assembly of Elongated Adhesion Plaques as a Controller of FAK Signaling
We initially focused on the control of FAK phosphorylation in cells growing under in vitro MoT culture. Recruitment by ECM-ligated integrins is known to be crucial for the efficient phosphorylation and resulting activation of FAK (14). Moreover, we previously identified integrin β1 as an integrin subunit essential for FAK activation in MoT-cultured D2A1 cells. Indeed, the knockdown of integrin β1 expression in these cells diminished both autophosphorylation of FAK on its tyrosine residue 397 (Y397) and Src-mediated phosphorylation on tyrosine residue 861 (Y861; ref. 10); both Y397 and Y861 are important phosphorylation sites for the FAK-dependent activation of multiple signaling events (14).
We also noted that the three D2 cell populations exhibited strikingly different patterns of integrin β1 distribution under MoT culture conditions: in the majority of the aggressive D2A1 cells, abundant integrin β1-containing, elongated adhesion plaques were assembled, whereas in the more indolent D2.0R and D2.1 cells, integrin β1 was distributed evenly near the contact sites between Matrigel and the plasma membrane (ref. 10; Fig. 1C; Supplementary Figs. S4, S5A–S5C, S6A and S6B). The elongated morphology of adhesion plaques formed by the D2A1 cells is typical of the mature form of these plaques. Thus, earlier studies of fibroblasts growing in monolayer culture revealed that adhesions to ECM initially appear as small dots at the cell periphery, termed focal complexes. These dots are converted subsequently into ones having an oval-like or elongated morphology, which is often associated with the activation of a variety of signaling events (15).
We wished to determine whether the formation of these elongated adhesion plaques was accompanied by the activation of important signaling events, more specifically the phosphorylation of FAK, in the MoT-cultured D2A1 cells. In individual cells, we observed 2 distinct patterns of integrin β1 accumulation: the majority of these cells displayed localization of integrin β1 to elongated adhesion plaques, whereas the remaining cells exhibited an even distribution of this integrin subunit near the plasma membrane (“peripheral accumulations”; Fig. 1D). We proceeded to measure the levels of FAK phosphorylation associated with each of these 2 patterns of integrin β1 accumulation by immunostaining the cells for both integrin β1 and phosphorylated FAK (pFAK). This revealed that the ratio of pFAK-staining intensity to that of integrin β1 staining was higher in the elongated plaques than in the peripheral accumulations, by 2.5- and 2.1-fold for pFAK (Y397) and pFAK (Y861), respectively (Fig. 1D). Hence, elongated plaque formation was correlated directly with elevated phosphorylation and thus activation of FAK.
In addition, within the population of MoT-cultured D2A1 cells, those cells that successfully assembled elongated integrin β1–containing adhesion plaques exhibited a 2.3-fold higher rate of Ki67 positivity, an indicator of proliferation, than did those that failed to form such plaques (Supplementary Fig. S5A). Hence, the development of such plaques and the associated more intense activation of FAK were correlated with and possibly critical to the rapid proliferation of D2A1 cells under MoT conditions.
We wished to extend these observations to understand the behavior of cells in vivo within the post-extravasation lung parenchyma. Thus, to analyze the formation of integrin β1–containing elongated adhesion plaques by the extravasated D2A1 cells, we used 2 different types of fluorescent fusion proteins: integrin α5-YPet and α-actinin-Tag-RFP-T (refs. 16, 17; Supplementary Fig. S7A). Similarly constructed fluorescent marker proteins had been used successfully by others to monitor the localization of integrin α5 and α-actinin in cells that were growing in monolayer culture (18).
Integrin α5 associates exclusively with integrin β1 to form heterodimeric integrin receptors, which are localized specifically to the elongated adhesion plaques in the MoT-cultured D2A1 cells (ref. 10; Supplementary Figs. S5B and S7B). Moreover, this integrin contributed critically to the proliferation of the D2A1 cells not only under the MoT culture conditions but also following the extravasation of these cells into the lung parenchyma (ref. 10; Supplementary Fig. S7C). These observations justified the use of integrin α5-YPet to visualize integrin β1–containing elongated adhesion plaques by the D2A1 cells within the lung parenchyma. The actin-bundling α-actinin is one of the major components of the adhesion plaques formed in cells propagated under monolayer culture conditions as well as of those formed by the MoT-cultured D2A1 cells (ref. 19; Supplementary Fig. S5C). The combined use of these 2 fluorescent fusion proteins allowed us to verify that the observed plaques containing integrin α5-YPet also recruited α-actinin and thus were functional.
Within the lung parenchyma, we found that the aggressive D2A1 cells formed abundant integrin α5-YPet- and α-actinin-TagRFP-T–containing elongated adhesion plaques; these first became apparent 5 days after the intravenous injection of these cells. In contrast, echoing behavior observed in MoT cultures, plaques of this type were rarely formed by the more indolent D2.0R or D2.1 cells (Fig. 1C; Supplementary Fig. S4). Collectively, these various observations indicated that the abilities of various D2 cell populations to form elongated, mature adhesion plaques varied in concert with their abilities to activate FAK after extravasating into the lung parenchyma (Fig. 1C; Supplementary Fig. S3A). This suggested, in turn, that these elongated fusion plaques contribute functionally to the more potent activation of FAK in the aggressive D2A1 cells, which in turn facilitate ERK phosphorylation and thereby permit the rapid proliferation of these cells in the lung parenchyma.
Cytoskeletal Protrusions That Precede the Appearance of Elongated Adhesion Plaques
We undertook to uncover the mechanism(s) responsible for the differing abundance of integrin β1–containing elongated adhesion plaques among the various D2 cell populations (Fig. 1C). To do so, we first studied the temporal development of these plaques in the MoT-cultured D2A1 cells by monitoring the localization of integrin β1 together with that of actin cytoskeleton, whose dynamics is coupled tightly with the assembly of adhesion plaques (15).
Under the MoT culture conditions, the D2A1 cells began to exhibit integrin β1–containing elongated plaques earlier than they did so in the lung parenchyma: these plaques became apparent as early as 24 hours after starting the culture (Fig. 2A). We also found prominent protrusions displaying integrin β1 that were colocalized with thin bundles of filamentous actin at this time (Fig. 2A–C). These protrusions morphologically resembled filopodia, finger-like protrusions composed of parallel bundles of actin fibers; filopodium formation has been intensively studied in cells propagated as a monolayer (20, 21). These integrin β1–containing filopodium-like protrusions (hereafter referred to as FLP) appeared as early as 6 hours after introducing the D2A1 cells into MoT culture (Fig. 2A).
In contrast to this behavior of the aggressive D2A1 cells, the metastasis-deficient D2.0R and D2.1 cells extended far fewer FLPs in MoT cultures (Fig. 2D; Supplementary Fig. S8A). Importantly, these differing abilities to form FLPs could also be observed in the lung tissue 2 days after the intravenous injection of these various D2 cell populations, where FLPs were visualized by a fluorescent actin marker lifeact-TagRFP-T (ref. 22; Fig. 2E; Supplementary Fig. S8A). These observations paralleled the differing abilities of these cell types to assemble integrin β1–containing elongated adhesion plaques that were observed both under MoT culture conditions and in the lung parenchyma (Fig. 1C). Together, these correlations prompted us to hypothesize that the formation of FLPs and the assembly of elongated adhesion plaques are functionally interrelated in cells growing under both conditions.

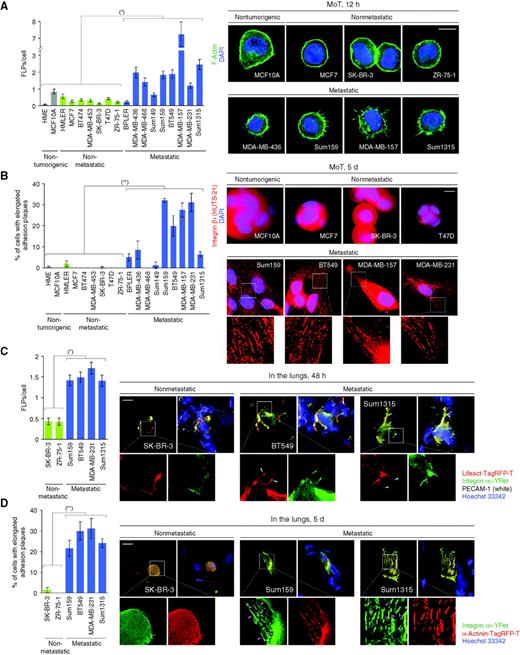

We then explored whether other types of metastasis-competent cells also form FLPs and elongated adhesion plaques resembling those observed in the aggressive D2A1 cells. Thus, we examined various human breast cancer cell lines that show differing metastatic powers upon implantation into mice. Twelve hours after being cultured under MoT conditions, 7 of the 9 types of metastatic cells, but none of the 9 types of nonmetastatic cells, exhibited one or more FLP per cell (Fig. 3A). Moreover, after 5 days of MoT culture, 7 of 9 metastatic cells, but none of the 9 nonmetastatic cells, exhibited a significant proportion of cells (>5% of cell population) that had developed integrin β1–containing elongated adhesion plaques (Fig. 3B). Hence, under in vitro MoT culture conditions, a variety of metastasis-competent cells developed both FLPs and elongated adhesion plaques far more frequently than did the metastasis-deficient cells.
In addition, following extravasation into the lung parenchyma in vivo, the metastasis-competent breast cancer cell lines Sum159, BT549, MDA-MB-231, and Sum1315 developed far more abundant FLPs (>3.6-fold increase in FLP number per cell on average) and assembled elongated adhesion plaques far more frequently (by >30-fold larger proportion of cell populations on average) than did the metastasis-deficient SKBR3 and ZR-75-1 cells (Fig. 3C and D; Supplementary Fig. S8B and S8C). These extensive correlations between metastasis competence on the one hand and the ability to form FLPs and elongated adhesion plaques on the other provided additional confirmation of the notion that the formation of these structures provides critical support for the subsequent development of macroscopic metastases. However, it still remained unclear whether and how the formation of FLPs contributes to the subsequent assembly of elongated adhesion plaques.
Functional Connection between FLP Formation and Adhesion Plaque Assembly
The model proposed here that FLPs are involved in the formation of elongated, mature adhesion plaques contrasted with the widely accepted view of the process of mature adhesion plaque formation in cells that are propagated as monolayers in vitro. Thus, the majority of mature adhesion plaques in monolayer-cultured cells are thought to be formed independently of filopodia, that is, the actin-rich protrusions that morphologically resemble FLPs. Indeed, these adhesion plaques have been found to originate largely from dot-like focal complexes formed beneath lamellipodia—sheet-like protrusions that are morphologically and functionally distinct from filopodia (15)—in monolayer-cultured cells.
Importantly, lamellipodial protrusions were rarely observed when cells were propagated within the 3D gels (23), although the formation of elongated, mature adhesion plaques was repeatedly observed in various cell types propagated within such gels (reviewed in ref. 24). These observations by others, together with our present observations of FLPs, led us to speculate that certain types of 3D cultured cells use an FLP-mediated mechanism of mature adhesion plaque formation instead of relying on the lamellipodium-dependent mechanism.

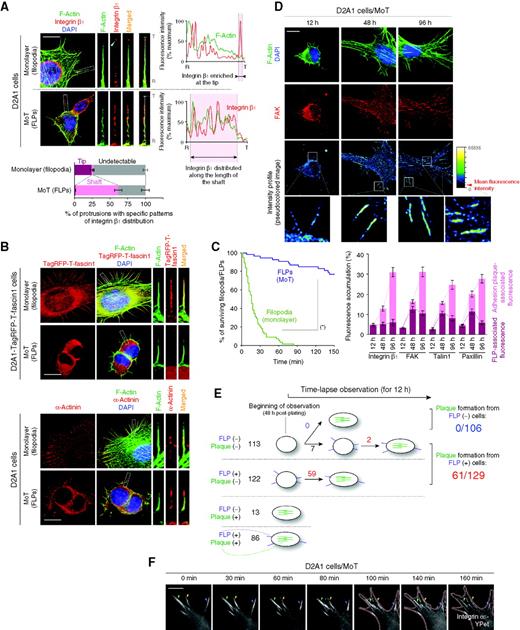

To elucidate the connection between FLPs and elongated adhesion plaques, we asked whether FLPs interact with the proteins involved in cell–ECM adhesions in a way different from filopodia formed by monolayer-cultured cells (Fig. 4A–C; Supplementary Fig. S9A–S9D and Supplementary Movies S1 and S2). We found that integrin β1 was distributed along the length of the shafts of FLPs in the MoT-cultured D2A1 cells (Fig. 4A). In contrast, confirming previous observations by others (25, 26), integrin β1 was enriched at the tips of filopodia in the D2A1 cells growing as a monolayer (Fig. 4A). These observations were consistent with the notion that FLPs contribute to the formation of integrin-mediated adhesions in a manner different from filopodia.
We proceeded to analyze the association with FLPs of major adhesion plaque proteins, FAK, talin1, and paxillin. We found that these adhesion plaque proteins were recruited progressively to FLPs in the MoT-cultured D2A1 cells (Fig. 4D, Supplementary Fig. S10A and S10B). These results, together with the temporal order of FLP formation before the assembly of elongated adhesion plaques (Fig. 2A), indicated that the protein components of these plaques, including integrin subunits (e.g., β1) and adhesion plaque proteins (e.g., FAK, talin1, and paxillin), first accumulate in FLPs before their association with elongated adhesion plaques.
To directly observe the relationship between FLP formation and elongated adhesion plaque assembly, we conducted time-lapse microscopy analyses on the integrin α5-YPet–expressing D2A1 cells growing in MoT culture. We found that among a group of 235 cells that did not display elongated adhesion plaques at the beginning of observation, 129 (55%) cells exhibited the formation of FLPs either at the beginning or during the course of the observation period, whereas the remaining 106 (45%) cells never developed FLPs (Fig. 4E). Notably, 61 of the 129 FLP-forming cells, but none of the 106 FLP-nonforming cells, eventually developed elongated adhesion plaques.
This correlation strongly suggested that FLP formation is a prerequisite for the development of elongated adhesion plaques in these cells. Moreover, with increasing time, we observed the progressive centripetal movement of the FLP-associated integrin α5-YPet complexes (0–80 minutes; Fig. 4F; Supplementary Movie S3). This ultimately resulted in the translocation of these complexes into elongated adhesion plaques that were aligned with the cell surface (140–160 minutes; Fig. 4F; Supplementary Movie S3). Hence, the cluster of integrins displayed along the lengths of FLPs, presumably together with associated adhesion plaque proteins, served as precursors of those that accumulate in elongated, mature adhesion plaques. Collectively, these observations prompted us to postulate that FLPs contribute to the assembly of mature adhesion plaques by fostering the nucleation of protein complexes that comprise the core of these plaques.
Rif/mDia2 Signaling in FLP Formation and Metastatic Colonization
The findings described above showed that the rapid proliferation of cancer cells under MoT culture conditions in vitro and within the lung parenchyma in vivo is preceded by a series of changes that are initiated by the formation of FLPs. Thus, under these conditions, FLP formation appeared to contribute critically to the assembly of elongated, mature adhesion plaques, which in turn triggers FAK/ERK signaling and thereby ultimately permits rapid cell proliferation.

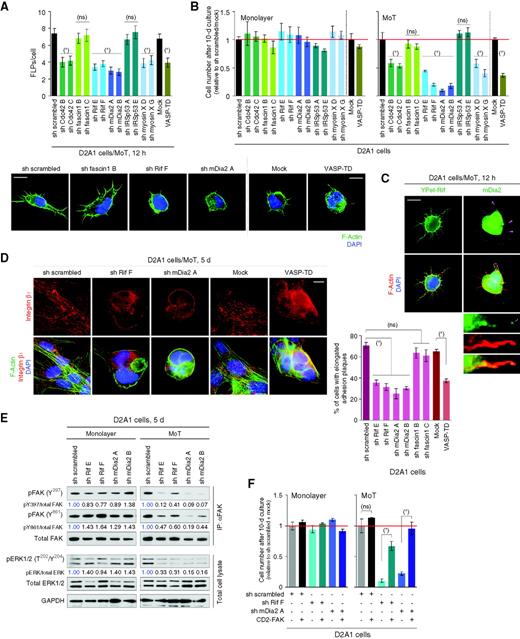

To confirm the causal contribution of these initial steps, we undertook to test the effects of blocking FLP formation. A number of proteins—notably Cdc42, fascin1, Rif, mDia2, IRSp53, myosin X, and Ena/VASP—have been associated with the formation of filopodia in monolayer-cultured cells (21); the last of these subsumes a group of 3 actin-binding proteins, Mena, VASP, and Evl (27). On the basis of the structural similarity between filopodia and FLPs (Fig. 4A and B), we speculated that some of these regulators of filopodia also contribute to the formation of FLPs in cells growing under MoT culture conditions. Accordingly, we proceeded to examine the involvement of these proteins in FLP formation.
We found that the knockdown of Cdc42, Rif, mDia2, or myosin X expression, as well as the functional inhibition of Ena/VASP proteins by the VASP-TD fragment—a dominant-negative inhibitor for all 3 Ena/VASP proteins (28)—both resulted in significant (42%–61%) decreases in the number of FLPs formed by MoT-cultured D2A1 cells. These decreases in FLP number were associated with 42% to 90% reductions in cell number when these cells were propagated for 10 days under MoT conditions, whereas none of these manipulations caused more than a 13% decrease in cell number when these cells were propagated as monolayers for the same period of time (Fig. 5A and B; Supplementary Fig. S11A–S11F). In contrast, knocking down the expression of either fascin1 or IRSp53, neither of which participated in FLP formation in the D2A1 cells growing under the MoT conditions (Fig. 5A), failed to discernibly affect the proliferation of these cells under these conditions (Fig. 5B). On the basis of these extensive correlations, we concluded that in the MoT-cultured D2A1 cells, the formation of FLPs contributes critically to the ability of these cells to proliferate rapidly.
Among the proteins that were involved in FLP formation in the D2A1 cells, Rif and mDia2 were of particular interest for the following reasons. First, in certain types of monolayer-cultured cells, the driving force of filopodial protrusion is provided by the mDia2-mediated actin nucleation and polymerization, which in turn can be activated by a Rho family GTPase Rif; this suggested the central role of Rif/mDia2 signaling in the formation of certain types of filopodia and similar protrusions (29). Second, in the D2A1 cells growing under MoT conditions, the knockdown of either Rif or mDia2 expression had a more potent effect than did the knockdown of the other filopodium regulators tested here on both FLP formation and proliferation (see Fig. 5A and B). Third, Rif was found to be localized along the shafts of FLPs formed in the MoT-cultured D2A1 cells, whereas mDia2 was enriched at their tips; this reflected the distribution patterns of Rif and mDia2 within filopodia extending from HeLa cells propagated as a monolayer (ref. 30; Fig. 5C). Collectively, these observations suggested the importance of Rif/mDia2 signaling in enabling the abundant display of FLPs in the MoT-cultured D2A1 cells.
These considerations prompted us to analyze in detail the effect of Rif or mDia2 knockdown on the behavior of the D2A1 cells growing under MoT culture conditions. We found that the development by these cells of integrin β1–containing elongated adhesion plaques, as well as the activation of FAK and ERKs, was significantly impaired by the knockdown of Rif or mDia2 expression (Fig. 5D and E). In contrast, neither of these knockdown noticeably affected the activation status of FAK and ERKs when the D2A1 cells were growing as a monolayer (Fig. 5E). Moreover, the reduced proliferation under MoT culture conditions of both Rif-knockdown and mDia2-knockdown D2A1 cells was reversed by the concomitant expression of the constitutively active CD2-FAK in these cells (Fig. 5F; Supplementary Fig. S11C). Hence, Rif/mDia2-dependent formation of FLPs in cells propagated under MoT culture conditions contributes to the proliferation of these cells largely, if not entirely, by promoting the assembly of integrin β1-containing elongated adhesion plaques, thereby facilitating FAK activation.

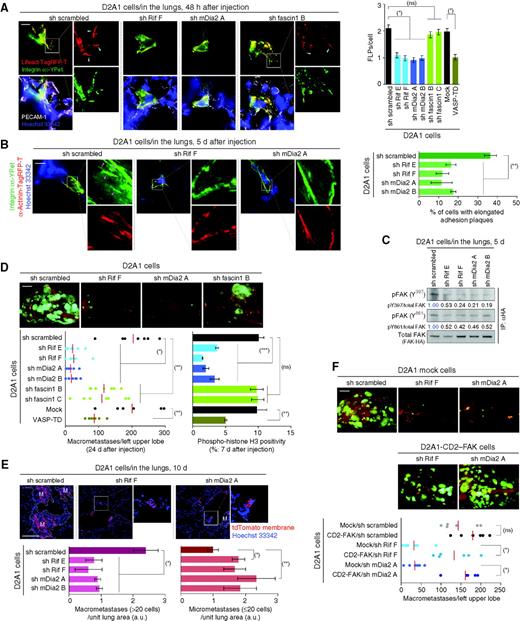

We also examined the role of Rif/mDia2 signaling in the behavior of the D2A1 cells disseminated within the lungs. The efficiency of extravasation into the lung parenchyma was not noticeably affected by the knockdown of Rif or mDia2 expression (Supplementary Fig. S12A and S12B). However, both the Rif-knockdown and mDia2-knockdown cells exhibited significantly reduced (48%–57%) numbers of FLPs compared with the control cells shortly after these cells had infiltrated into the lung parenchyma (Fig. 6A). This was associated with impaired development of elongated adhesion plaques, reduced levels of FAK phosphorylation on Y397 and Y861, as well as decreased proliferation rates (Fig. 6B–D). These observations indicated a functional connection between Rif/mDia2-dependent FLP formation and proliferation in the D2A1 cells that had extravasated into the lung parenchyma. Importantly, Rif- and mDia2-knockdown cells ultimately developed 8.2- to 13.2-fold reduced numbers of macroscopic metastases in the lungs relative to the control D2A1 cells injected in parallel, as examined 24 days after the injection (Fig. 6D).
We also examined in detail the lung sections that were harvested 10 days after the injection. Here again, the knockdown of Rif or mDia2 expression in the D2A1 cells decreased (2.5- to 3.9-fold) the numbers of macroscopic metastases (>20 cells per colony) that were observed in these sections (Fig. 6E). Interestingly, however, the numbers of microscopic metastases (≤20 cells per colony), which were composed mostly (>90%) of viable but nonproliferating cells (Supplementary Fig. S13A), were actually increased (1.7- to 2.3-fold) by these knockdowns (Fig. 6E). Collectively, these observations indicated that the knockdown of Rif or mDia2 expression diminishes the ability of the otherwise aggressive D2A1 cells to proliferate rapidly following extravasation into the lung parenchyma, thereby forcing these cells to remain quiescent in the lung tissue without apparently dying or proliferating.
The inhibitory effect of Rif or mDia2 knockdown on macroscopic lung metastasis formation was also observed following the tail vein injection of TS/A mouse mammary carcinoma cells (Supplementary Figs. S11D–S11F and S13B), whereas these knockdowns did not discernibly affect the proliferation of these cells in monolayer culture (Supplementary Fig. S11F). Hence, multiple metastasis-competent cell types rely on Rif/mDia2 signaling for efficiently colonizing the lung tissue. We also found that the ability of Rif- and mDia2-knockdown D2A1 cells to form macroscopic lung metastases could be partially restored by ectopically expressing the constitutively active CD2–FAK fusion protein in these cells (Fig. 6F). This supported the role of FAK as a key signaling mediator connecting Rif/mDia2-dependent FLP formation and the development of macroscopic metastases (Fig. 7A).
We proceeded to further substantiate the causal connection between the formation of FLPs and proliferation by extravasated cancer cells. To do so, we tested the effects of other strategies that simultaneously blocked FLP formation and proliferation in the D2A1 cells growing under the MoT conditions of culture: these included the knockdown of Cdc42 expression as well as the expression of dominant-negative constructs for the Cdc42 (Cdc42 T17N; ref. 31) or Ena/VASP proteins (VASP-TD; Fig. 5A and B; Supplementary Fig. S14A–S14D). Here again, we observed that all 3 manipulations concomitantly impaired the FLP-forming ability and proliferation potential of the D2A1 cells that were infiltrated into the lung parenchyma following tail vein injection (Fig. 6A and D; Supplementary Fig. S15A–S15E). Moreover, these manipulated cells ultimately developed 57% to 72% fewer numbers of macroscopic lung metastases than did the control cells injected in parallel (Fig. 6D; Supplementary Fig. S15D), whereas none of these manipulations noticeably affected the proliferation of the D2A1 cells in monolayer culture (Fig. 5B; Supplementary Fig. S14C).
In contrast, the knockdown of the expression of fascin1, an actin-bundling protein dispensable for the formation of FLPs under MoT conditions, also failed to block FLP formation by the extravasated D2A1 cells in the lung parenchyma (Figs. 5A and 6A). Moreover, fascin1 knockdown did not noticeably inhibit the proliferation of the D2A1 cells within the lung tissue (Fig. 6D; Supplementary Fig. S15F). These observations lent further support to the model that the formation of FLPs by disseminated cancer cells contributes critically to metastatic colonization.
We also asked whether the enforced activation of Rif or mDia2 in the otherwise nonaggressive D2.0R and D2.1 cells enabled them to extend abundant FLPs, thereby ultimately allowing these cells to proliferate rapidly under MoT culture conditions in vitro and within the lung parenchyma in vivo (Supplementary Figs. S16A–S16E and S17A). As expected, the ectopic expression of the constitutively active mutant of Rif or mDia2 (Rif Q77L and mDia2 M1041A) enabled the D2.0R and D2.1 cells to form abundant actin-rich protrusions under MoT conditions of culture, which were morphologically indistinguishable from FLPs formed naturally by the aggressive D2A1 cells (Supplementary Fig. S16A). However, these manipulated D2.0R and D2.1 cells subsequently failed to develop abundant elongated adhesion plaques containing integrin β1 and they exhibited only modest, if any, increases in the rate of proliferation under MoT culture conditions relative to the respective control cells (Supplementary Fig. S16C and S16D). Moreover, the expression of Rif Q77L and mDia2 M1041A did not noticeably enhance the ability of the D2.0R and D2.1 cells to form macroscopic lung metastases following tail vein injection (Supplementary Fig. S17A). Collectively, these observations indicated that the formation of FLPs is necessary but not sufficient to enable the rapid proliferation of cancer cells under MoT culture conditions in vitro and within the lung parenchyma in vivo.
The Role of Rif/mDia2 Signaling in Tumor Progression

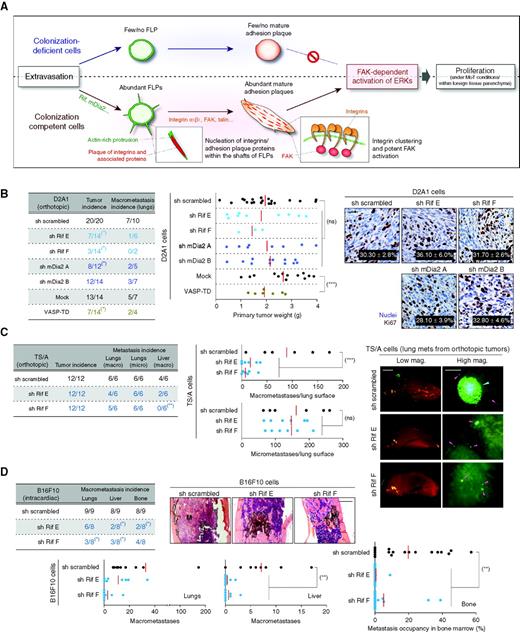

We proceeded to determine whether the proteins that were involved in the formation of FLPs also contributed to primary tumor formation. Accordingly, we implanted Rif- and mDia2-knockdown D2A1 cells orthotopically in mouse mammary fat pads. We observed that the sizes of the resulting primary tumors were not noticeably affected by these knockdowns (Fig. 7B). Moreover, the control, Rif-, and mDia2-knockdown D2A1 cells exhibited comparable rates of proliferation within these established tumors (Fig. 7B).
We also examined the effects of Rif knockdown on the spontaneous metastasis from the orthotopically implanted tumors generated by TS/A cells, which usually spawn large numbers of metastases in both the lungs and liver. As was the case with D2A1 cells, the orthotopically implanted control and Rif-knockdown TS/A cells yielded primary tumors of similar sizes, within which these cells exhibited comparable proliferation rates regardless of the knockdown of Rif expression (Fig. 7C; Supplementary Fig. S17B). In contrast, Rif knockdown led to substantially decreased numbers of macrometastases spawned by the TS/A primary tumors, not only in the lungs (81%–92% decrease) but also in the liver (87%–100%; Fig. 7C; Supplementary Fig. S17B).
These observations pointed to a profound difference in the mechanisms governing the proliferation of cancer cells within already-established primary tumors and shortly after extravasating into the parenchyma of foreign tissues. Thus, the Rif- and mDia2-dependent mechanism of FLP formation is dispensable for the proliferation of cancer cells within the established primary tumors. However, it represents an important mechanism used by cancer cells to enable their proliferation soon after these cells directly confront the ECM environment within the foreign tissue parenchyma, specifically those of the lungs and liver (Fig. 7A).
We extended these findings by inhibiting FLP formation in B16F10 mouse melanoma cells (32), which efficiently generate macroscopic metastases in various organs following intracardiac injection (33). We found that macrometastasis formations by the intracardially injected B16F10 melanoma cells in the lungs, liver, and bone marrow were all significantly impaired by the knockdown of Rif expression in these cells (Fig. 7D). In contrast, the growth of primary tumors following subcutaneous implantation of the B16F10 cells were not noticeably affected by this knockdown (Supplementary Fig. S17C). These results supported the notion that Rif, and presumably other proteins involved in the formation of FLPs, contributes in critical ways to the establishment of macroscopic metastases in multiple target organs.
Systemic dissemination of cancer cells is frequently observed in patients with breast and prostate cancer. However, the numbers of disseminated cells clearly dwarf those of successfully formed metastases (34), provoking the question of why metastatic colonization is so inefficient. Clearly, enormous attrition of cancer cells occurs in the interval between the lodging of disseminated cells in microvessels and the establishment of macroscopic metastases (35).
We postulate that at least 3 impediments obstruct the path toward successful metastasis formation. First, cancer cells must enter the parenchyma of a foreign tissue, either by invading through capillary walls or by proliferating intraluminally and then rupturing the endothelium. Second, they must survive and initiate proliferation by establishing productive connections with the parenchymal ECM. Third, they must adapt to unfamiliar growth factor and cytokine environments to acquire mitogenic and trophic signals (36). Here, we have studied the second of these processes—how disseminated cells initiate proliferation after confronting the ECM environment of a foreign tissue parenchyma.
The findings presented here collectively prompt us to propose that in certain and perhaps many types of metastatic cells, the chain of processes governing the initial proliferation of cancer cells within the post-extravasation tissue parenchyma can be depicted as follows: formation of FLPs containing integrin β1 along the length of their shafts → recruitment of adhesion plaque proteins to these integrin β1–containing FLPs → assembly of elongated, mature adhesion plaques following the centripetal movement of integrin clusters → FAK activation within these mature adhesion plaques → FAK-dependent activation of ERKs → cell proliferation (Fig. 7A).
The FLPs that enabled the rapid proliferation of extravasated cancer cells morphologically resemble filopodia extended by monolayer-cultured cells: both are actin-rich protrusions exhibiting finger-like shapes. However, there are also important distinctions between filopodia and FLPs. Thus, while integrin β1 is enriched at the tips of filopodia, this integrin subunit was found to be distributed evenly along the shafts of FLPs (Fig. 4A). In addition, we observed a profound difference in the lifetime of these 2 types of protrusions: whereas 80% of filopodia retracted within 30 minutes after initial extension, the majority (>90%) of FLPs survived longer than 60 minutes (Fig. 4C; Supplementary Movies S1 and S2). The detailed relationship of FLPs to the filopodia formed by monolayer-cultured cells awaits future study.
The set of cytoskeleton-regulatory proteins involved in the formation of FLPs following extravasation overlaps partially with those that regulate invasiveness, an attribute essential for completing an earlier step of the invasion-metastasis cascade (37). Thus, Cdc42 and mDia2, 2 important regulators of FLP formation (Fig. 5A), are also involved in fibroblast invasion through collagen matrices and kidney epithelial cell migration, respectively (38, 39). However, we also found considerable differences between the mechanism controlling invasiveness and the one regulating FLP formation. Thus, the knockdown of Rif expression, which efficiently blocks the formation of FLPs by the D2A1 cells within the lung parenchyma, did not noticeably affect their invasiveness through the Boyden chamber (data not shown). Moreover, FLPs formed under MoT culture conditions are organized differently from invadopodia—protrusions that are formed by cells propagated above a film of ECM and are thought to contribute to cancer cell invasiveness (Supplementary Fig. S9B; ref. 40). This reinforces the notion that cancer cells use distinct sets of actin-regulating proteins in executing the different steps of the invasion-metastasis cascade.
By studying further the role of the protein regulators of FLP formation in controlling cancer cell behaviors, we found that these proteins were dispensable for the continuous proliferation of cancer cells within already-established primary tumors (Fig. 7B; Supplementary Fig. S17B). This would suggest, in turn, that during the progression of primary tumors, the acquired ability to extend abundant FLPs is unlikely to be selectively advantageous to the cells within these tumors. Moreover, as described above, cancer cell invasion from the primary tumors appears to be governed by a set of actin-regulating proteins distinct from those enabling abundant FLP formation. Collectively, these observations might provide an explanation for the inability of the majority of cancer cells to initiate proliferation after leaving the primary site and infiltrating into the parenchyma of foreign tissues, where the ability of FLP formation is indeed critical to the initiation of proliferation.
The present study leaves several significant issues unresolved. These include the molecular determinants of the differing abundance of FLPs among the various populations of the D2 cells. In addition, we also found a reduced incidence of primary tumors following the orthotopic implantation of cells that have been manipulated to block the formation of FLPs. Thus, manipulations that block FLP formation, including the knockdown of either Rif or mDia2 expression, as well as the overexpression of the dominant-negative Cdc42 T17N, all significantly reduced the incidence of primary tumors by orthotopically implanted D2A1 cells (12- to 1,400-fold decreases in the estimated frequency of tumor-initiating cells; data not shown). This suggests, but does not prove, that the molecular machinery governing the formation of FLPs in the micrometastatic cancer cells also contributes critically to the initial establishment of primary tumors after orthotopic implantation of certain types of cancer cells. These issues will be addressed in a subsequent study.
The lentiviral vectors expressing protein-coding DNA sequences used in this study were generated using pLV-IRES-neo (10), pLV-IRES-puro, or pLV-IRES-EGFP as a backbone. pLKO-puro was used as backbones for the lentiviral vectors expressing short hairpin RNAs.
Mouse mammary carcinoma D2 cell lines (D2.0R, D2.1, and D2A1) and TS/A cell line were gifts from F.R. Miller and P.L. Lollini, respectively (7, 41). Human mammary carcinoma cell lines MCF10A, Sum1315, Sum149, and Sum159 were gifts from S.P. Ethier (42, 43). All cells were maintained as described previously (10, 41, 44). Human mammary carcinoma cell lines BT474, BT549, MCF7, MDA-MB-157, -231, -436, -453, -468, SK-BR-3, T47D, and ZR-75-1, as well as mouse melanoma cell line B16F10, were obtained from American Type Culture Collection and maintained according to the provider's protocol. The preparation and maintenance of human mammary epithelial cell lines HME, HMLER, and BPLER were described previously (45, 46). The human mammary carcinoma cell lines MCF10A, Sum149, Sum159, BT474, BT549, MCF7, MDA-MB-157, -231, -453, -468, SK-BR-3, and T47D, as well as the human mammary epithelial cell lines used here, were authenticated by microarray analysis. The other human mammary carcinoma cell lines, as well as the mouse cell lines used here, were not passaged more than 6 months after receipt.
Statistical analyses were conducted by use of the Student t test, unless otherwise indicated.
